Using Divi’s Transform Options to Create Expanding Section Content on Hover

Today, we’re going to highlight the transform scale design option that comes with Divi’s new transform options. More so, we’re going to recreate a stunning design that allows sections to expand on hover in an elegant way.

You can use this design for any kind of website you’re creating. It’ll help you share relevant content in a structured and minimal way.  At the end of this tutorial, you’ll be able to download the entire page layout for free.

Let’s get to it!

Preview

Before we dive into the tutorial, let’s take a quick look at the outcome across different screen sizes.

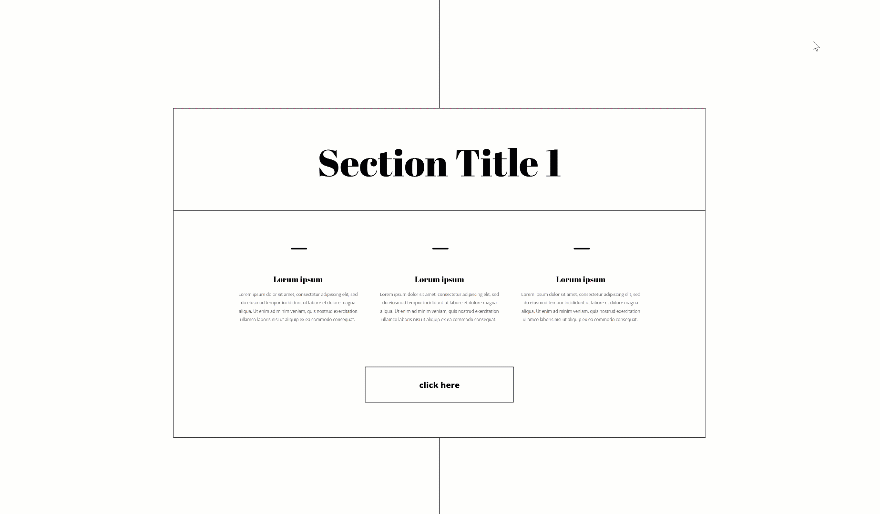

Desktop

expanding section content

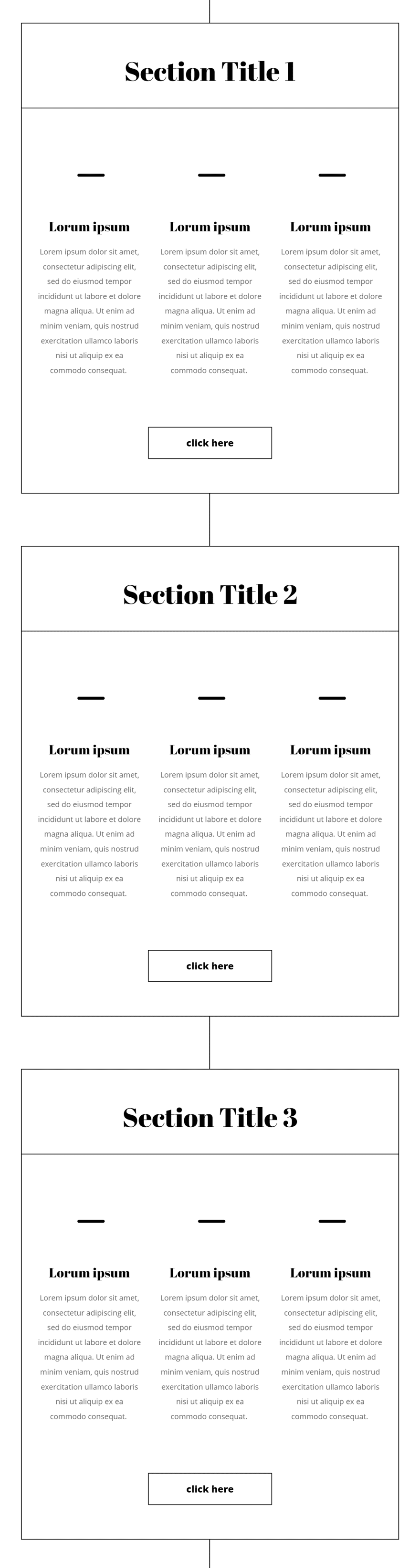

Mobile

expanding section content

Let’s Start Recreating!

Add Section #1

Spacing

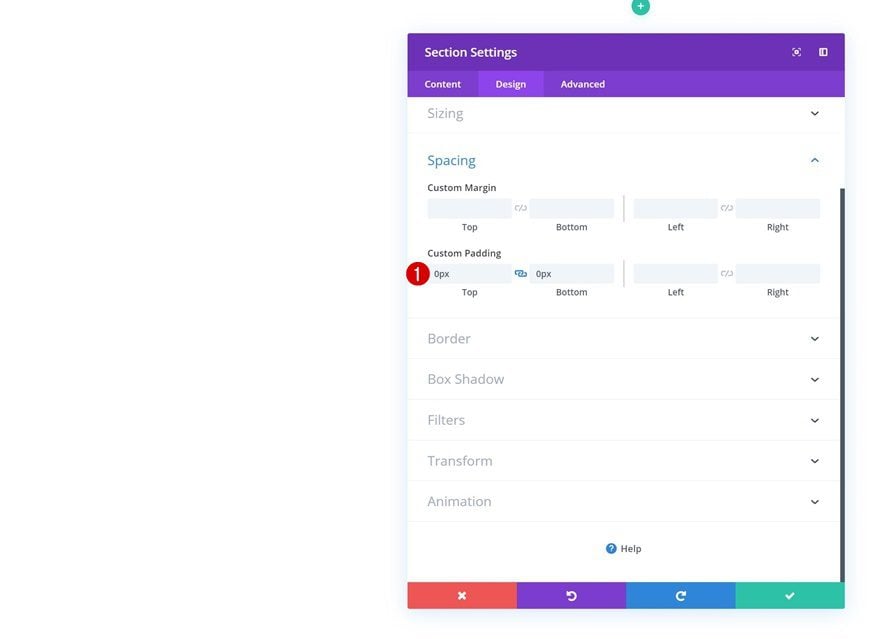

Start by creating a new page. Add your first regular section to the page, open the section settings and remove all default top and bottom padding in the spacing settings.

  • Top Padding: 0px
  • Bottom Padding: 0px

expanding section content

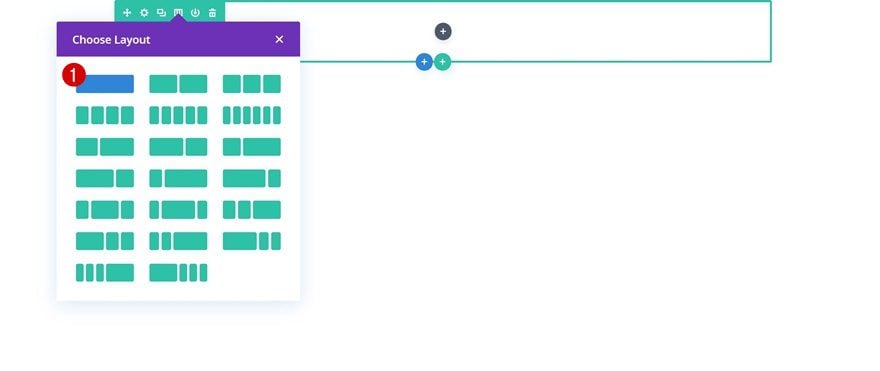

Add New Row

Column Structure

Continue by adding the first row using the following column structure:

expanding section content

Sizing

Without adding any modules yet, open the row settings and allow the row to take up the entire width of the screen.

  • Use Custom Gutter Width: Yes
  • Gutter Width: 1
  • Width: 100%
  • Max Width: 100%

Spacing

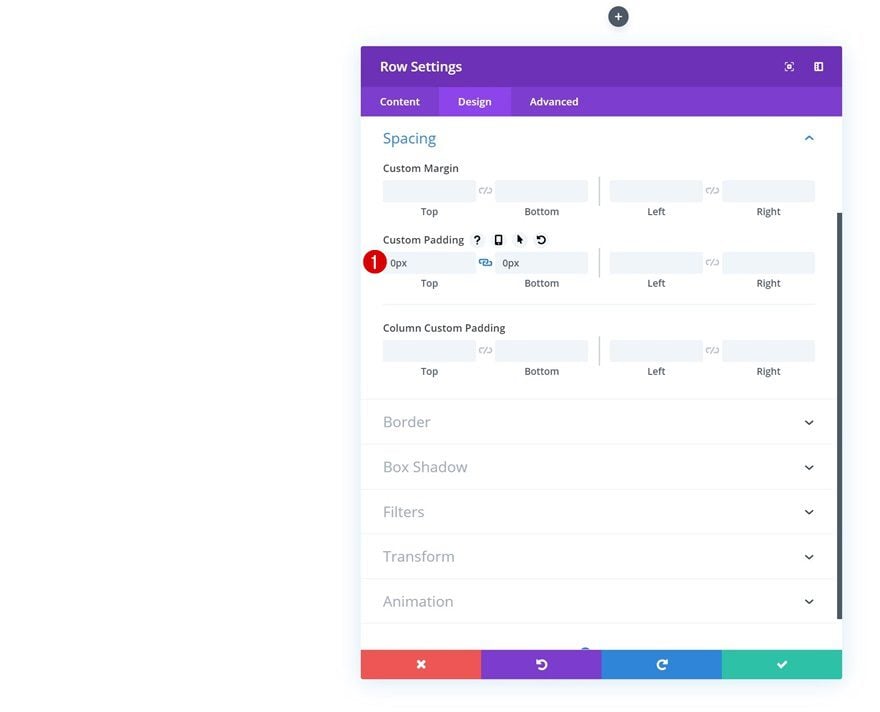

Remove all default top and bottom padding as well. We’re doing this to limit the space that will be taken up by the row and section.

  • Top Padding: 0px
  • Bottom Padding: 0px

expanding section content

Add Divider Module

Visibility

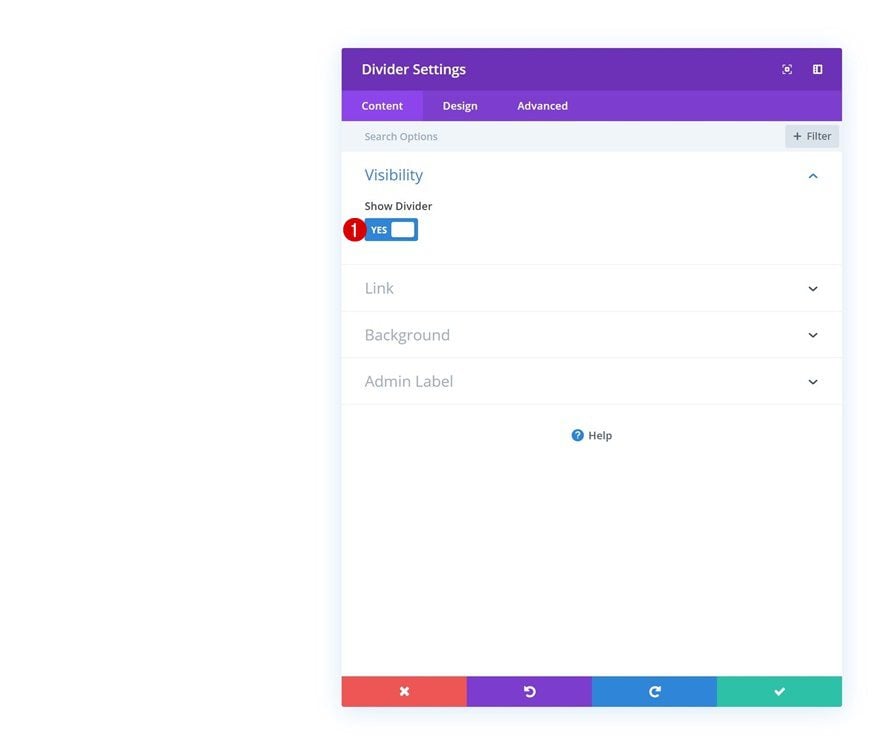

The only module we need in this row is a Divider Module. At the end of this tutorial, we’ll transform the divider into a vertical one that’ll connect all upcoming sections. Once you’ve added the Divider Module, make sure the ‘Show Divider’ option is enabled.

  • Show Divider: Yes

expanding section content

Color

Then, go to the design tab and change the color of the divider into black.

  • Color: #000000

expanding section content

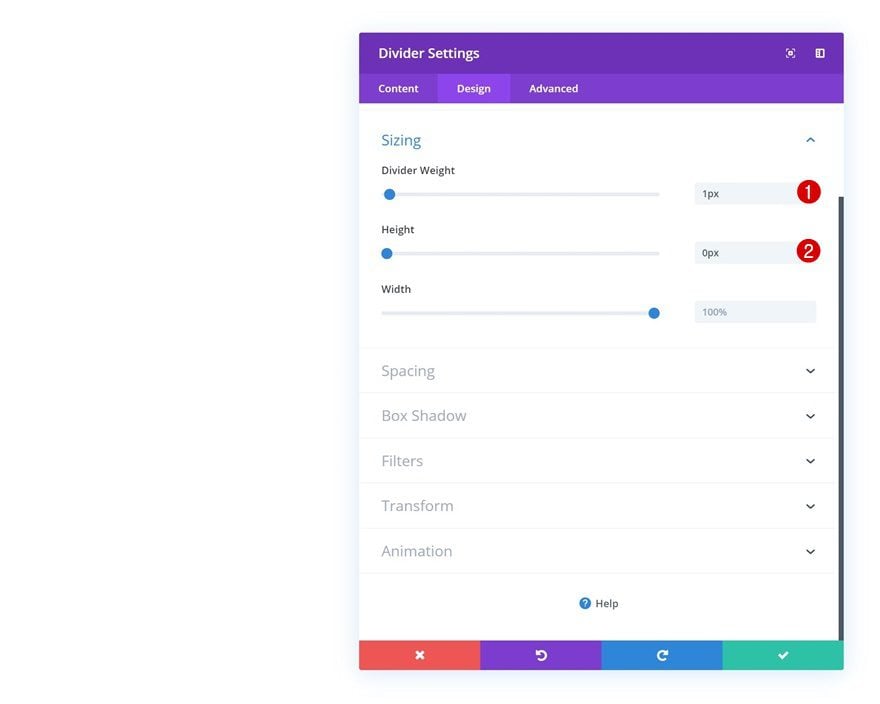

Sizing

Modify the sizing values as well.

  • Divider Weight: 1px
  • Height: 0px

expanding section content

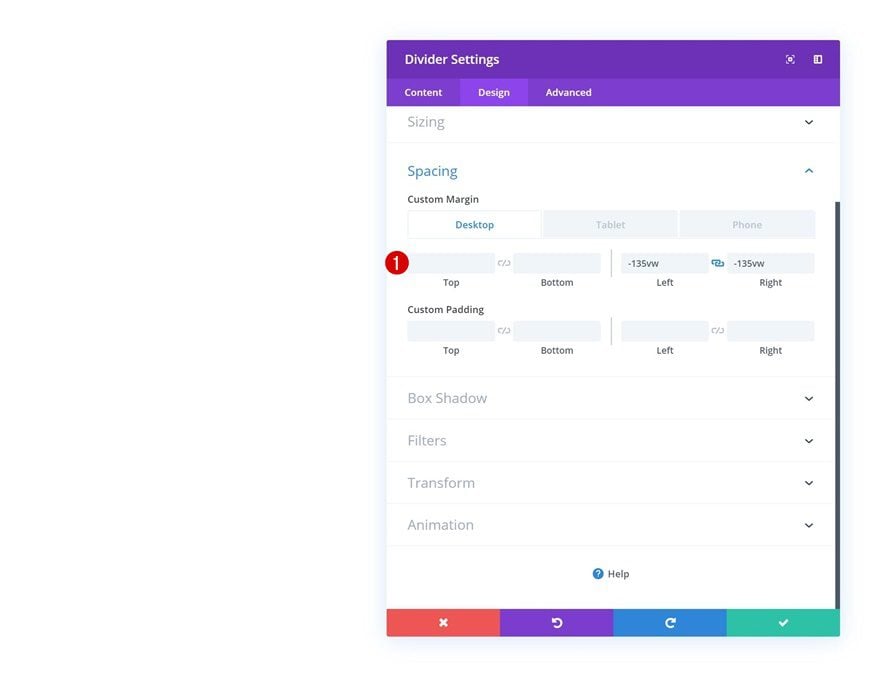

Spacing

And increase the length of the divider by adding some negative left and right margins.

  • Left Margin: -135vw (Desktop), -300vw (Tablet), -340vw (Phone)
  • Right Margin: -135vw (Desktop), -300vw (Tablet), -340vw (Phone)

expanding section content

Add Section #2

Background Color

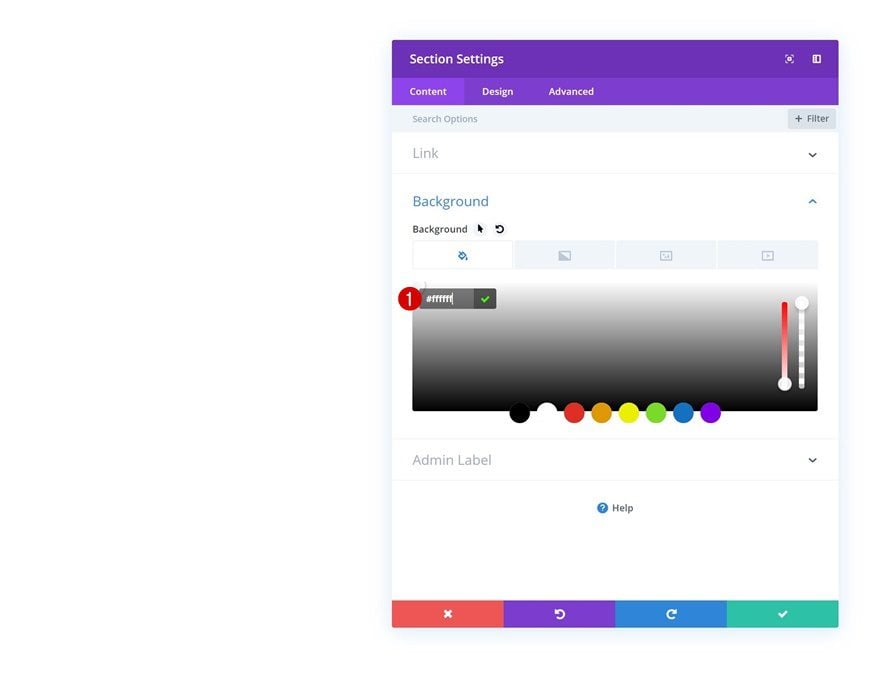

On to the next regular section! Once you’ve added the new section, open the section settings and add an entirely white background color.

  • Background Color: #ffffff

expanding section content

Spacing

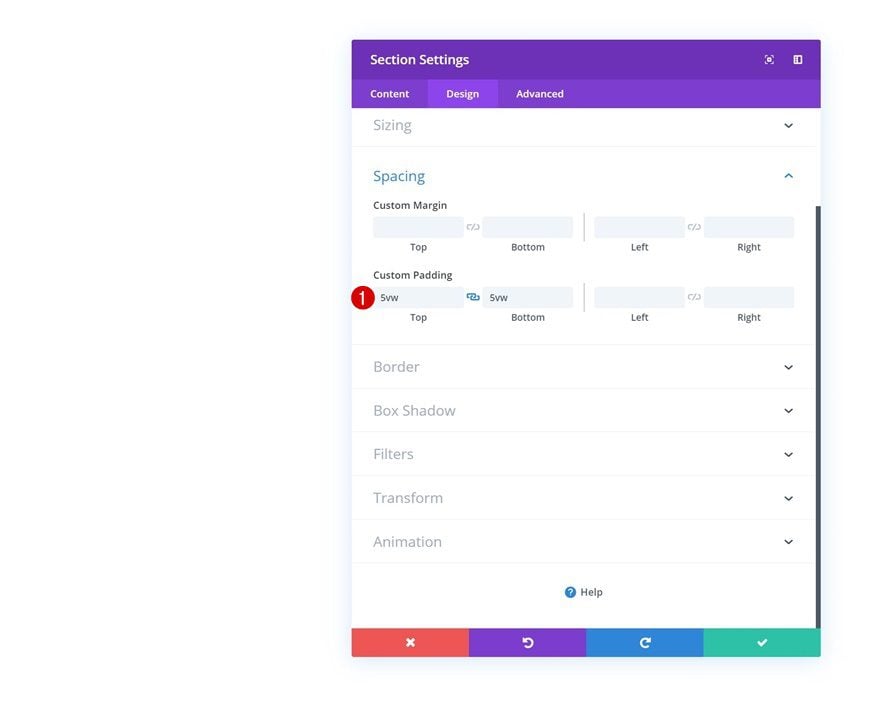

Then, go to the spacing settings and add some custom top and bottom padding.

  • Top Padding: 5vw
  • Bottom Padding: 5vw

expanding section content

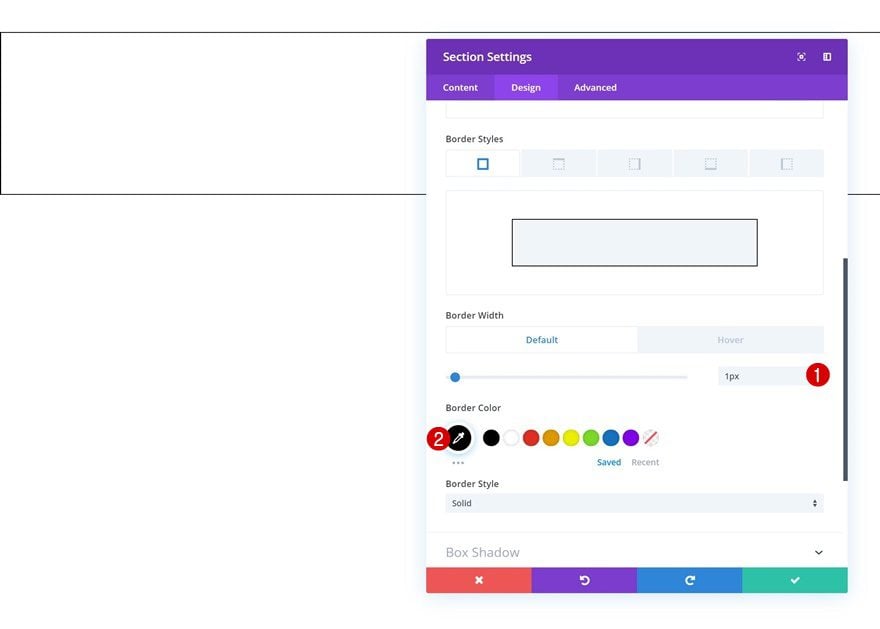

Default Border

Add a border to the section as well.

  • Border Width: 1px
  • Border Color: #000000

expanding section content

Hover Border

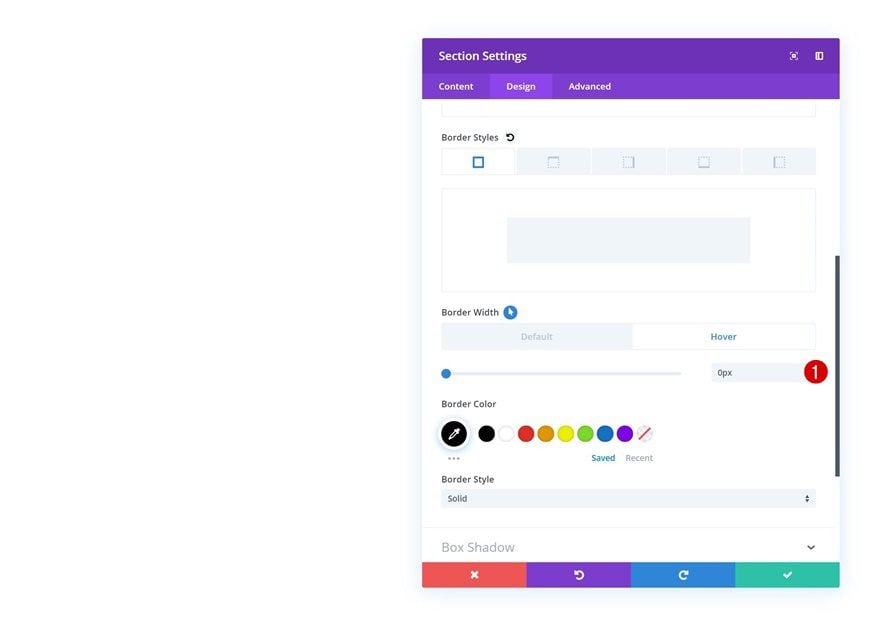

And remove the border width on hover.

  • Border Width: 0px

expanding section content

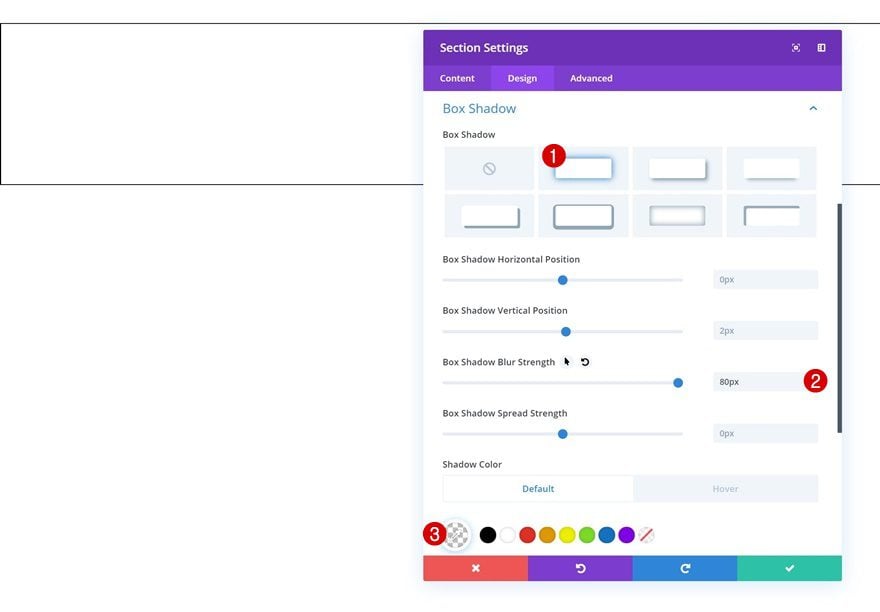

Default Box Shadow

We’re also adding a box shadow on hover. To do that, we’ll need to add a default one first. To make sure the box shadow doesn’t show up by default, we’re using an entirely transparent shadow color.

  • Box Shadow Blur Strength: 80px
  • Shadow Color: rgba(0,0,0,0)

expanding section content

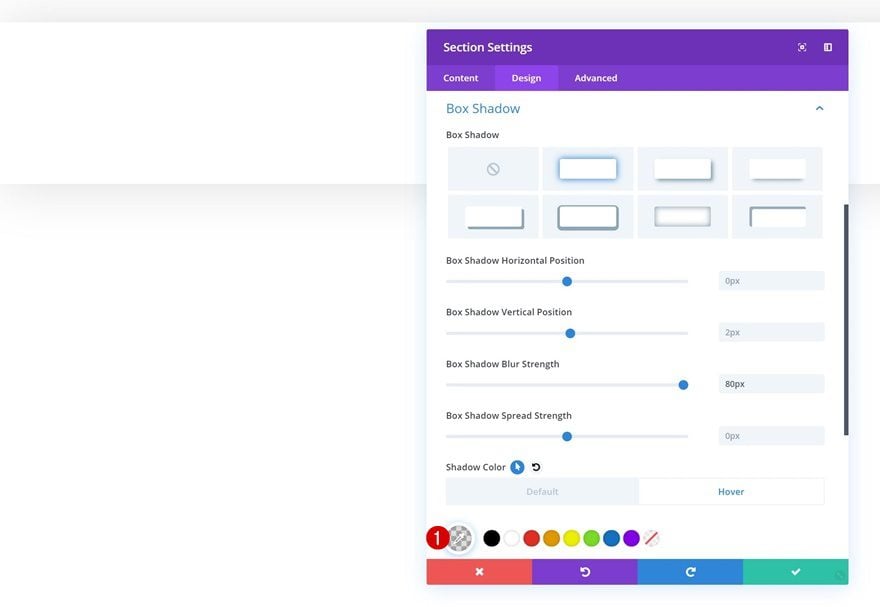

Hover Box Shadow

Change the shadow color on hover using the following color code:

  • Shadow Color: rgba(0,0,0,0.13)

expanding section content

Add Row #1

Column Structure

Continue by adding the first row to the section using the following column structure:

expanding section content

Sizing

Without adding any modules yet, open the row settings and allow the row to take up the entire width of the section.

  • Use Custom Gutter Width: Yes
  • Gutter Width: 1
  • Width: 100%
  • Max Width: 100%

Add Text Module

Add H2 Content

Time to start adding modules! The first module we need is a Text Module with some H2 content.

expanding section content

H2 Text Settings

Go to the design tab and modify the H2 text settings according to your own preference.

  • Heading 2 Font: Abril Fatface
  • Heading 2 Text Alignment: Center
  • Heading 2 Text Color: #000000
  • Heading 2 Text Size: 7vw

expanding section content

Spacing

Add some custom margin values as well.

  • Bottom Margin: 5vw
  • Left Margin: 5vw
  • Right Margin: 5vw

expanding section content

Add Divider Module

Visibility

The next and last module we need in this row is a Divider Module. Make sure the ‘Show Divider’ option is enabled.

  • Show Divider: Yes

expanding section content

Color

Then, go to the design tab and change the divider color into black.

  • Color: #000000

expanding section content

Add Row #2

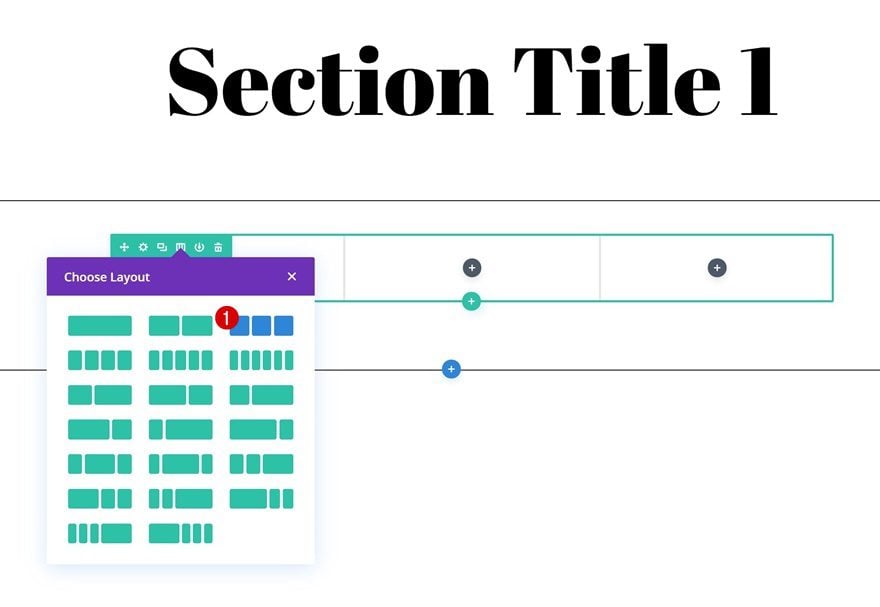

Column Structure

On to the second row! Use the following column structure:

expanding section content

Sizing

We’re, again, making sure the row takes up the entire width of the screen by modifying the sizing settings in the design tab.

  • Use Custom Gutter Width: Yes
  • Gutter Width: 1
  • Width: 100%
  • Max Width: 100%

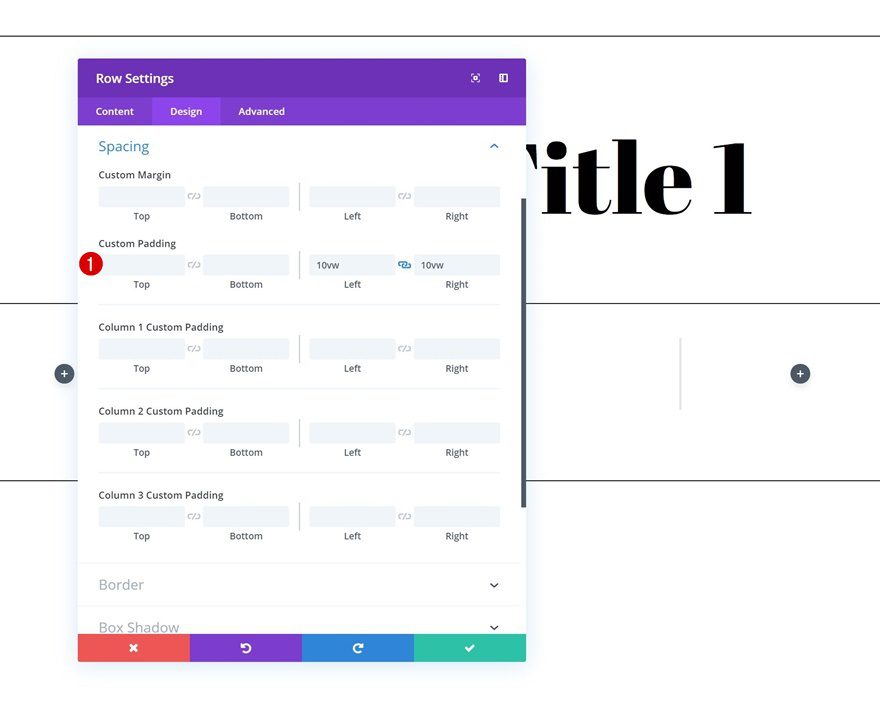

Spacing

We’re also slightly shrinking the size of the row by adding some custom left and right padding in the spacing settings.

  • Left Padding: 10vw
  • Right Padding: 10vw

expanding section content

Display

To make sure all three columns show up next to each other on smaller screen sizes, we’re going to add one single line of CSS code to the main element of the row.

display: flex;

expanding section content

Add Blurb Module to Column 1

Add Content

Continue by adding a Blurb Module to the first column of the row. Enter some content of your choice.

expanding section content

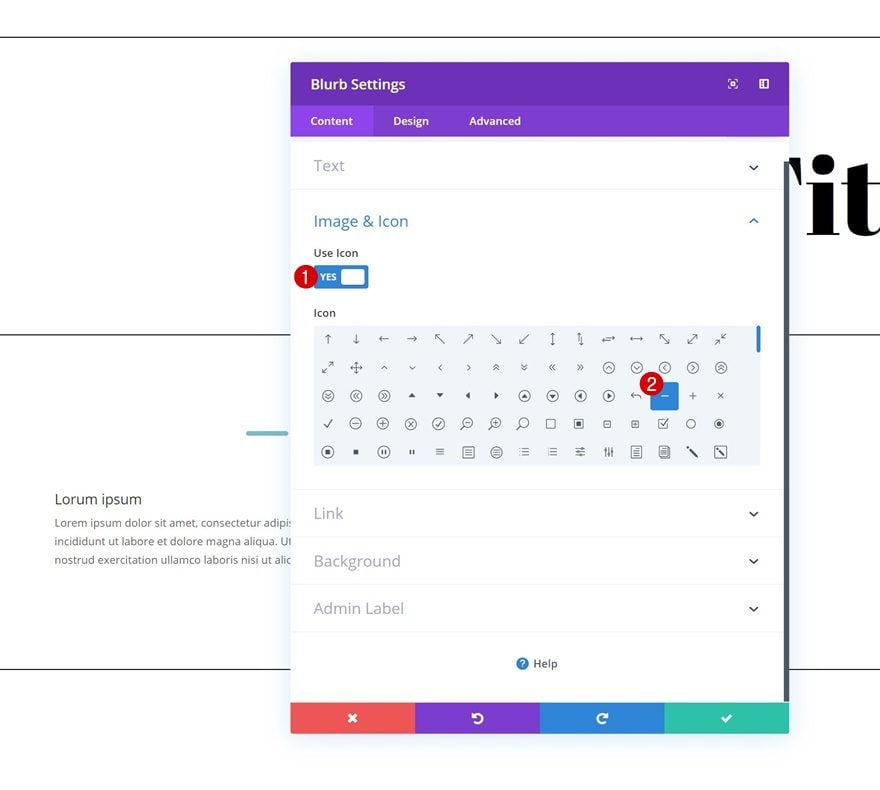

Select Icon

Select an icon next.

expanding section content

Icon Settings

Then, go to the design tab and change the icon color.

  • Icon Color: #000000

expanding section content

Title Text Settings

Move on to the title text settings and change the settings according to your own preference.

  • Title Font: Abril Fatface
  • Title Text Alignment: Center
  • Title Text Color: #000000
  • Title Text Size: 1.5vw (Desktop), 2.5vw (Tablet), 3.5vw (Phone)
  • Title Line Height: 2em

expanding section content

Body Text Settings

Do the same thing for the body text settings.

  • Body Font: Open Sans
  • Body Text Alignment: Center
  • Body Text Color: #666666
  • Body Text Size: 0.8vw (Desktop), 1.5vw (Tablet), 2vw (Phone)
  • Body Line Height: 2em

expanding section content

Spacing

Last but not least, add some custom left and right margin to the Blurb Module.

  • Left Margin: 2vw
  • Right Margin: 2vw

expanding section content

Clone Blurb Module Twice & Place in Remaining Columns

Once you’re done customizing the Blurb Module, you can go ahead and clone it twice. Place the duplicates in the two remaining columns of the row.

expanding section content

Add Row #3

Column Structure

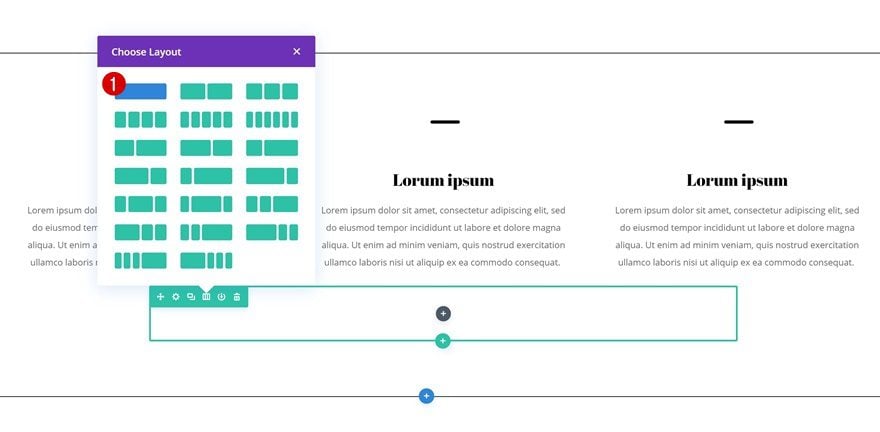

On to the next and last row. Choose the following column structure for it:

expanding section content

Sizing

Without adding any modules yet, open the row settings and allow the row to take up the entire width of the section by modifying the sizing settings.

  • Use Custom Gutter Width: Yes
  • Gutter Width: 1
  • Width: 100%
  • Max Width: 100%

Add Button Module

Add Content

The only module we need here is a Button Module. Add some copy of your choice.

expanding section content

Alignment

Then, go to the design tab and change the button alignment.

  • Button Alignment: Center

expanding section content

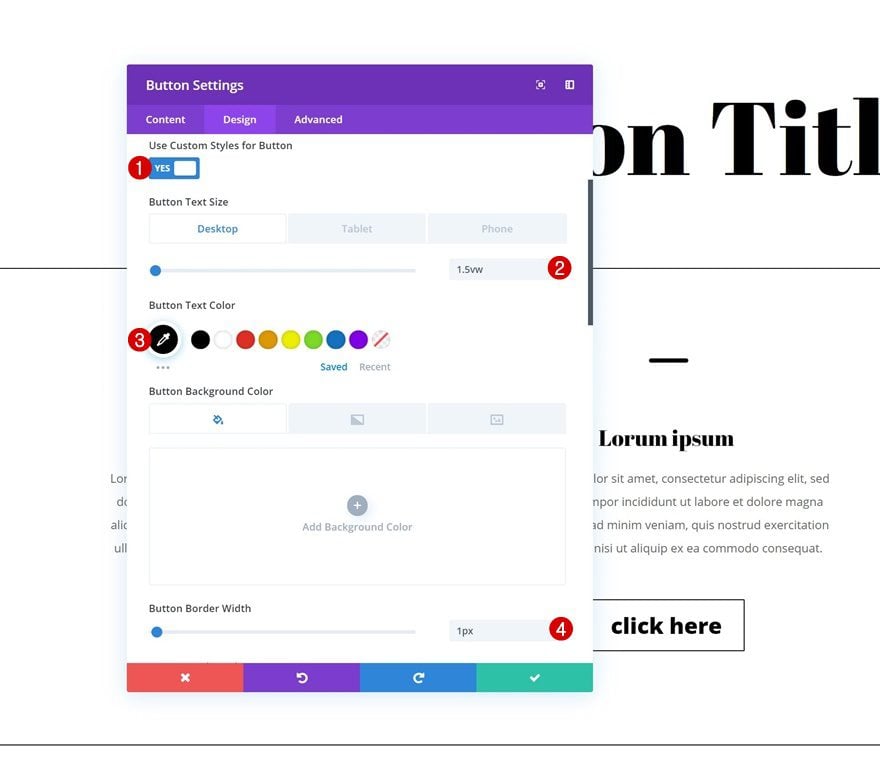

Button Settings

Change the button settings next.

  • Use Custom Styles for Button: Yes
  • Button Text Size: 1.5vw (Desktop), 2.5vw (Tablet & Phone)
  • Button Text Color: #000000
  • Button Border Width: 1px
  • Button Border Color: #000000
  • Button Border Radius: 1px
  • Button Font: Open Sans
  • Font Weight: Ultra Bold

expanding section content

expanding section content

Spacing

And create a shape for the button using some custom margin and padding values.

  • Top Margin: 5vw
  • Top Padding: 2vw
  • Bottom Padding: 2vw
  • Left Padding: 10vw
  • Right Padding: 10vw

expanding section content

Add Transform Settings to Section #2

Add Default Transform Scale to Section #2

Now that we’re done creating and modifying the two sections we’ve added to our page, we can start applying the transform options. Open section #2 and add some custom transform scale values.

  • Bottom: 60% (Desktop), 90% (Tablet & Phone)
  • Right: 60% (Desktop), 90% (Tablet & Phone)

expanding section content

Hover Transform Scale to Section #2

Modify these values on hover. Notice how we’re using the same value as we did for smaller screen sizes. Doing this will make sure the hover effect will only take place on larger screen sizes.

  • Bottom: 90%
  • Right: 90%

expanding section content

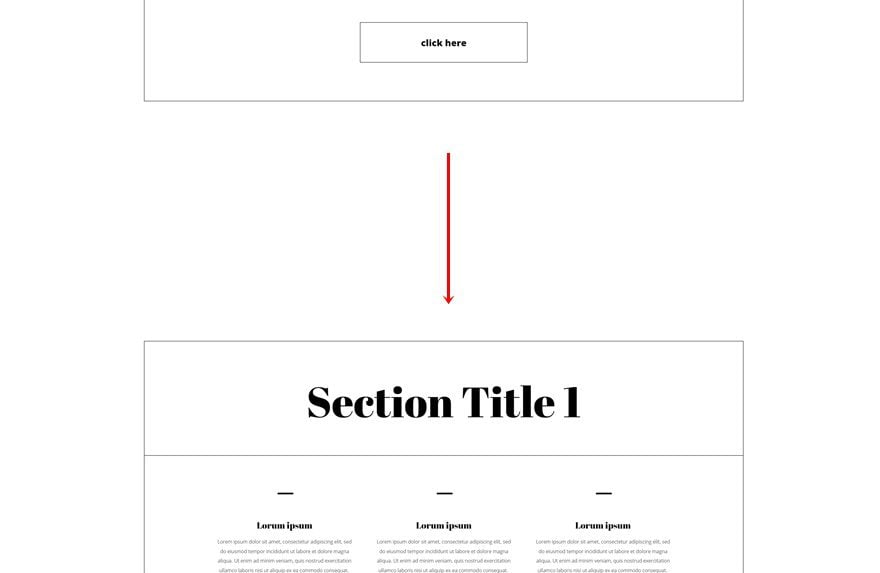

Clone Section Twice

Then, clone the second section twice (or up to as many times as you want).

expanding section content

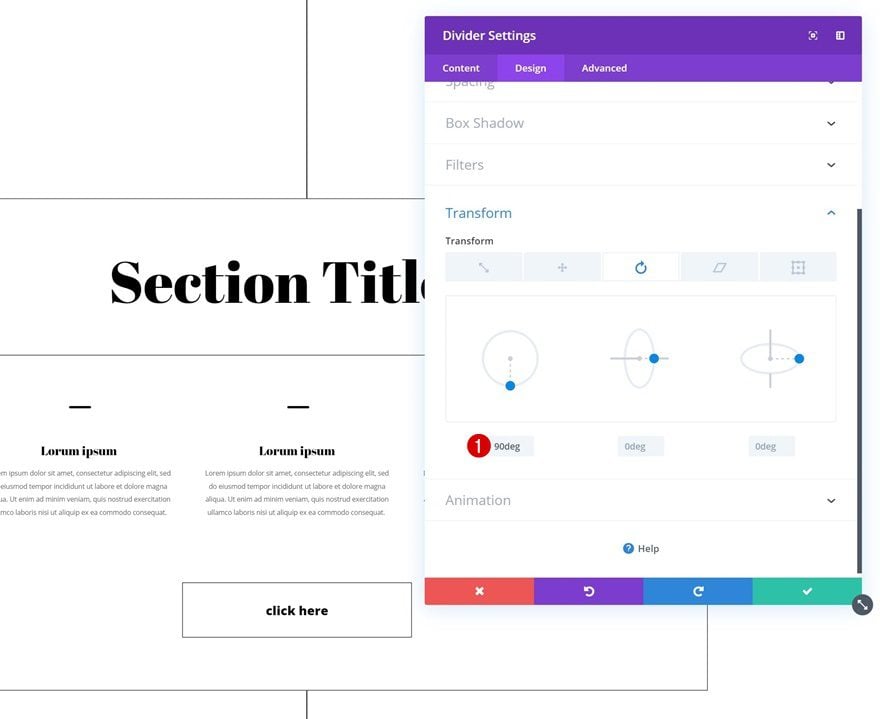

Add Transform Rotate to Divider Module in Section #1

And transform the divider you’ve added to the first section by playing around with the transform rotate value.

  • Left: 90deg

expanding section content

Download The Expanding Section Layout for FREE

To lay your hands on the expanding section layout, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our Divi Daily email list by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes.

Desktop

expanding section content

Mobile

expanding section content

Final Thoughts

In this tutorial, we’ve highlighted the transform scale option that comes with Divi’s new transform options. On top of that, we’ve recreated a stunning design that allows the hover effect to make sense and enhance the overall user experience people have when visiting the page. At the end of the tutorial, you were also able to download the entire layout for free. If you have any question or suggestions, feel free to leave a comment in the comment section below!
