How to Make Your Section Background Image Selectively Show Through with Divi

You can basically apply a background image to anything within the Divi Builder. Whether it’s a section, row, column or module, the possibilities are endless. And with blend modes, you can even make background images show through selectively. This allows you to make modules to connect with each other on another level. Where one module stops, the other module takes over. They don’t behave as separate elements anymore but, instead, help you get a view of the overall design.

In this tutorial, we’re going to show you, step by step, how you can connect modules with each other by making a section background show through the box shadow of your modules.

Let’s get to it!

Preview

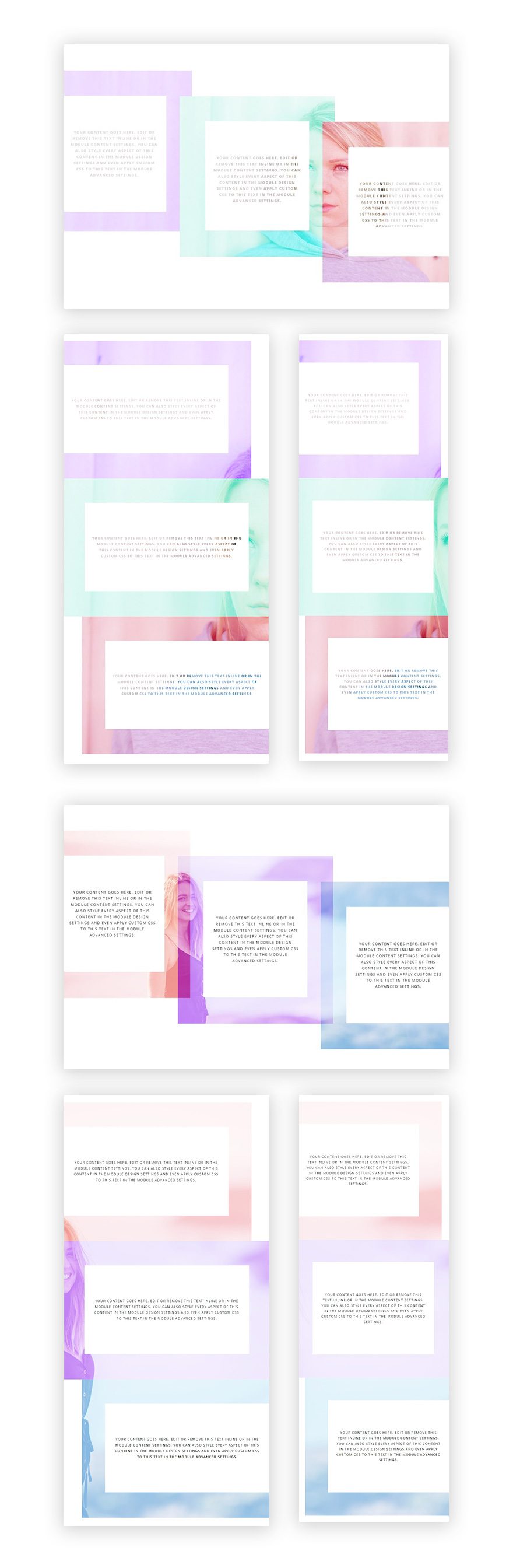

Before we dive into the tutorial, let’s take a quick look at the what we’ll recreate within this tutorial on different screen sizes.

section background

Approach

  • This approach only works only when using a white background color for your row & Text Modules
  • We’re using blend modes to make parts of the section background image appear
  • The two blend modes that allow this (in combination with a white row background color) are Screen & Hard Light
  • To cover up the entire section background, we’re making the row take up the entire width of the screen by changing the Sizing options
  • To get rid of the section background image at the top and bottom, we’ll also remove all of the top and bottom padding of our section
  • Both of these blend modes give a different effect (up to you to choose which one you prefer)
  • We’re using colored box shadows that’ll allow parts of the section background image to show through
  • You can apply this method to any module you want (if you give it a white background + colored box shadow)

Add a New Section

Background Image

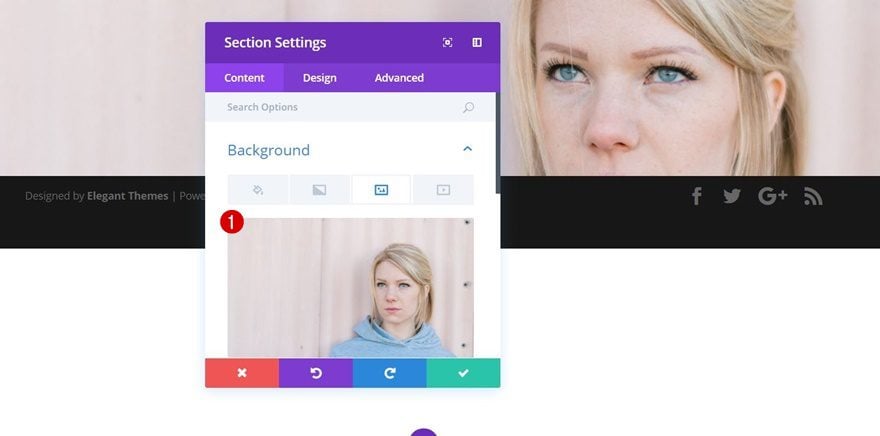

Let’s start by adding a new section to a new or existing page. The first thing you’ll need to do within your section settings is uploading a background image.

section background

Spacing

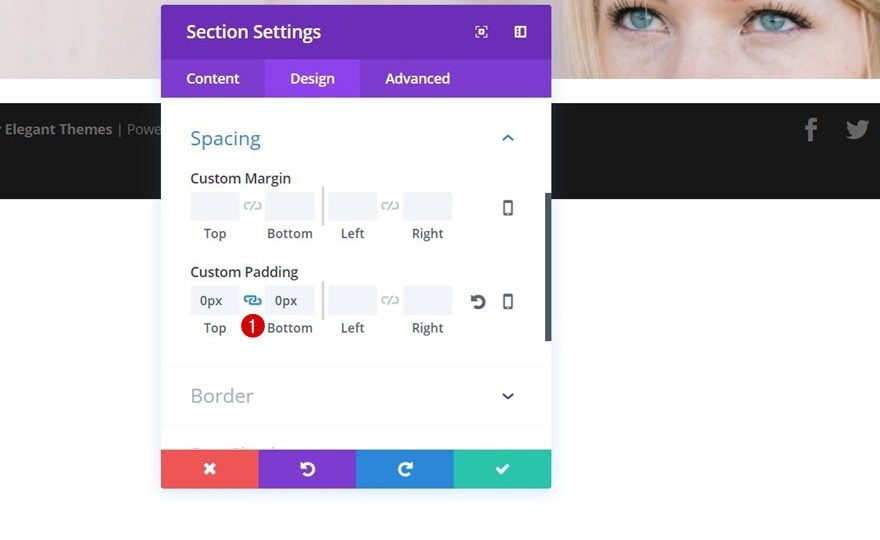

Then, move on to the Design tab and apply ‘0px’ to both the top and bottom padding of your section within the Spacing settings. This will get rid of the space between your section and the row you’re about to add in the next part.

section background

Add a New Row

Column Structure

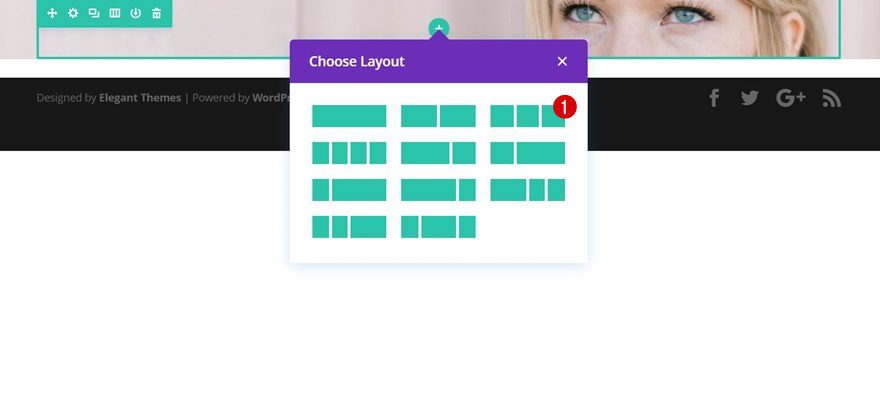

Continue by adding a row with the following column structure to your section:

section background

Background Color

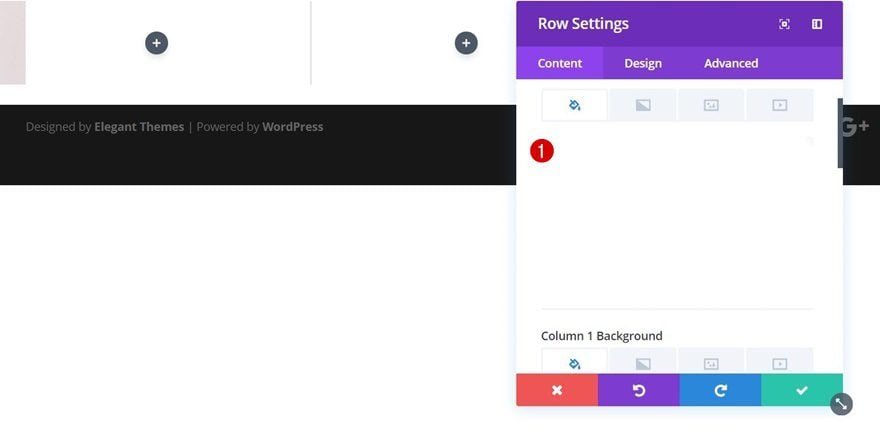

As mentioned in the approach of this blog post, you will definitely need to give your row a white background if you want it to work.

section background

Sizing

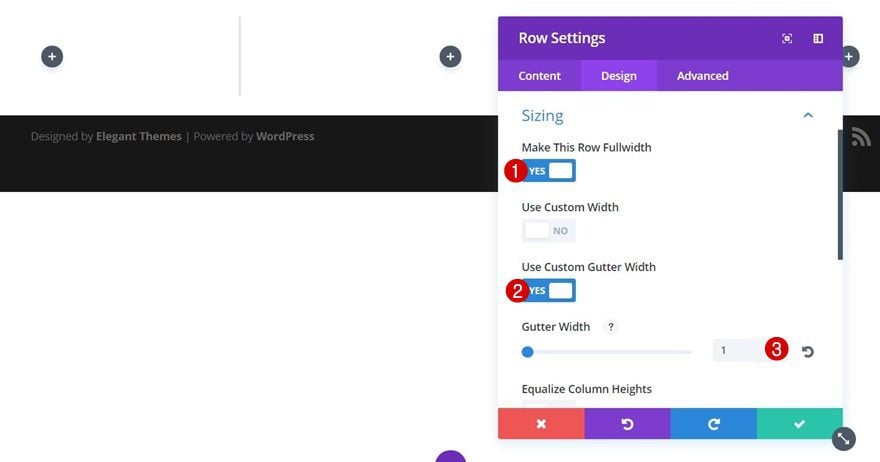

We’re also getting rid of the section background image that shows up on the left and right side of your row by using the following Sizing options:

  • Make This Row Fullwidth: Yes
  • Use Custom Gutter Width: Yes
  • Gutter Width: 1

section background

Spacing

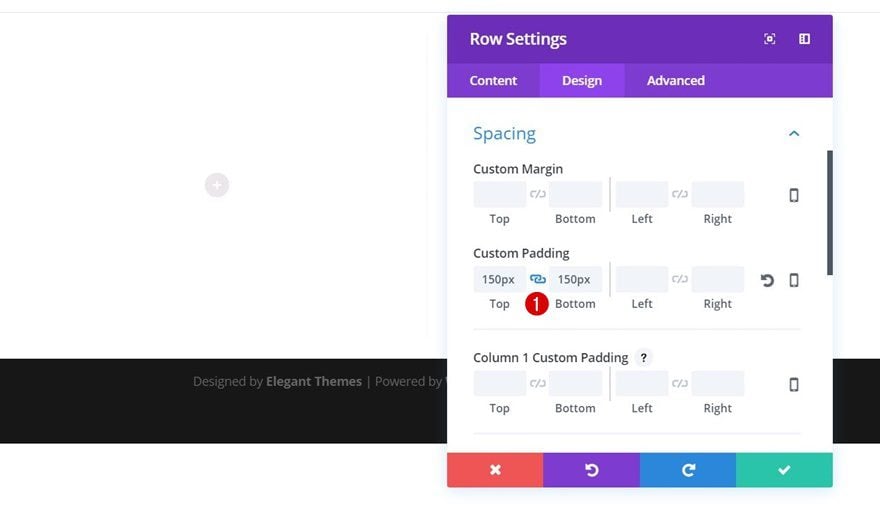

We’ve removed all of the top and bottom padding of our section. We do, however, need some space before and after our modules show up, that’s why we’ll add ‘150px’ to the top and bottom padding of the row instead.

section background

Blend Mode

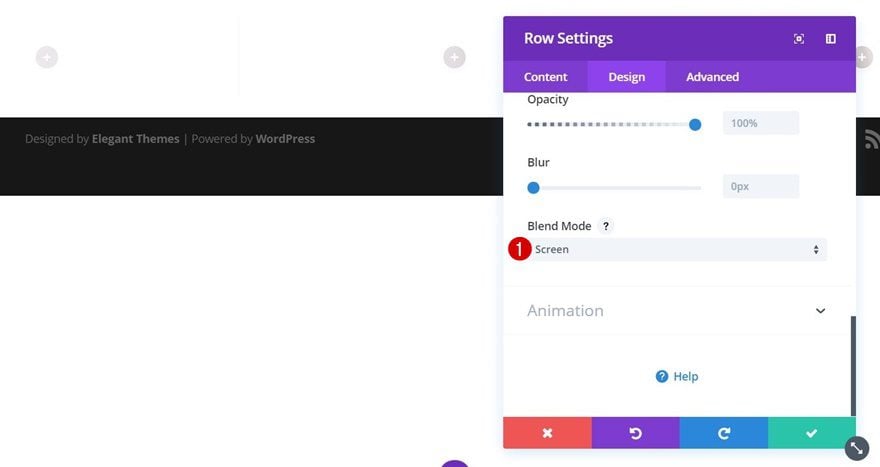

Both the ‘Screen’ and ‘Hard Light’ Blend Modes will make this design work. We’ll start with the ‘Screen’ Blend Mode which you can enable in the Filter options of your row settings.

section background

Add Text Module to Column 1

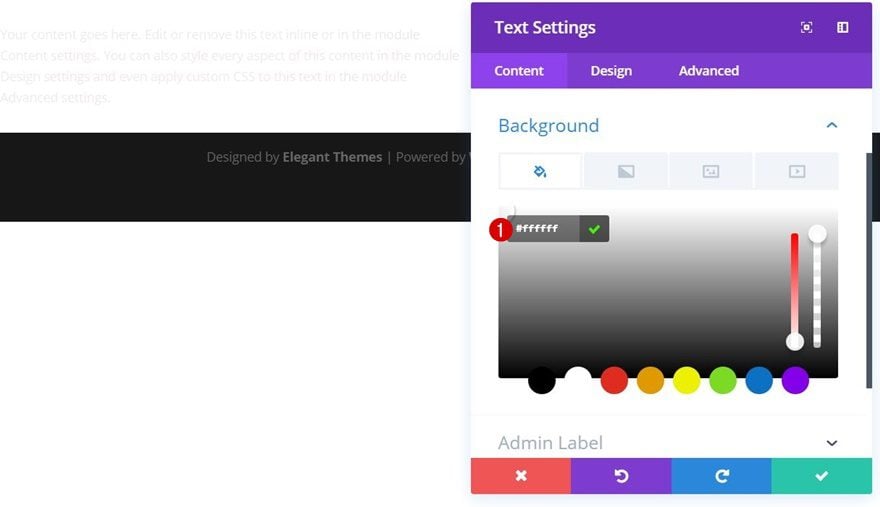

Background Color

Now that we’ve modified our section and row settings, it’s time to start adding the modules we need. We’re going to need three Text Modules in total, one for each column. We’ll start with the first Text Module in column 1 and modify it. Afterwards, we can clone it, place it in the remaining columns and make small tweaks to it. Add your Text Module and use a white background color for it. You can’t use any other color because it’ll make your section background image show.

section background

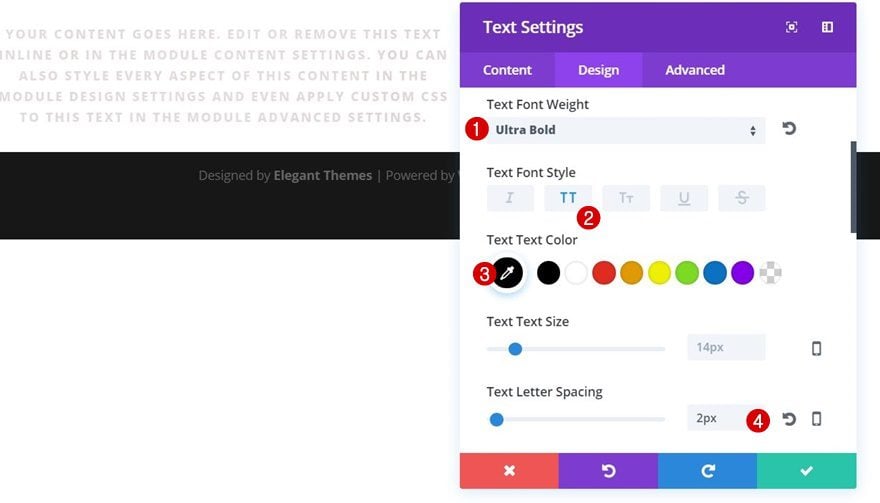

Text Setting

Then, apply the following Text settings to your Text Module:

  • Text Font Weight: Ultra Bold
  • Text Font Style: Uppercase
  • Text Color: Black (this will make the section background image show through your text)
  • Text Letter Spacing: 2px

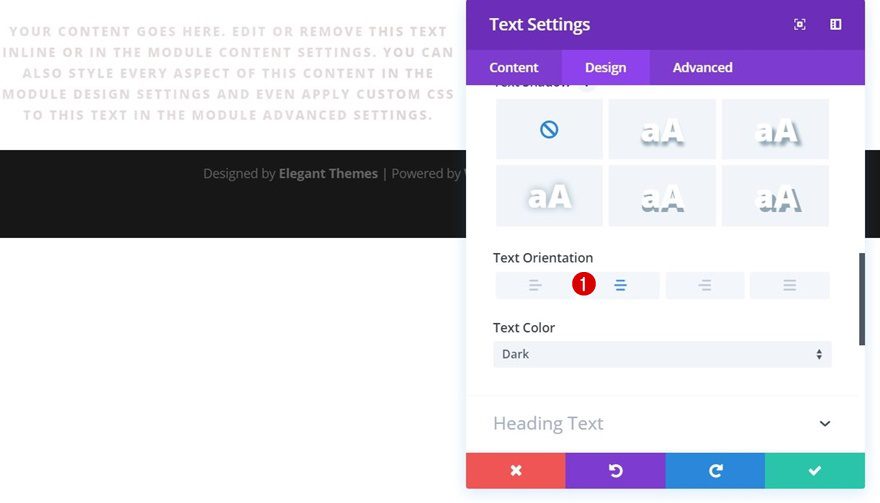

  • Text Orientation: Center

section background

section background

Sizing

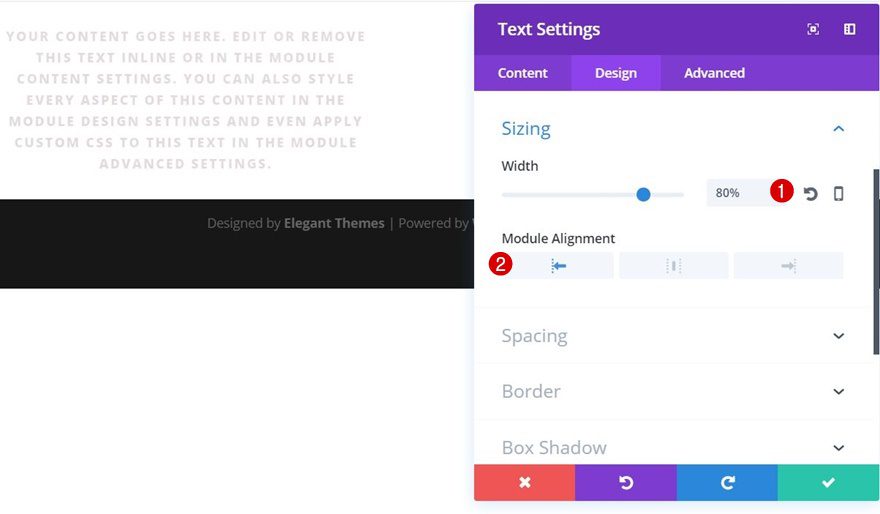

We’ve removed the default Gutter Width of our row which removes all of the space between our modules. We do want to create some space between them without messing with the row’s length. That’s why we’ll modify the Sizing settings of our Text Module instead:

  • Width: 80%
  • Module Alignment: Left

section background

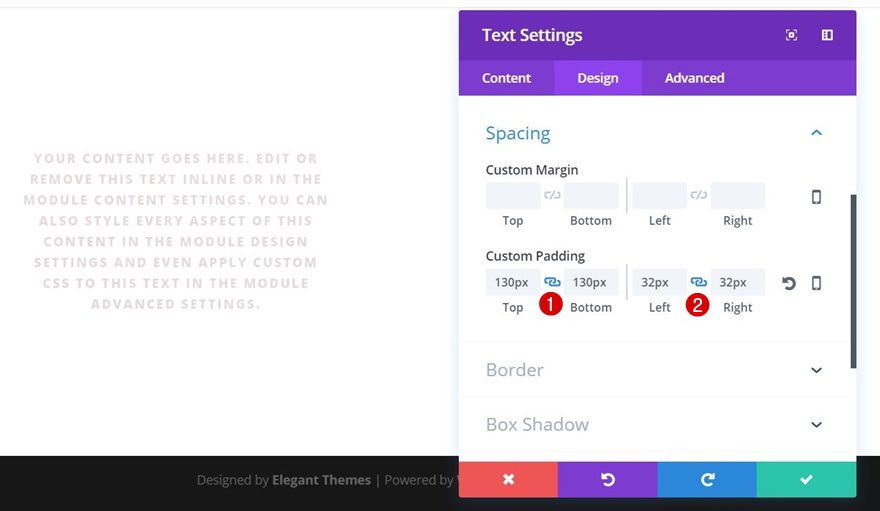

Spacing

And to make the design more appealing, we’ll also add some padding to our Text Module:

  • Top & Bottom Padding: 130px
  • Left & Right Padding: 32px

section background

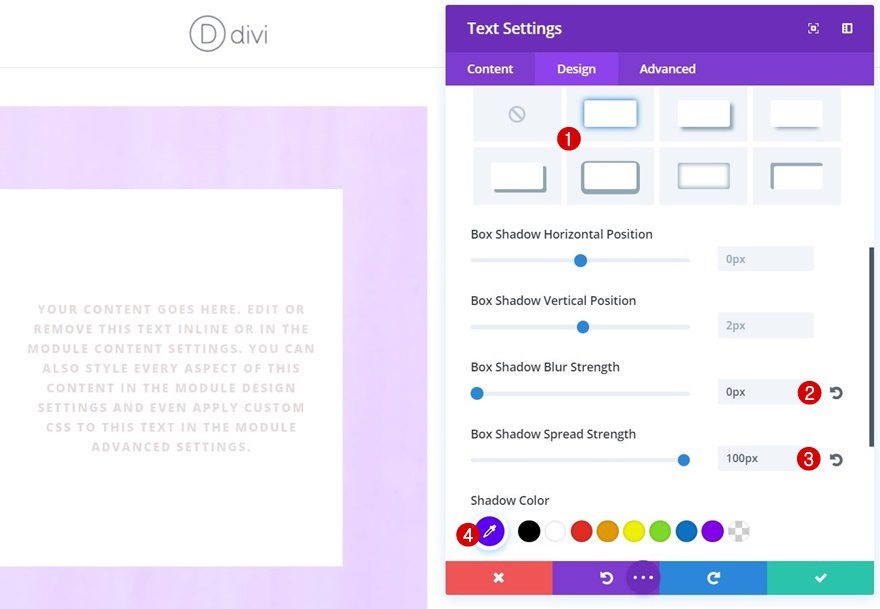

Box Shadow

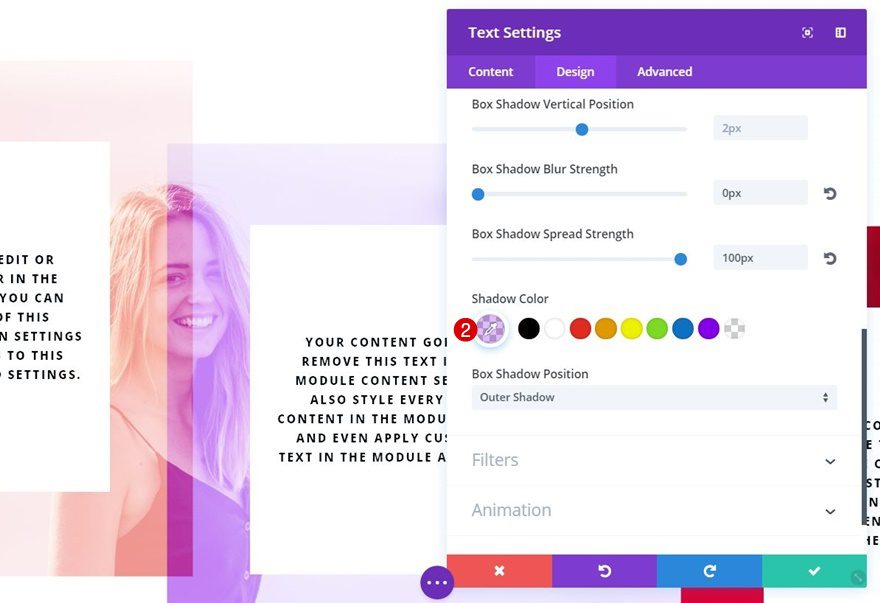

The last thing we’ll need to do with this Text Module is adding a Box Shadow. This is where the magic happens. The Box Shadow will allow your section background to show through if you’re using any color but white. We’re using the following settings:

  • Box Shadow Blur Strength: 0px
  • Box Shadow Spread Strength: 100px
  • Box Shadow Color: #5d00ff

section background

Clone Text Module Twice

Place in Column 2

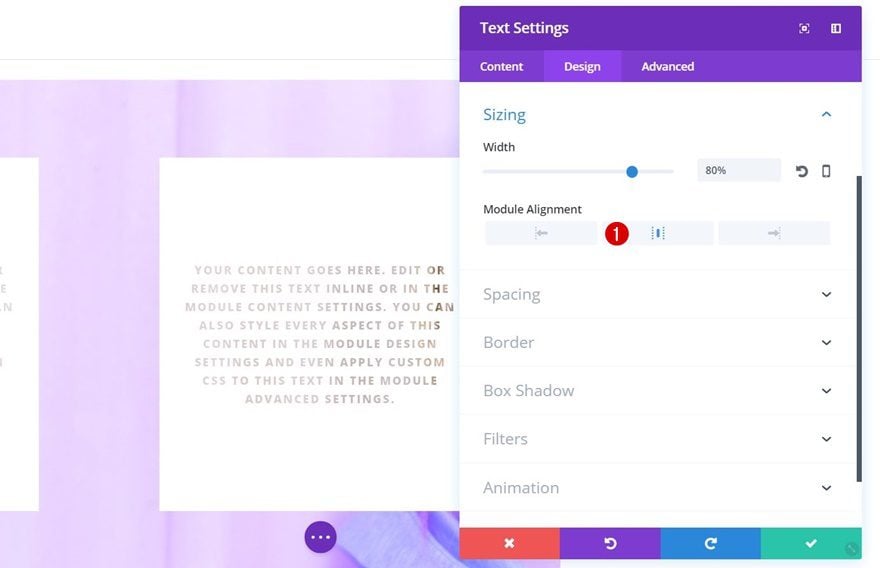

Change Module Alignment

Now go ahead and clone your Text Module twice and place it in the remaining columns. We’ll start by making some modifications to the Text Module that is located in column 2. Change the Module Alignment in the Sizing settings to center.

section background

Change Spacing

We’ll also create some difference in height for our module by adding the following top margin to it:

  • Top Margin: 100px (Desktop), 200px (Tablet & Phone)

section background

Change Box Shadow Color

Lastly, we’ll change our Box Shadow Color to ‘#00d3b3’.

section background

Place in Column 3

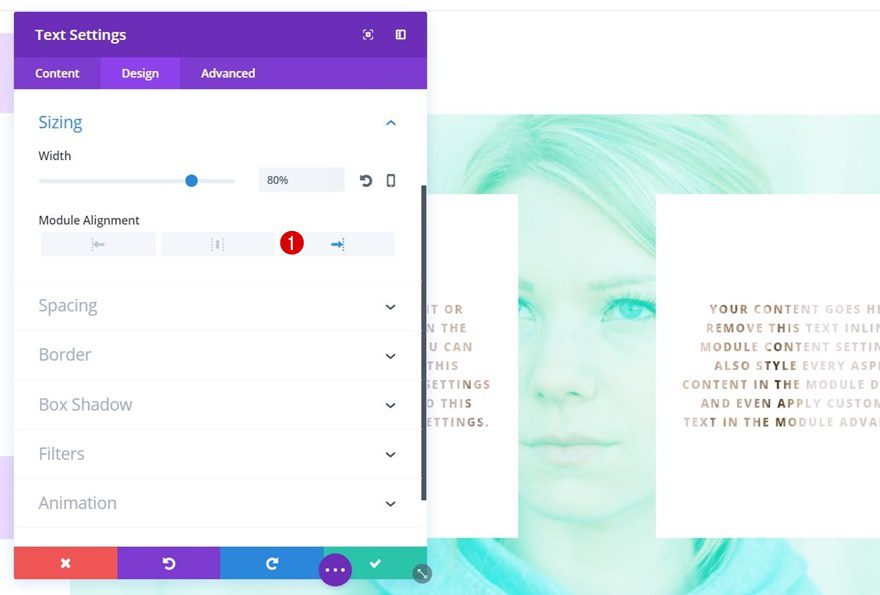

Change Module Alignment

The Text Module in column 3 will need a right Module Alignment instead.

section background

Change Spacing

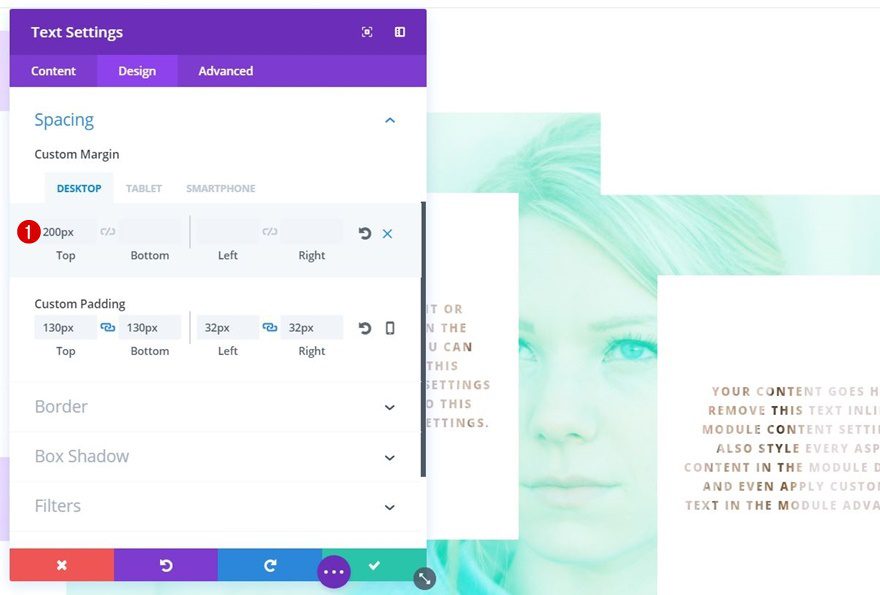

We’ll also add ‘200px’ to the Top Margin (for all screen sizes.)

section background

Change Box Shadow Color

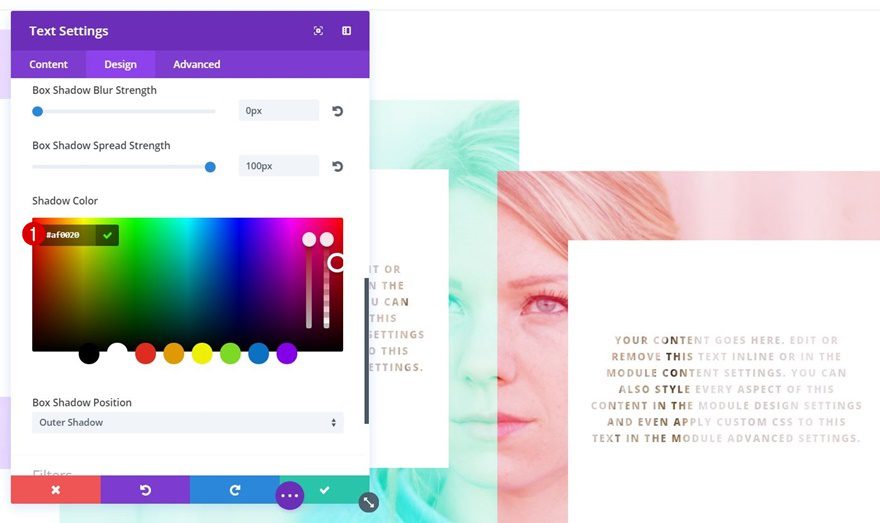

And the Box Shadow Color for this last Text Module is ‘#af0020’.

section background

Clone Section

Change Section Background Image

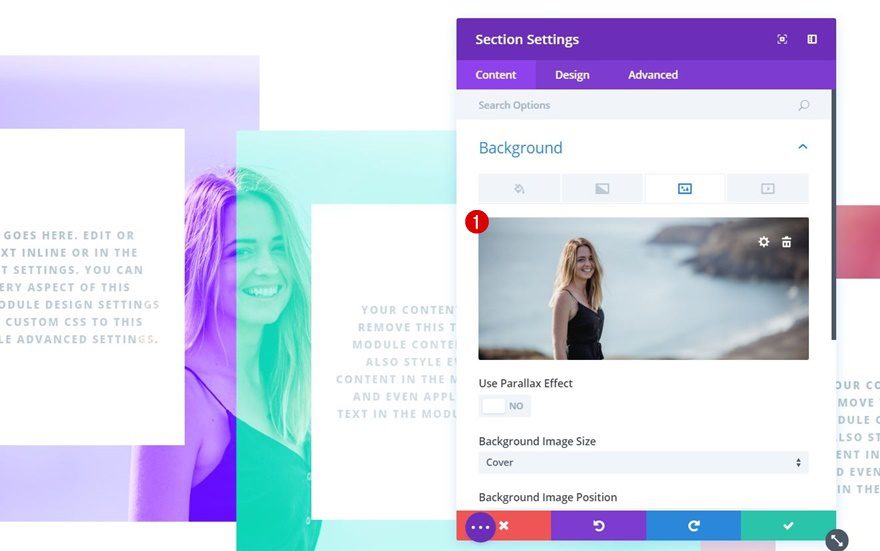

As mentioned in the approach of this blog post, you can use another Blend Mode as well called ‘Hard Light’. Clone the section you’ve created in the previous part of this post and change its background image.

section background

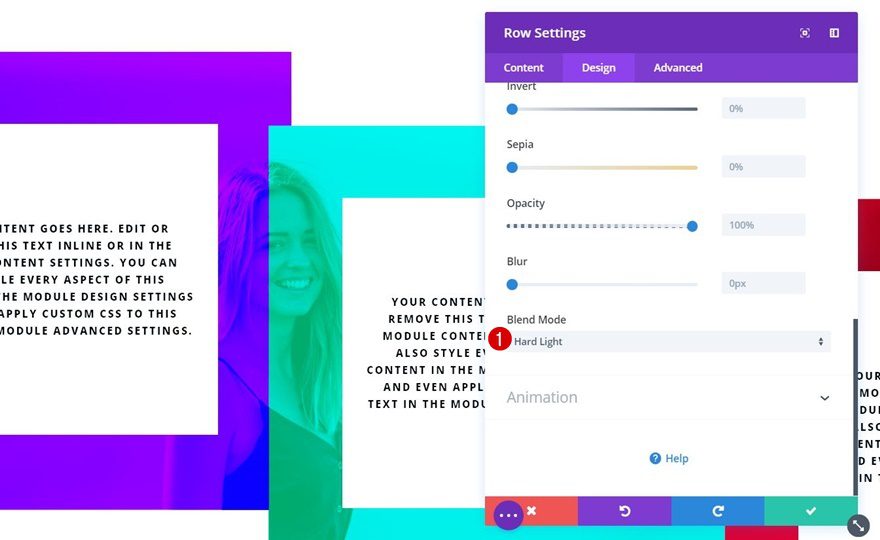

Change Row Blend Mode

Then, open your row settings and change the Blend Mode to ‘Hard Light’.

section background

Change Box Shadow Color #1

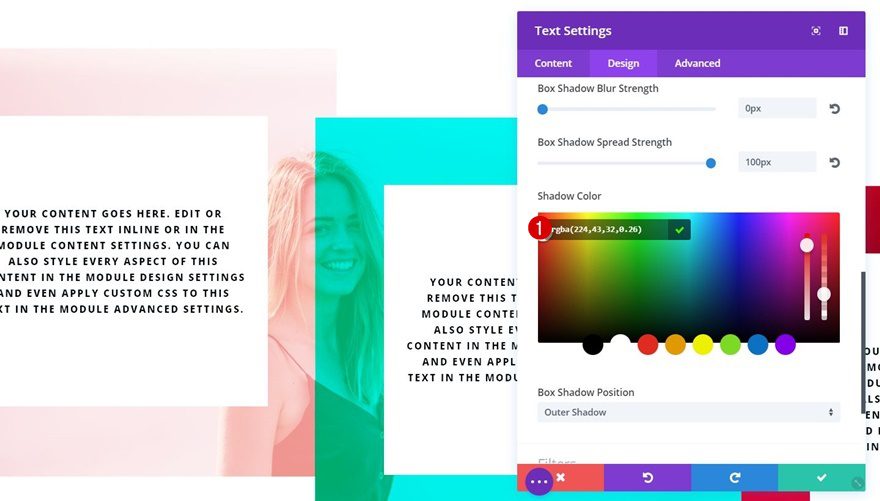

You can use whichever colors you want for the box shadows of your Text Modules as long as they’re not white. We’ve used ‘rgba(224,43,32,0.26)’ for the first Text Module.

section background

Change Box Shadow Color #2

Open the Text Module in the second column next and change the Box Shadow Color to ‘rgba(131,0,233,0.26)’.

section background

Change Box Shadow Color #3

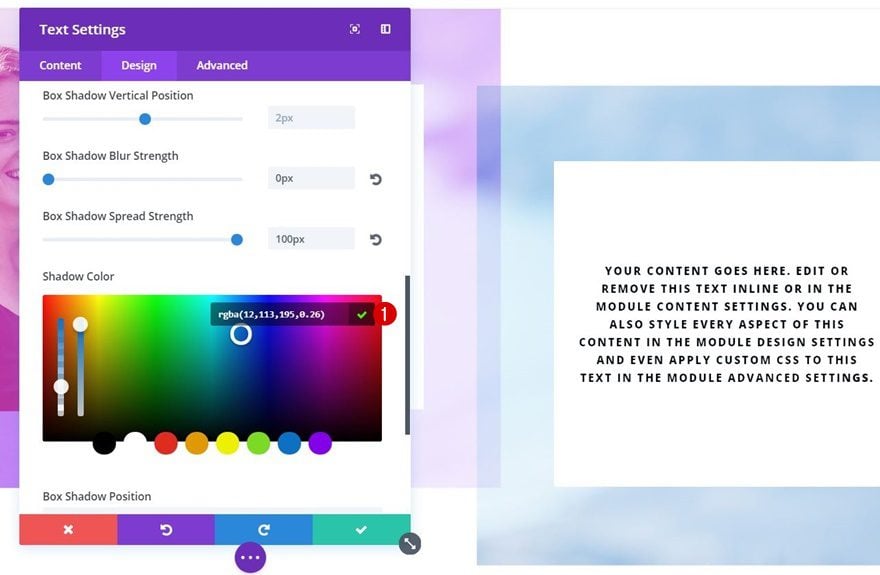

The last Text Module uses ‘rgba(12,113,195,0.26)’.

section background

Preview

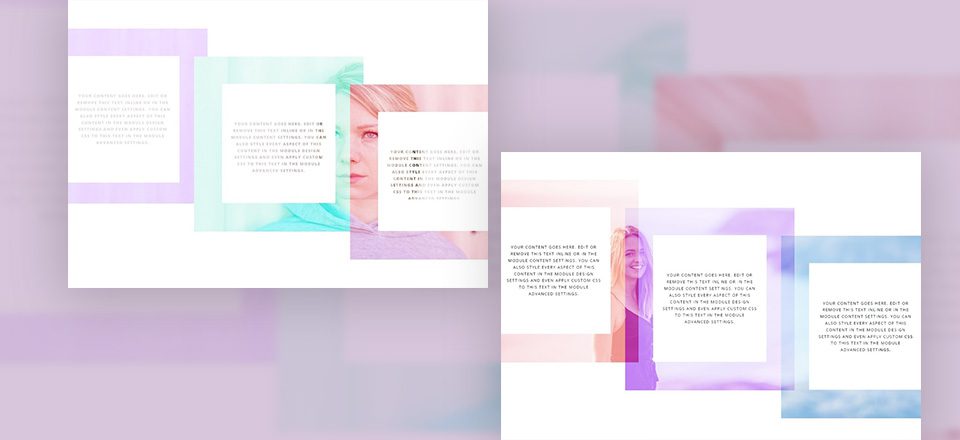

Now that we’ve gone through all the steps, let’s take a final look at the result on different screen sizes.

section background

Final Thoughts

In this tutorial, we’ve shown you how to make section background images selectively show through, depending on your modules’ position. This approach creates more connection between modules. When one of them stops, the other takes over. If you have any questions or suggestions, make sure you leave a comment in the comment section below!
