How to Create Animated Border Overlaps to Highlight Content with Divi

Posted on May 4, 2019 by in Divi Resources | 4 comments

How to Create Animated Border Overlaps to Highlight Content with Divi

Looking for a unique way to put a specific part of your page in the spotlight? Keep on reading! Today, we’re going to show you how to create animated border overlaps to highlight content on your page. We’ll create three different animated border overlaps on the App Developer Layout Pack‘s landing page, but you can use this technique for any kind of website you’re building. It’ll definitely help you add an extra dimension to your page. We hope this tutorial inspires you to create your own alternative animated border overlaps as well.

Let’s get to it!

Preview

Before we dive into the tutorial, let’s take a quick look at the outcome of all three examples. You can expect a similar outcome on smaller screen sizes as well.

Example #1

animated border

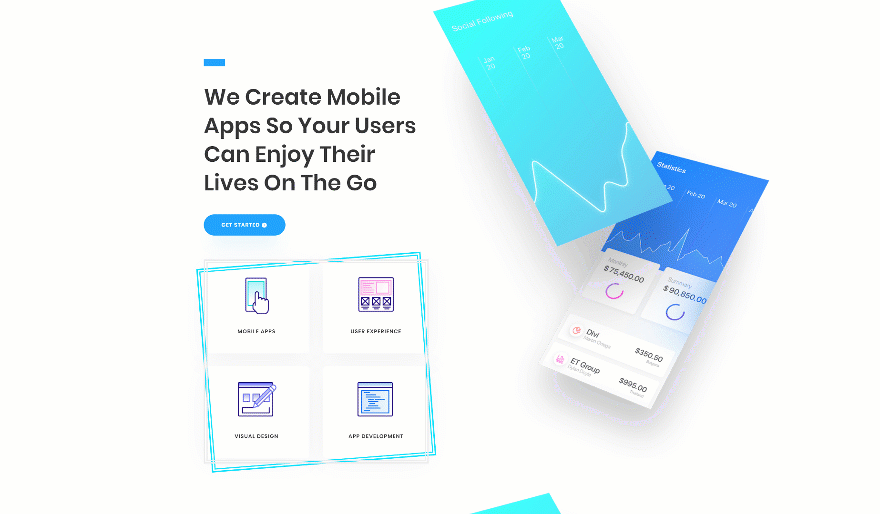

Example #2

animated border

Example #3

animated border

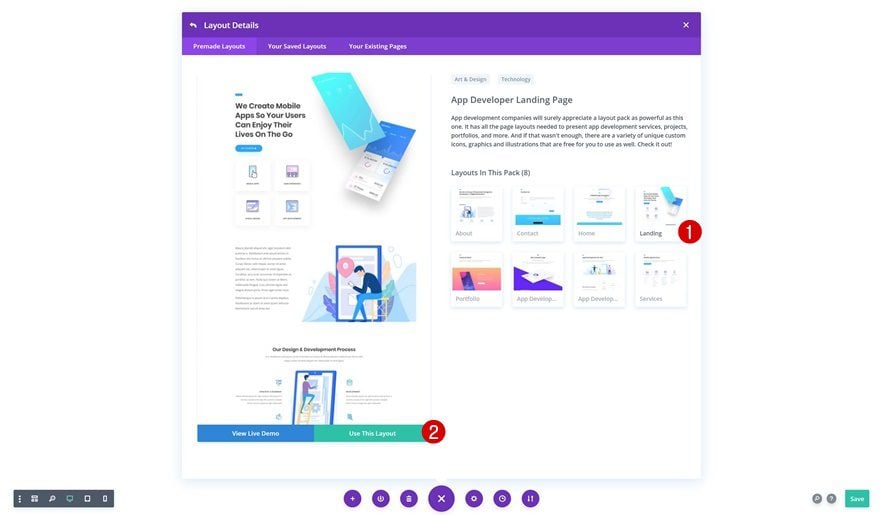

Create New Page Using App Developer Layout Pack’s Landing Page

The first thing you’ll need to do is create a new page using the App Developer Layout Pack‘s landing page.

animated border

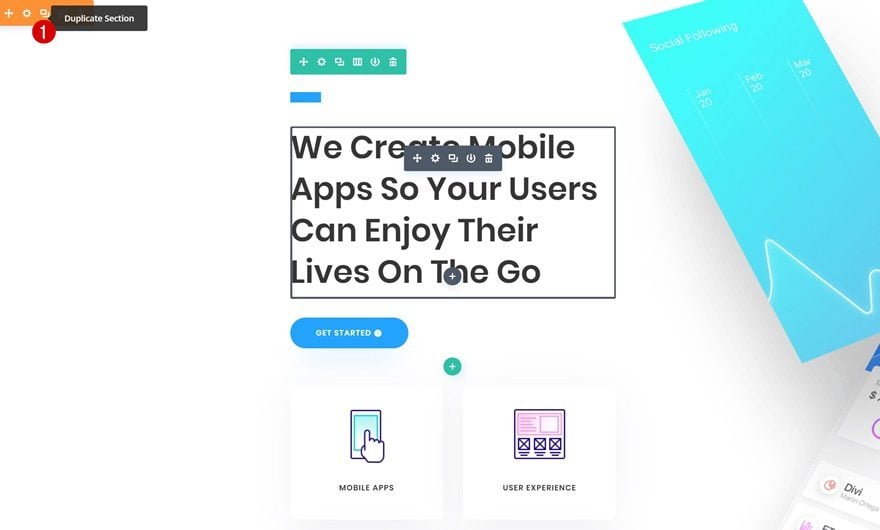

Clone Hero Section

Our first two examples are created in the hero section. If you want to recreate both examples, it is recommended you clone the hero section so you can move on to the duplicate to recreate the second example.

animated border

Recreate Example #1

animated border

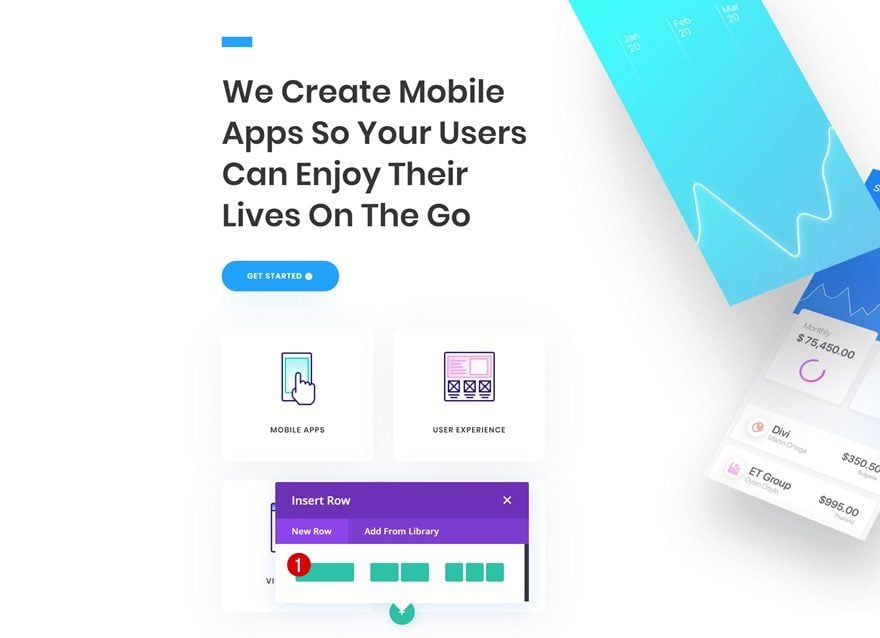

Add New Row to Hero Section

Column Structure

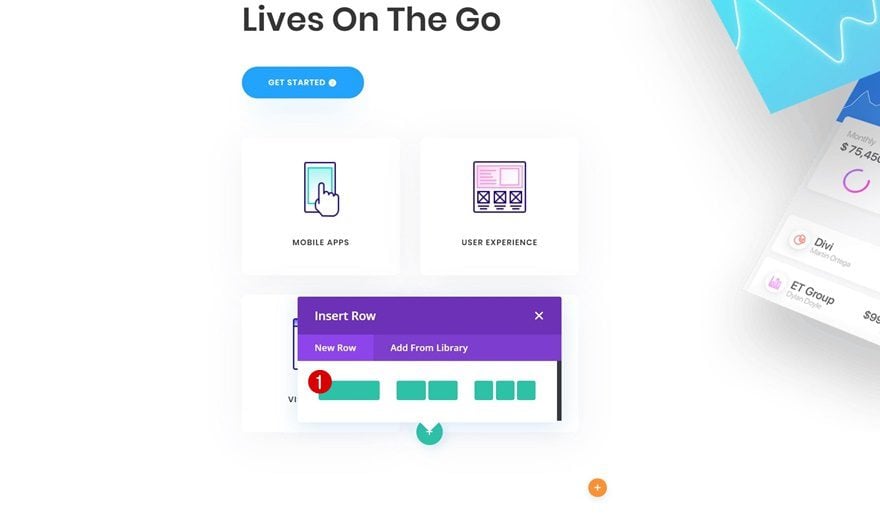

Let’s start recreating the first example! Add a new row in the specialty section using the following column structure:

animated border

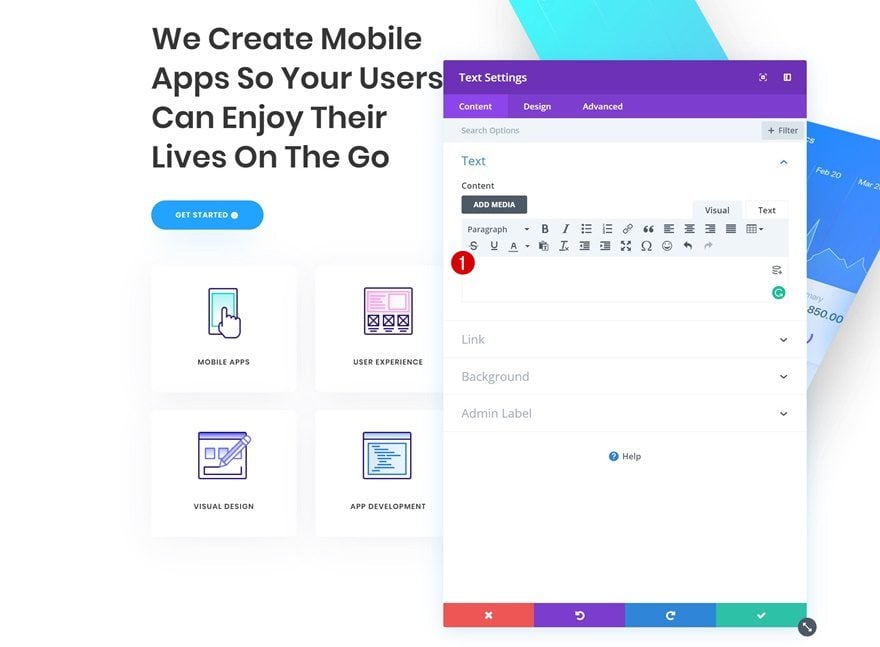

Add Text Module

Leave Content Box Empty

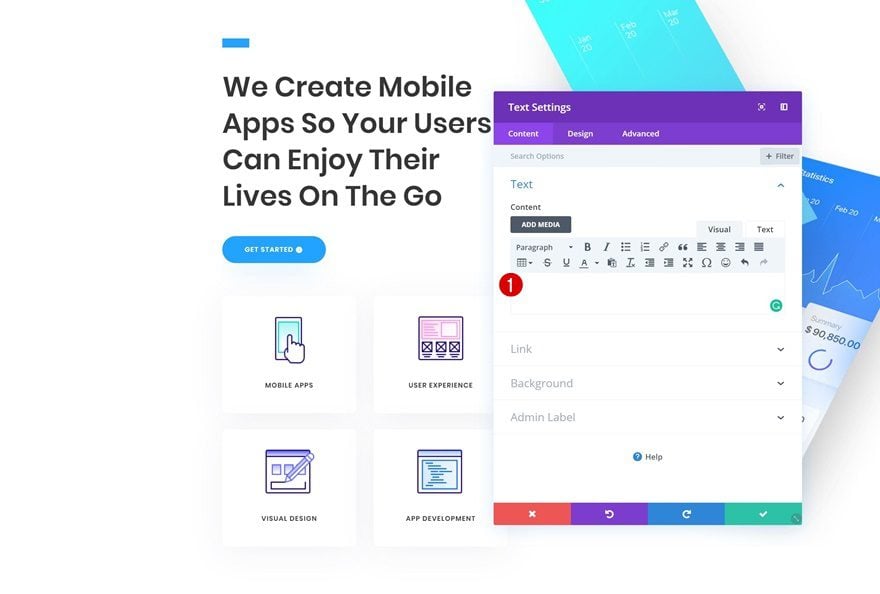

Add e new Text Module to the row and make sure you leave the content box empty. We’re using the module for its built-in design options, not to display written content.

animated border

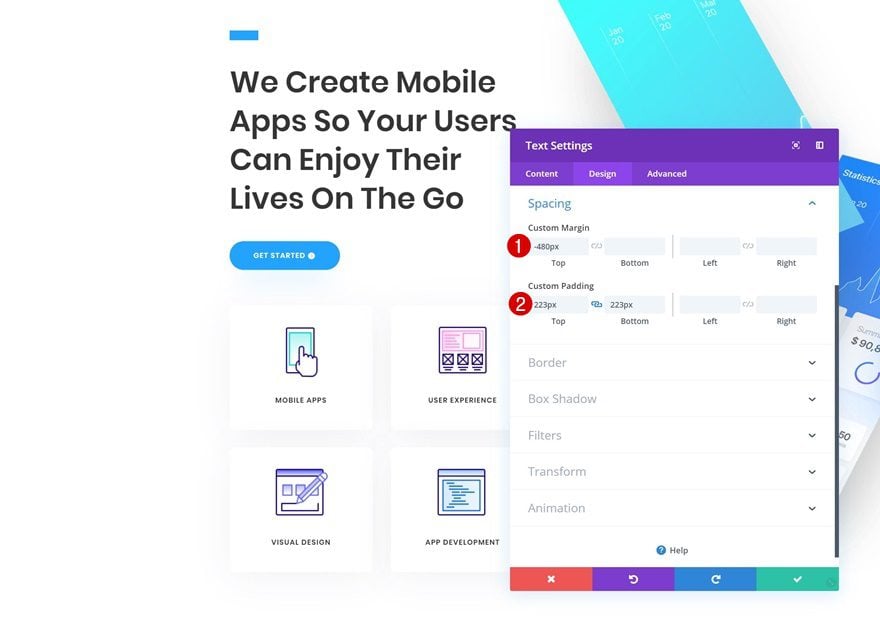

Spacing

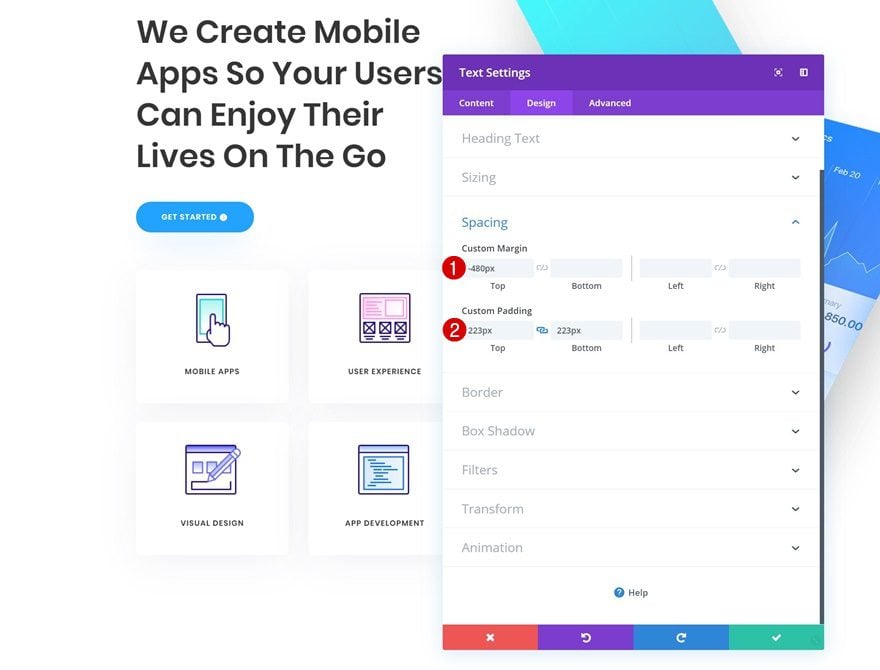

Go to the spacing settings of the Text Module and give the module a shape by adding custom top and bottom padding. Create the overlap between this module and the previous modules by adding some negative top margin as well.

  • Top Margin: -480px
  • Top Padding: 223px
  • Bottom Padding: 223px

animated border

Border

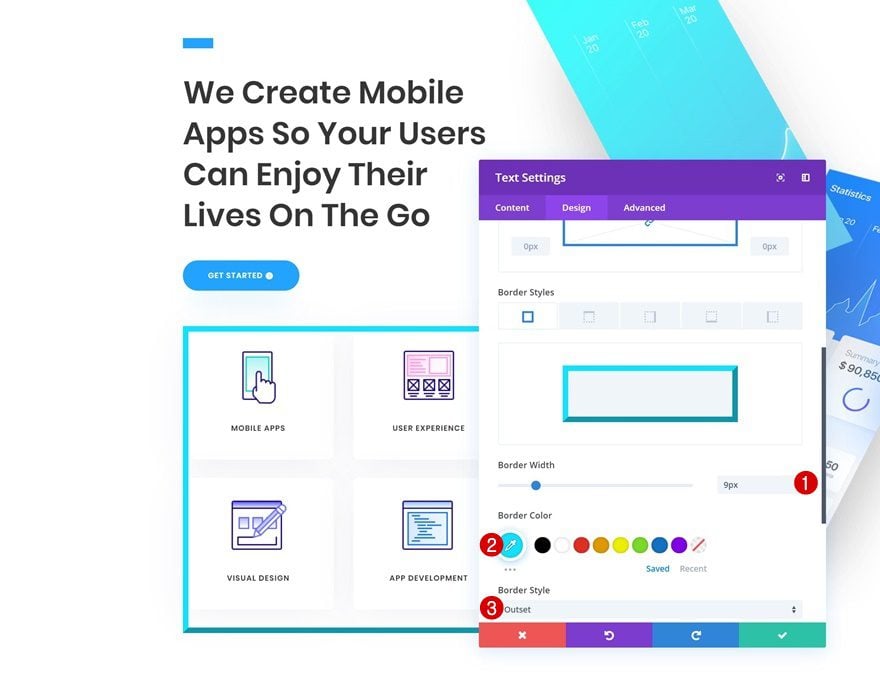

Then, go to the border settings of the module and add a border of your choice.

  • Border Width: 9px
  • Border Color: #0ae2ff
  • Border Style: Outset

animated border

Box Shadow

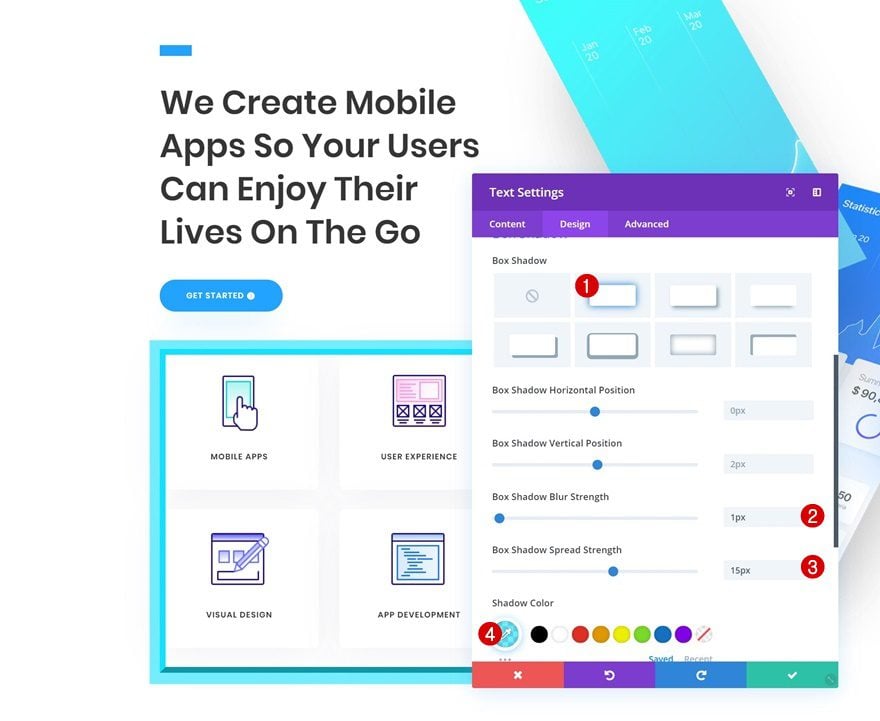

Add a box shadow too.

  • Box Shadow Blur Strength: 1px
  • Box Shadow Spread Strength: 15px
  • Shadow Color: rgba(10,226,255,0.59)

animated border

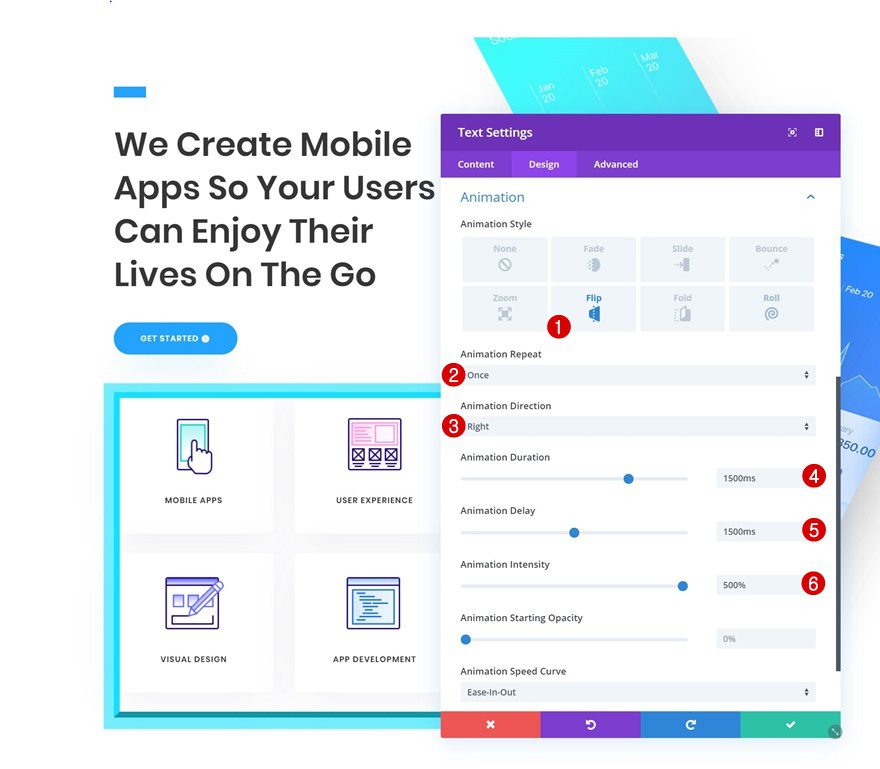

Animation

And play around with the animation settings to make the content pop.

  • Animation Style: Flip
  • Animation Repeat: Once
  • Animation Direction: Right
  • Animation Duration: 1500ms
  • Animation Delay: 1500ms
  • Animation Intensity: 500%

animated border

Recreate Example #2

animated border

Add New Row to Duplicate Hero Section

On to the second example! Add a new row to the duplicate hero section using the following column structure:

animated border

Add Text Module #1

Leave Content Box Empty

We’re, again, using an empty Text Module.

animated border

Spacing

Go to the spacing settings and give the module a shape using custom top and bottom padding. Make it overlap with the previous modules by adding some negative top margin as well.

  • Top Margin: -480px
  • Top Padding: 223px
  • Bottom Padding: 223px

animated border

Border

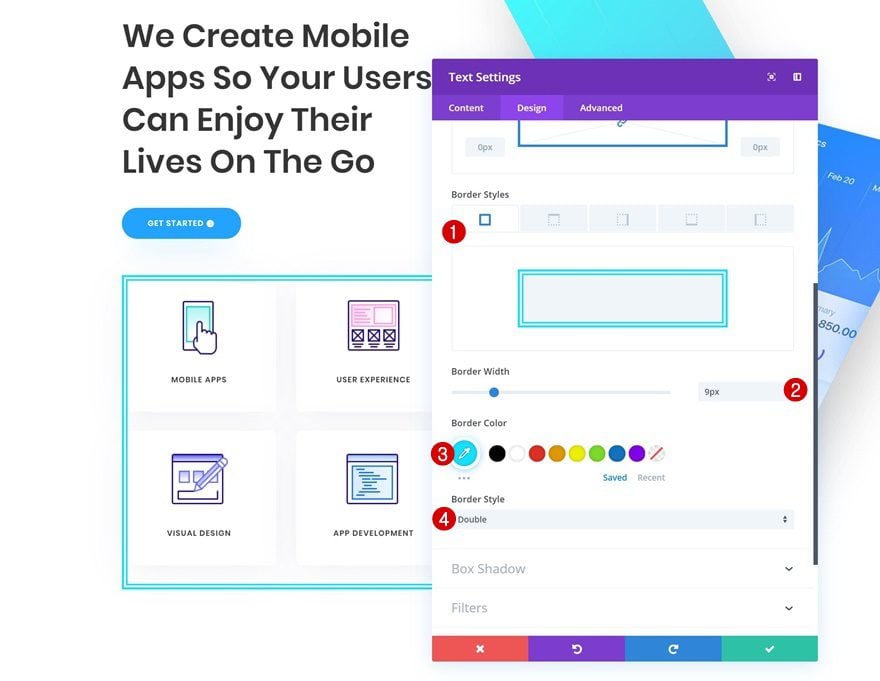

Continue by adding a border to the Text Module.

  • Border Width: 9px
  • Border Color: #0ae2ff
  • Border Style: Double

animated border

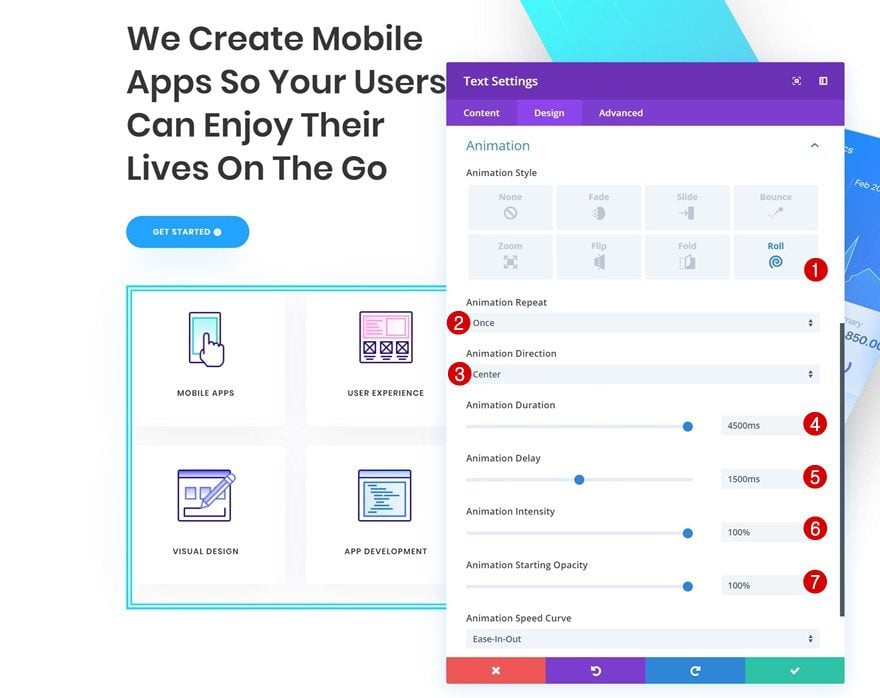

Animation

And play around with the animation settings to create a rolling effect.

  • Animation Style: Roll
  • Animation Repeat: Once
  • Animation Direction: Center
  • Animation Duration: 4500ms
  • Animation Delay: 1500ms
  • Animation Intensity: 100%
  • Animation Starting Opacity: 100%

animated border

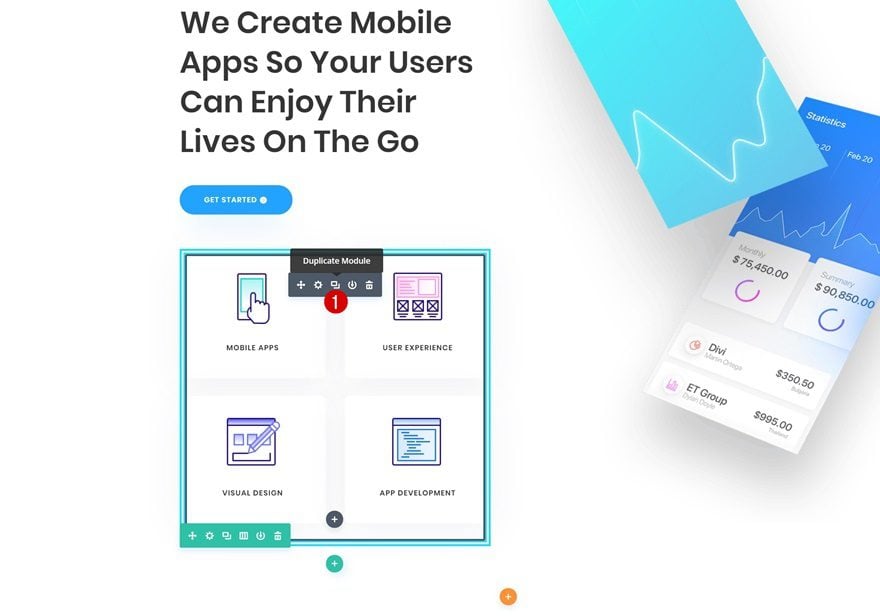

Clone Text Module

Once you’re done modifying the first Text Module, go ahead and clone it.



animated border

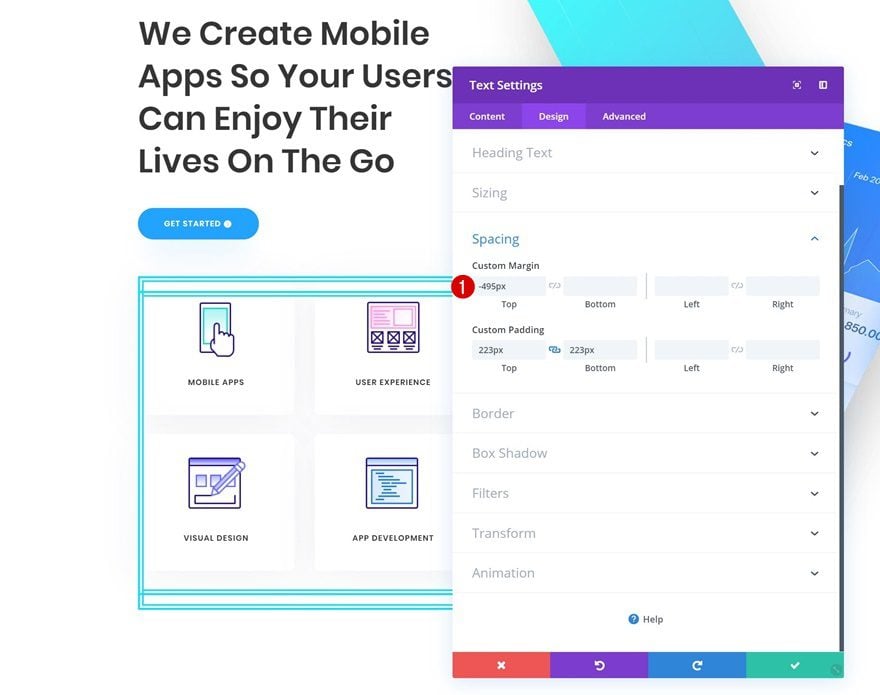

Change Spacing

Open the duplicate’s settings and change the top margin value in the spacing settings.

  • Top Margin: -495px

animated border

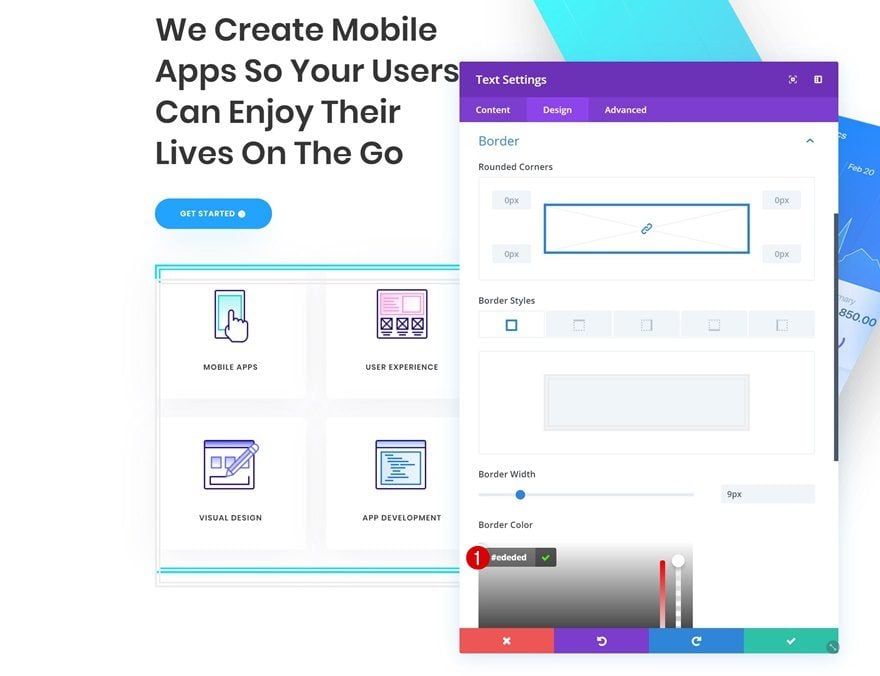

Change Border

Modify the border color as well.

  • Border Color: #ededed

animated border

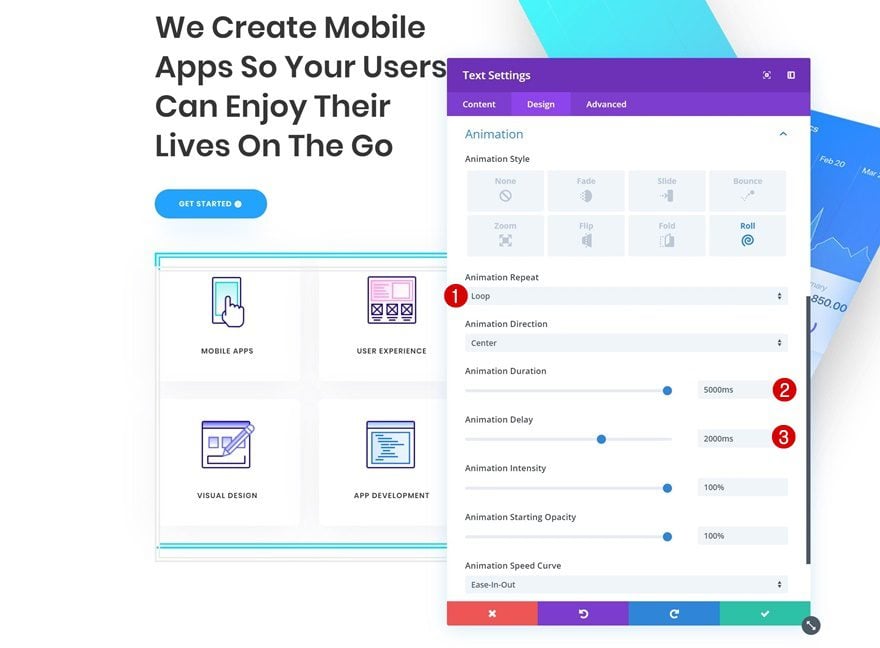

Change Animation

And modify the animation settings to achieve the outcome you’ve seen in the preview of this post.

  • Animation Repeat: Loop
  • Animation Duration: 5000ms
  • Animation Delay: 2000ms

animated border

Recreate Example #3

animated border

Change Spacing of Image Module in Column 2

On to the next and last example! Navigate to the process section on the page and add some top padding to the Image Module containing the big illustration in the middle.

  • Top Margin: 70px (Desktop), 0px (Tablet & Phone)

animated border

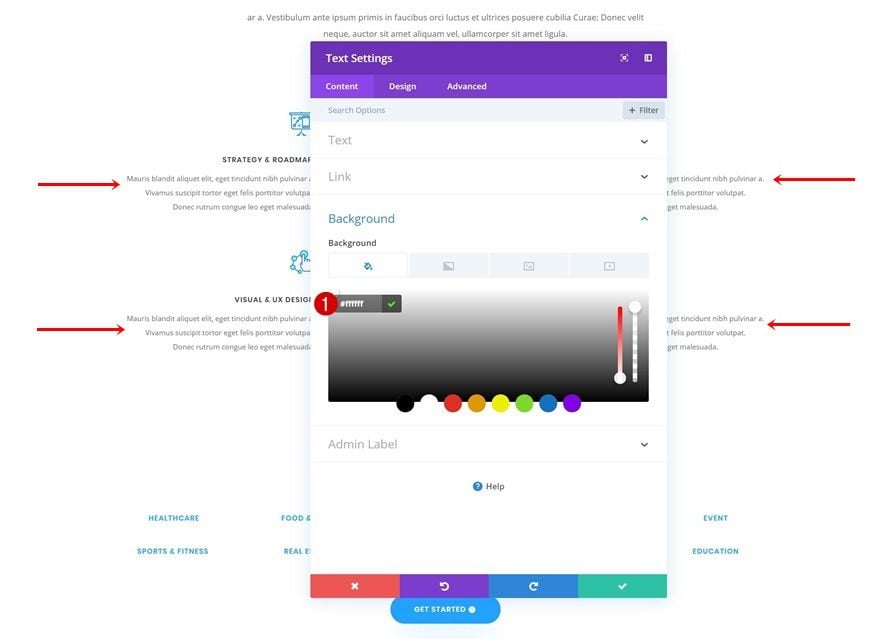

Add Background Color to Existing Text Modules

Continue by adding a white background color to each one of the Text Modules in the first and third column.

  • Background Color: #ffffff

animated borders

Add Text Module to Column 1

Leave Content Box Empty

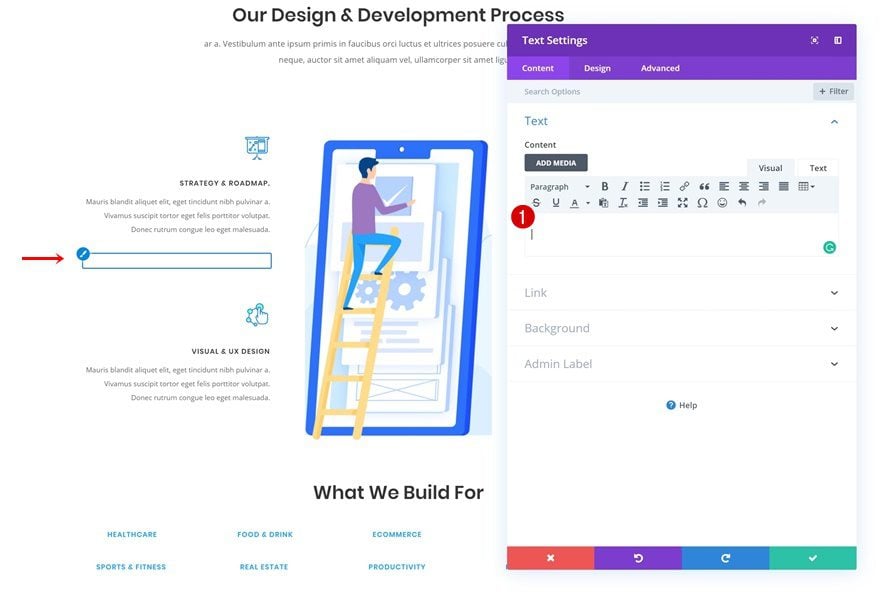

We can now start adding the first animated border overlap! Add a new Text Module to the first column (see print screen) and make sure you leave the content box empty.

animated border

Spacing

Go to the spacing settings of the Text Module next and create the shape and overlap using custom margin and padding values.

  • Top Margin: -230px
  • Left Margin: 80px
  • Right Margin: 100px
  • Top Padding: 120px
  • Bottom Padding: 120px

animated border

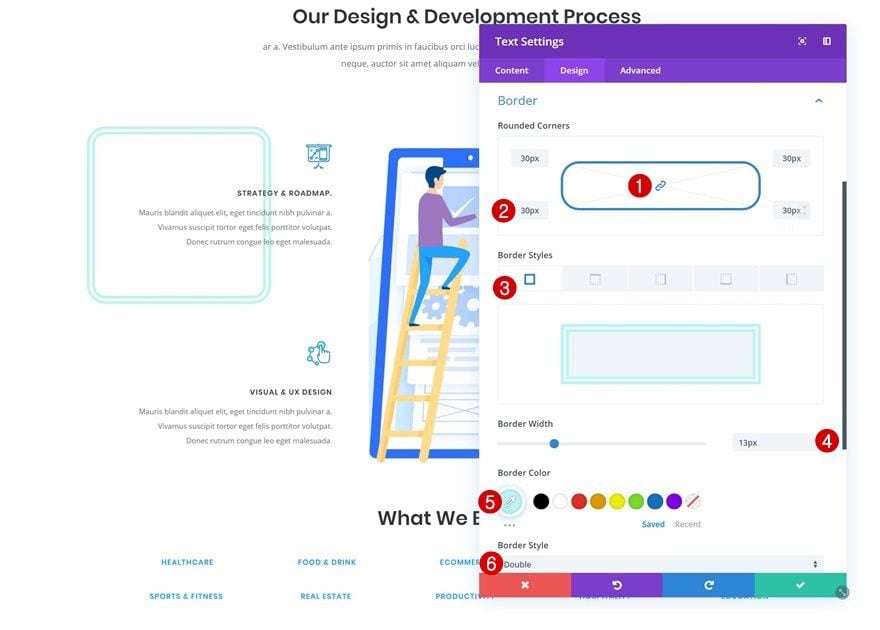

Border

Add a border next.

  • Border Width: 13px
  • Border Color: #bcf5f3
  • Border Style: Double

animated border

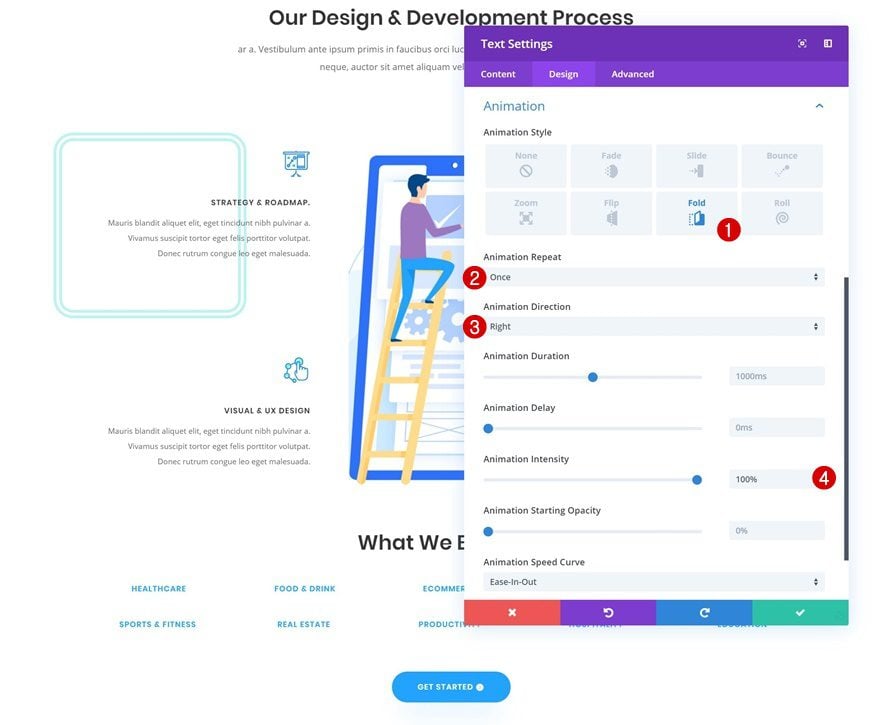

Animation

Continue by adding an animation of your choice that’ll help you highlight the content you’re sharing.

  • Animation Style: Fold
  • Animation Repeat: Once
  • Animation Direction: Right
  • Animation Intensity: 100%

animated border

Z Index

To make sure the borders appear below the content, we’re going to use a negative value for the Z index of the Text Module containing the border settings.

  • Z Index: -1

animated border

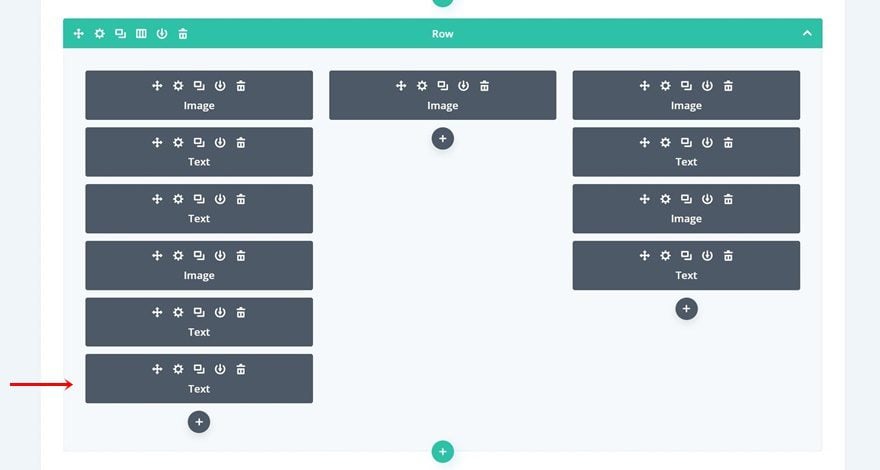

Clone Text Module & Place at End of Column 1

Once you’re done creating and modifying the Text Module, go ahead and clone it. Place the duplicate at the end of the first column.

animated border

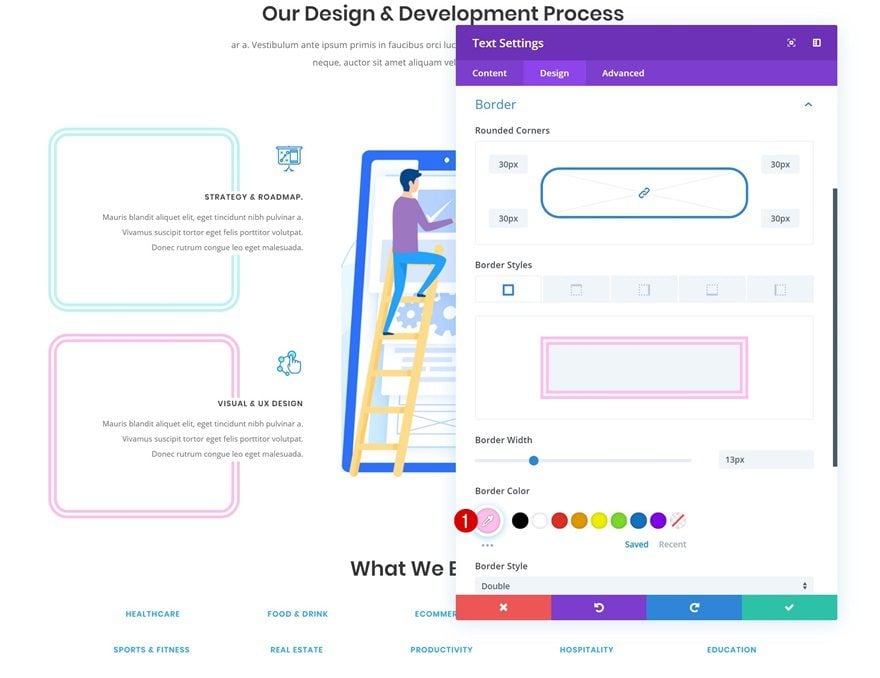

Change Border

Change the border color.

  • Border Color: #ffc0ec

animated border

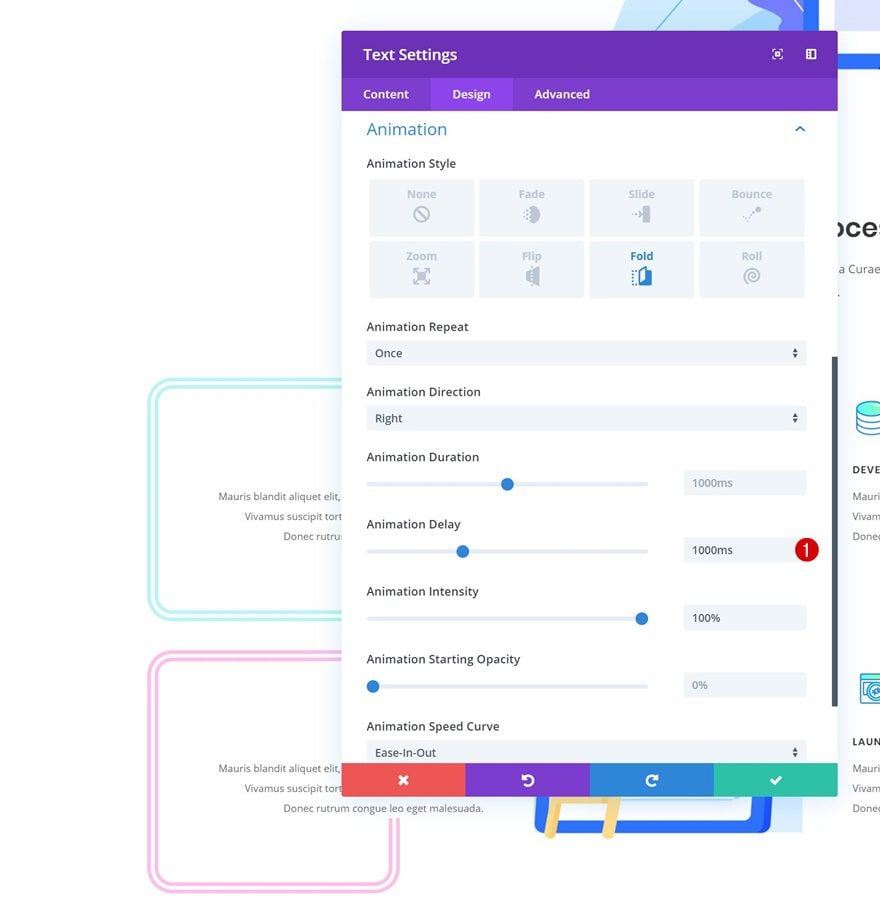

Change Animation

And add an animation delay as well.

  • Animation Delay: 1000ms

animated border

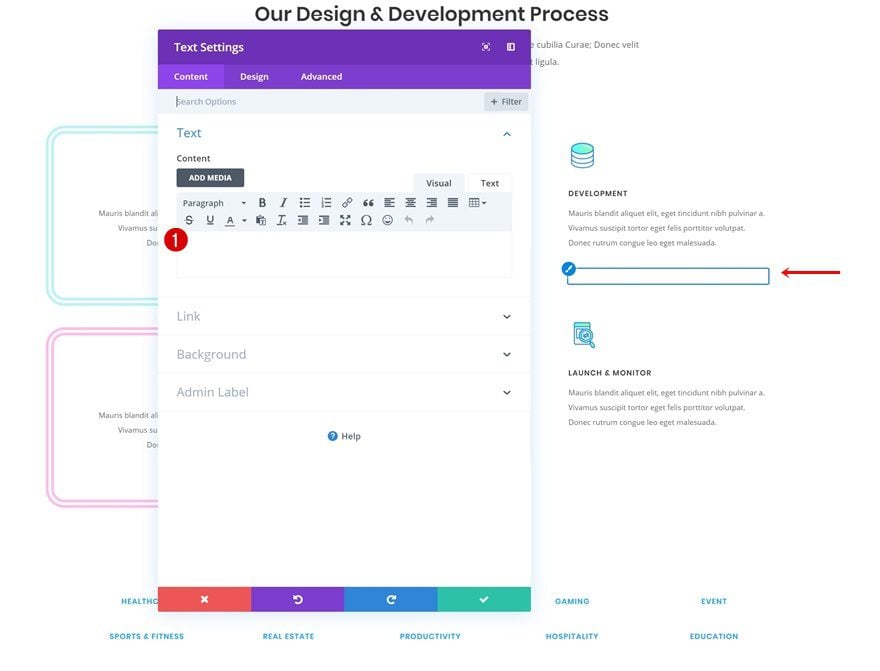

Add Text Module to Column 3

Leave Content Box Empty

Continue by adding a Text Module to the third column (see print screen) and make sure you leave the content box empty.

animated border

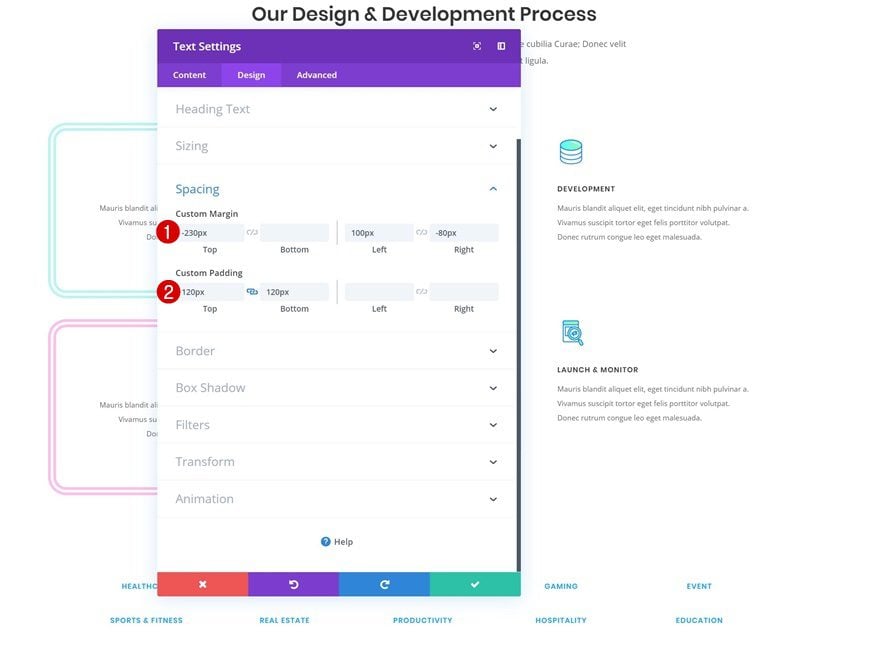

Spacing

Move on to the spacing settings and create the shape and overlap using custom margin and padding values.

  • Top Margin: -230px
  • Left Margin: 100px
  • Right Margin: -80px
  • Top Padding: 120px
  • Bottom Padding: 120px

animated border

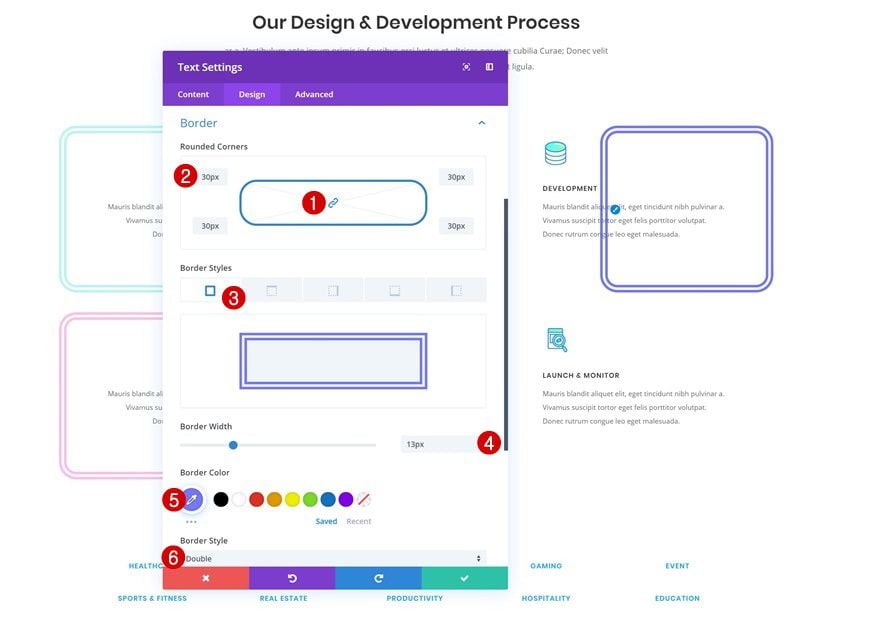

Border

Add a border of your choice next.

  • Border Width: 13px
  • Border Color: #7479ff
  • Border Style: Double

animated border

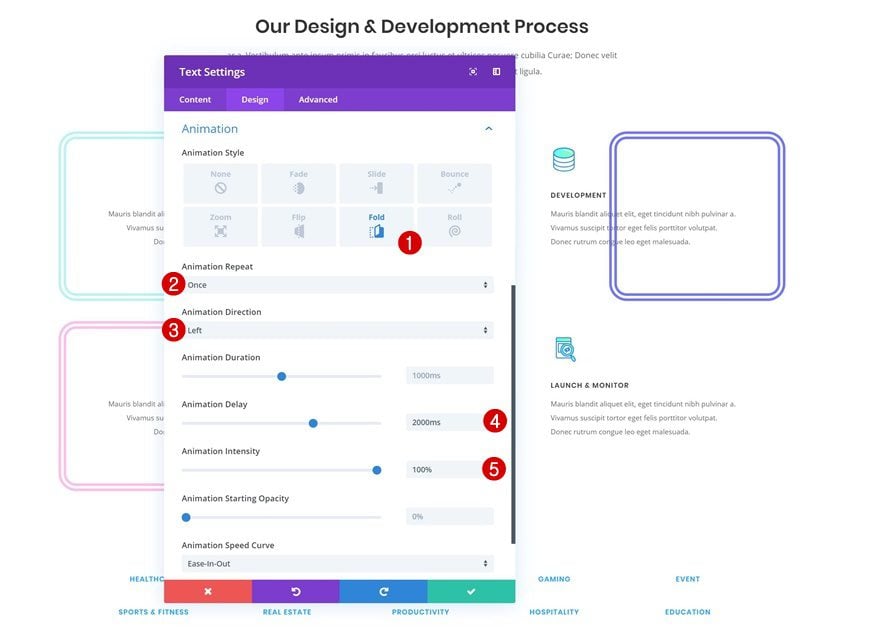

Animation

Along with an animation that includes an animation delay higher than the ones that were given to the two previous Text Modules.

  • Animation Style: Fold
  • Animation Repeat: Once
  • Animation Direction: Left
  • Animation Delay: 2000ms
  • Animation Intensity: 100%

animated border

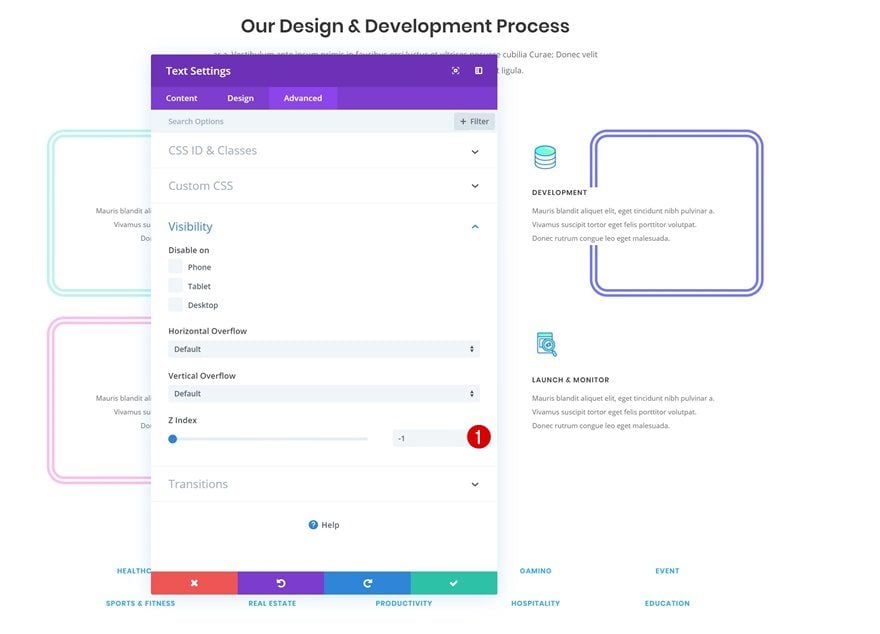

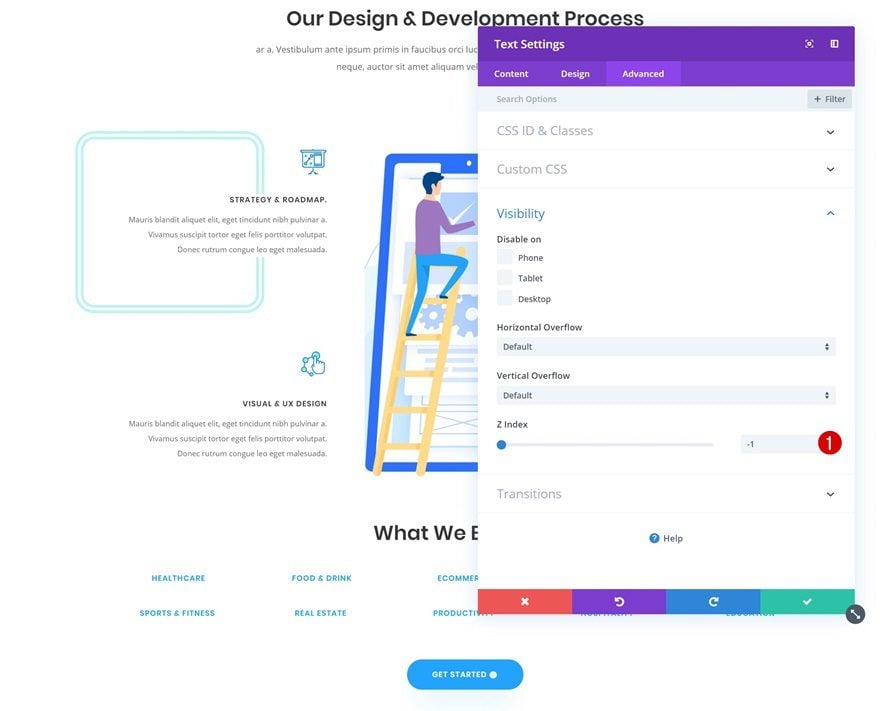

Z Index

Make sure the module appears below the content by using a negative Z index.

  • Z Index: -1

animated border

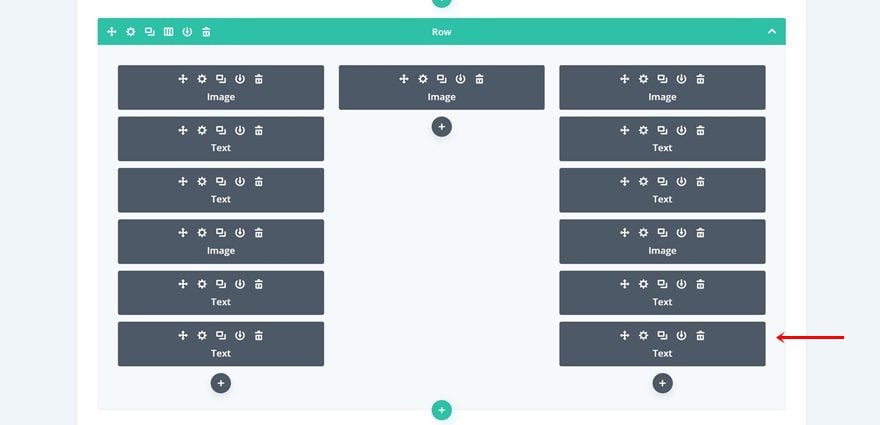

Clone Text Module & Place at End of Column 3

Once you’re done adding and modifying the Text Module, clone it and place the duplicate at the end of the third row.

animated border

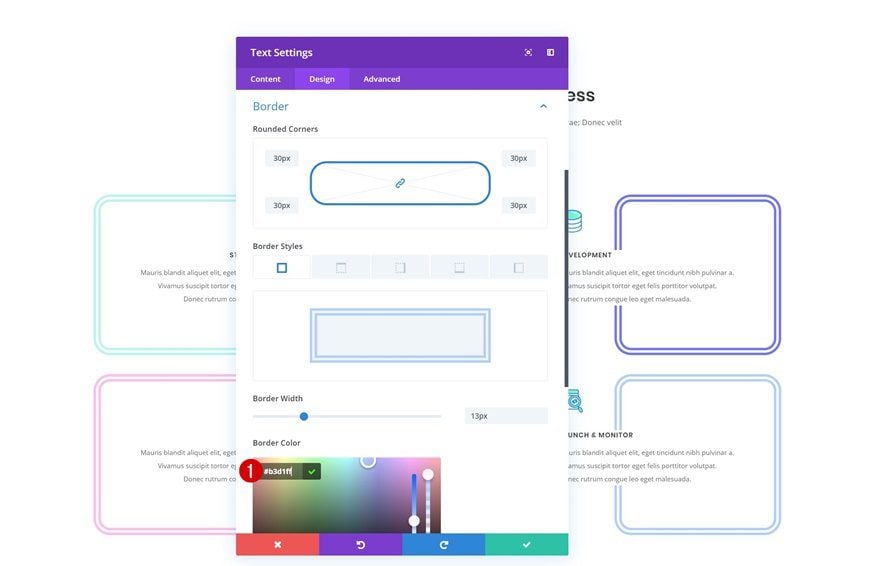

Change Border

Change the border color of the duplicate.

  • Border Color: #b3d1ff

animated border

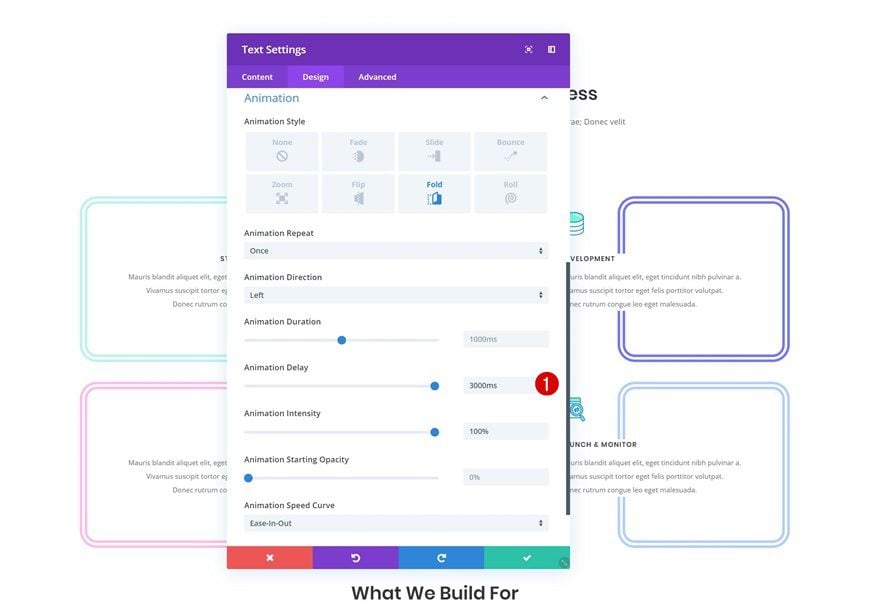

Change Animation

Add some extra animation delay and you’re done!

  • Animation Delay: 3000ms

animated border

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome of all three examples we’ve recreated throughout this tutorial.

Example #1

animated border

Example #2

animated border

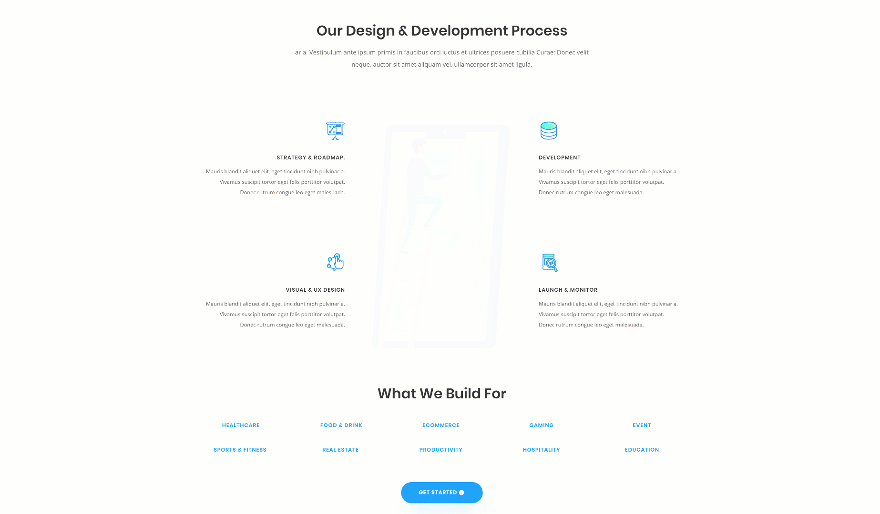

Example #3

animated border

Final Thoughts

In this post, we’ve shown you how to put your content in the spotlight using animated border overlaps. This is a great technique for drawing attention to a specific part of your page and doing it so in an elegant way as well. You can use this technique for any kind of website you’re building. If you have any question or suggestions, make sure you leave a comment in the comment section below!
