How to Create a CSS Grid Layout for Divi Modules

For those already familiar with building websites in Divi, creating custom grid layouts is a core aspect of the Divi Builder. Simply create a row and choose from multiple built-in column layouts for that row. Once the column layout is in place, we simply add the content/modules we want inside each column. But, what if we wanted an additional grid layout for those modules?

In this tutorial, we are going to explore how to expand upon Divi’s grid layouts by creating CSS grid layouts for Divi modules within a single column. The CSS Grid property (along with CSS Flex) is a popular way to create predictable and responsive grid layouts for content with just a few lines of CSS. With it, we can organize all the modules in a column into a fully responsive grid. Think of it as an additional grid layout for modules that you can add to any Divi column. But one of the best things about this technique is that each adjacent module will have the same height and width without all the hassle of trying to do this using custom padding or height values on each module.

Perhaps it is best that we just jump in and show you how this works.

Let’s get started!

Sneak Peek

Here is a quick look at the design we’ll build in this tutorial.

And here is a peek at the same technique using different modules and designs from the Fitness Gym Layout Pack.

Download the Layout for FREE

To lay your hands on the designs from this tutorial, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our Divi Daily email list by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

To import the section layout to your Divi Library, navigate to the Divi Library.

Click the Import button.

In the portability popup, select the import tab and choose the download file from your computer.

Then click the import button.

divi notification box

Once done, the section layout will be available in the Divi Builder.

Let’s get to the tutorial, shall we?

What You Need to Get Started

expanding corner tabs

To get started, you will need to do the following:

  1. If you haven’t yet, install and activate the Divi Theme.
  2. Create a new page in WordPress and use the Divi Builder to edit the page on the front end (visual builder).
  3. Choose the option “Build From Scratch”.

After that, you will have a blank canvas to start designing in Divi.

Creating a Custom CSS Grid Layout For Divi Modules

Part 1: Adding The Modules to a Divi Column

Before we organize our modules into a grid layout, let’s first add all the modules we want to use to our column.

To start, create a new one-column row to the default regular section in the Divi Builder.

css grid layout for divi modules

Creating the Modules

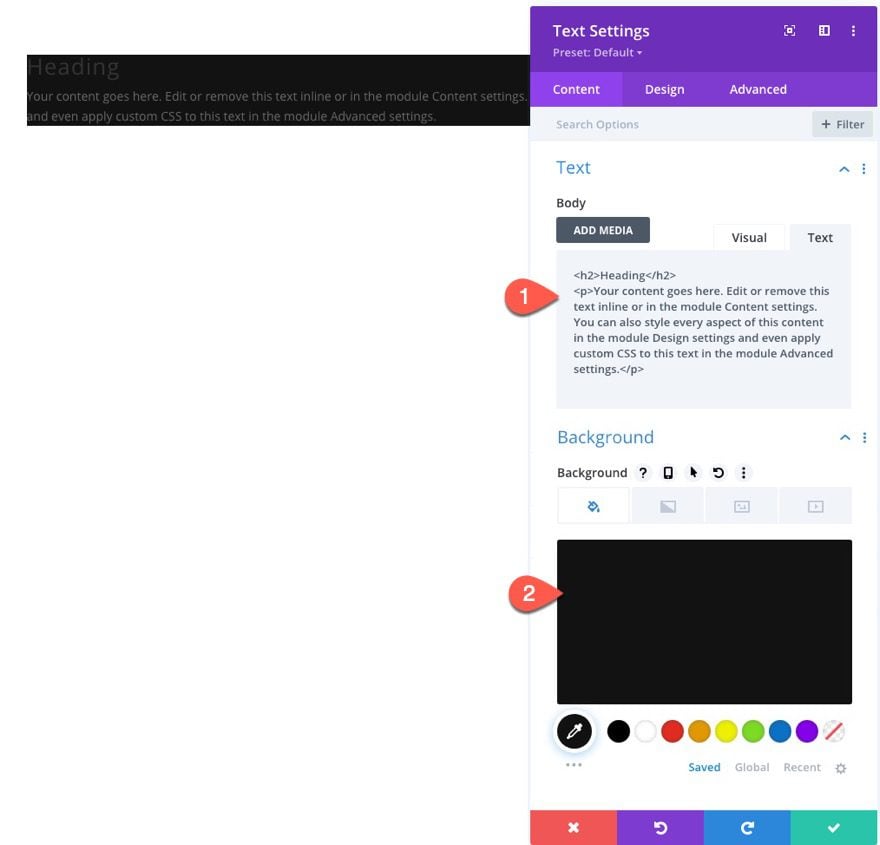

Inside the column of the row, add a new text module. Then update the content settings of the module as follows:

  1. Add an H2 heading above the paragraph text of the default body content
  2. Background Color: #333333

css grid layout for divi modules

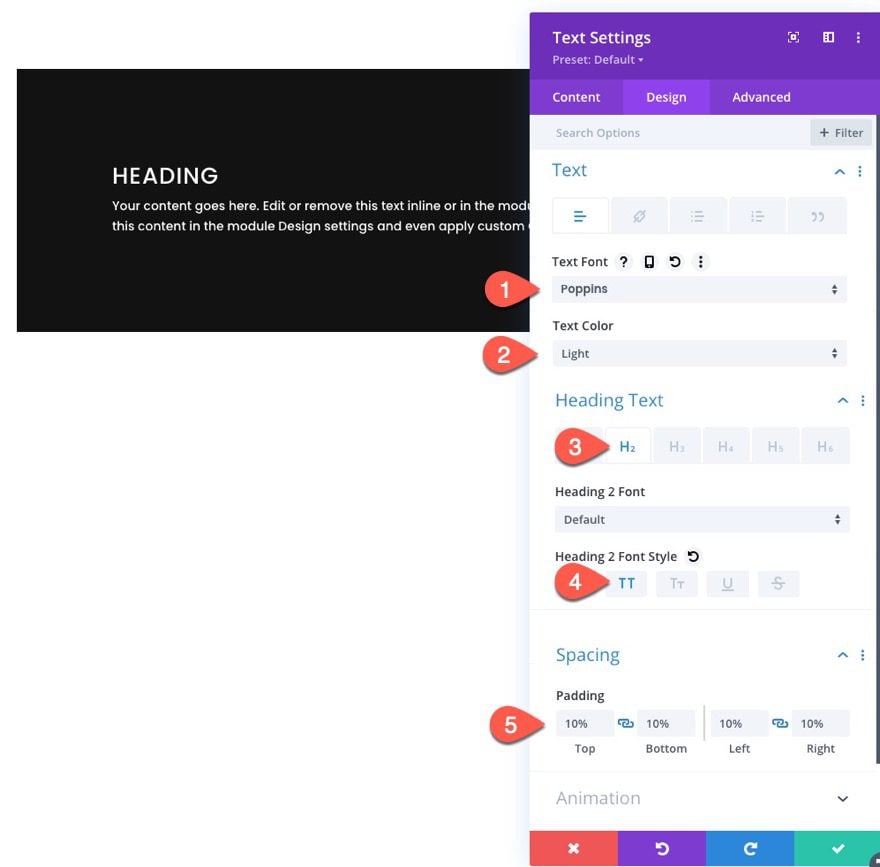

Then update the design settings as follows:

  1. Text Font: Poppins
  2. Text Color: Light
  3. Select the H2 tab under Heading Text
  4. Heading 2 Font Style: TT
  5. Padding: 10% top, 10% bottom, 10% left 10% right

css grid layout for divi modules

NOTE: For simplicity, we are going to stick with using multiple text modules with various background colors to show a distinction between each module. But, as I’ll explain later, you can use any combination of modules you want (blurb modules, call to action modules, contact form modules, etc.).

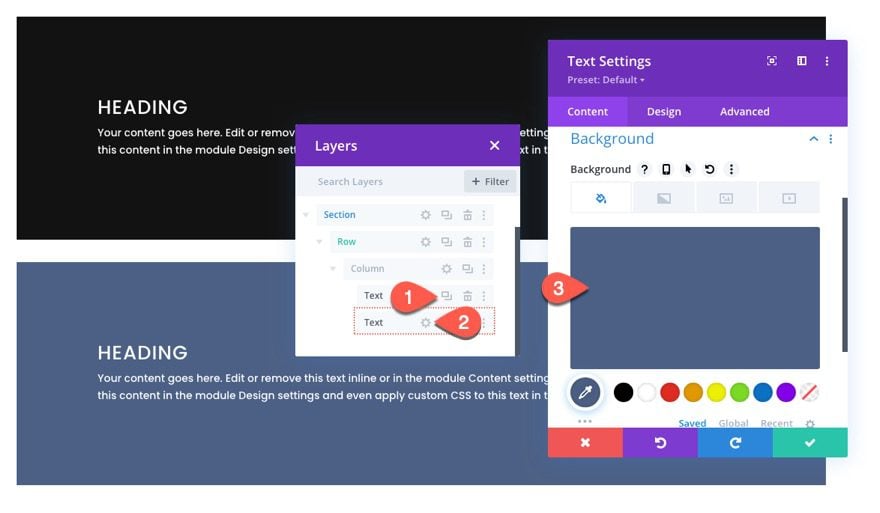

Open the layers view (optional) and create the next text module as follows:

  1. Duplicate the text module.
  2. Open the text settings for the duplicate module.
  3. Update the Background Color
    • Background Color: #4c6085

css grid layout for divi modules

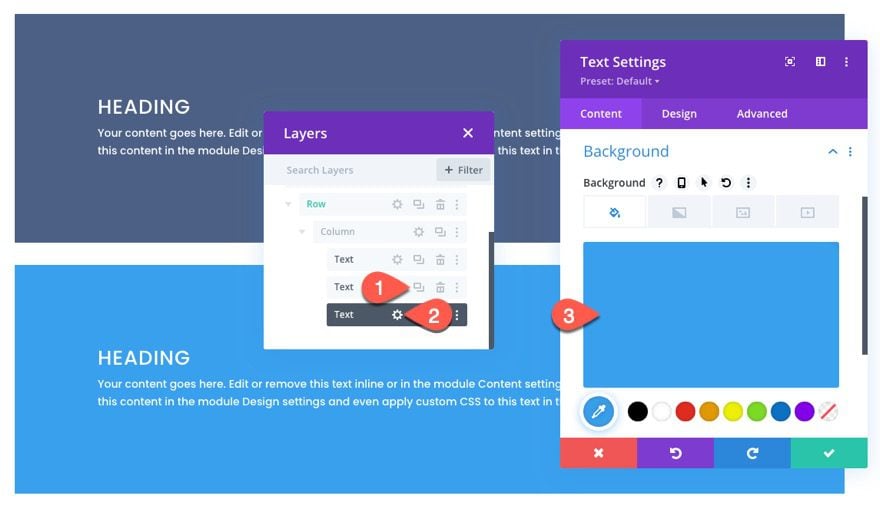

Repeat this process to create the third text module as follows:

  1. Duplicate the previous text module.
  2. Open the text settings for the duplicate module.
  3. Update the Background Color
    • Background Color: #39a0ed

css grid layout for divi modules

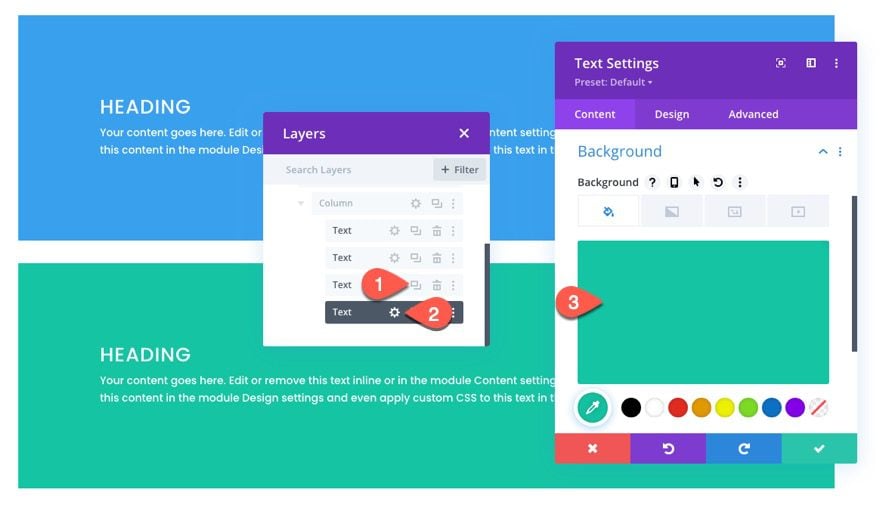

Repeat this process one more time to create the fourth text module as follows:

  1. Duplicate the previous text module.
  2. Open the text settings for the duplicate module.
  3. Update the Background Color
    • Background Color: #13c4a3

css grid layout for divi modules

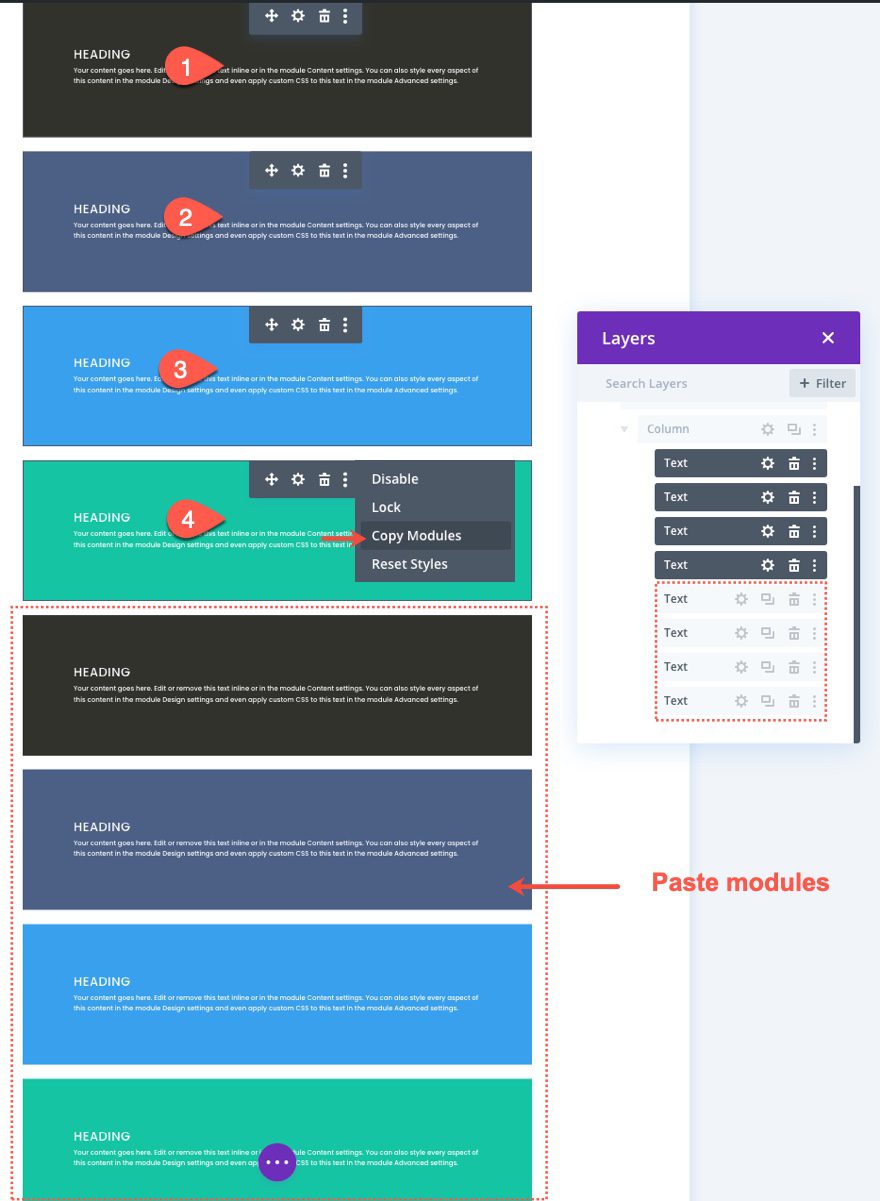

To create the next four modules, use the multiselect feature to select all four modules. Then copy and paste the modules in the same column to create a total of eight text modules.

css grid layout for divi modules

Part 2: Creating the CSS Grid Layout for the Modules

Now that our modules are in place, we are ready to create our CSS Grid for those modules.

Row Settings

For this example, we are using a one-column layout so that we can display our module grid in a full-width layout. So we will need to update the row settings to make sure the row spans the full width of the page. We also need to take out the default gutter width so that no additional margins are added to our modules.

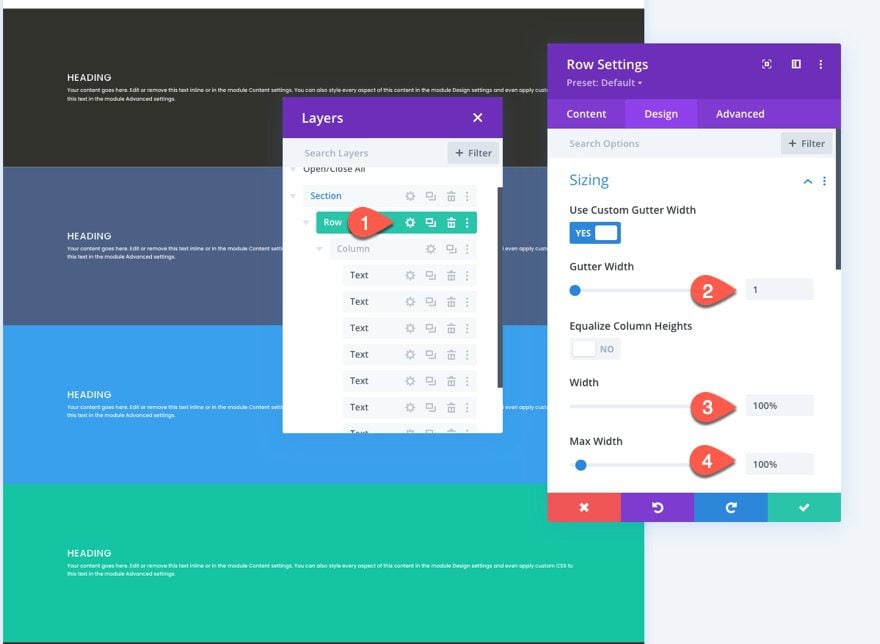

Open the row settings and update the following:

  • Gutter Width: 1
  • Width: 100%
  • Max-width: 100%

css grid layout for divi modules

Adding CSS Grid to the Column to Build the Grid Layout for the Modules

This is the key step in the tutorial that creates the layout for the modules using the CSS Grid property.

To do this, we are going to add three lines of CSS to the Column that will determine the layout of our modules.

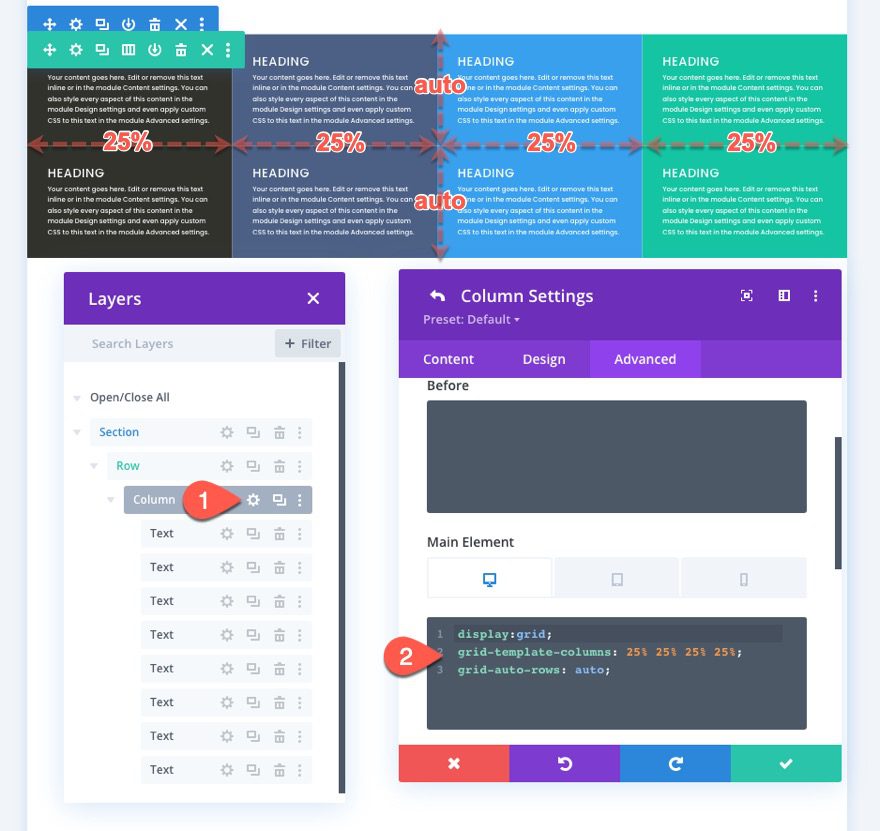

Open the column settings and, under the advanced tab, paste the following CSS inside the Main Element:

display:grid;
grid-template-columns: 25% 25% 25% 25%;
grid-auto-rows: auto;

css grid layout for divi modules

The first line of CSS lays out the content (or modules) according to the CSS grid module.

display:grid

The second line of CSS defines the column template of the grid. In this case, the grid will have four columns that are each 25% in width (see screenshot above).

grid-template-columns: 25% 25% 25% 25%

The third line of CSS specifies that rows will be auto-generated as needed with a size (or height) set to auto. This means the height of each row will be determined by the vertical height of the content (or modules) within the row (see screenshot above).

grid-auto-rows: auto

Adjust Grid Layout on Mobile

We will also need to adjust the grid layout on mobile devices as needed.

To do this we simply need to add additional CSS to each tablet an mobile that changes the number of columns and the width of each column.

In this example, we are going to change the grid layout for the modules on tablet to be two columns that are each 50% in width.

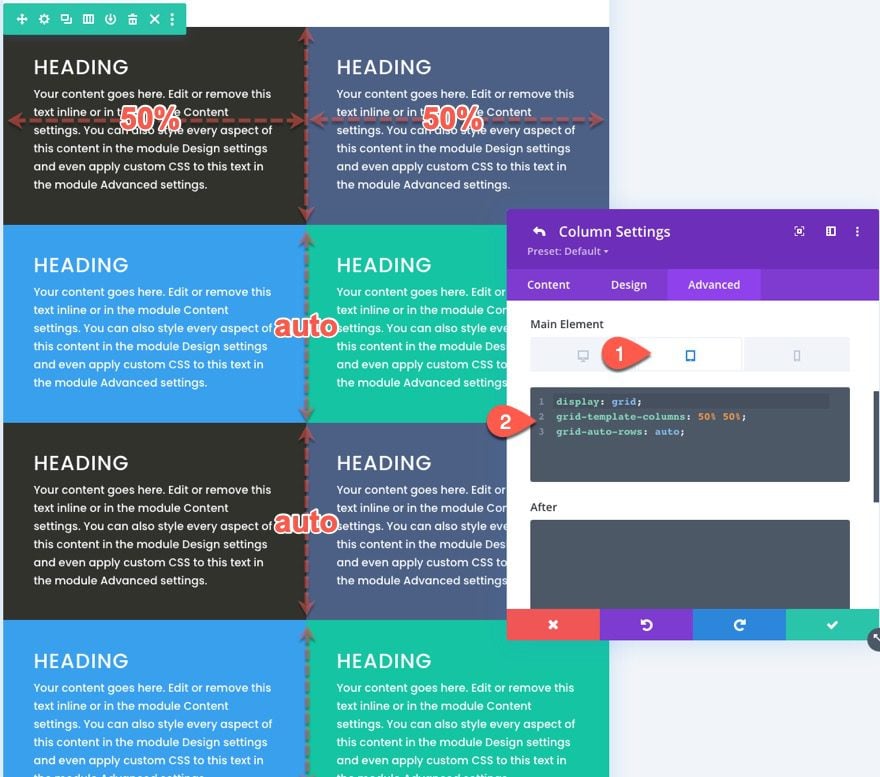

Open the responsive options and select tablet tab under the main element and paste the following CSS:

 display:grid;
grid-template-columns: 50% 50%;
grid-auto-rows: auto;

css grid layout for divi modules

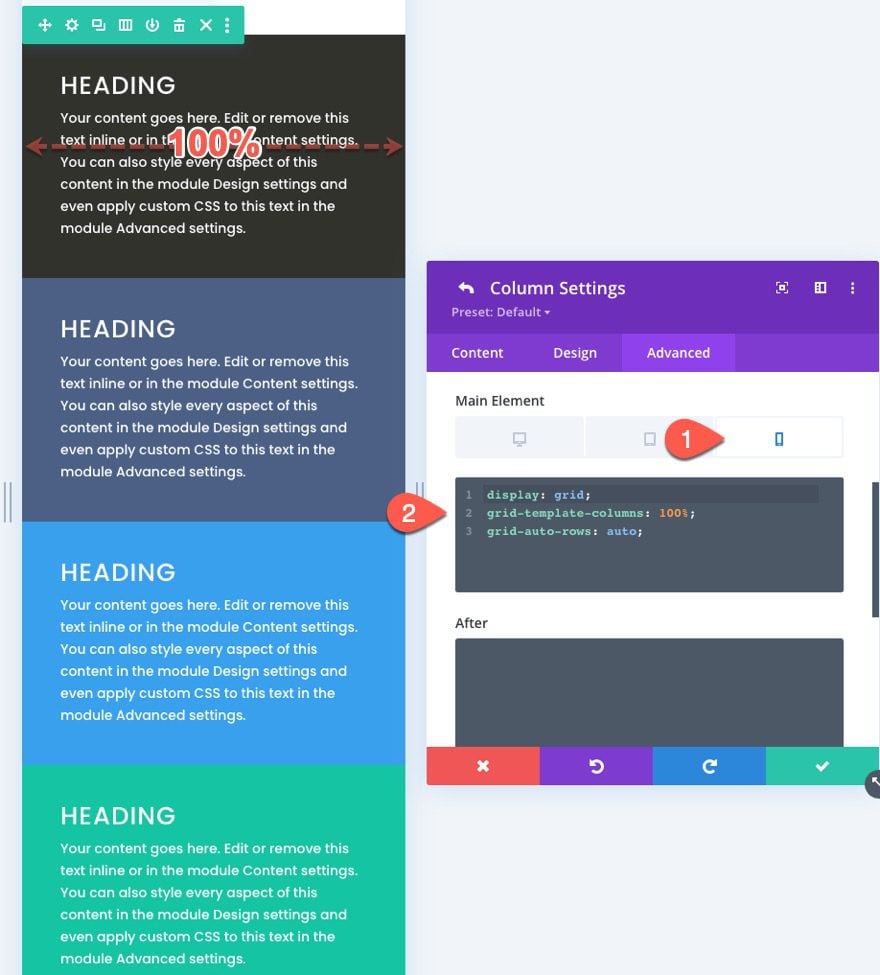

For phone display, we want a single-column layout. To create this, paste the following CSS under the Phone tab Main Element:

 display:grid;
grid-template-columns: 100%;
grid-auto-rows: auto;

css grid layout for divi modules

Part 3: Making Changes to the Grid Items (or Modules)

Adding a New Module to the Grid and How it Reacts

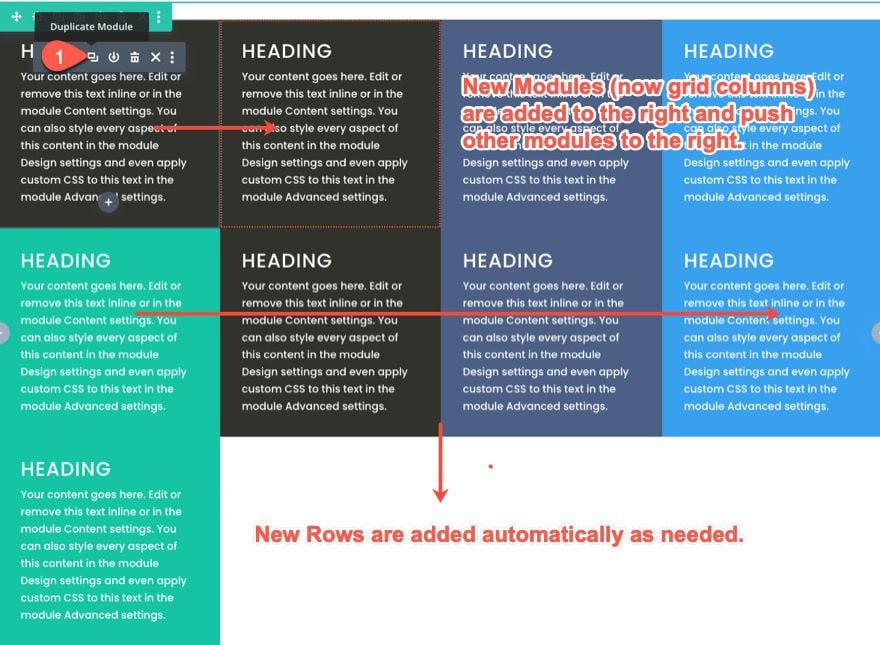

Now that each module is inside the CSS grid, adding a new module will push the other modules to the right and create new rows automatically as needed.

Since we need one more module for this layout anyway, duplicate the first text module to see how the other modules adjust within the grid.

css grid layout for divi modules

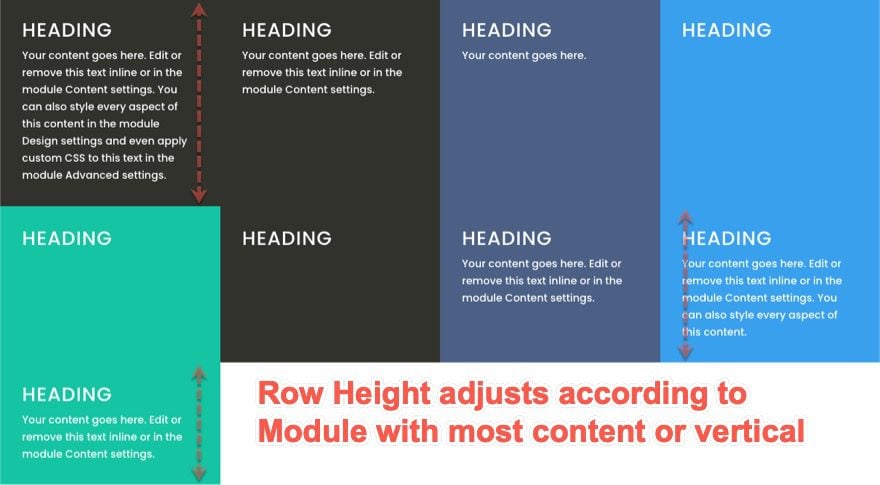

How Grid Responds to Modules with Different Amounts of Content

Right now, all the text modules have the same amount of content so it is hard to see how the grid layout handles modules with varying amounts of content. To see how this works, change the amount of paragraph text within each module. Notice that the modules will remain the same height as the module with most content in the same row. And the row height will also be determined by the module with the most content (or vertical height).

css grid layout for divi modules

Changing the Position of Modules (or grid items)

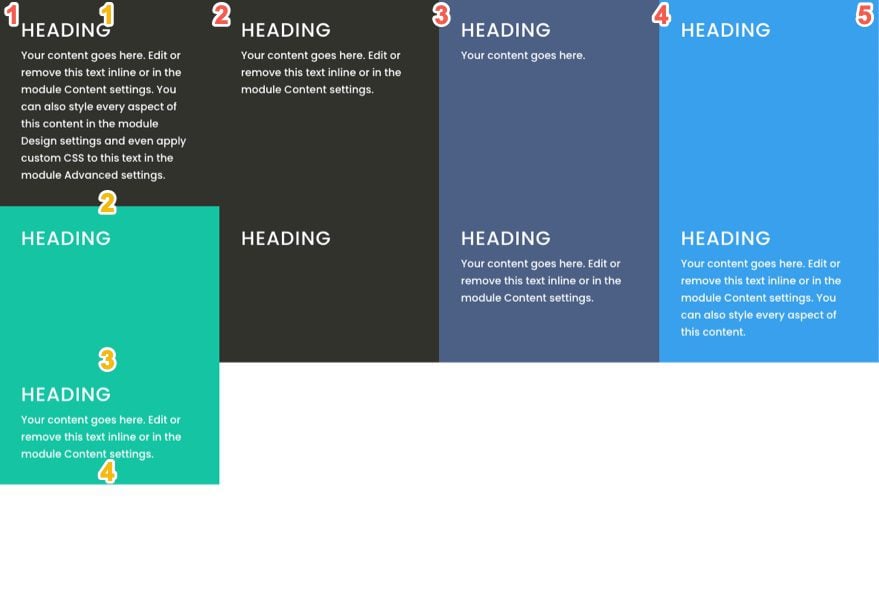

CSS Grid items can be positioned using the built-in line numbering system of the grid module. Each line on the grid represents a number. For the columns, the line numbers start at 1 and continue horizontally. Each line number sits at the beginning and end of each column. So, for our four-column structure, the line number begins at 1 on the left of the first column and ends at 5 on the right side of the fourth column. And, since we have three rows, the line numbers for rows start at 1 at the top of the first row and continue to 4 at the bottom of the third row.

css grid layout for divi modules

To change the position of a module (or grid item) in CSS Grid, we can set define where we want a certain module to be placed in the grid. This will override the default placement of the module in the grid.

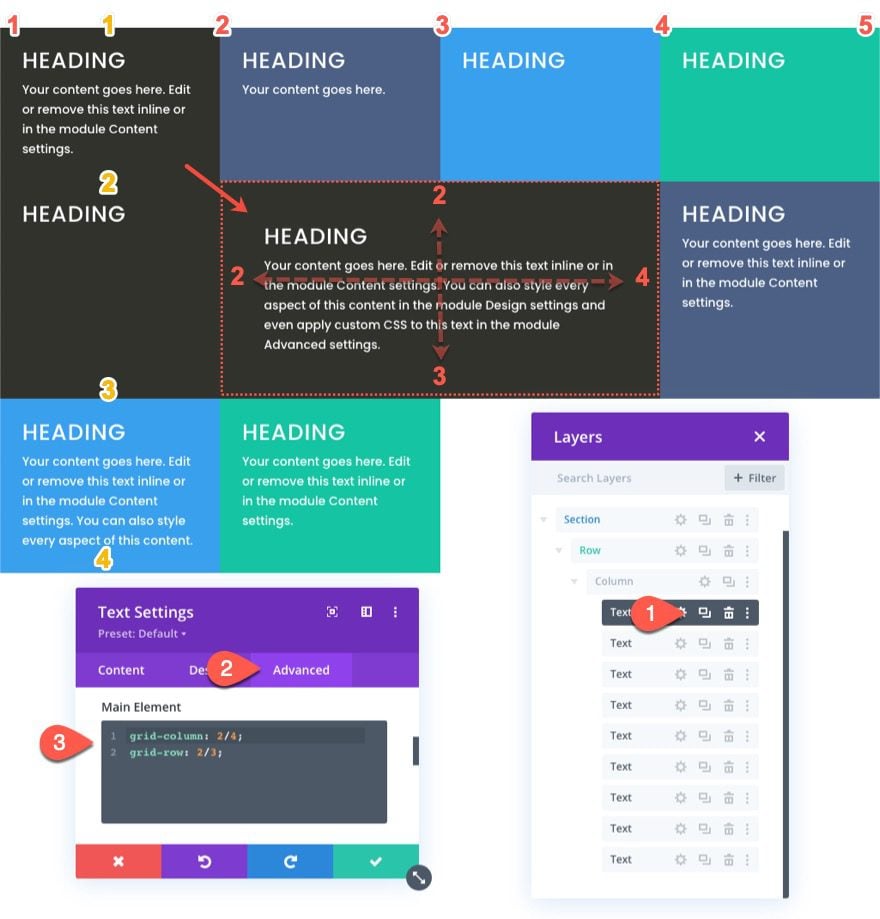

For this example, we are going to move the first text module to a different position. To do this we need to add two lines of CSS to the module.

Open the settings for the first text module and paste the following custom CSS to the main element:

grid-column: 2/4;
grid-row: 2/3;

css grid layout for divi modules

The first line of CSS defines the position of the module (or grid item) horizontally by telling the module to start on column line 2 and end on column line 4.

grid-column: 2/4

The second line of CSS defines the position of the module (or grid item) vertically by telling the module to start on row line 2 and end on row line 3.

grid-row: 2/3

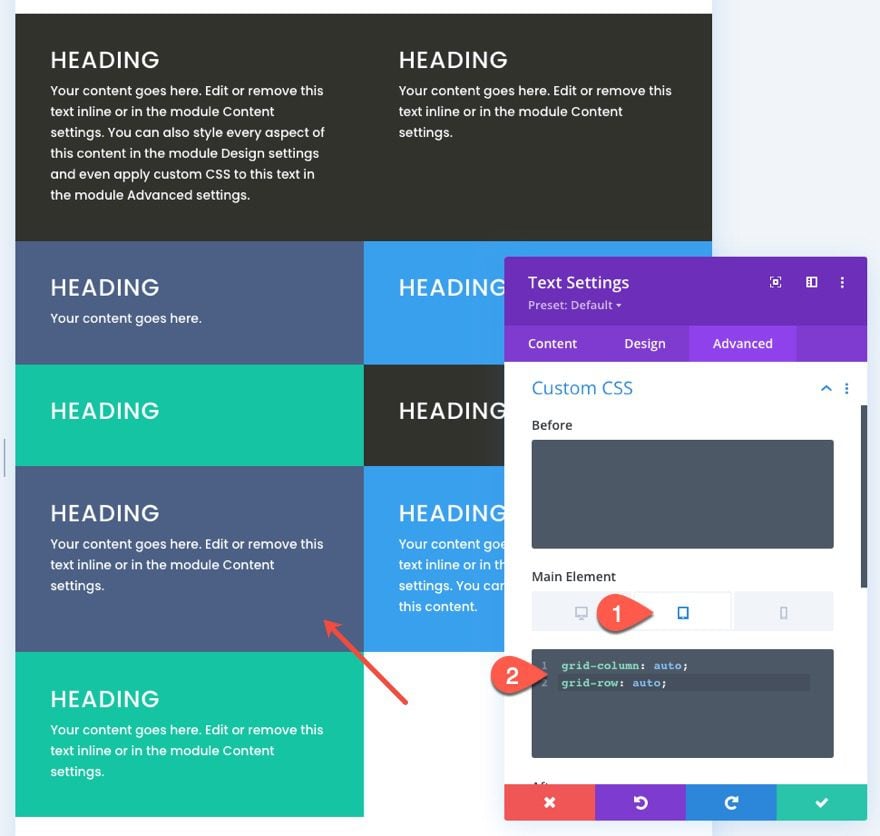

For tablet and phone display, we want to bring the module back to the original location. This is helpful for keeping your main header at the top of the page.

To do this, select the tablet tab under the responsive option for the main element and paste the following CSS:

grid-column: auto;
grid-row: auto;

css grid layout for divi modules

Now the position of the module will go back to the original (automatic) flow of the grid items.

Let’s go ahead and position a few more modules (or grid items) using this method.

We are going to position the third text module (now in the second column of the top row) at a new set location within the grid. This new position will start at column line 1 and end on column line 2 and also start at row line 2 and end on row line 4.

css grid layout for divi modules

To do this, open the settings for the third text module and paste the following custom CSS to the main element:

grid-column: 1/2;
grid-row: 2/4;

css grid layout for divi modules

Now we can change, the position back to on mobile by adding the following CSS for tablet:

grid-column: auto;
grid-row: auto;

css grid layout for divi modules

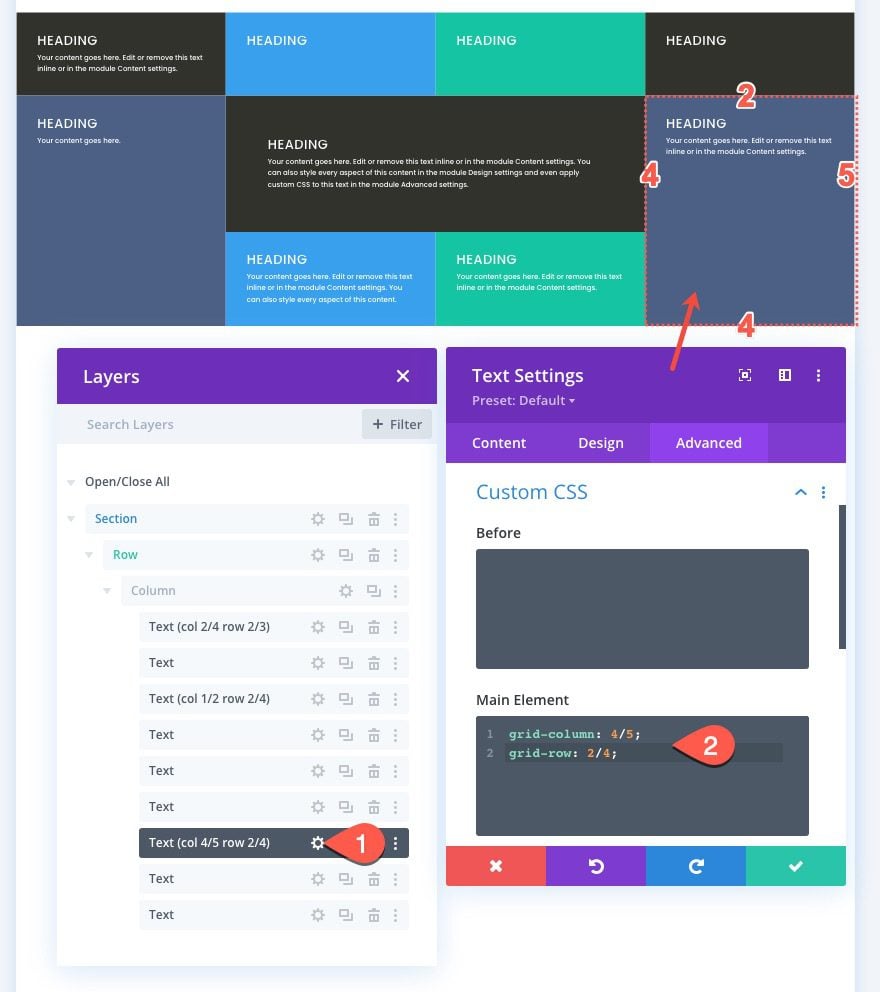

For our final custom module grid placement, we are going to position the seventh text module (now in the last column of the second row) at a new set location within the grid. This new position will start at column line 4 and end on column line 5 and also start at row line 2 and end on row line 4.

css grid layout for divi modules

To do this, open the settings for the seventh text module and paste the following custom CSS to the main element:

grid-column: 4/5;
grid-row: 2/4;

css grid layout for divi modules

Then paste the following CSS for tablet display as we did for the previous modules.

grid-column: auto;
grid-row: auto;

css grid layout for divi modules

Aligning Module (or Grid Item) Content to Center

We could stop there, but we would miss out on a helpful way to align (or center) our module content vertically. Having module (or grid item) content vertically centered is a convenient feature of a grid layout because it makes everything more symmetrical and aesthetically pleasing.

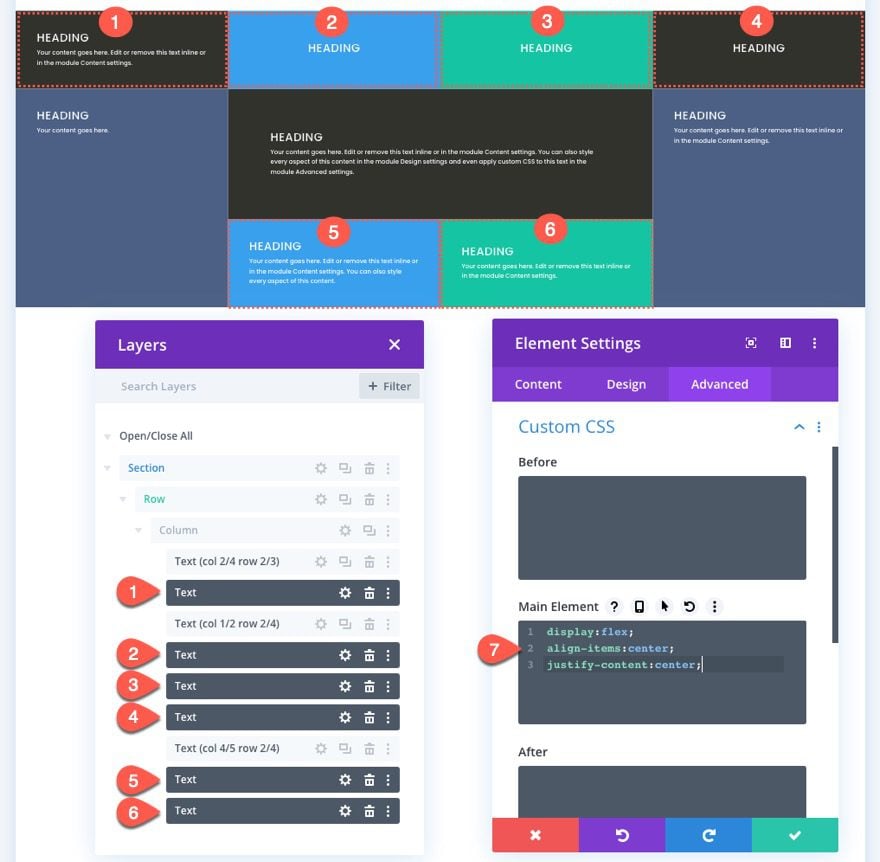

To do this, we can add a snippet of CSS that uses the flex CSS property to align and justify the content to the center. We need to add this snippet to each of the modules. To do this we can use multiselect to select all the modules (or grid items) that don’t already have custom CSS to the main element (we don’t want to override those modules with custom positions). Then open the element settings by opening the settings for one of the selected modules. Under the Advanced tab, paste the following CSS tot he Main Element:

display:flex;
flex-direction:column;
align-items:center;
justify-content:center;

css grid layout for divi modules

Now we can go back to our other three modules (module #1, #3, and #7) individually and add the same snippet of CSS in addition to the CSS that was used to give the module a custom position on the grid. Make sure to add the CSS snippet under the existing CSS for both desktop and tablet.

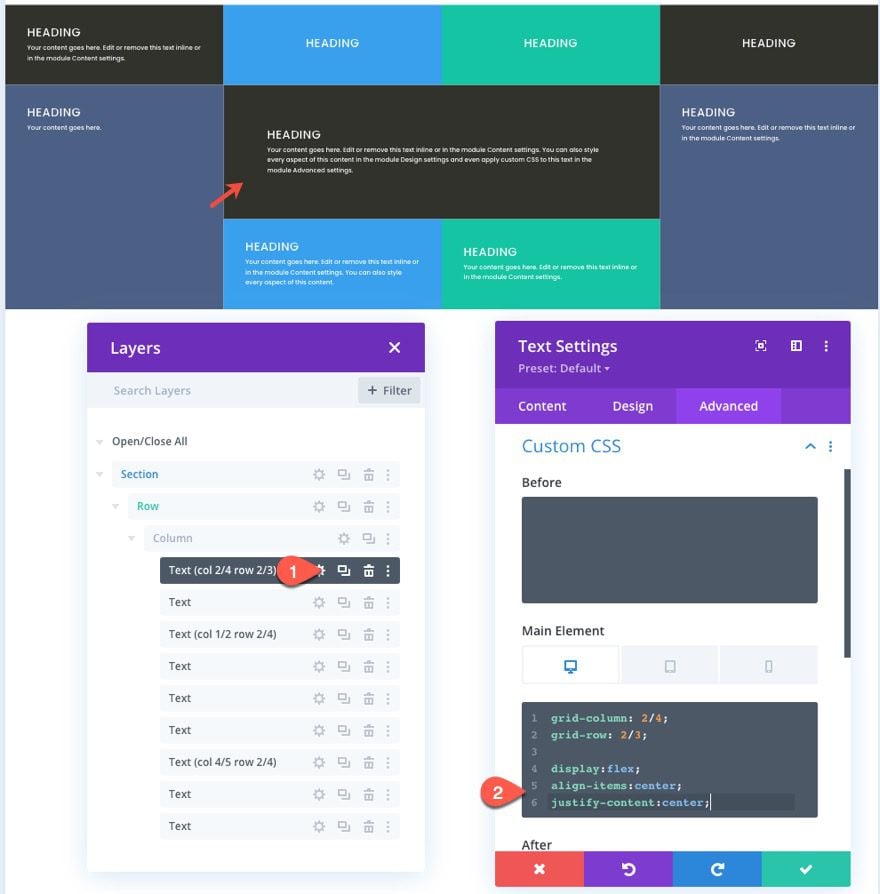

Add CSS to First Text Module

css grid layout for divi modules

css grid layout for divi modules

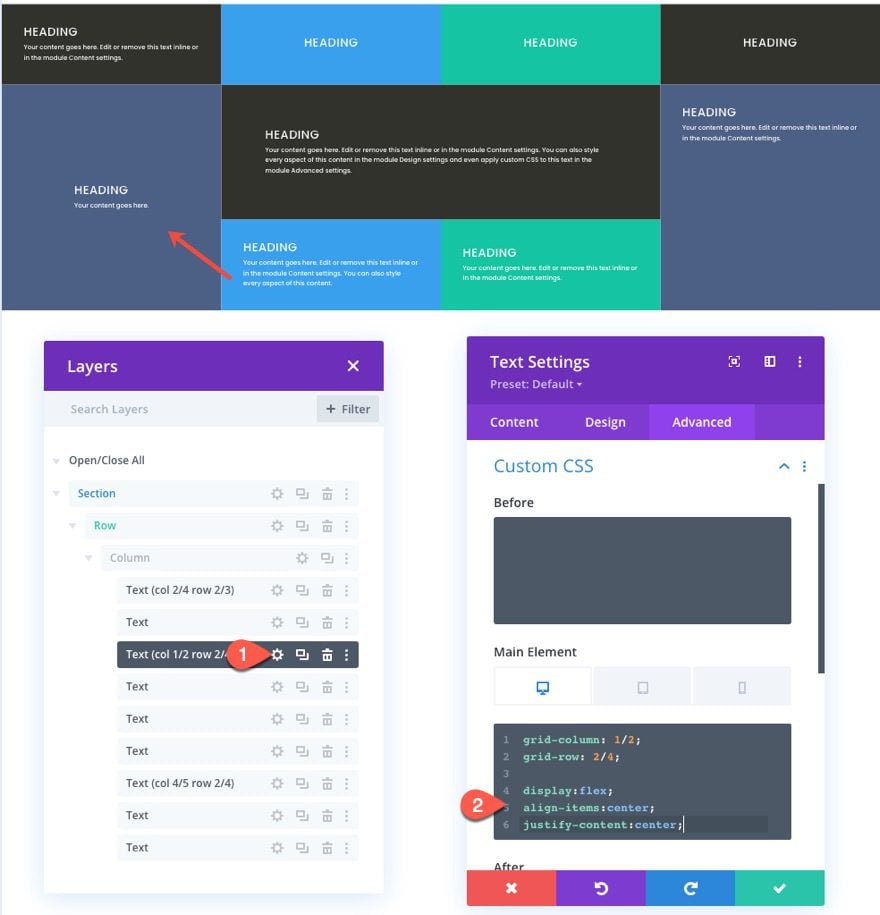

Add CSS to Third Text Module

css grid layout for divi modules

Add CSS to Seventh Text Module

css grid layout for divi modules

Final Result

Here is the final result of our custom CSS grid layout for our text modules.

css grid layout for divi modules

Notice how the modules (or grid items) adjust smoothly on different browser widths for a nice responsive design.

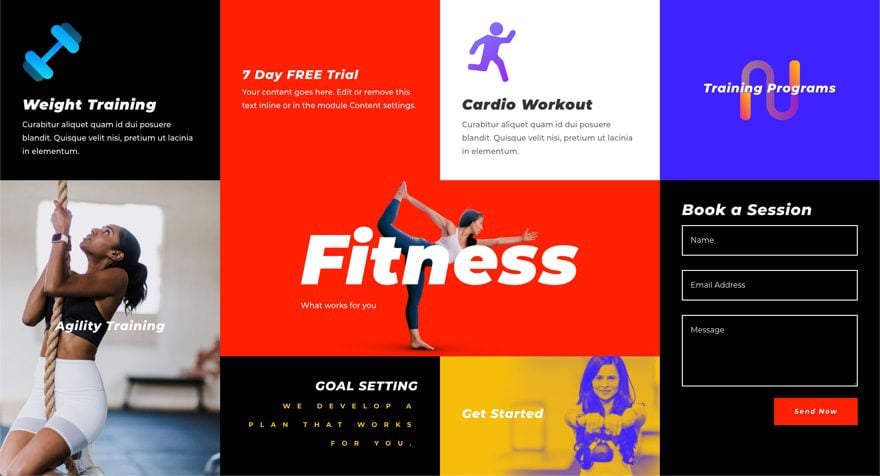

Example Using Different Modules and Designs

It is hard to see the full potential of using CSS grid to create module layouts using only text modules. So I thought I would show you a design I created by applying the same steps in this tutorial using different modules and design elements from our Fitness Gym Layout Pack.

Here it is…

css grid layout for divi modules

I’ve also included this layout along with the text module layout with the free download featured at the beginning of this post.

Feel free to take it for a spin!

Final Thoughts

In this tutorial, we showed you how to create a CSS grid layout for Divi modules. Although the process does rely on some custom CSS, it’s surprisingly not that much, considering the powerful results it can have. It is nice to be able to control the layout of all your modules at the column level when needed for more unique Divi layouts. For more info on CSS grid, you should check out this complete guide to consider more possibilities.

I look forward to hearing from you in the comments.

Cheers!
