How to Shrink Your Global Header’s Size When Scrolling with Divi’s Theme Builder

Posted on November 18, 2019 by in Divi Resources | 39 comments

How to Shrink Your Global Header’s Size When Scrolling with Divi’s Theme Builder

When you’re designing a fixed global header, you might want to shrink the header’s height when your visitors are scrolling. It helps reduce the space the global header takes up in your visitors’ viewport height. In this tutorial, we’ll guide you through that process. We’ll start by building the menu, and then we’ll add some JQuery and CSS code to trigger the effect. You’ll be able to download the JSON file for free as well!

Let’s get to it.

Preview

Before we dive into the tutorial, let’s take a quick look at the outcome across different screen sizes.

Desktop

shrink global header height

Mobile

shrink global header height

Download The Global Header Template for FREE

To lay your hands on the free global header template, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our Divi Daily email list by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

1. Go to Divi Theme Builder & Add New Template

Go to Divi Theme Builder

Start by going to the Divi Theme Builder.

shrink global header height

Start Building Global Header

Then, click on ‘Build Global Header’ and select ‘Build Global Header’.

shrink global header height

2. Start Building Global Header

Section Settings

Background Color

Once you’re inside the template editor, you’ll notice a section. Open the section and change the background color into white.

  • Background Color: #FFFFFF

shrink global header height

Sizing

Move on to the module’s design tab and change the width.

  • Width: 100%

shrink global header height

Spacing

Modify the section’s top and bottom padding too.

  • Top Padding: 2vw
  • Bottom Padding: 2vw

shrink global header height

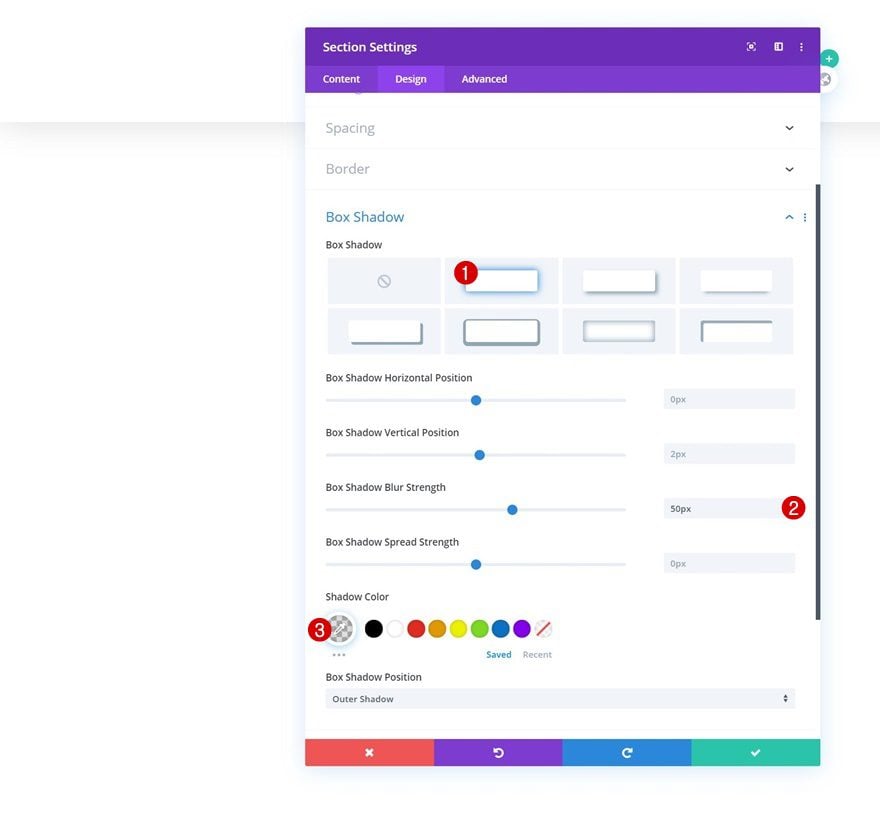

Box Shadow

And separate the page content from the global header by adding a subtle box shadow to the section next.

  • Box Shadow Blur Strength: 50px
  • Shadow Color: rgba(0,0,0,0.13)

shrink global header height

CSS ID

Then, add a CSS ID to the section. Later on the tutorial, we’ll use this CSS ID to create the shrinking global header effect on scroll.

  • CSS ID: section-padding

shrink global header height

Main Element

Move on to the advanced tab, go to the Custom CSS settings and make the section fixed by adding two lines of CSS code to the section’s main element.

position: fixed;
top: 0;

shrink global header height

Z Index

To make sure the section remains on top of all page and post content, we’ll increase the section’s z index too.

  • Z Index: 99999

shrink global header height

Add New Row

Column Structure

Once you’ve completed the column settings, continue by adding a new row using the following column structure:

shrink global header height

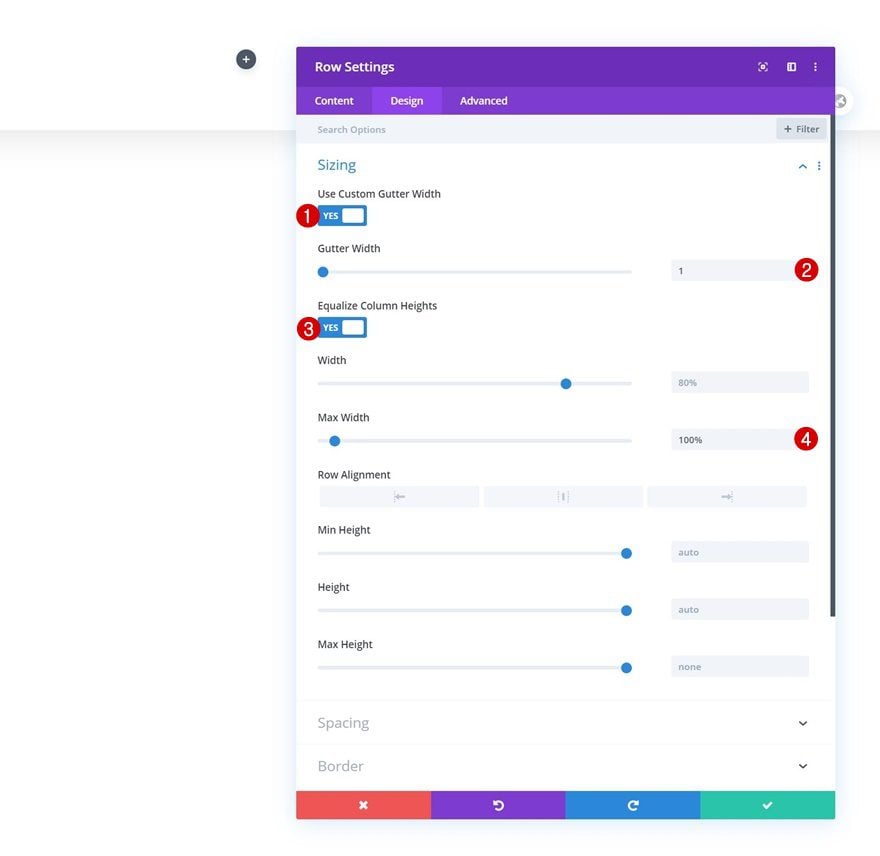

Sizing

Without adding any modules yet, open the row settings and change the sizing accordingly:

  • Use Custom Gutter Width: Yes
  • Gutter Width: 1
  • Equalize Column Heights: Yes
  • Max Width: 100%

shrink global header height

Spacing

Remove the row’s default top and bottom padding next.

  • Top Padding: 0px
  • Bottom Padding: 0px

shrink global header height

CSS ID

Then, go to the advanced tab and add a CSS ID to the row. We’ll need this CSS ID later on the tutorial to make the shrinking effect work.

  • CSS ID: row-width

shrink global header height

Main Element

Last but not least, to make sure all columns remain next to each other on smaller screen sizes, and to center all column content, we’ll add two lines of CSS code to the row’s main element.

display: flex;
align-items: center;

shrink global header height

Add Image Module to Column 1

Upload Logo

Time to add modules, starting with an Image Module in column 1. Upload a logo with a transparent background.

shrink global header height

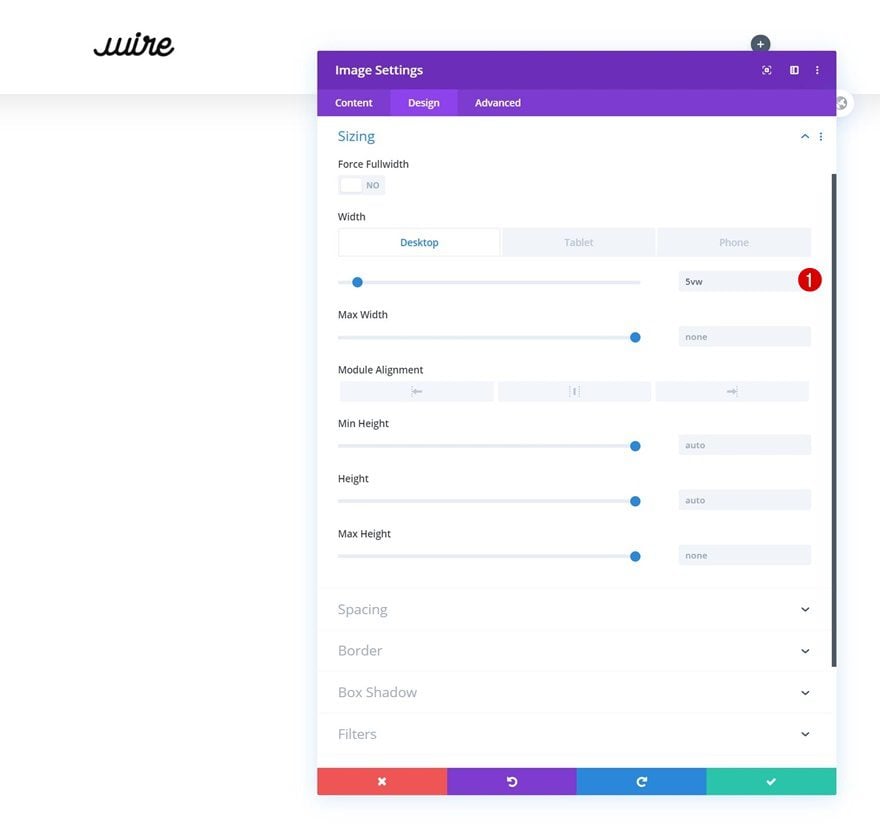

Sizing

Modify the module’s width next.

  • Width: 5vw (Desktop), 9vw (Tablet), 13vw (Phone)

shrink global header height

Add Menu Module to Column 2

Select Menu

Move on to the second column and insert a Menu Module. Select a menu of your choice.

shrink global header height

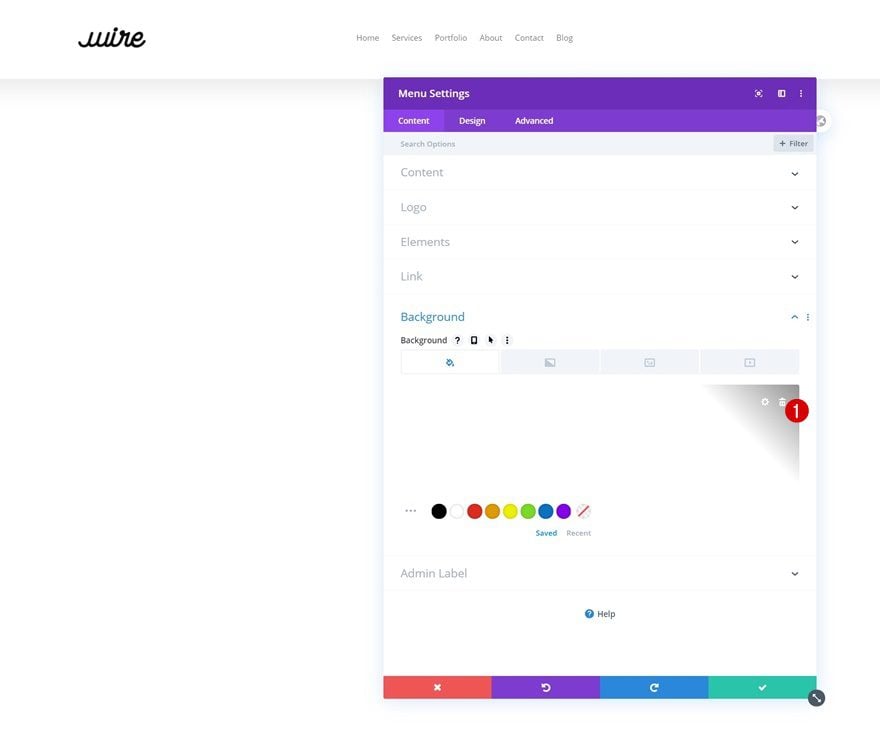

Remove Background Color

Remove the module’s background color next.

shrink global header height

Layout

Move on to the module’s design tab and change the layout too.

  • Style: Centered
  • Dropdown Menu Direction: Downwards

shrink global header height

Menu Text

Then, open the menu text settings and make some changes.

  • Menu Font: Rubik
  • Menu Text Color: #000000
  • Menu Text Size: 0.9vw (Desktop), 2vw (Tablet), 3vw (Phone)

shrink global header height

Dropdown Menu

Modify the dropdown menu settings too.

  • Dropdown Menu Background Color: #ffffff
  • Dropdown Menu Line Color: #2970fa

shrink global header height

Icons

And complete the module’s settings by changing the hamburger menu icon color in the icons settings.

  • Hamburger Menu Icon Color: #2970fa

shrink global header height

Add Button Module to Column 3

Add Copy

On to the next and last column. Add a Button Module with some copy of your choice.

shrink global header height

Alignment

Change the module’s alignment next.

  • Button Alignment: Right

shrink global header height

Button Settings

Style the button accordingly:

  • Use Custom Styles For Button: Yes
  • Button Text Size: 0.8vw (Desktop), 1.5vw (Tablet), 2vw (Phone)
  • Button Text Color: #ffffff
  • Button Background Color: #2970fa
  • Button Border Width: 0px

shrink global header height

  • Button Border Radius: 0px
  • Button Letter Spacing: 1px
  • Button Font: Rubik
  • Button Font Style: Uppercase

shrink global header height

Spacing

And add some custom padding values across different screen sizes.

  • Top Padding: 0.8vw (Desktop), 1.8vw (Tablet), 2.5vw (Phone)
  • Bottom Padding: 0.8vw (Desktop), 1.8vw (Tablet), 2.5vw (Phone)
  • Left Padding: 1.5vw (Desktop), 3vw (Tablet), 4vw (Phone)
  • Right Padding: 1.5vw (Desktop), 3vw (Tablet), 4vw (Phone)

shrink global header height

Box Shadow

Complete the module’s settings by adding a subtle box shadow.

  • Box Shadow Vertical Position: 20px
  • Box Shadow Blur Strength: 30px
  • Shadow Color: rgba(41,112,250,0.2)

shrink global header height

Add Code Module to Column 2

Insert JQuery & CSS Code

The next and last part of this tutorial handles the shrinking effect, using the two CSS IDs we’ve assigned to our section and row. Add a Code Module to column 2 with the following lines of JQuery and CSS code. Make sure you put the JQuery code between script tags and the CSS code between style tags.

jQuery(function($){
  $(window).scroll(function() {
      if ($(document).scrollTop() > 50) {
        $('#section-padding').addClass('reduce-section-padding');
        $('#row-width').addClass('increase-row-width');
    } else {
       $('#section-padding').removeClass('reduce-section-padding');
       $('#section-padding').addClass('slow-transition');
       $('#row-width').removeClass('increase-row-width');
       $('#row-width').addClass('slow-transition');
    }
  });
});
.reduce-section-padding {
transition: all 0.9s ease-out 0s;
padding-top: 0px !important;
padding-bottom: 0px !important;
}

.increase-row-width {
transition: all 0.9s ease-out 0s;
width: 100% !important;
}

.slow-transition {
transition: all 0.9s ease-out 0s;
}

#main-content {
margin-top: 5vw;
}

shrink global header height

3. Save Builder Changes & View Result

Once you’ve added the code, you can save all the changes you’ve made to the global header and view the outcome on your website!

shrink global header height

shrink global header height

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes.

Desktop

shrink global header height

Mobile

shrink global header height

Final Thoughts

In this post, we’ve shown you how to create a shrinking global header using Divi’s Theme Builder. Shrinking headers are a great way to save space on your visitor’s viewport height. We’ve recreated the design from scratch and added some custom custom code to trigger the shrinking effect. You were able to download the JSON file for free as well! If you have any questions or suggestions, feel free to leave a comment in the comment section below!

If you’re eager to learn more about Divi and get more Divi freebies, make sure you subscribe to our email newsletter and YouTube channel so you’ll always be one of the first people to know and get benefits from this free content.
