How to Design a WooCommerce Cart Flow Timeline for Your Divi Shop

Last Updated on March 22, 2023 by Leave a Comment

How to Design a WooCommerce Cart Flow Timeline for Your Divi Shop
Blog / Divi Resources / How to Design a WooCommerce Cart Flow Timeline for Your Divi Shop

WooCommerce is one of WordPress’ most beloved eCommerce plugins. To support this, Divi came out with several new Woo-centric modules that allow you greater control over designing your default WooCommerce pages. In today’s post, we will work through developing a WooCommerce cart timeline for Divi. For this timeline, we’ll be creating a visual representation of the user journey. We want to visually show the user how they move from shop to checkout.

Cart Page Template

Desktop View

Divi Toy Store Cart with Cart Flow Timeline - Cart Template

Tablet and Mobile View

WooCommerce Cart Page Timeline Tablet and Mobile View

Checkout Page Template

Divi Toy Store Checkout Page with Cart Flow Timeline - Checkout Template

Tablet and Mobile View

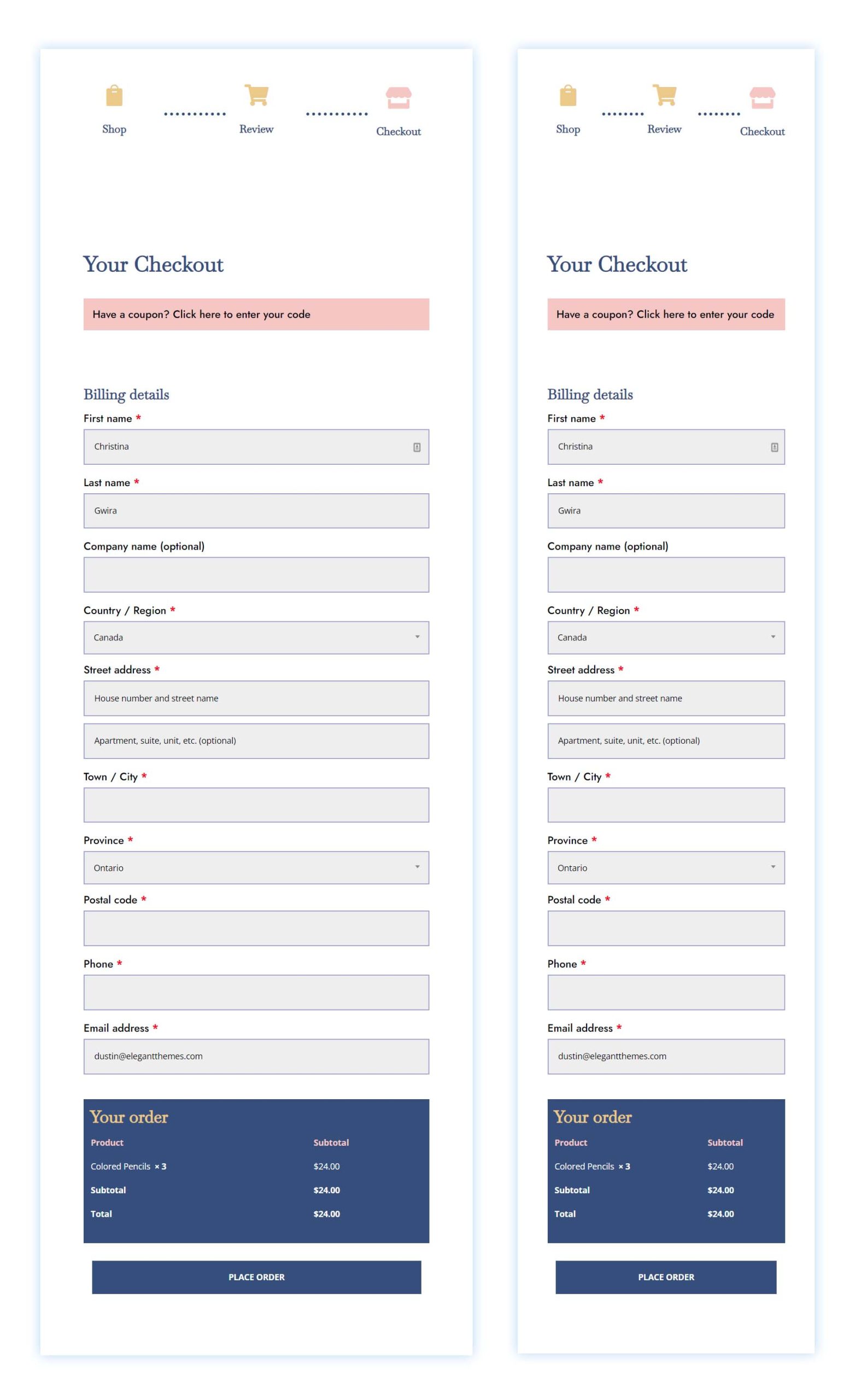

Divi Toy Store Checkout Page in tablet and mobile

Download The Cart & Checkout Template for FREE

To lay your hands on the free cart & checkout template, you will first need to download them using the button below. To gain access to the download you will need to subscribe to our newsletter by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

How to Download & Install the Cart & Checkout Templates

Go to Divi Theme Builder

To upload the template, navigate to the Divi Theme Builder in the backend of your WordPress website.

Open Divi Theme Builder

Upload Global Default Website Template

Then, in the top right corner, you’ll see an icon with two arrows. Click on the icon.

Import the template into the Divi Theme Builder

Navigate to the import tab, upload the JSON file which you were able to download in this post, and click on ‘Import Divi Theme Builder Templates.

Finish importing the template into the Divi Theme Builder

Save Divi Theme Builder Changes

Once you’ve uploaded the file, you’ll notice a new cart, checkout, and shop template. Save the Divi Theme Builder changes as soon as you want the templates to be activated.

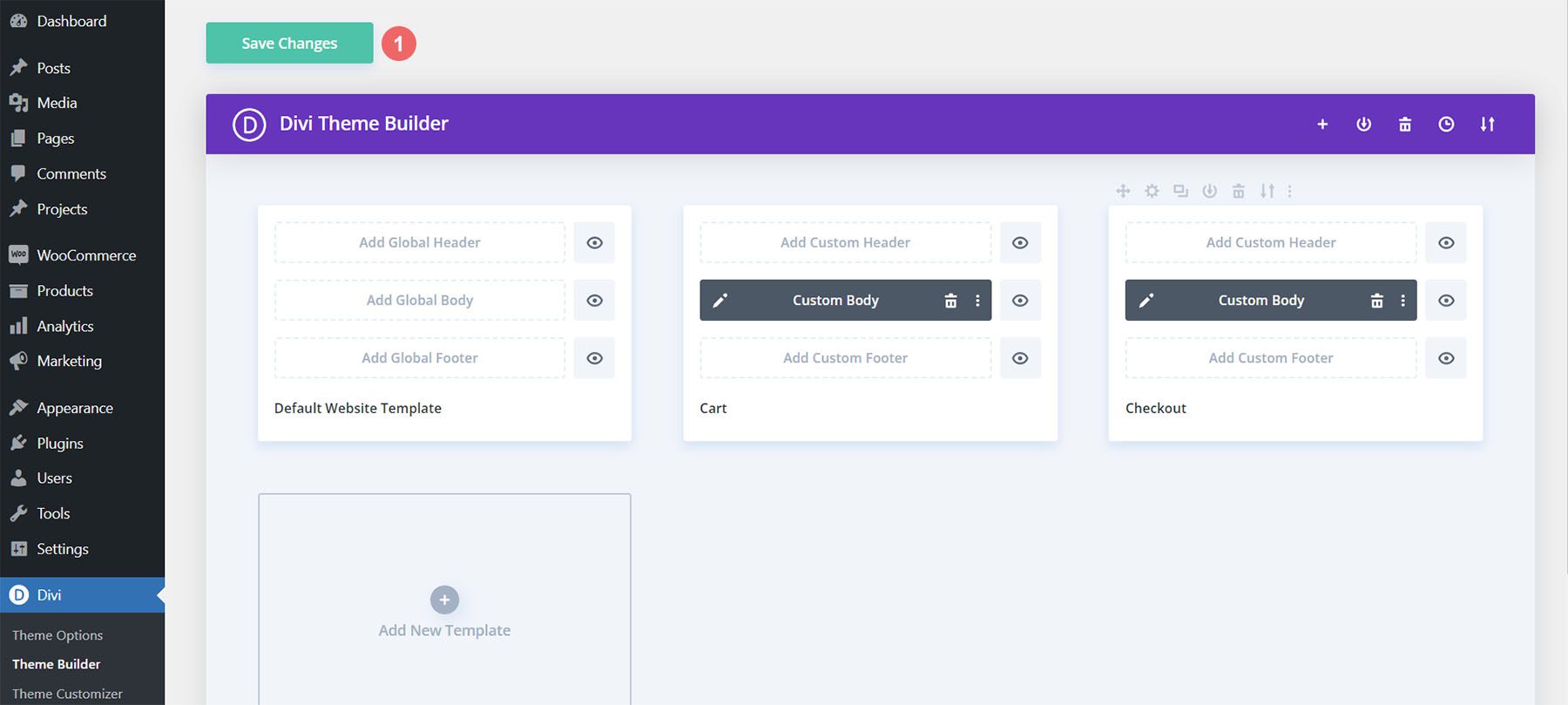

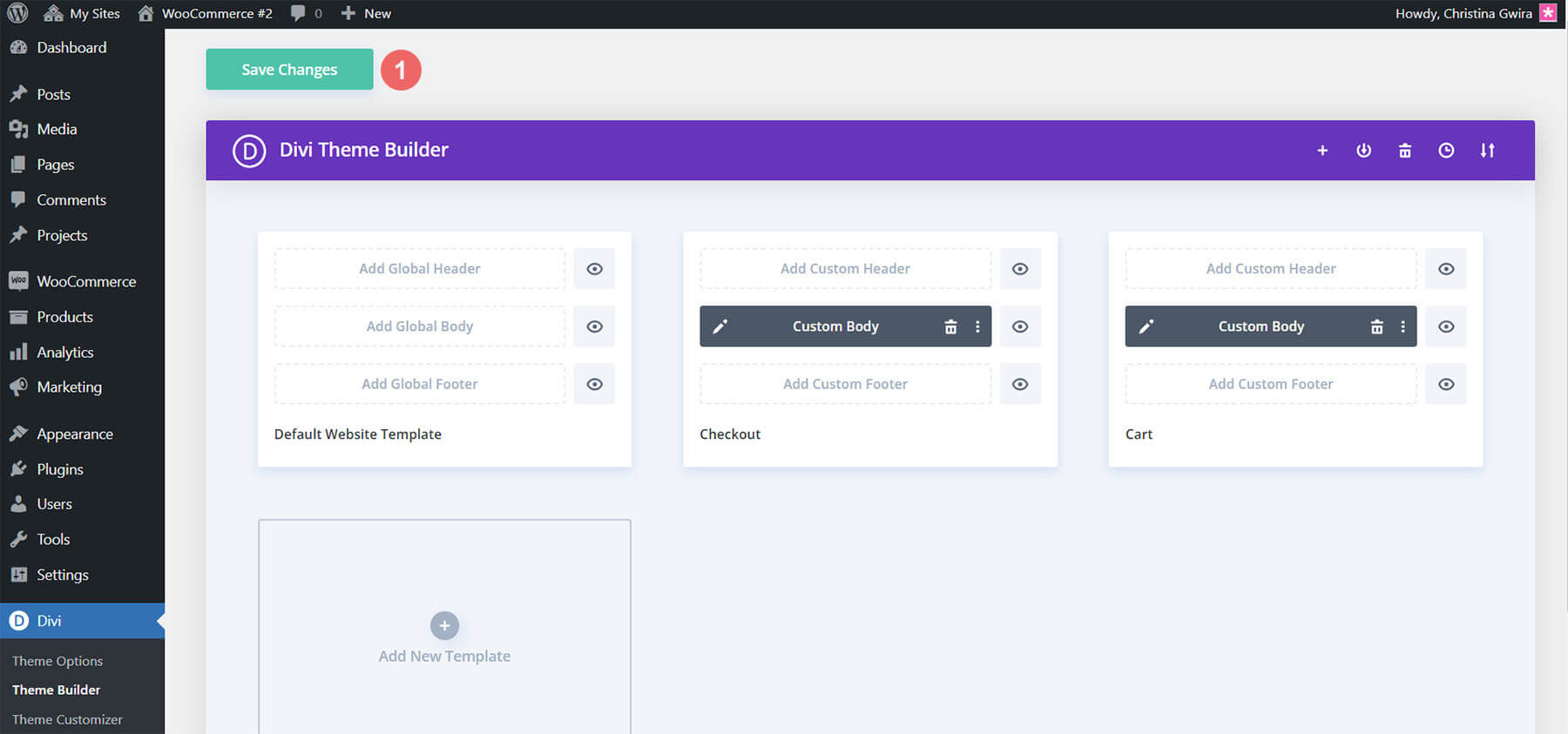

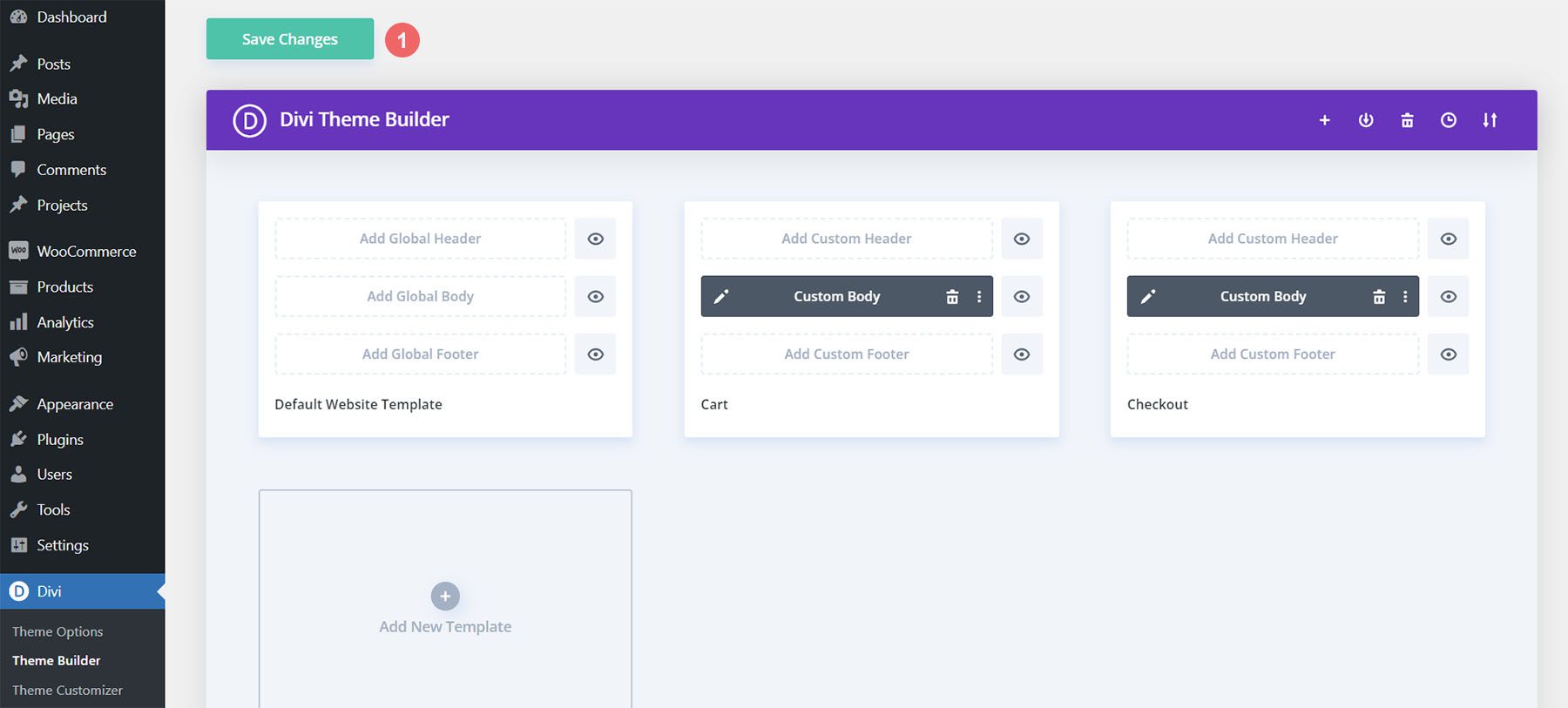

Save Theme Builder Changes for WooCommerce Templates

How to Create the WooCommerce Cart Timeline from Scratch

If you want a bit more of a challenge, the next part of our blog post will show you how to recreate the WooCommerce cart timeline for Divi. You can use the steps in this tutorial to customize your own cart timeline. Use it as inspiration for your next WooCommerce and Divi project! The WooCommerce cart timeline that we’ll be creating looks like this:

Cart Page

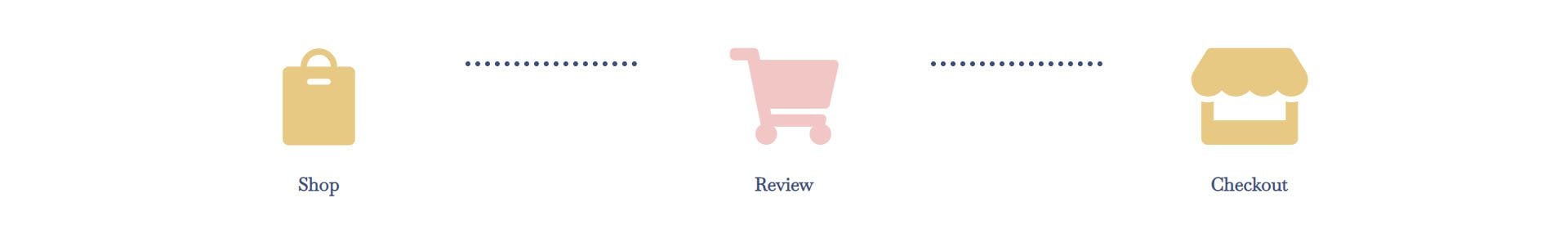

WooCommerce cart timeline on the cart page

Checkout Page

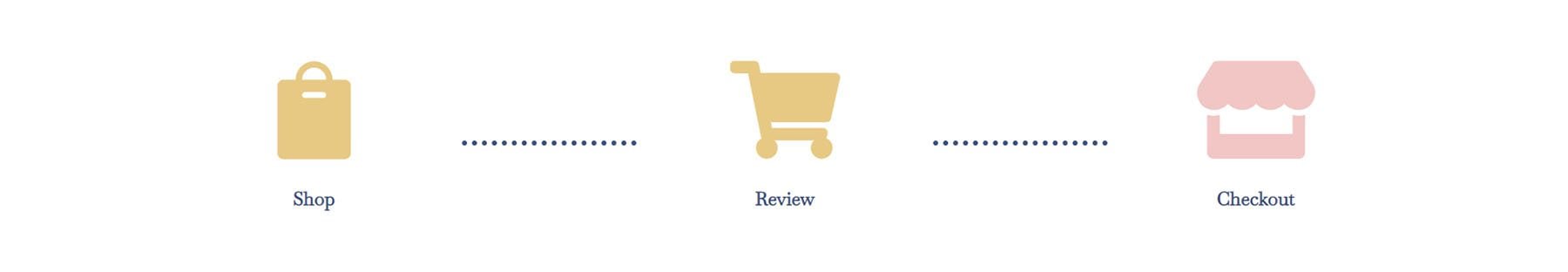

WooCommerce cart timeline on the checkout page

This Woocommerce cart timeline for Divi is also mobile responsive. It stays as a horizontal timeline on mobile devices:

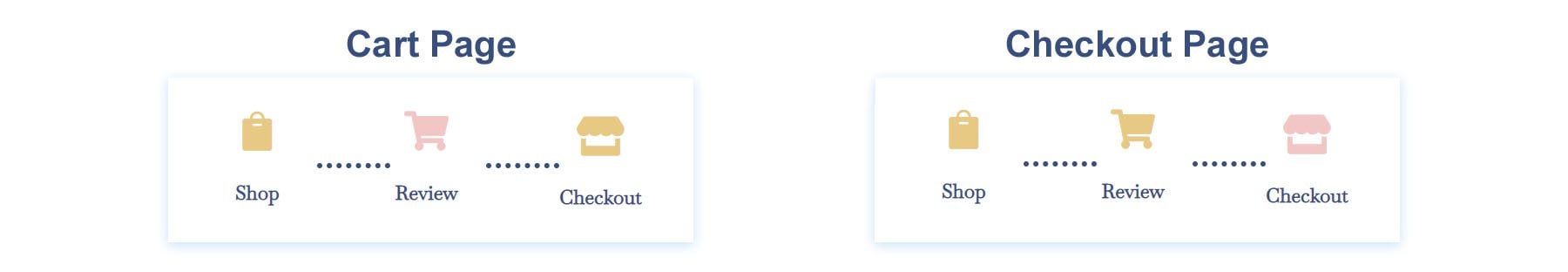

WooCommerce timeline on mobile

Now that we have a visual guide as to what we’ll be building, let’s get started!

Setup the Divi Theme Builder

We will be creating these templates to affect the cart and checkout pages of WooCommerce. As such, we begin our task in the Divi Theme Builder.

Open Divi Theme Builder

Create Cart Template

Click on the plus icon within the Add New Template card.

Create Cart Template

Next, select Build New Template.

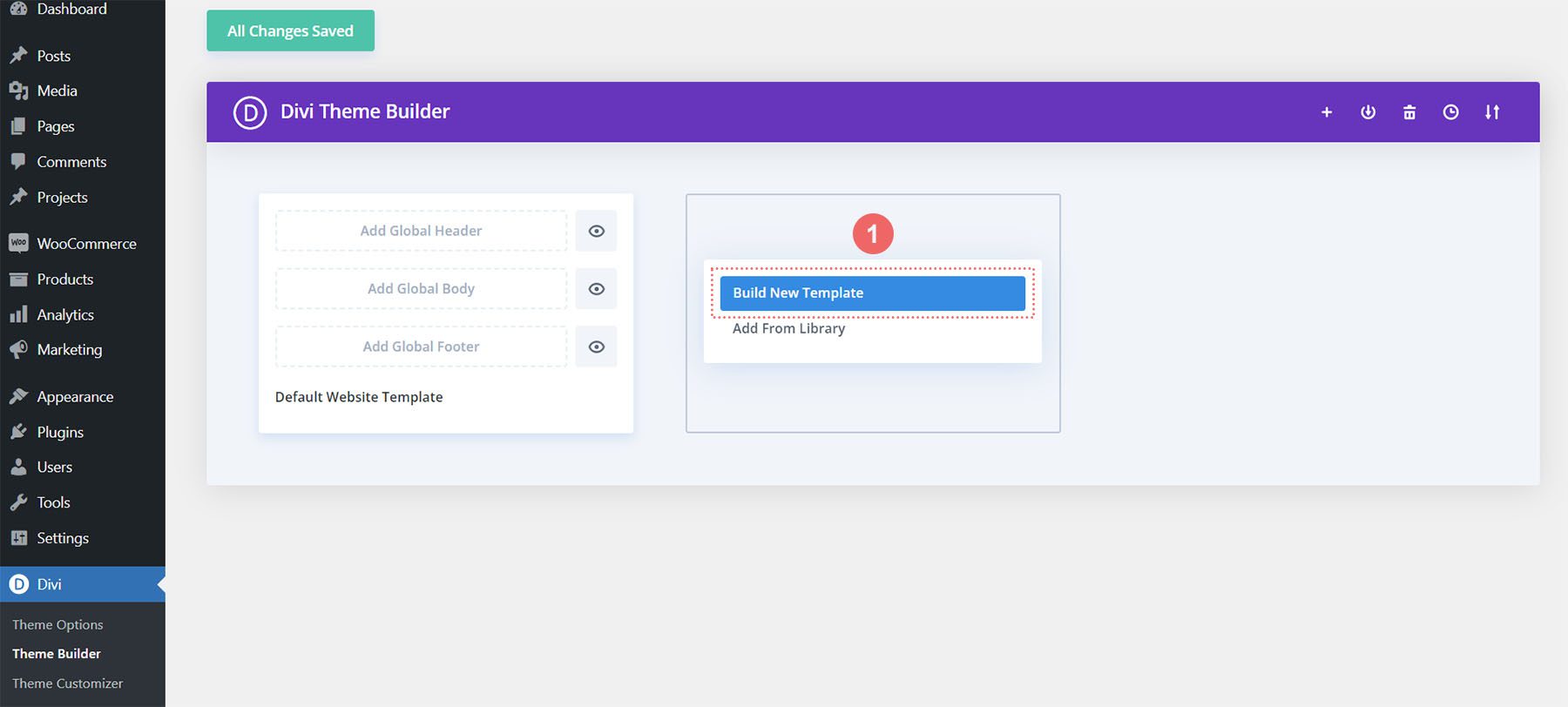

Select Build New Template

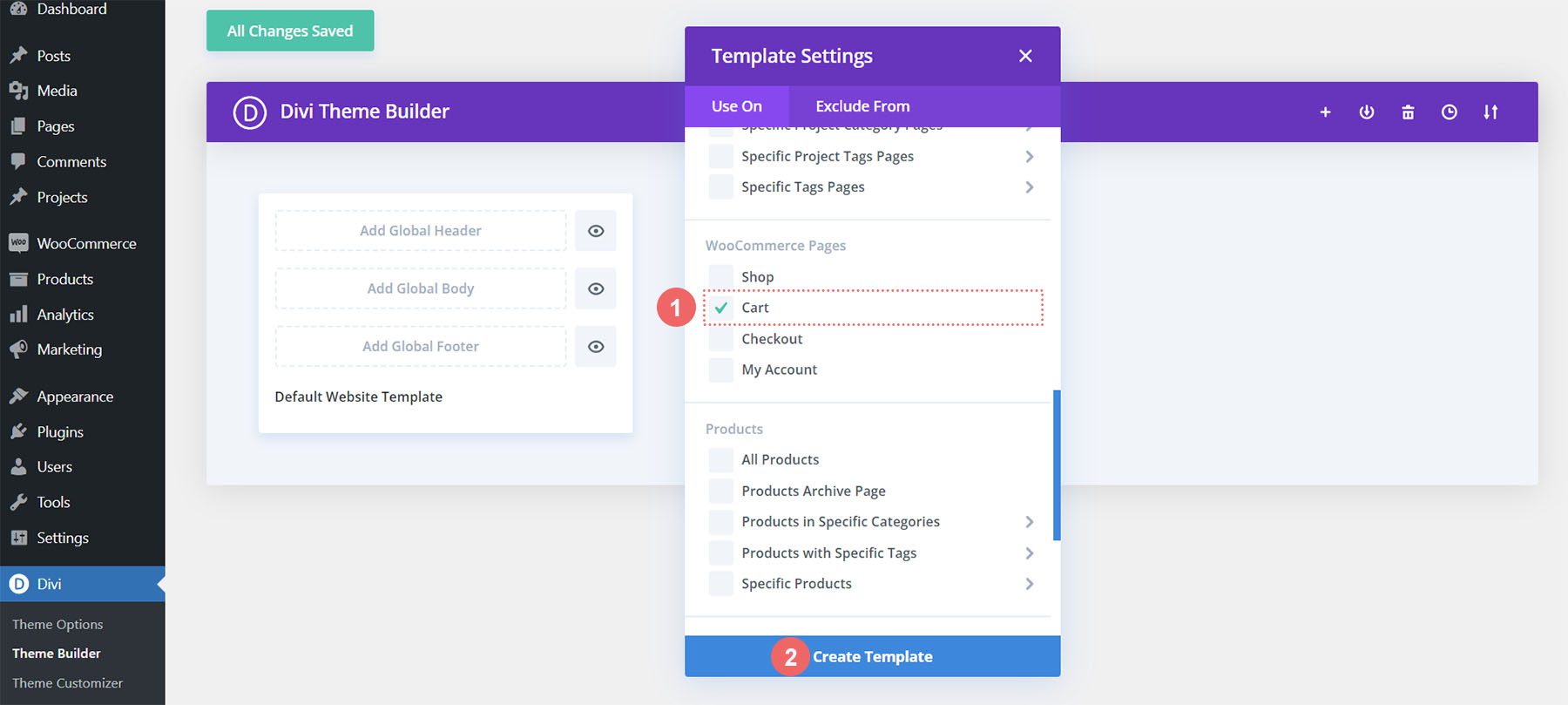

After, you’ll be presented with a modal box of all the various assignments that you can attach to the new template that you’re creating. In our case, we’ll be creating a template for the cart page of our WooCommerce store. So, scroll down the modal box, and select Cart under the WooCommerce heading. Once, selected, click Create Template. When we do this, we are assigning the newly created template to the cart page.

Finish Create Cart Template

Create Checkout Template

We will be going through the same steps to create the checkout template. Click on the plus icon within the Add New Template card.

Create Cart Template

Again, select Build New Template.

Select Build New Template

For the checkout page, we’ll need to scroll down the modal box, and select Checkout under the WooCommerce heading. Once, selected, click Create Template.

Save Templates and Assignments

Now that our cart and checkout templates have been created, we can save them. Click on the green Save Changes button at the top of the Divi Theme Builder.

Save Templates and Assignments

Let’s Start Building the WooCommerce Cart Flow Timeline

Setting Up the Cart Page Template

Now the fun begins! We’re going to start creating our cart flow timeline for the cart page. To do this, we click on the Add Custom Body button within the Cart template that we just created.

Add Body to Cart Page Template

Similar to when we create these templates and their assignments, we’re going to click on the Build Custom Body button that appears in the modal box.

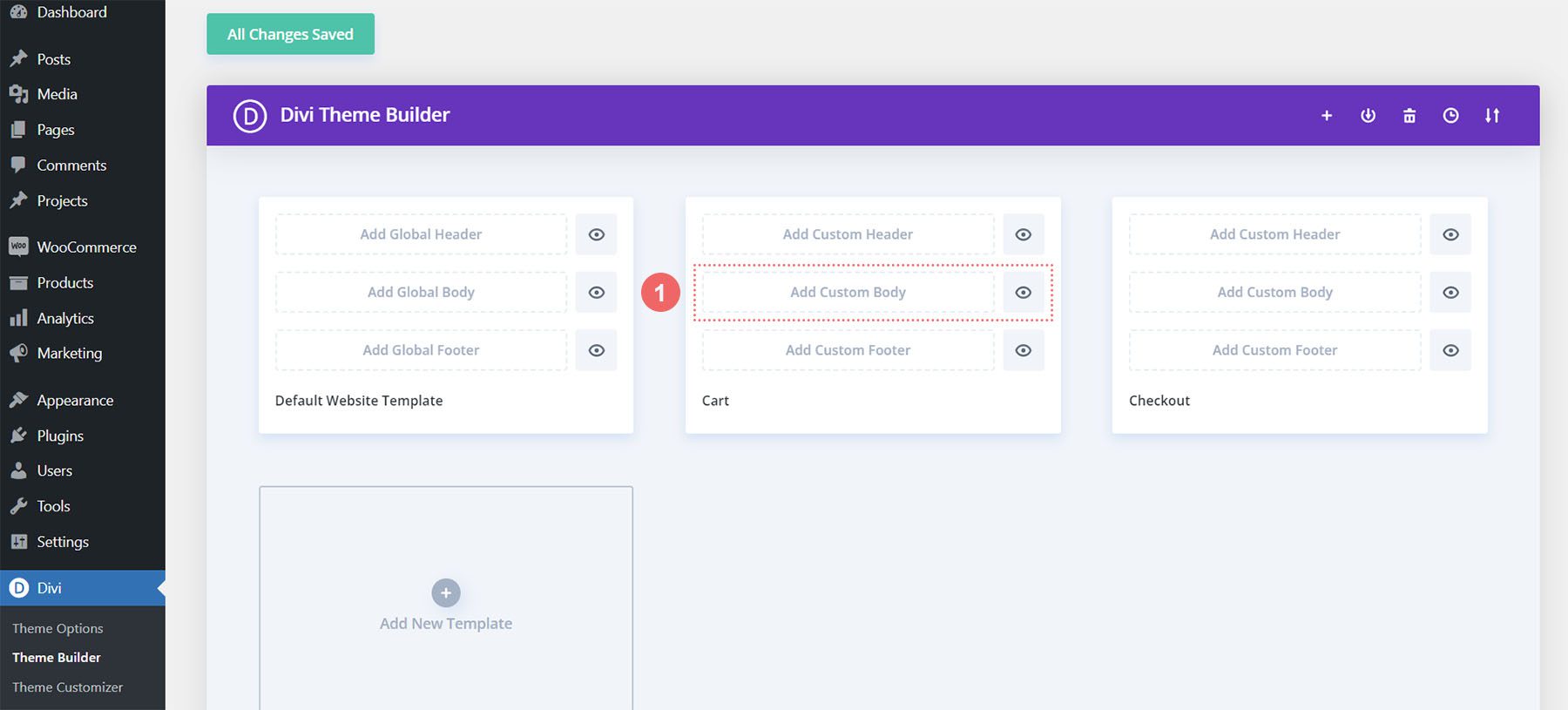

Add Body to Cart Page Template

Add a New Section and Row

Now that we’re in the Divi Builder, we’re going to add a new row. This row will have five columns.

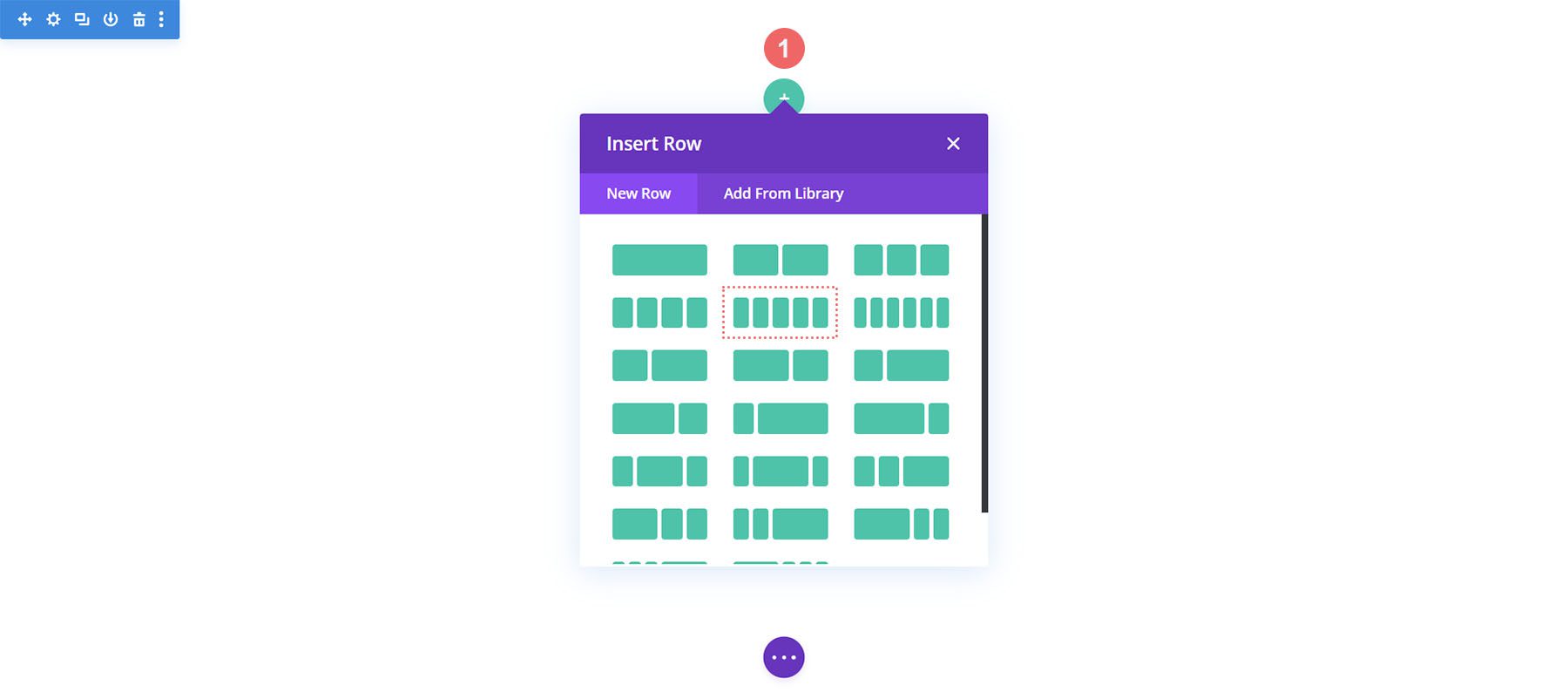

Add a new row with five columns

Add Blurb Modules

Add three Blurb Modules to columns 1, 3, and 5 of your new row.

Add Blurb Modules to columns

Here is the content for each Blurb Module that we will be using:

First Blurb (Column 1)

  • Title: Shop
  • Body: Leave empty
  • Use Icon: Yes
  • Icon: See screenshot below
  • Module Link URL: /shop (Or your custom link to your shop page)

Second Blurb (Column 3)

  • Title: Review
  • Body: Leave empty
  • Use Icon: Yes
  • Icon: See screenshot below
  • Module Link URL: /cart (Or your custom link to your cart page)

Third Blurb (Column 5)

  • Title: Checkout
  • Body: Leave empty
  • Use Icon: Yes
  • Icon: See screenshot below
  • Module Link URL: /checkout (Or your custom link to your checkout page)

Now, our WooCommerce timeline will look like this at this point:

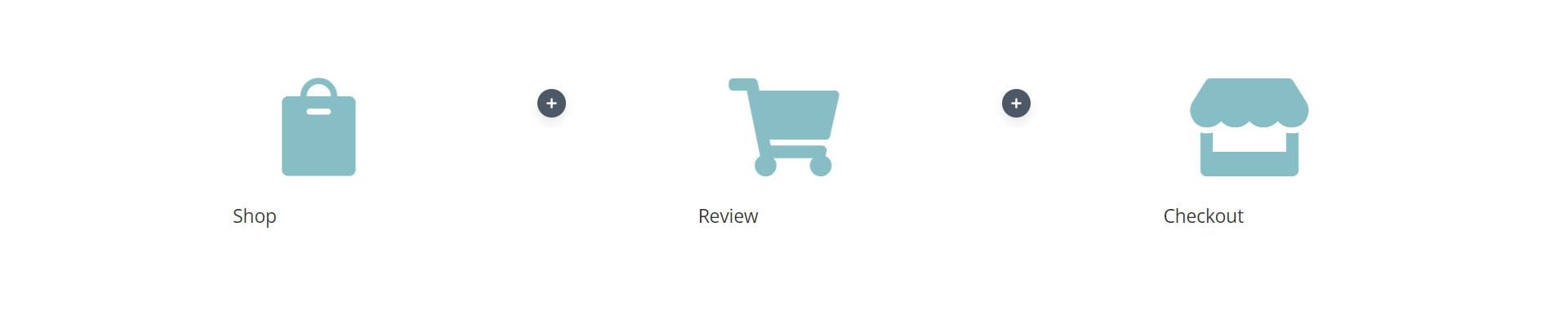

The WooCommerce cart timeline without styling

Adding Links to Blurbs

As we are creating templates for the cart and checkout page, we need our Blurb Modules to be easy to access no matter which pages customer land on. A core feature of the WooCommerce timeline is that the end user – your customer – will be able to easily navigate between the various stages of the checkout process. To add the link to the default shop, cart, and checkout pages of our site, we will first enter the module settings of the first blurb, shop.

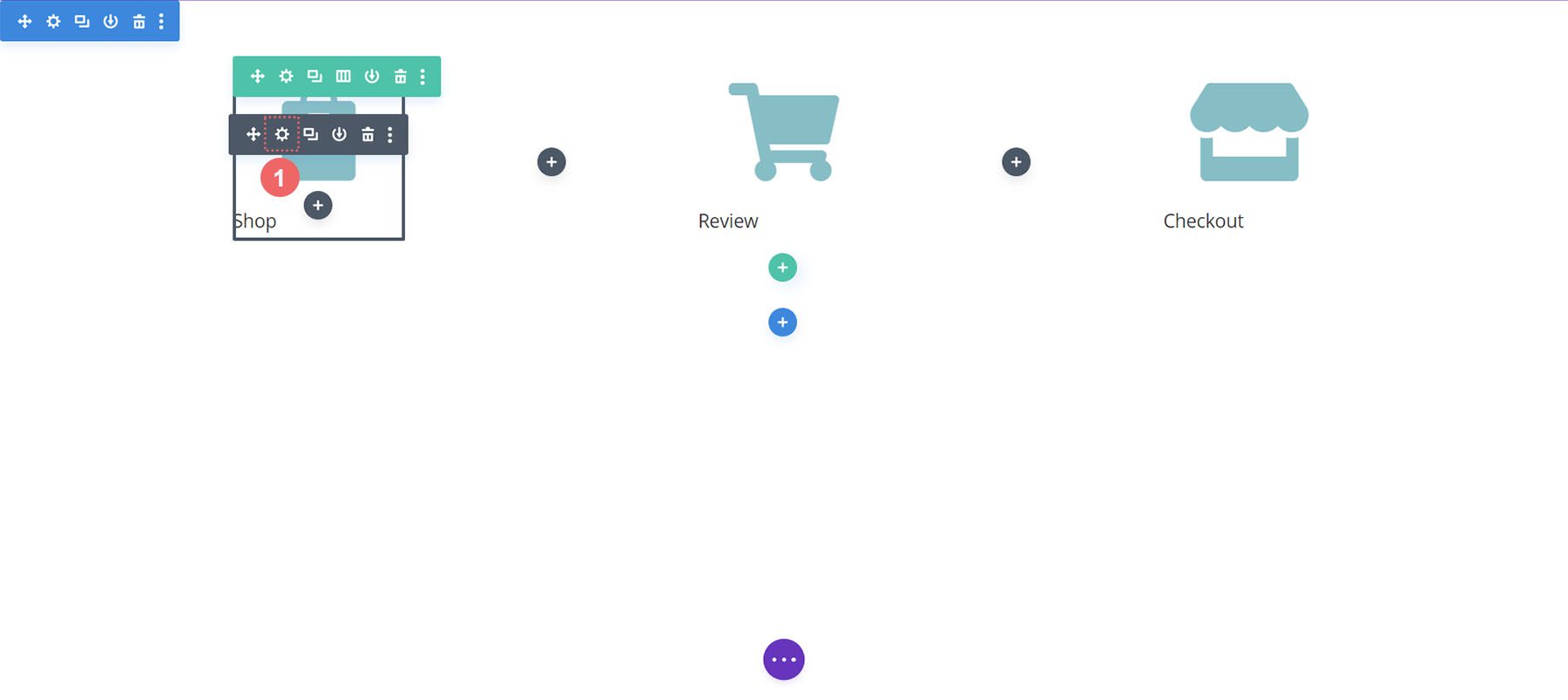

Adding Links to Shop Blurb

Once the module’s settings box appears, we’re going to scroll down to the Link heading. We’ll be adding the link to the Module Link URL box because this will ensure that irrespective of where your custom clicks – whether it’s the Blurb Title or the icon itself – they will be directed to the page that they need to navigate to.

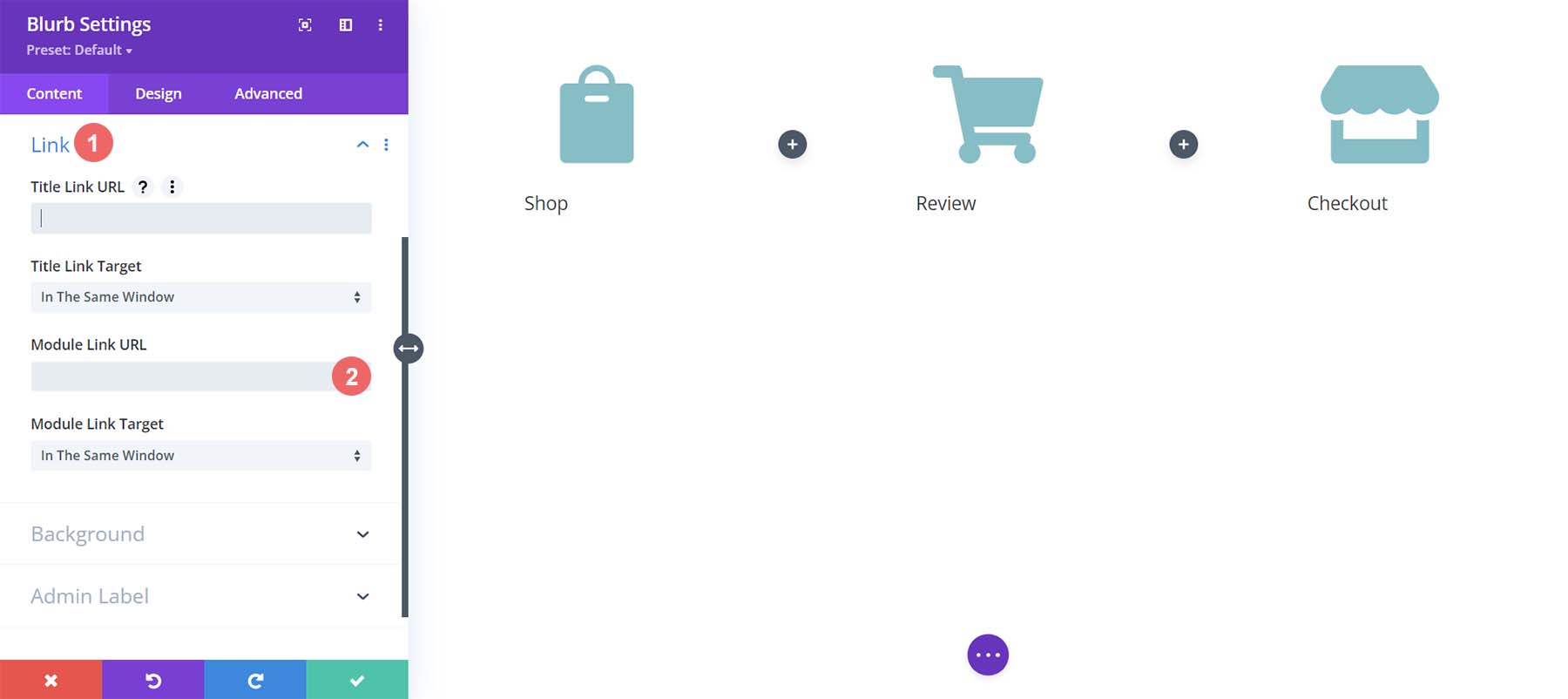

Add links to the Blurb Modules in the checkout timeline process

We’ll be adding the links to the standard WooCommerce pages to each Blurb Module. If you have created custom links for these pages on your WooCommerce install, adjust the links accordingly. First, we begin with the Shop Blurb Module. For the Module Link URL, we enter /shop. This is the default URL for the shop page in WooCommerce. Remember, if you have changed this URL, enter your custom URL here instead.

Add /shop link to link to the default WooCommerce Shop page link

Click the green checkmark button to save your changes. Next, we move to the Review Blurb Module. This module serves as the link to the cart page. Again, we navigate to the Link tab, and then we add the Module Link URL /cart, to the Module URL.

Add link to Cart Blurb Module

For the last Blurb Module, the Checkout Blurb Module, we will be linking to the default WooCommerce checkout page link which is /checkout.

Add link to the WooCommerce standard Checkout Page link

Style Blurb Modules

Next, we will begin to style our added Blurb Modules. We will be using hover styles on the modules. This helps with the user experience (UX) of the WooCommerce cart timeline. We want the Blurb Module that represents the page that we are currently on to be a different color. And, we also want the icon to enlarge when we hover over it and change color.

Blurb Module Styling

  • Icon Color: #eac989
  • Hover Icon Color: #9fa2ce
  • Text Alignment: Center

Blurb Icon Color

  • Title Text:
    • Title Heading Text: H4
    • Title Font: Baskerville
    • Title Font Weight: Bold
    • Title Text Color: #354e7c

Blurb title text styling

Transform:

  • Transform Scale (Desktop): 100%
  • Transform Scale (Hover): 115%

Blurb Transform Settings

After we’ve set the design settings for the first Blurb Module, we’re going to extend them to the other Blurb Modules in our row.

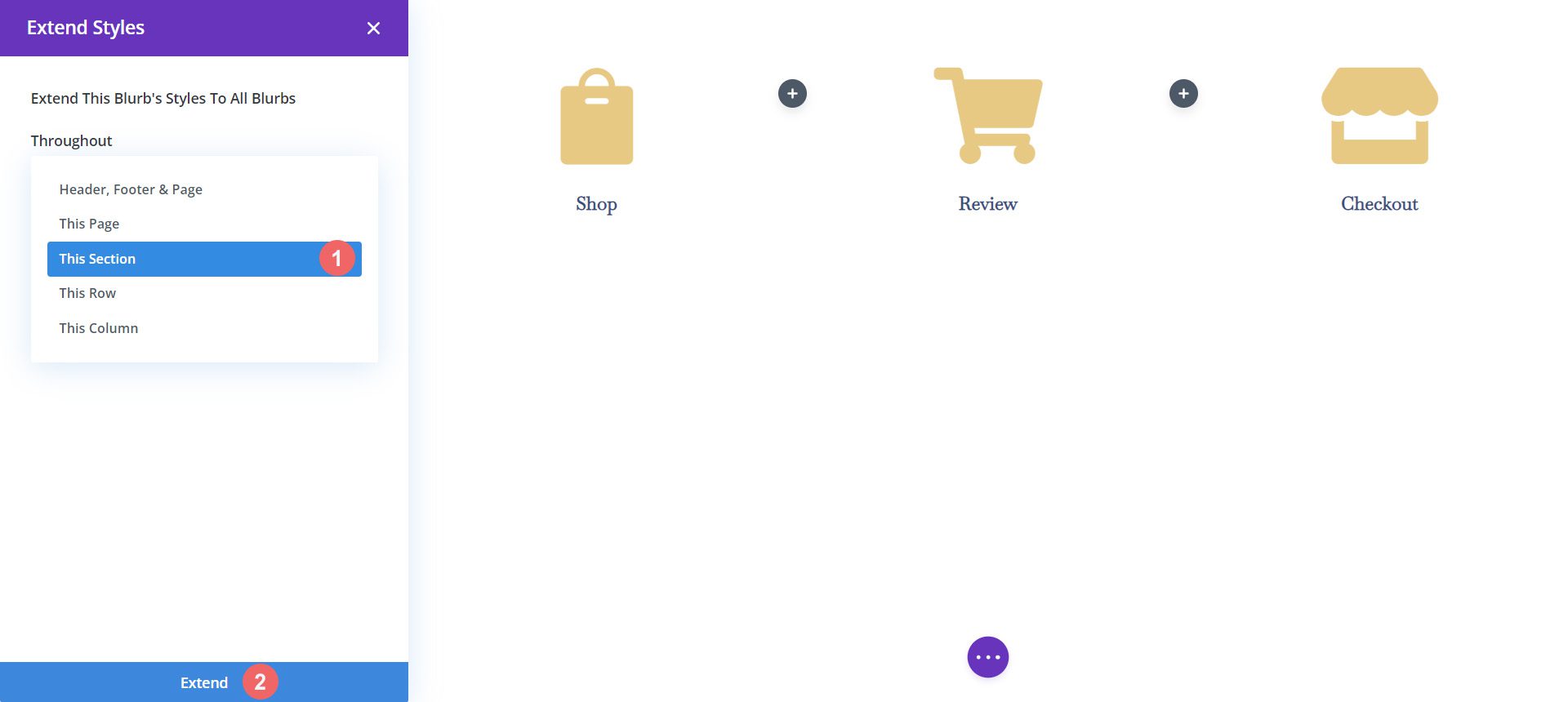

Extending Blurb Module styling to all the blurbs in our section

We want to extend our styles only to Blurb Modules within our section. This is important to note especially if you are working on a page that already has content within.

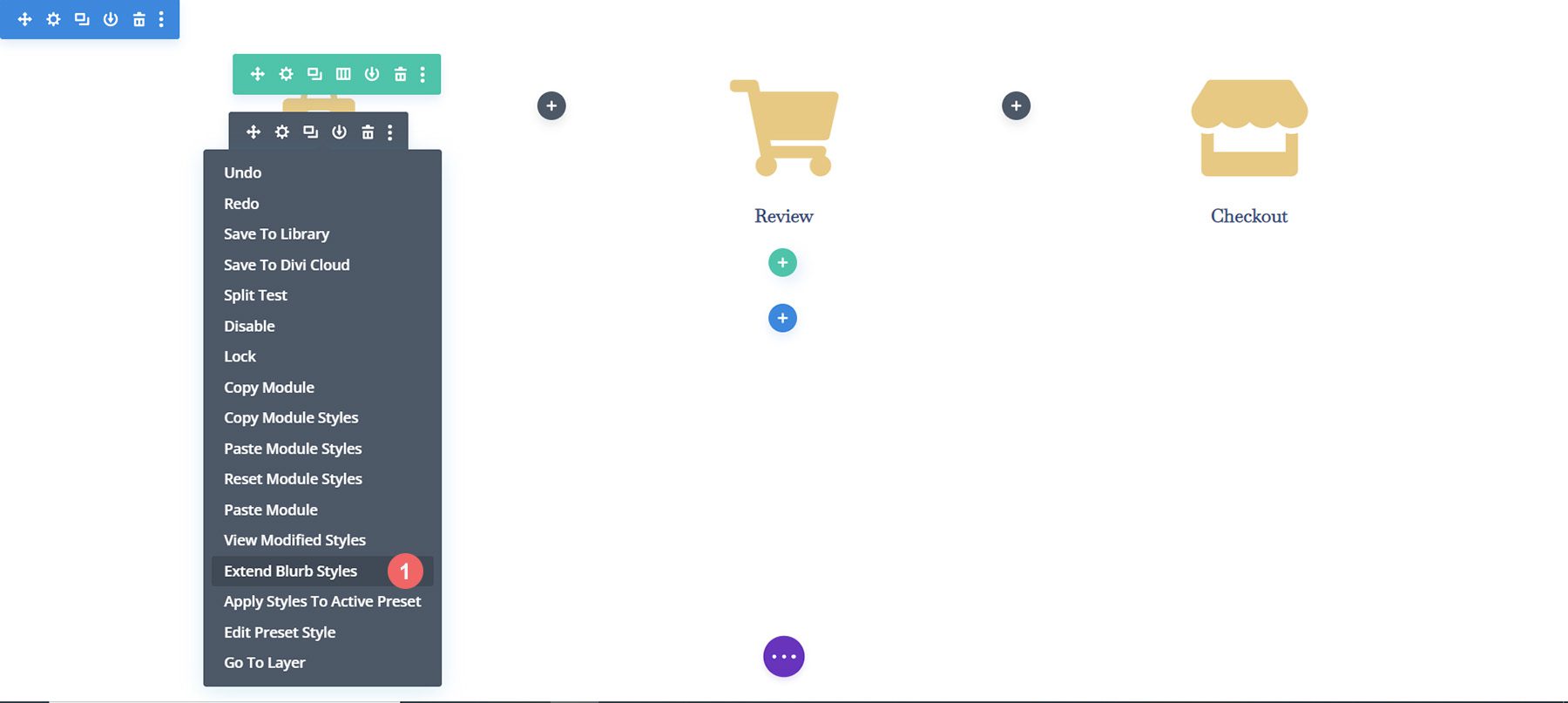

Extending Blurb Module styling to all the blurbs in our section

Styling the Cart Blurb Module

To denote the different stages of the checkout process, we’re going to give a different icon color to the current stage that our user is on. For example, if they are on the cart page, we’ll change the color of the Blurb Module referencing the cart stage of the process.

Updating current page Blurb Module color

Cart Page Blurb Module:

  • Icon Color (Desktop): #f6c6c5
  • Icon Color (Hover): #9fa2ce

Add Timeline Dividers

Once we have created and styled our Blurb Module, we will begin adding and styling our Divider Modules. We use the Divider Module in columns two and four of our row.

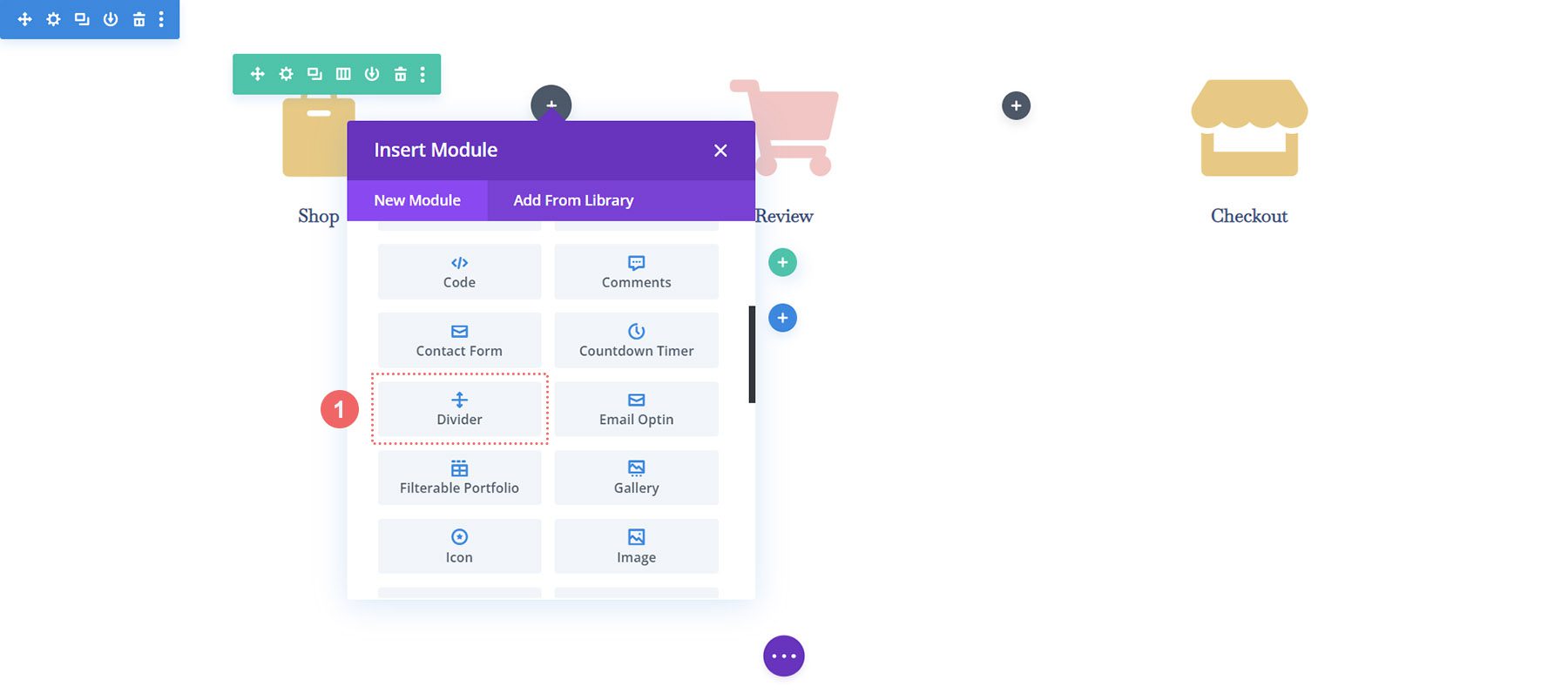

Add dividers to WooCommerce cart timeline

Style Timeline Dividers

Next, we will add our styling to our Divider Modules.

Divider Settings

Visibility:

  • Show Divider: Yes

Line:

  • Line Color: #354e7c
  • Line Style: Dotted
  • Line Position: Vertically Centered

Sizing

  • Divider Weight: 5px

Settings for the Divider Modules

Let’s use another really cool Divi feature to copy and paste the styles of this Divider Module to the other module within our row. First, we’re going to right-click on our completed Divider Module. Secondly, we’re going to click Copy Module Settings. Next, we right-click on the Divider Module that is currently unstyled. Finally, we click Paste Module Settings. Time saved is time earned!

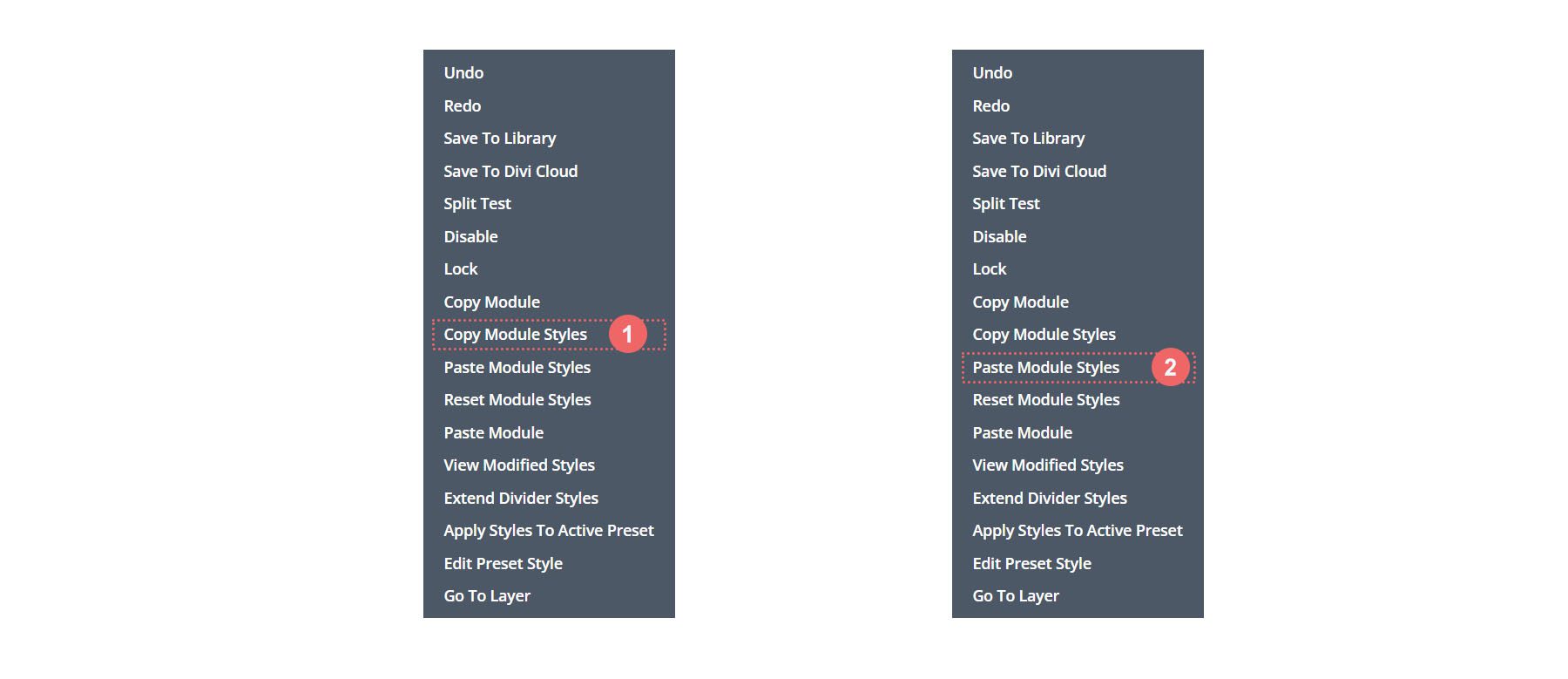

Copy and paste module styles for the Divider Modules

Adding Custom CSS

This is what our WooCommerce cart timeline looks like presently:

WooCommerce Cart Checkout Timeline

To ensure that our Divider Modules are aligned correctly and to make our timeline module mobile-responsive, we’re going to add some CSS to our row.

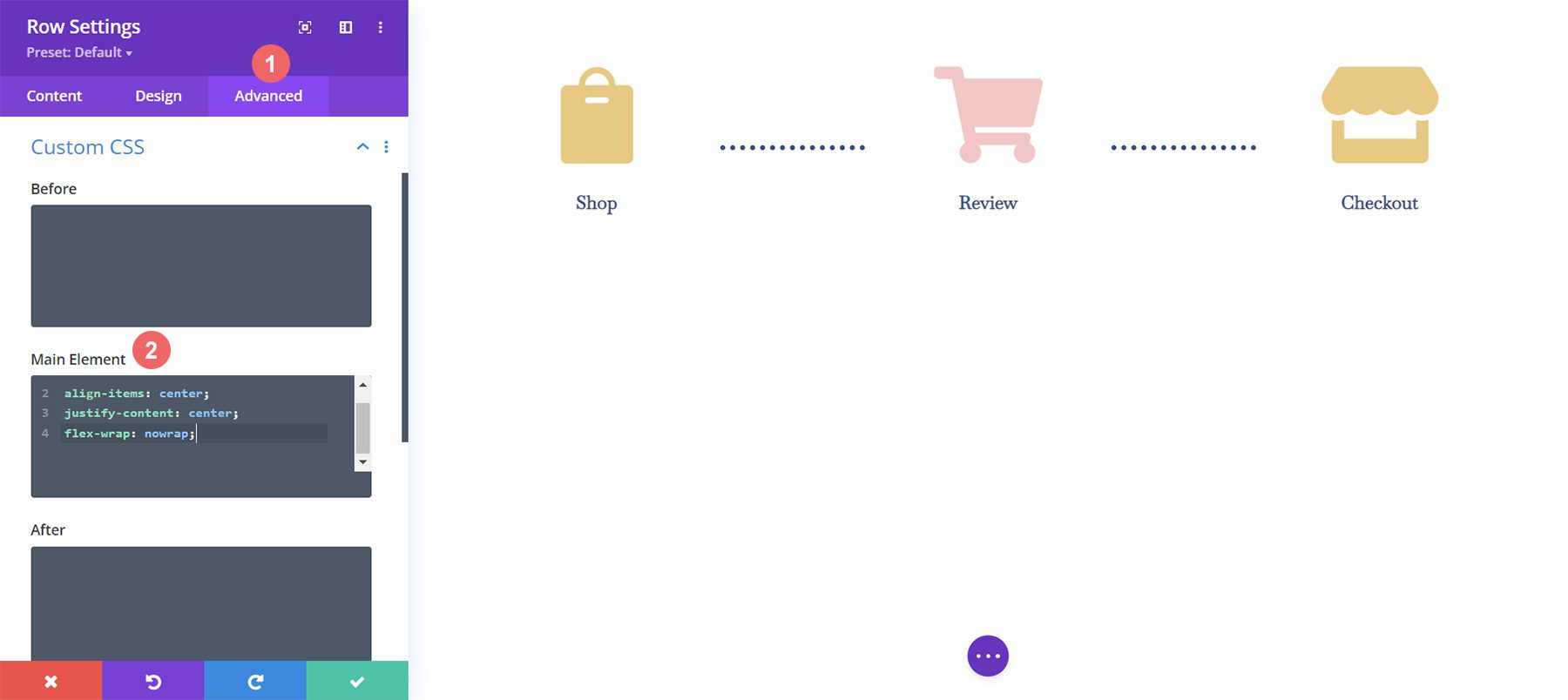

WooCommerce Cart Timeline row with custom CSS

To add our Custom CSS, we first need to enter the Row Settings for our WooCommerce Cart Timeline. Next, we select the Advanced Tab. Finally, we will add the following CSS to the Main Element:

Custom CSS:

display:flex;
align-items: center;
justify-content: center;
flex-wrap: nowrap;

Once we’ve added this to the Row Settings, we click the green checkmark to save our settings.

Final Customization for Mobile Responsiveness

One amazing benefit of Divi is the fact that you can customize various elements quite deeply. We need to make one final edit to the last Blurb Module in the last column in our row. This change will help it look better on mobile and smaller screens. The fact that Divi allows us to get granular with our styling ensures that our work looks good for our clients as well as our own websites.

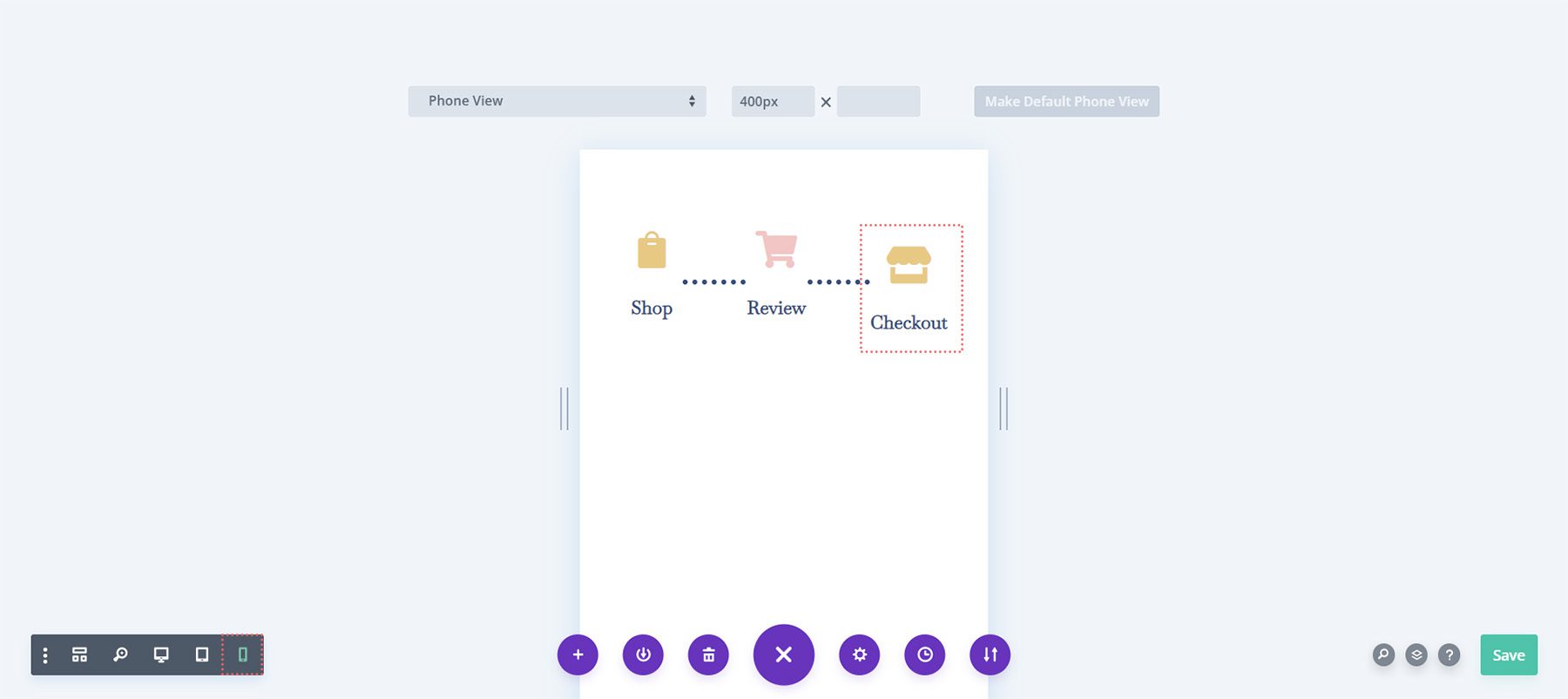

Editing padding, margin and CSS for columns

Notice how the last column, on mobile, is slightly lower than the other Blurb Modules. We’re going to change that! To do this, we’re going to enter the settings for the third and final module. Next, we’re going to go to Spacing > Margin. We’re going to leave the margin for the desktop view. However, we’re going to add a bottom margin of 15px for tablets.

Add a bottom margin to your Blurb Module

Finally, we’re going to add a bottom margin of 21px for mobile devices.

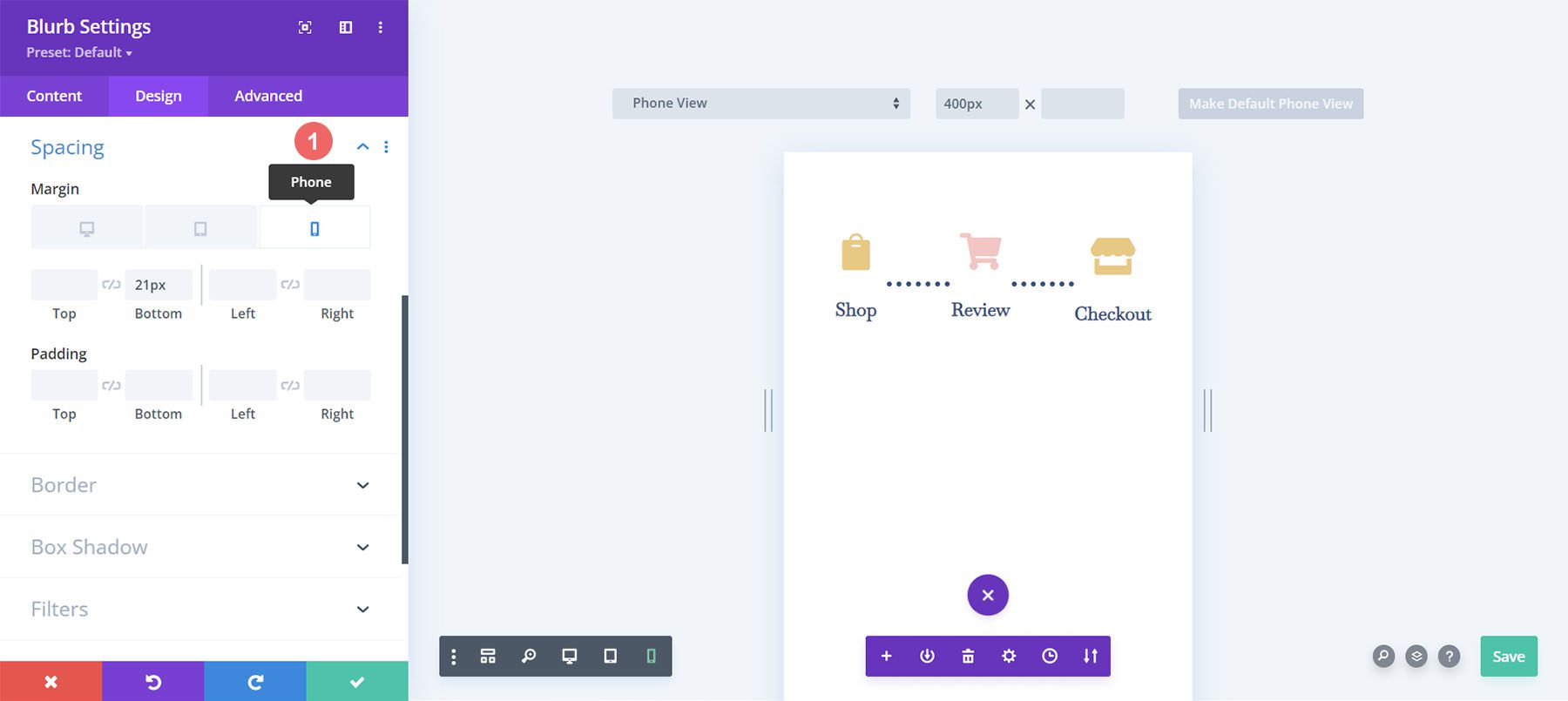

Add a bottom margin to your Blurb Module for mobile devices

Now, we have a truly mobile responsive Woocommerce cart timeline that we can use to guide users from shop to checkout.

Setting Up the Checkout Page

We have set the foundation for our WooCommerce cart flow timeline on our cart page. However, we need to complete our timeline by adding the work that we’ve done to our checkout page template. We’ll be using Divi’s OG feature, the Right-Click Menu to help make our process for the checkout page easier. Let’s get started!

Copy WooCommerce Cart Flow Timeline from Cart Page

We’ll be going back to the cart page. However, we won’t be entering into the Divi Builder for the body.

Prepare the cart body for the checkout page

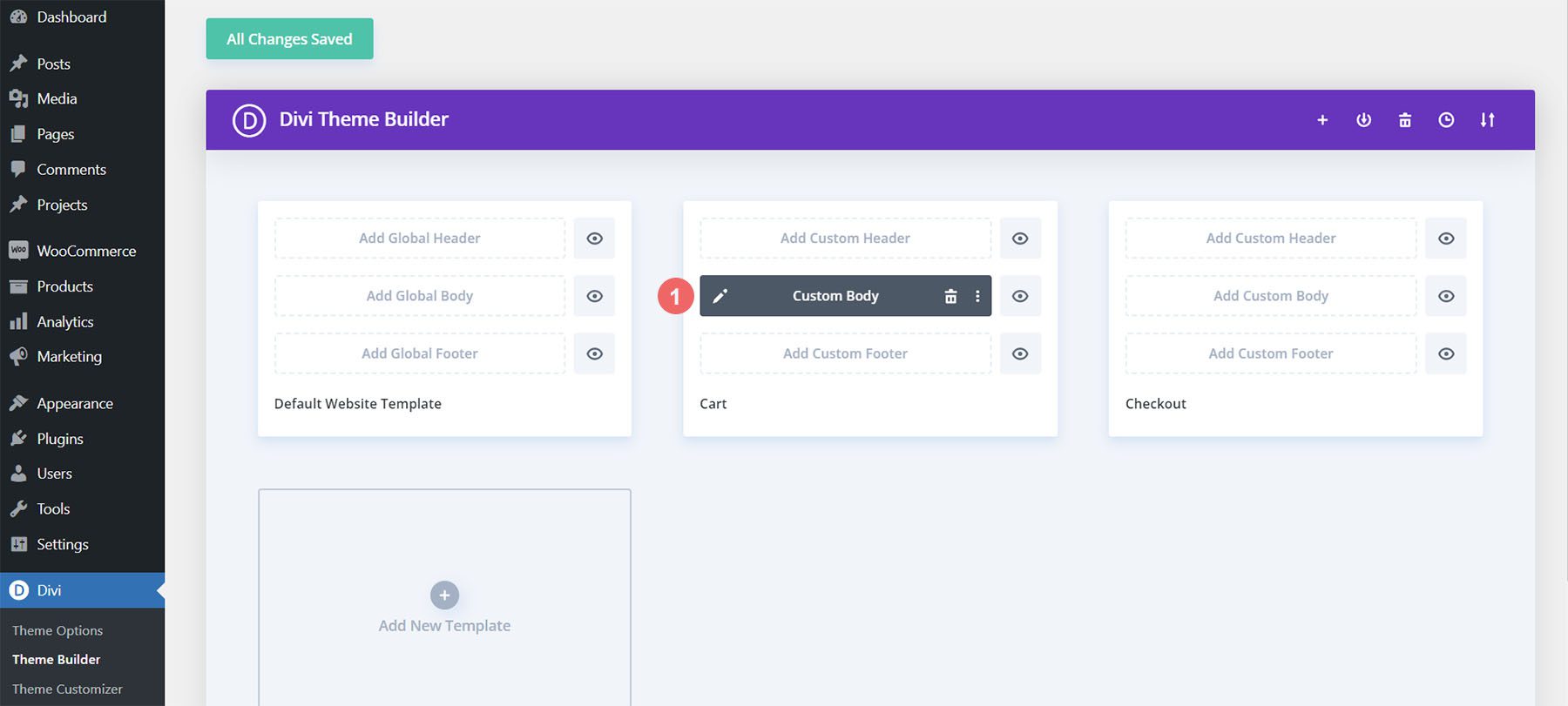

Right-click on the Custom Body of the cart template. Next, click on the Copy option from the right-click menu.

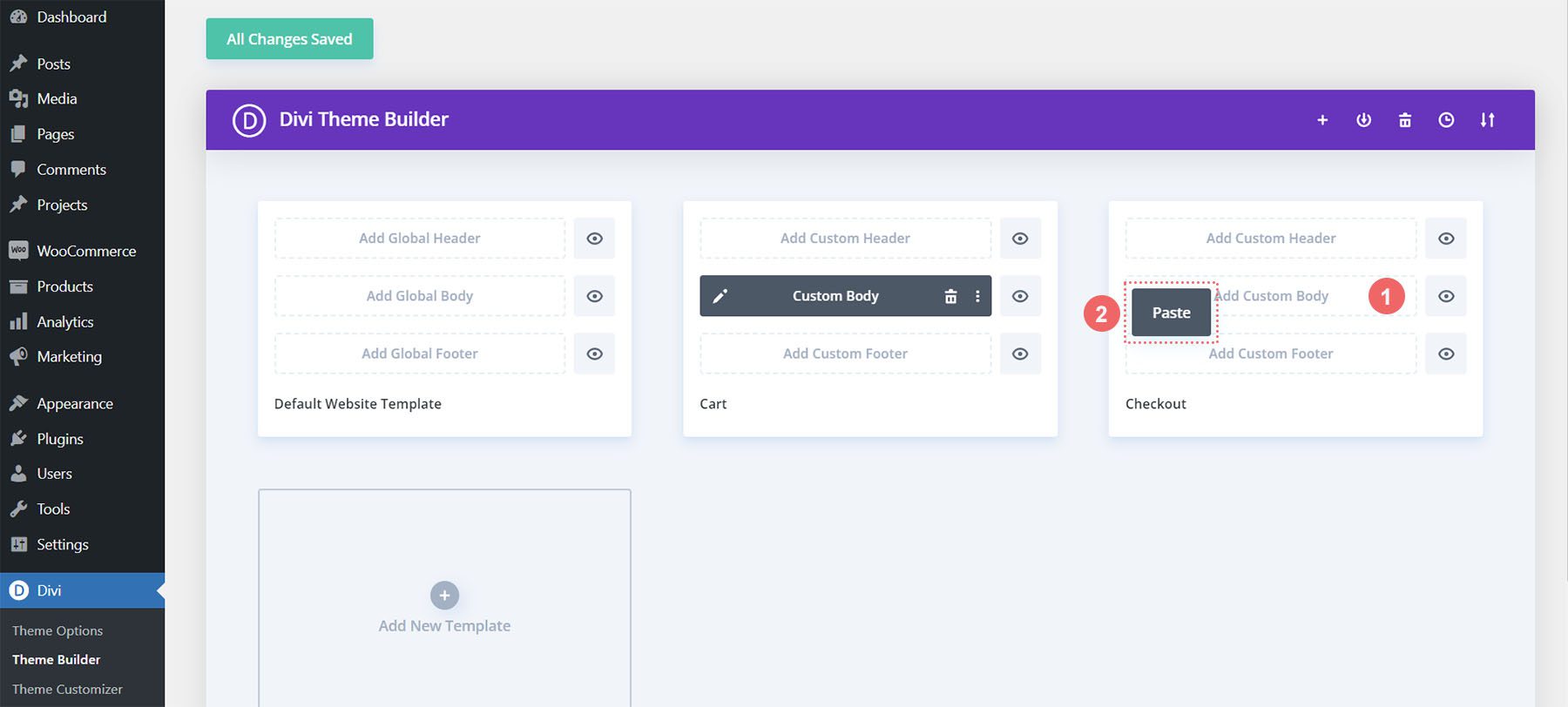

Right click, copy the body template from the cart template, to the checkout template

Now that we have copied the work that we did within the cart template, we will now paste this into the checkout template. To do this, we right-click on the Add Custom Body button within the checkout page template. Once you have done this, the menu will show the option to Paste. Click on Paste to copy the Custom Body from the cart page template to the checkout page template.

Right click to paste the body content of the cart template

Now, you’ll see that both the cart and the checkout page templates have a custom body. This will help us save time on our web design process. Thanks, Divi 🙂 To save our changes within the checkout template, we’ll click the green Save Changes button at the top of the builder.

Save changes for the body template of the checkout page

Update Checkout Page Template

Now that we’ve shaved some time off of our design process, let’s do the final edits to the checkout page to ensure that it works well with the rest of our project. First, click the pencil icon to edit the Custom Body of the checkout page template.

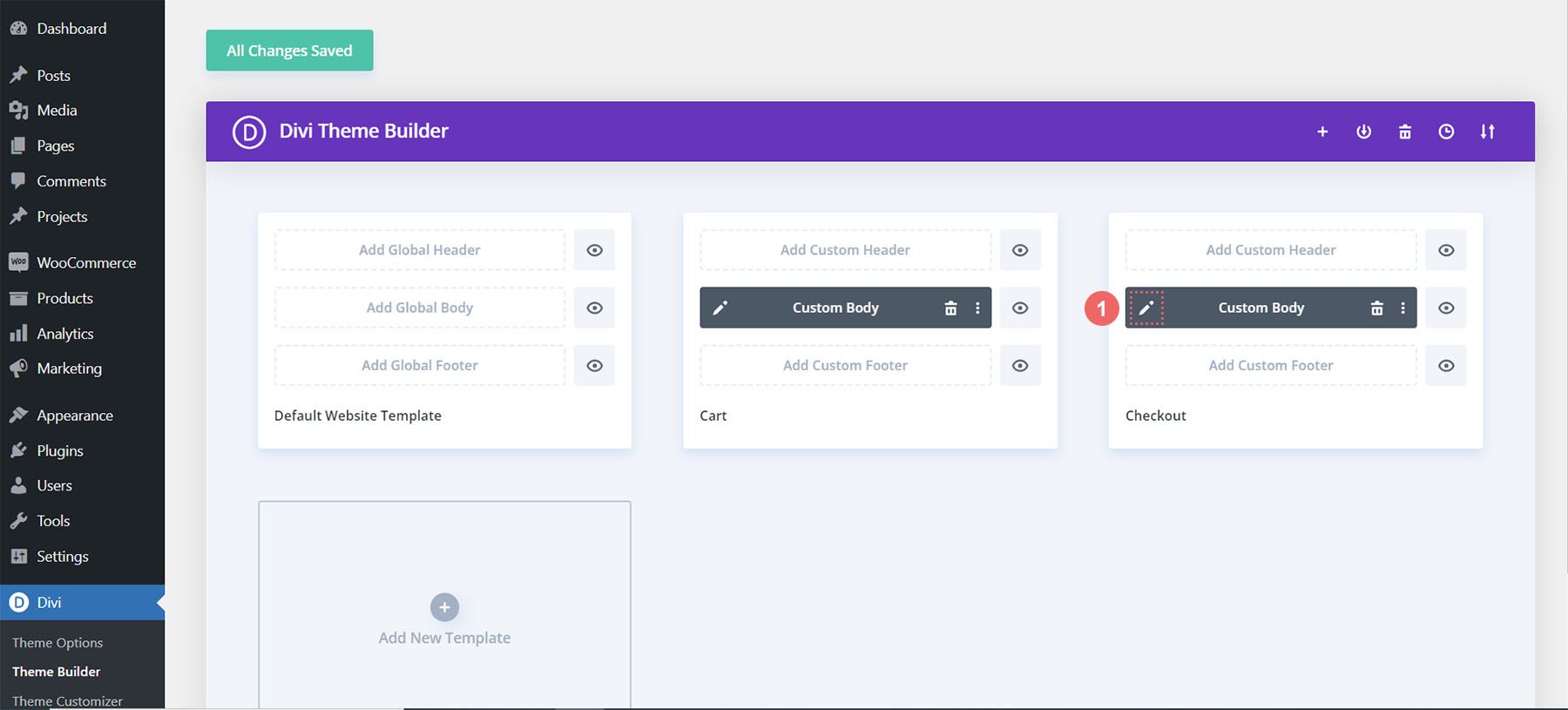

Edit checkout custom body module

Style Checkout Icon

Let’s begin styling our checkout icon. Click on the gear icon which will open the Module Settings of the checkout icon.

Edit checkout icon

Move to the Design tab of the Module Settings module. Click on the Image & Icon title. We will be editing the icon color. As such, click on the eyedropper icon and enter the hex code #f6c6c5. This will make the icon the pink color that we are using to denote the current page.

Update checkout icon color

Update Cart Icon

We will need to go back and update the icon color of the cart icon. To do this, we’re going to go back to the module settings of the module. Next, we click the gear icon of the cart icon.

Update the cart icon color on the checkout page template

Again, we will move to the Design tab of the module settings. Next, under the Image & Icon title, click on the eyedropper tool. Next, add the hex code #eac989.

Updated cart icon color on the checkout page template

Remember to save your settings and all your hard work once you have exited the Divi Builder.

Save all changes

Putting it All Together

While we have focused this tutorial on building the cart timeline, there are other WooCommerce modules used to complete the template. For this tutorial, we used the FREE Divi Toy Store Layout Pack as the inspiration for the styling. Here are the other WooCommerce modules that you’ll need to add to each template page to complete your store.

Cart Page Template

  • Woo Cart Products: This will display the WooCommerce cart
  • Woo Cart Totals: Showcase the subtotal, taxes, and more with this module

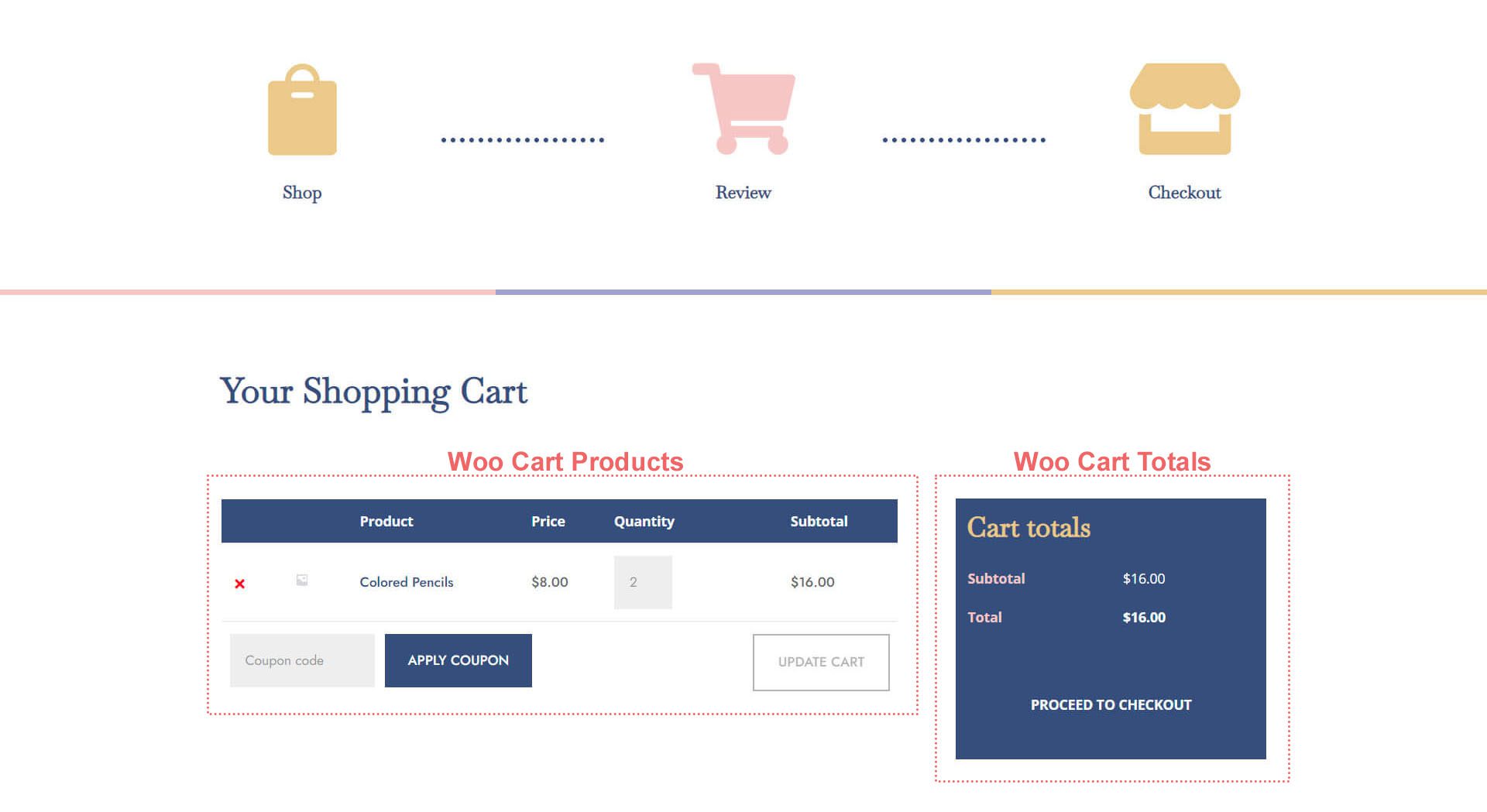

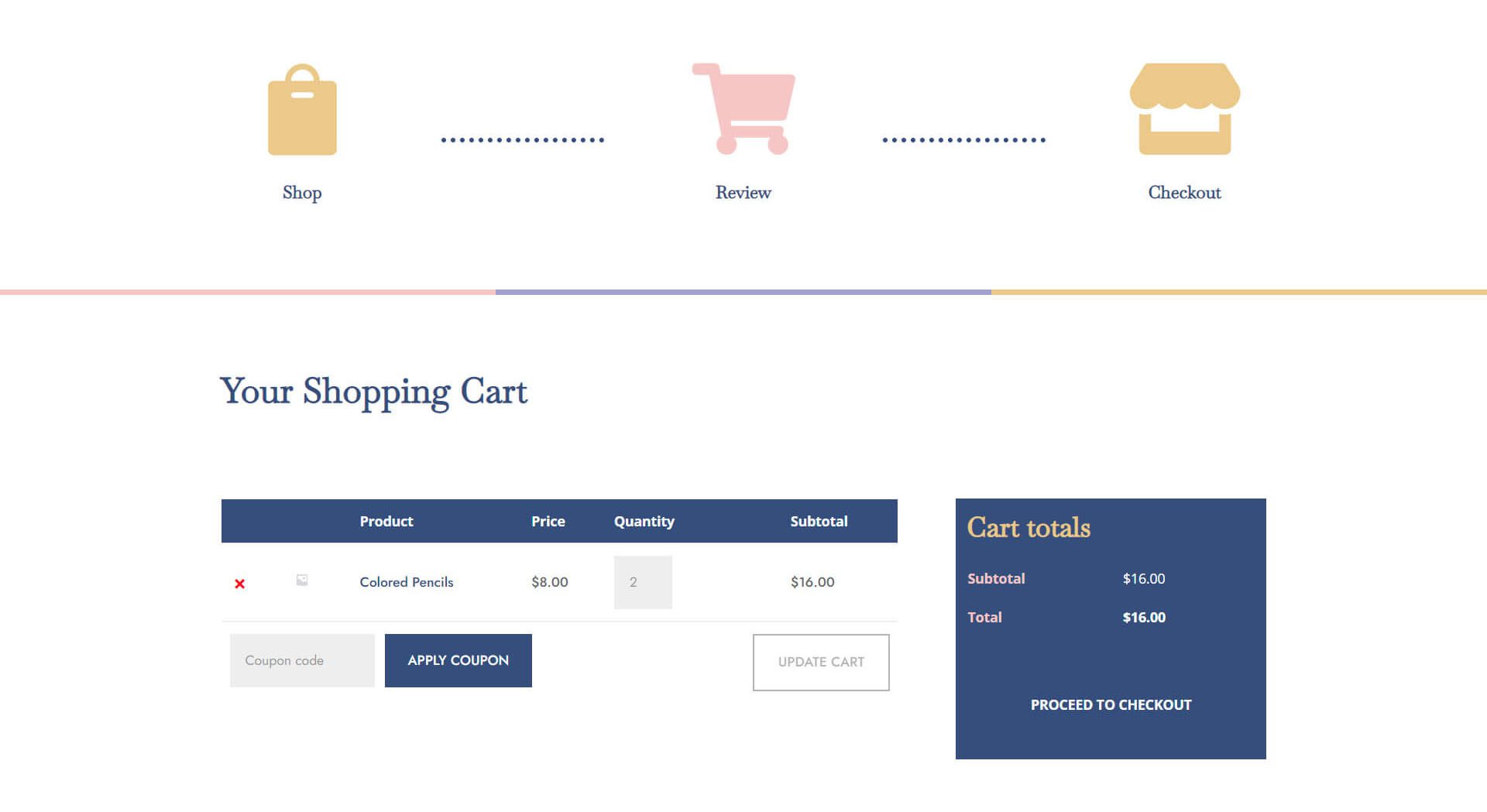

Overview of the cart pages with the other Woo modules

Checkout Page Template

  • Woo Notice Module: We use this module to show any errors, information or notices that relate to checking out
  • Woo Checkout Billing: This module will color the billing details of your customers
  • Woo Checkout Details: Unlike the cart totals, this module will show the actual product names, quantity, and more
  • Woo Checkout Billing: To show available payment methods, we have this module added to the checkout page

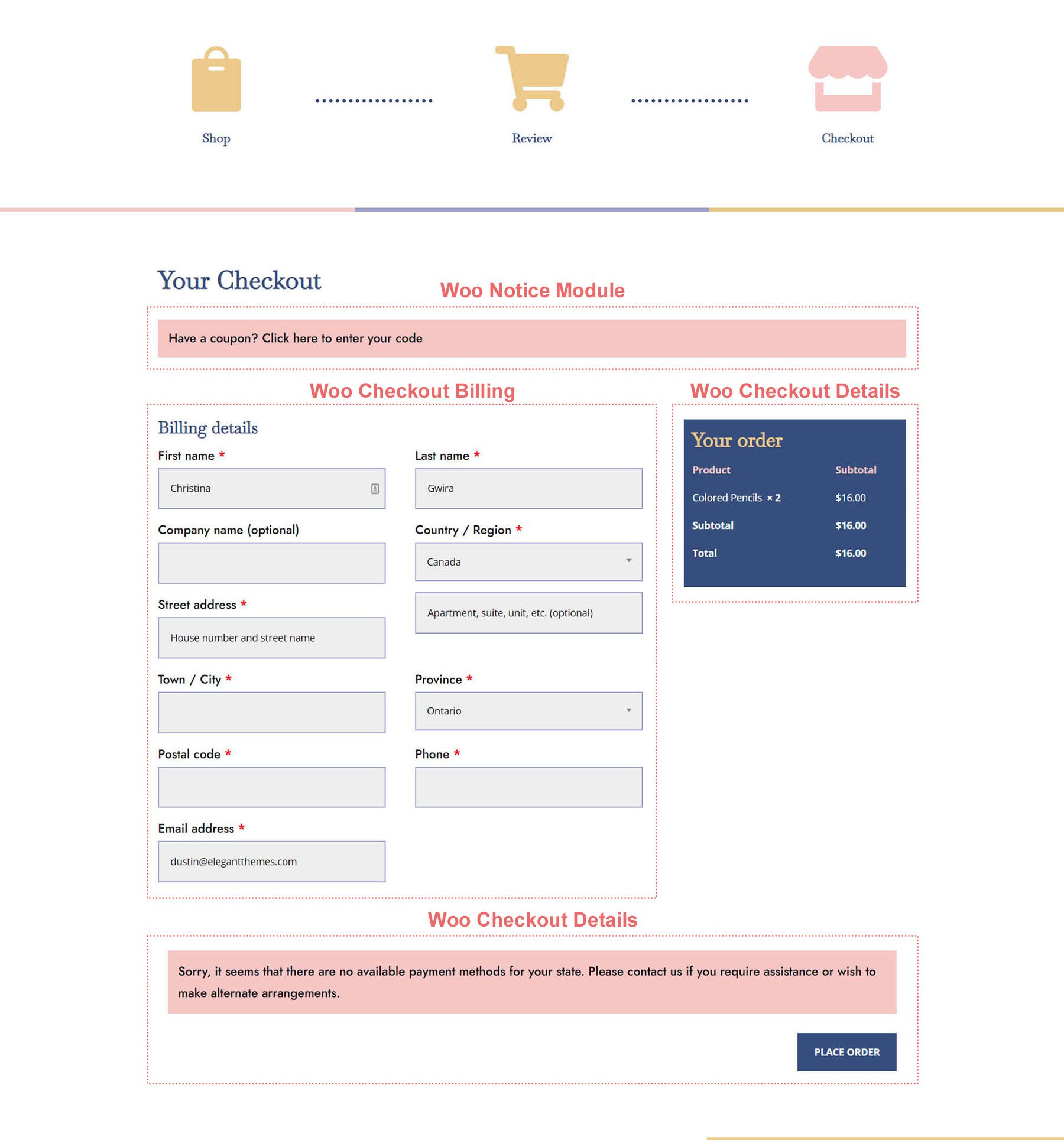

Overview of the checkout pages with the other Woo modules

In Conclusion

Having a cart timeline adds a visual representation of the process that your customers take on your store. With Divi, you have the power to customize and create an added piece to your WooCommerce store. Divi gives you the tools to be able to take what you’ve learned here to your own client and personal websites. I’d love to hear from you if you use this tutorial in the wild!
