How to Create Locked Content Corner Popups with Divi

Posted on March 26, 2019 by in Divi Resources 14 Comments

How to Create Locked Content Corner Popups with Divi
Blog / Divi Resources / How to Create Locked Content Corner Popups with Divi

Every week, we provide you with new and free Divi layout packs which you can use for your next project. For one of the layout packs, we also share a use case that’ll help you take your website to the next level.

This week, as part of our ongoing Divi design initiative, we’re going to show you how to create locked content corner popups with Divi and the Resort Layout Pack. The concept of a locked content optin form is simple. People have to enter their email address and as soon as they do, hidden content will reveal. You can use this hidden content to share a discount code for instance. To make all of this happen, we’re going to use the Bloom plugin and add the locked content optin form shortcode to a Text Module which we’ll style as a popup. The Text Module will also include an animation with an animation delay to make the Text Module appear as if it is a popup.

Let’s get to it!

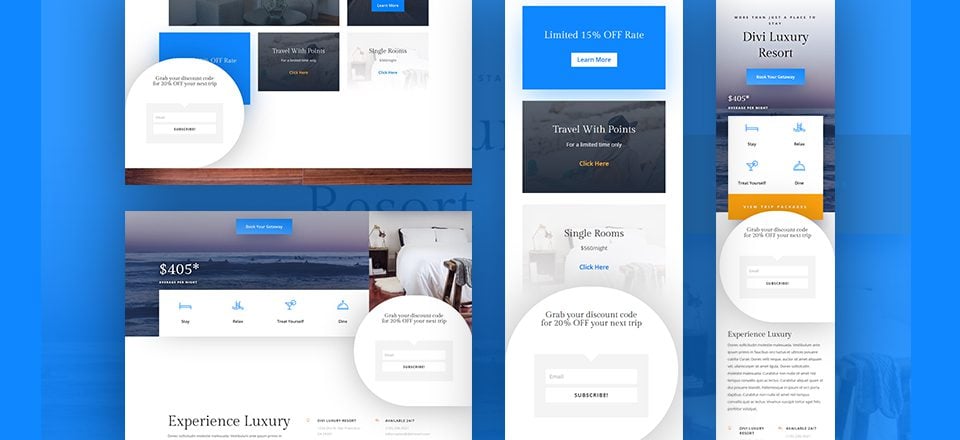

Preview

Before we dive into the tutorial, let’s take a quick look at the outcome across different screen sizes.

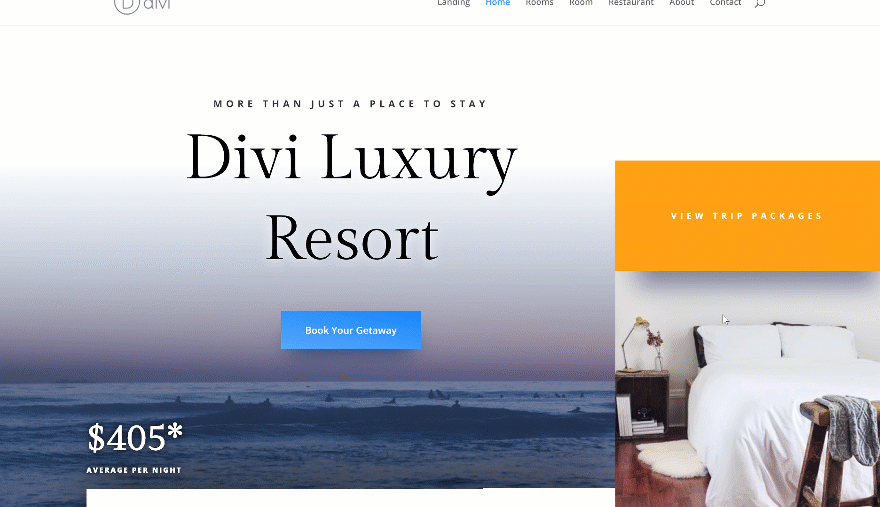

Desktop

locked content corner popups

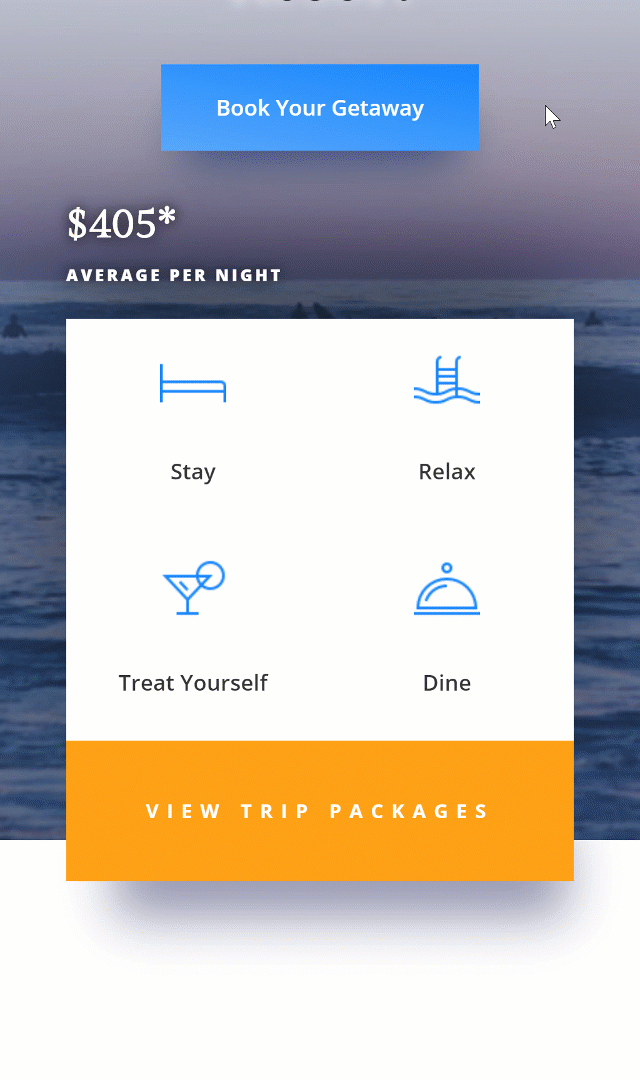

Mobile

locked content corner popup

Install the Bloom Plugin

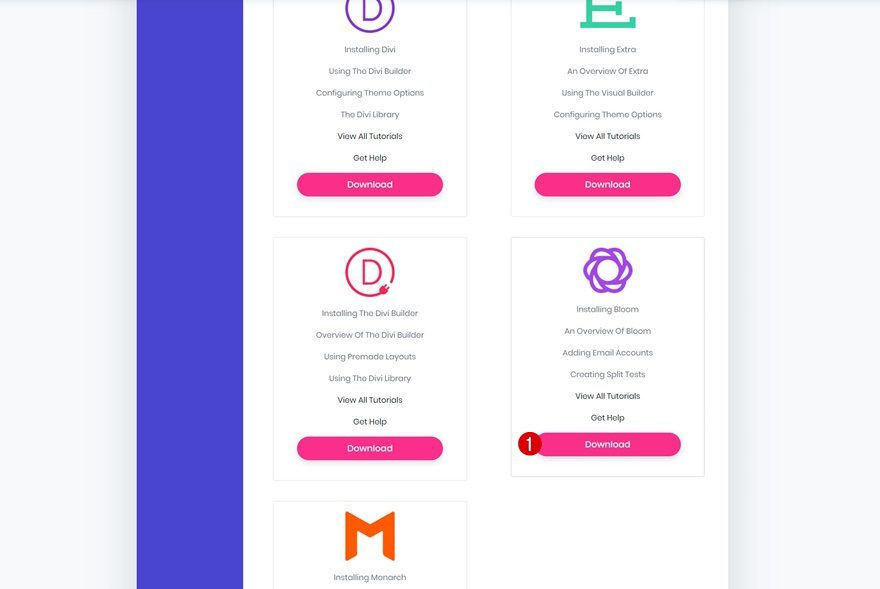

Download Bloom

The first thing you will need to do is download the Bloom plugin. If you’re already an Elegant Themes member, you can find the plugin by going to the members area. There, you’ll be able to download the zipped file. If you’re not an Elegant Themes member yet, you’ll need to purchase a membership first.

locked content corner popups

Upload & Install Bloom

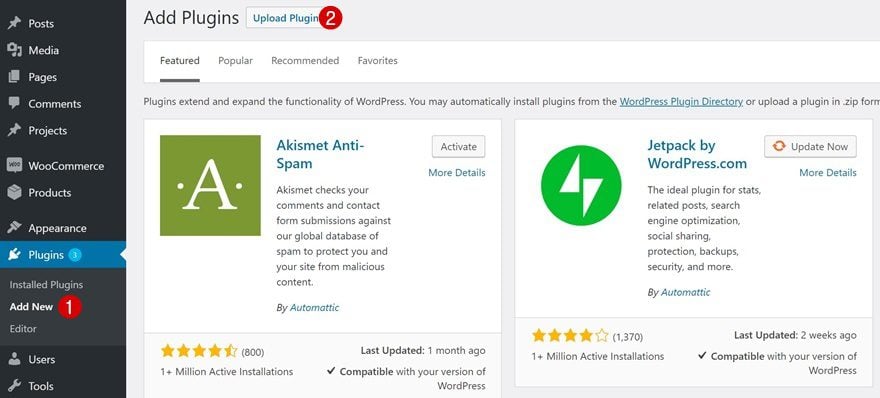

Once you’ve downloaded Bloom, you can go ahead and upload it to your WordPress website by going to Plugins > Add New and clicking on ‘Upload Plugin’ at the top of the page.

locked content corner popups

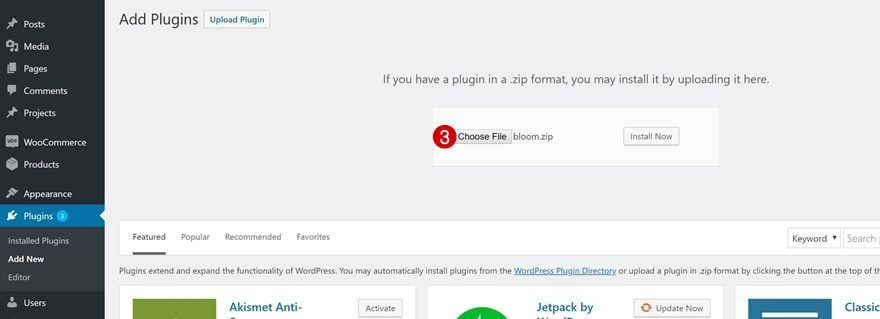

Then, upload the zipped file and click on ‘Install Now’.

locked content corner popups

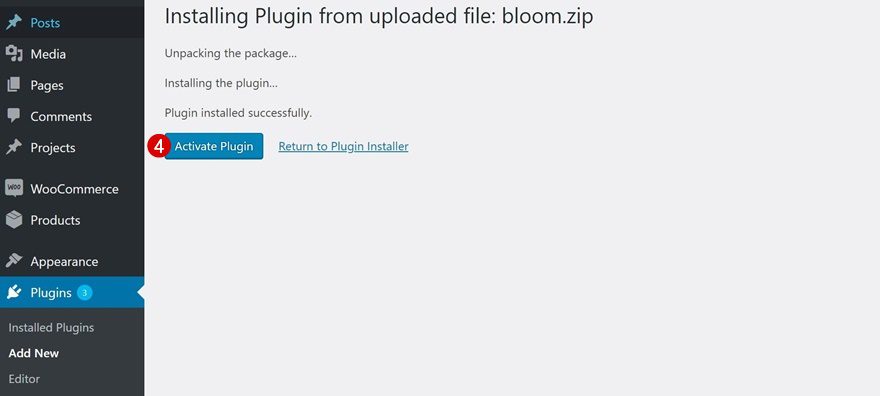

Don’t forget to activate the plugin once it’s uploaded as well.

locked content corner popups

Setup Bloom Optin Form

Add New Locked Content Form

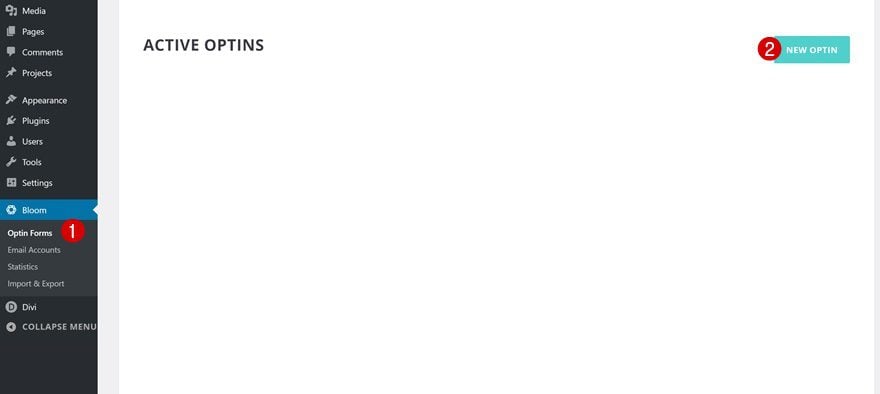

We can now start creating the locked content form which we’ll, later on this post, use in our Divi design! Go to your WordPress Dashboard > Bloom > Optin Forms and create a new optin form.

locked content corner popups

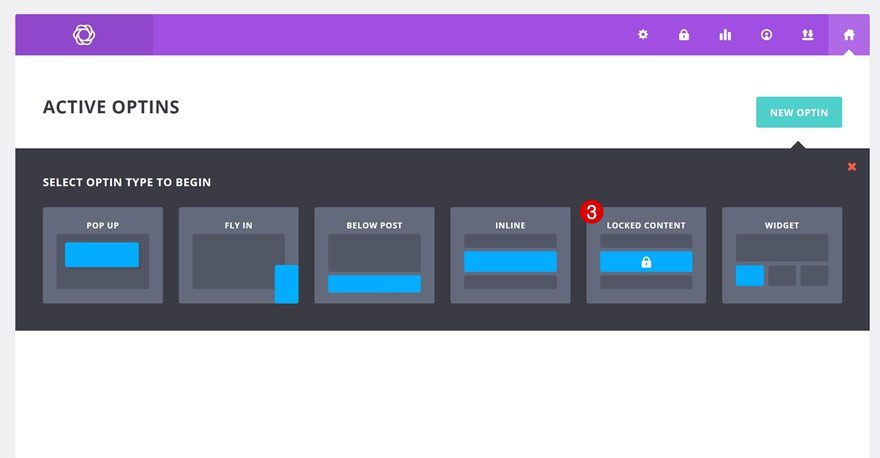

Continue by selecting the ‘Locked Content’ optin type and proceed to the setup settings.

locked content corner popups

Setup Settings

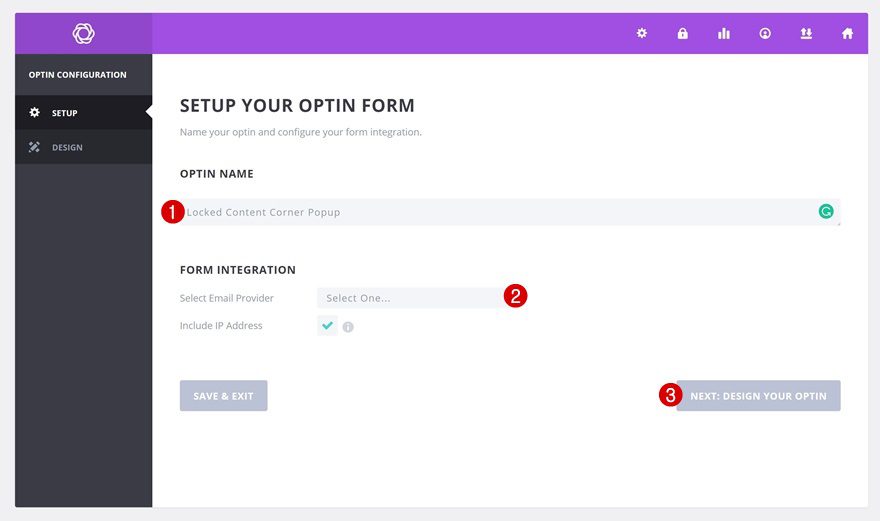

Once you’re in the setup settings, you will need to give your new optin form a name. You’ll also need to select an email provider of your choice and enter the authentication details.

locked content corner popups

Design Settings

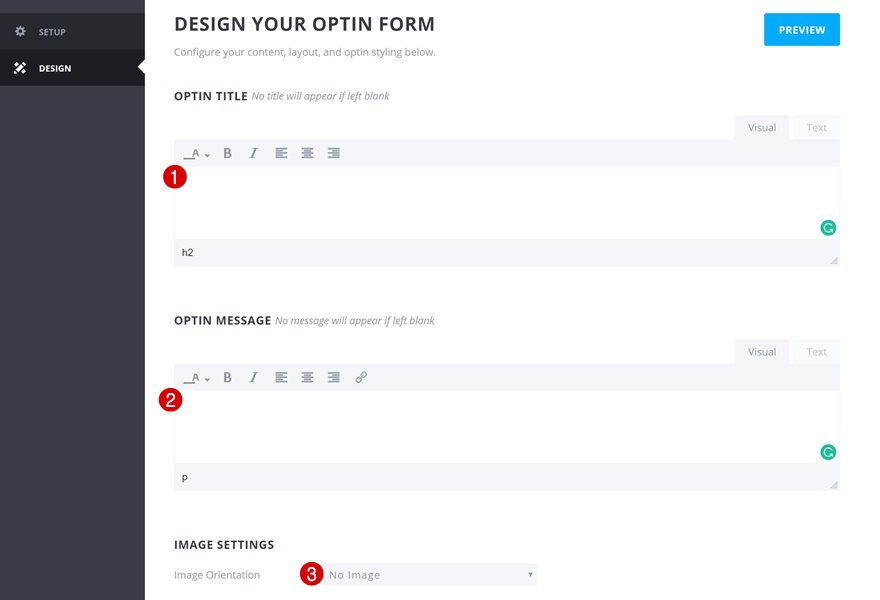

The next step is designing the form. Later on the post, we’re going to use the optin form shortcode in a Text Module which we’ll style, so we don’t need too many settings being applied to the optin form itself. Make sure you leave the optin title and optin message content boxes empty. Change the image orientation as well.

  • Image Orientation: No Image

locked content corner popups

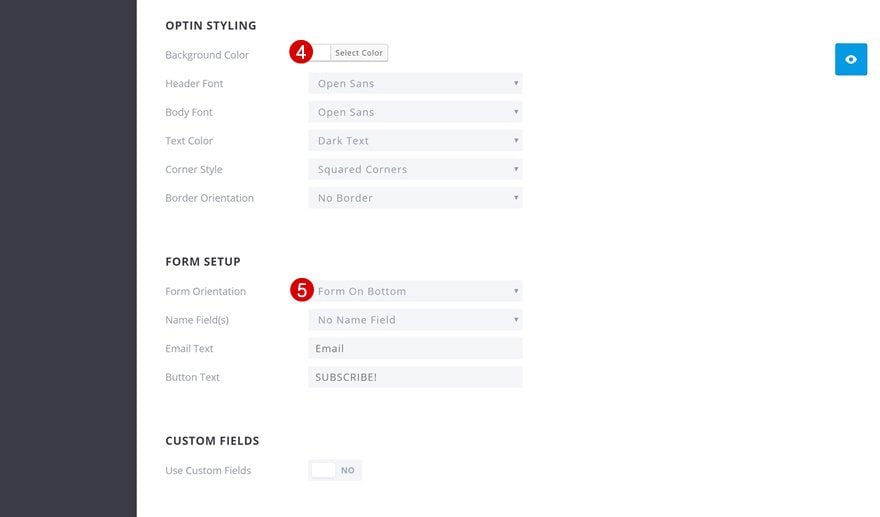

Scroll down the page and make some additional changes to the optin styling and form setup.

  • Background Color: #ffffff
  • Form Orientation: Form on Bottom

locked content corner popups

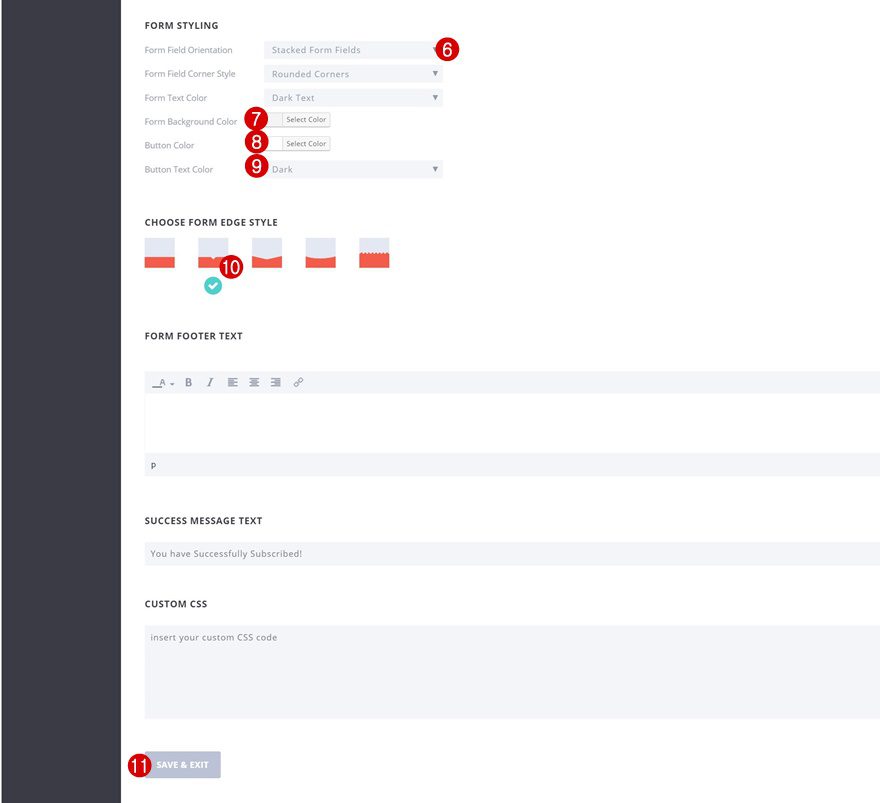

We’re also changing around the form styling settings.

  • Form Field Orientation: Stacked Form Fields
  • Form Background Color: #f4f4f4
  • Button Color: #ffffff
  • Button Text Color: Dark
  • Choose Form Edge Style: Second Option

locked content corner popups

Create Design with Divi

Add New Row

Column Structure

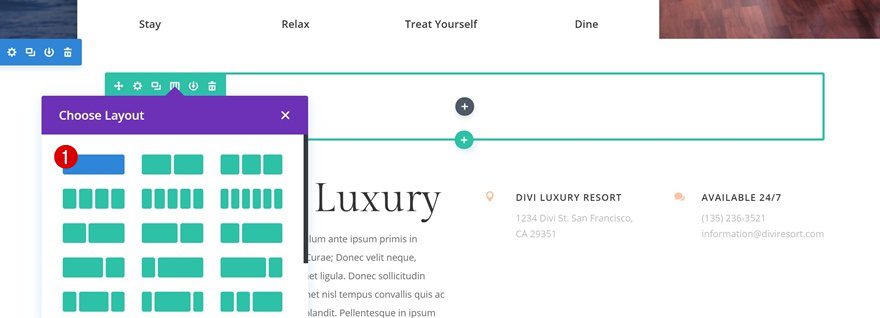

We can now switch over to the Divi Builder! Go ahead and create a new page using the Resort Layout Pack‘s homepage. Once the layout is uploaded, continue by adding a new row at the top of the second section using the following column structure:

locked content corner popups

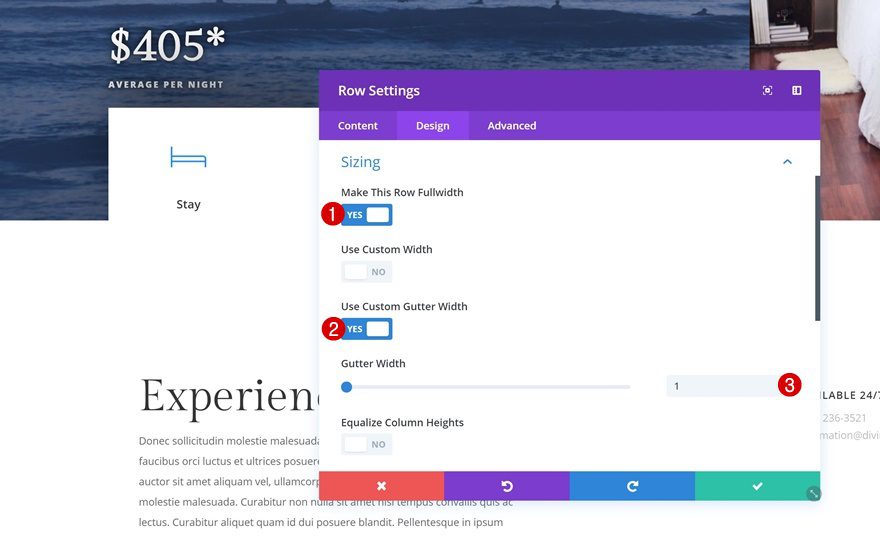

Sizing

Without adding any modules yet, open the row settings and make some changes to the sizing settings.

  • Make This Row Fullwidth: Yes
  • Use Custom Gutter Width: Yes
  • Gutter Width: 1

locked content corner popups

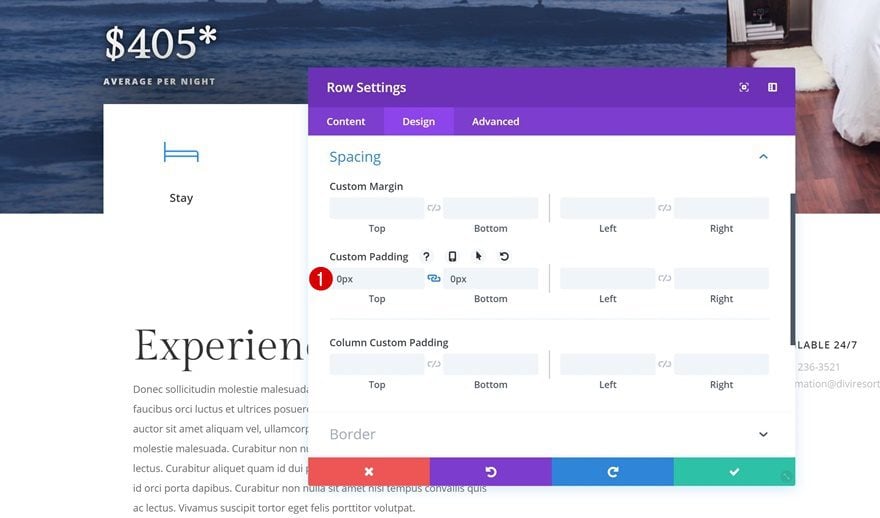

Spacing

Go to the spacing settings next and add ‘0px’ to the top and bottom padding of the row. This will limit the space that is being taken up by the new row we’ve added.

  • Top Padding: 0px
  • Bottom Padding: 0px

locked content corner popups

Add Text Module

Add H3 Content

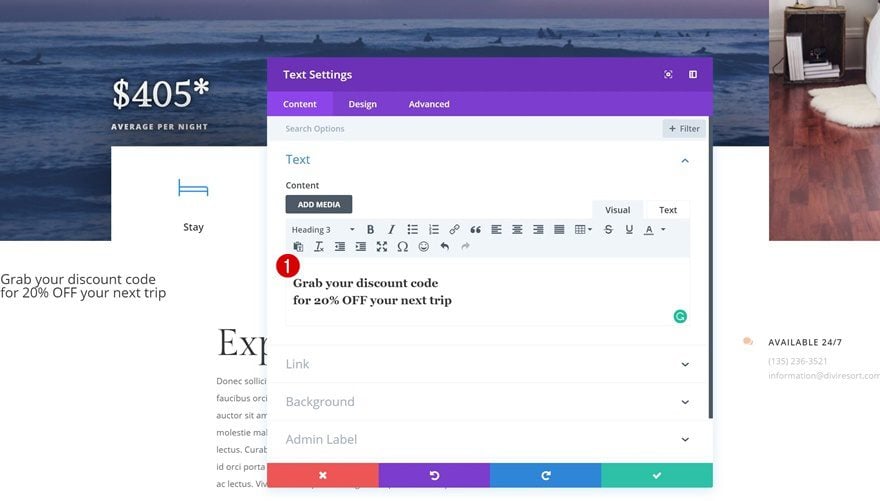

The only module we need to create the locked content corner popup is a Text Module. Add an H3 title of your choice to the content box.

locked content corner popups

Add Locked Content Optin Form Shortcode

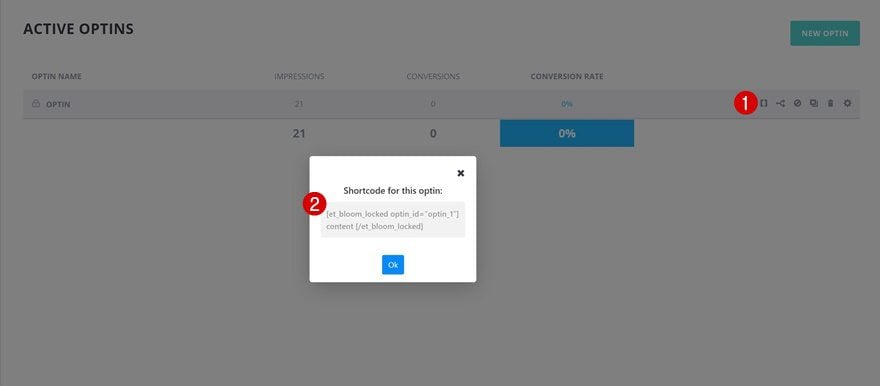

Then, go back to the Bloom plugin and copy the shortcode of the optin form you’ve created in the previous part of this tutorial.

locked content corner popups

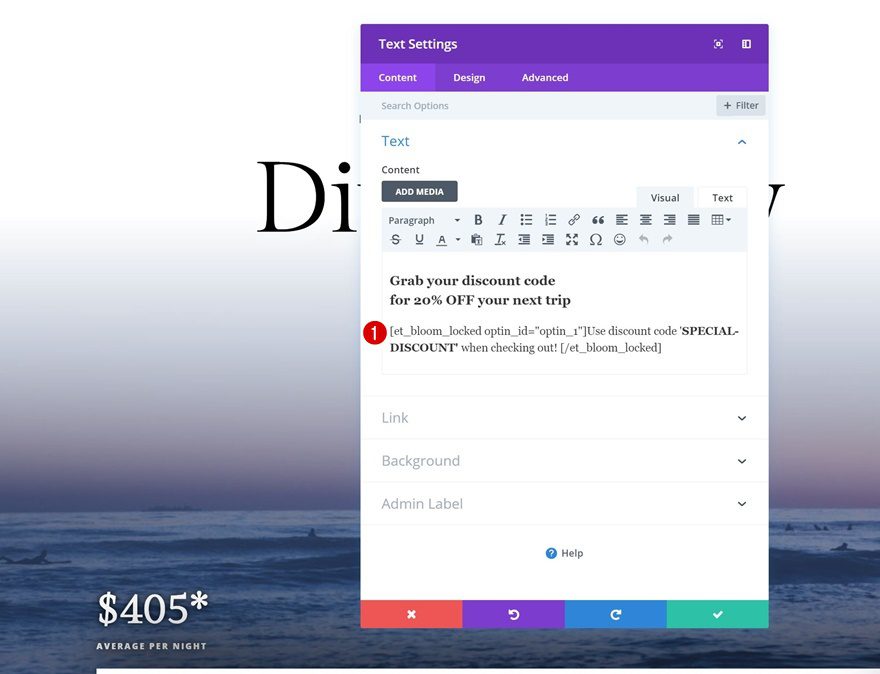

Add whatever content you want to appear after people fill out the optin form. In the example below, you can notice that we’re sharing a coupon code, but you can share any kind of information you want.

locked content corner popups

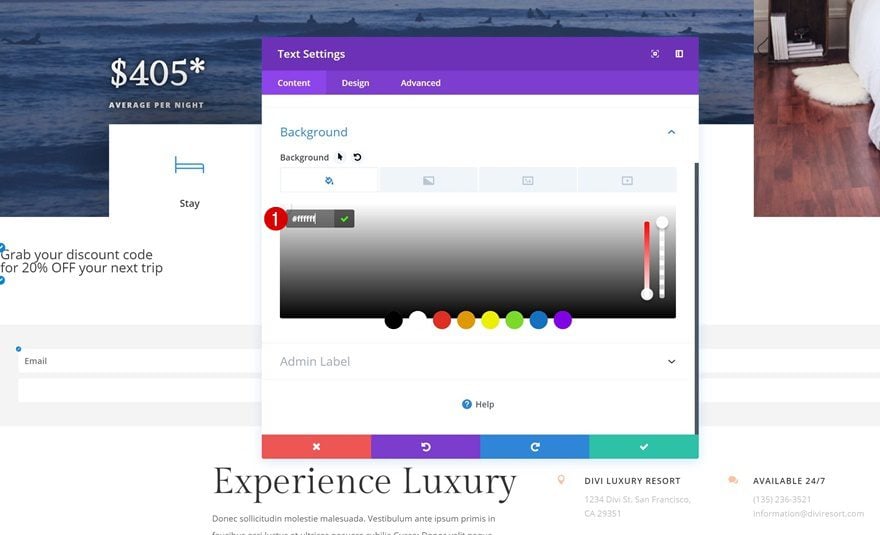

Background Color

Go to the background settings of the module next and add a completely white background color.

  • Background Color: #ffffff

locked content corner popups

Text Settings

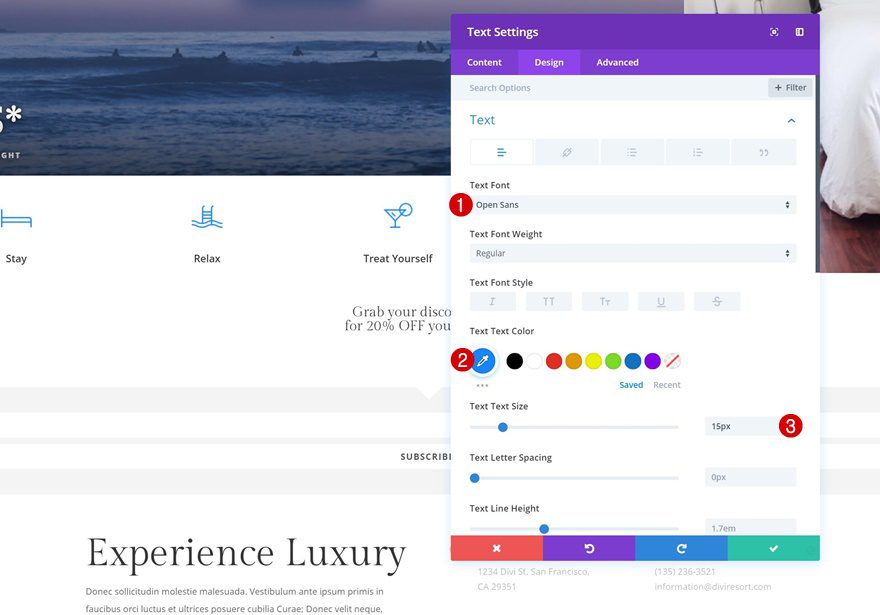

Move on to the design tab and change the text settings next.

  • Text Font: Open Sans
  • Text Color: #0f87ff
  • Text Size: 15px

locked content corner popups

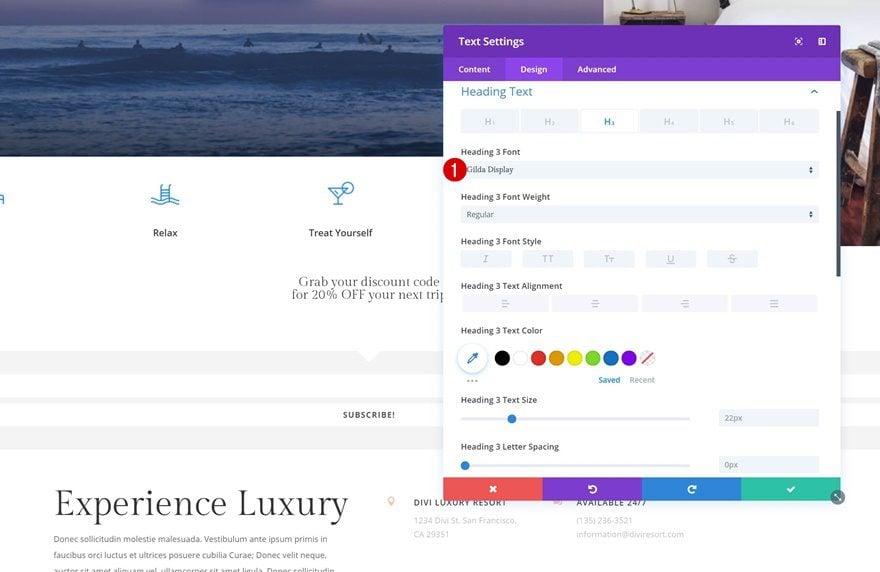

H3 Text Settings

Change the font that’s being used for your H3 copy too.

  • Heading 3 Font: Gilda Display

locked content corner popups

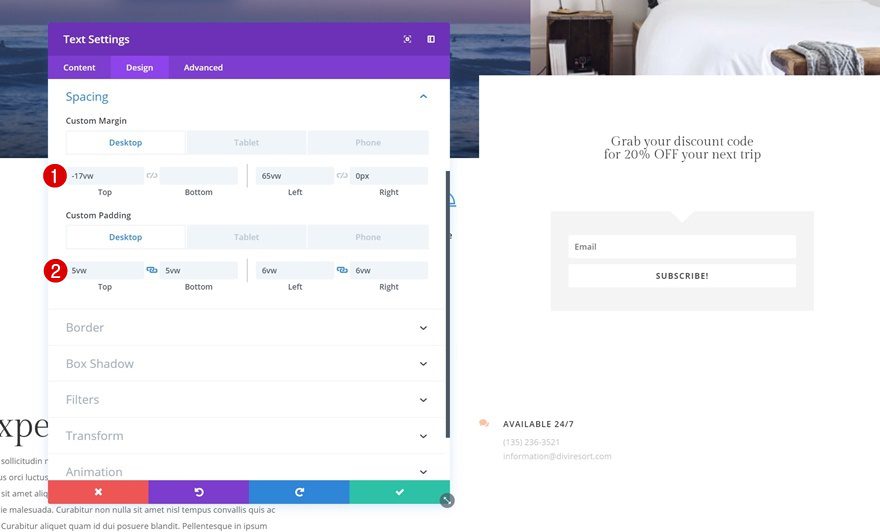

Spacing

And to give the module a shape, we’re going to add some custom margin and padding values. We’re also modifying all of these values to make the design match whatever screen size your visitors are using.

  • Top Margin: -17vw
  • Left Margin: 65vw (Desktop), 37vw (Tablet), 3vw (Phone)
  • Right Margin: 0px
  • Top Padding: 5vw (Desktop), 11vw (Tablet), 13vw (Phone)
  • Bottom Padding: 5vw, 11vw (Tablet), 13vw (Phone)
  • Left Padding: 6vw (Desktop), 11vw (Tablet), 16vw (Phone)
  • Right Padding: 6vw (Desktop), 11vw (Tablet), 16vw (Phone)

locked content corner popups

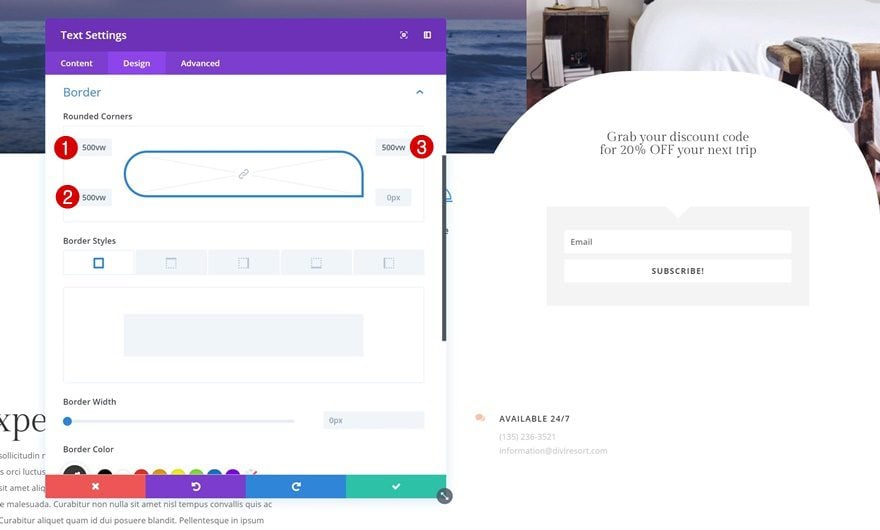

Border

Continue by going to the border settings of the Text Module and add ‘500vw’ to each one of the corners, except for the bottom right one.

locked content corner popups

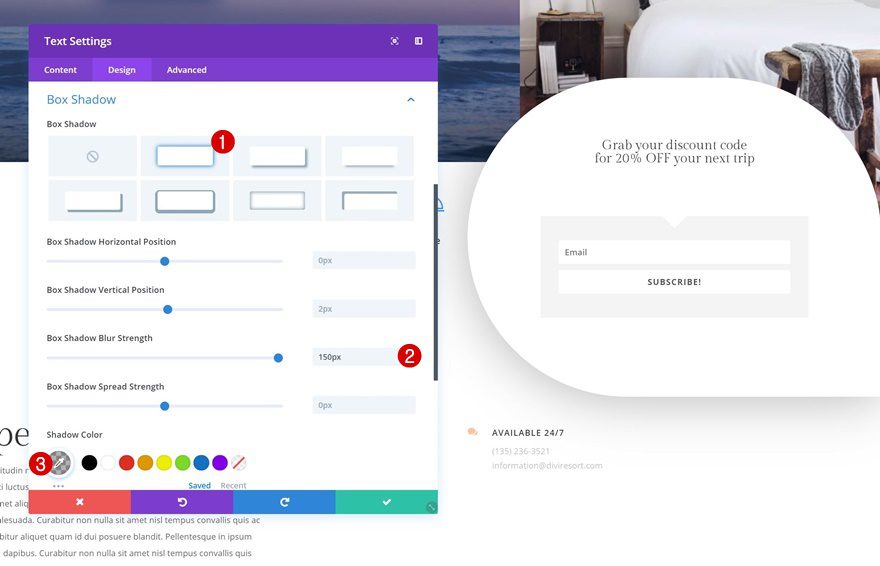

Box Shadow

Add a box shadow next to make the Text Module pop.

  • Box Shadow Blur Strength: 150px
  • Shadow Color: rgba(0,0,0,0.3)

locked content corner popups

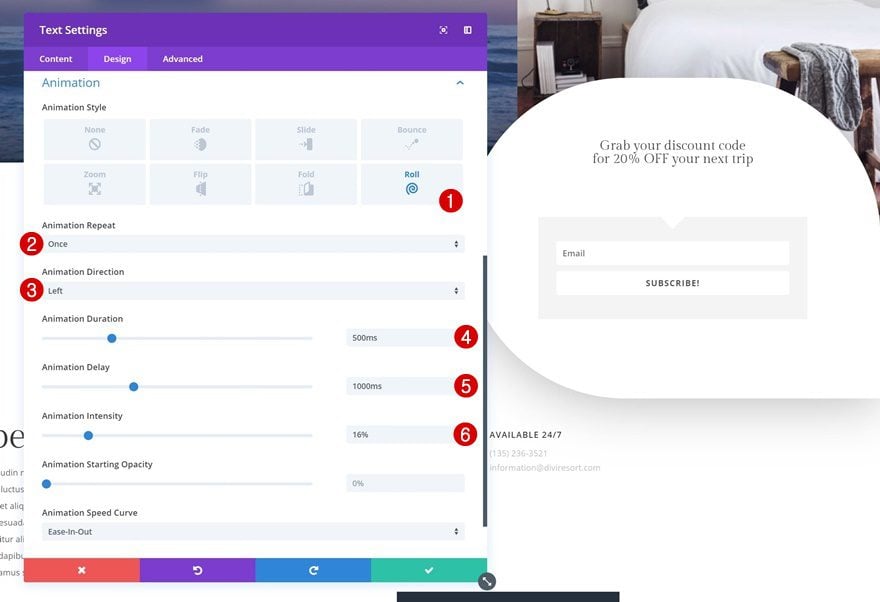

Animation

Lastly, we’re also adding an animation that goes from right to left to create the popup effect.

  • Animation Repeat: Once
  • Animation Direction: Left
  • Animation Duration: 500ms
  • Animation Delay: 1000ms
  • Animation Intensity: 16%

locked content corner popups

Clone Row

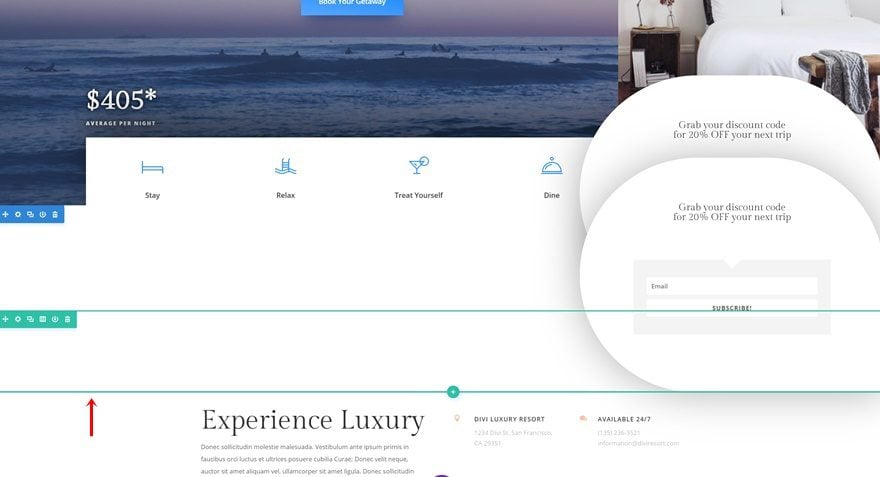

Once you’re done creating the first locked content corner popup, you can go ahead and clone the entire row.

locked content corner popups

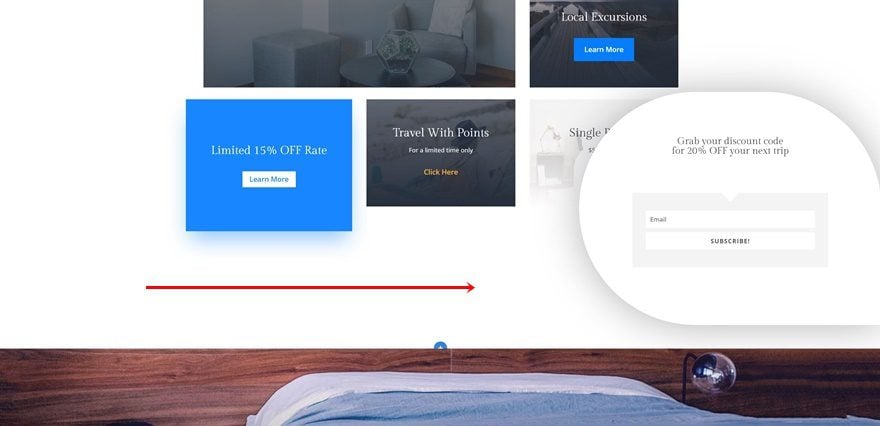

Place the duplicate row right here:



locked content corner popups

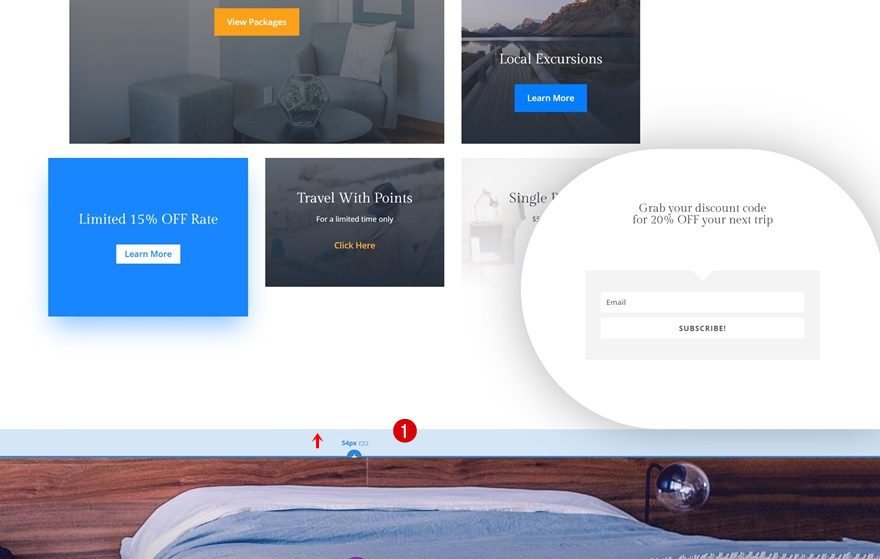

Remove Section Bottom Padding

Remove the bottom padding of the section you’ve placed the row in.

  • Bottom Padding: 0px

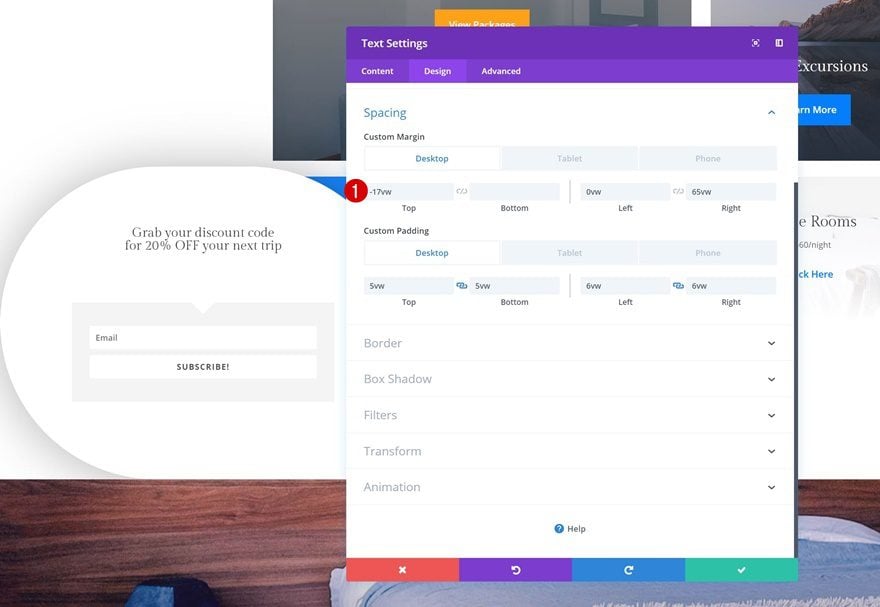

Change Text Module Spacing Settings

Then, open the Text Module’s settings and change the custom margin values.

  • Left Margin: 0vw
  • Right Margin: 65vw (Desktop), 37vw (Tablet), 3vw (Phone)

locked content corner popups

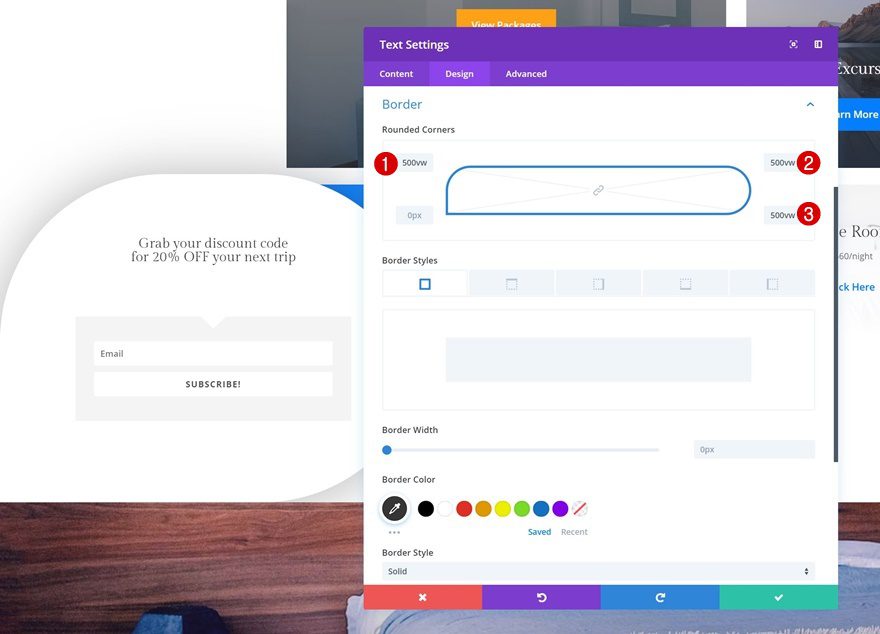

Change Text Module Rounded Corners

Make sure you change the rounded corners too. We’re using ‘500vw’ for each one of the corners except for the bottom left one.

locked content corner popups

Change Text Module Animation Settings

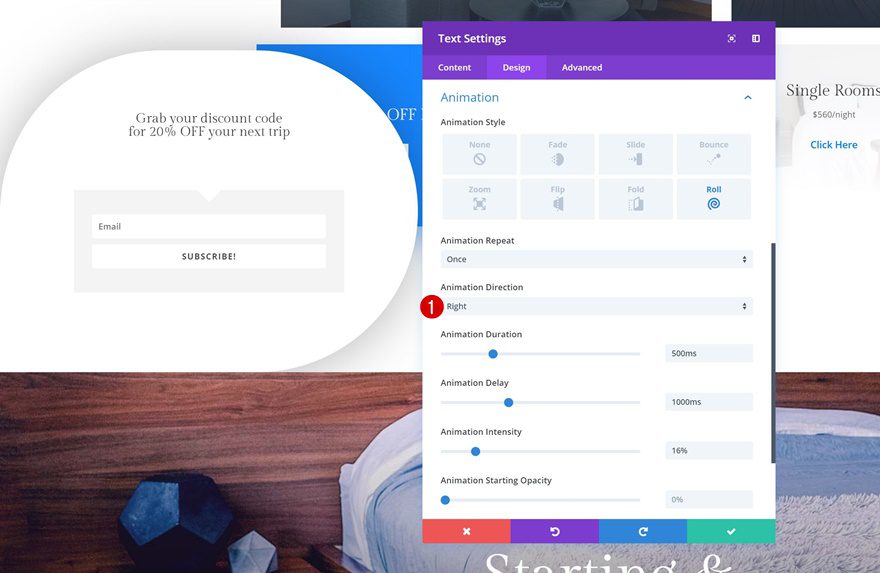

Last but not least, change the animation direction to right and you’re done!

  • Animation Direction: Right

locked content corner popups

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes!

Desktop

locked content corner popups

Mobile

locked content corner popups

Final Thoughts

In this post, we’ve shown you how to create locked content corner popups with Divi, the Bloom plugin and the Resort Layout Pack. You can use this technique to convince people to become part of your email list by offering a coupon code which appears once they’ve filled out the form. This tutorial is part of our ongoing Divi design initiative, where we try to put something extra into your design toolbox each and every week. If you have any questions or suggestions, make sure you leave a comment in the comment section below!
