How to Keep Modules Fixed in Their Column Container with Divi

Last Updated on September 16, 2022 by 19 Comments

How to Keep Modules Fixed in Their Column Container with Divi
Blog / Divi Resources / How to Keep Modules Fixed in Their Column Container with Divi
Play Button

When showing multiple calls to action on your page, it can help to create an interactive scroll effect that unites different elements. One way to approach this is by turning modules into fixed elements while they’re moving around in their column container. In today’s tutorial, we’ll show you how to create a beautiful design that handles this technique and you’ll be able to download the JSON file for free as well!

Let’s get to it.

Preview

Before we dive into the tutorial, let’s take a final look at the outcome across different screen sizes.

Desktop

column container

Tablet & Mobile

column container

Download The Sticky Column Container Design for FREE

To lay your hands on the free sticky column container design, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our newsletter by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

Subscribe To Our Youtube Channel

Let’s Start Recreating!

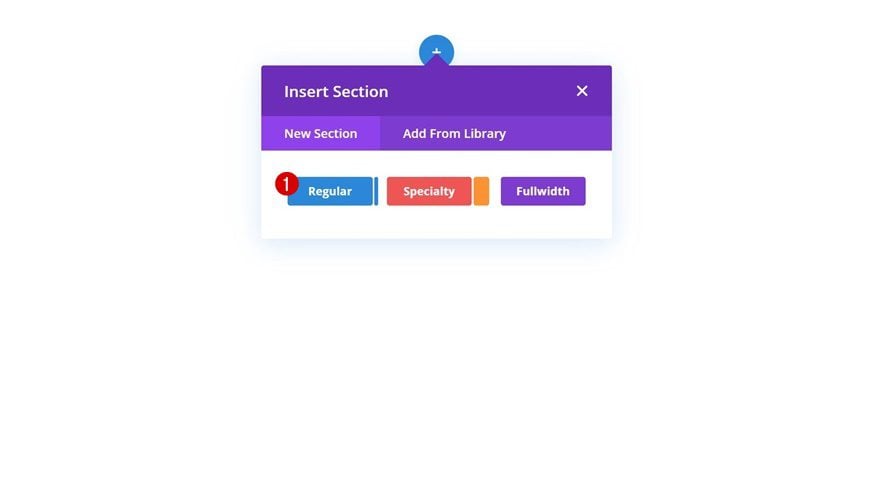

Add New Section

Start by adding a new regular section to the page you’re working on.

column container

Spacing

Open the section settings and modify the top and bottom padding across different screen sizes.

  • Top Padding: 7vw (Desktop), 10vw (Tablet), 15vw (Phone)
  • Bottom Padding: 20vw (Desktop), 7vw (Tablet), 10vw (Phone)

column container

Add New Row

Column Structure

Continue by adding a new row using the following column structure:

column container

Sizing

Without adding any modules yet, open the row settings and allow the row to take up the entire width of the section. It’s also really important to enable the ‘Equalize Column Heights’ option. By doing that, you’ll create some empty space in the columns that’ll allow the fixed modules to move freely while scrolling down the page.

  • Use Custom Gutter Width: Yes
  • Gutter Width: 1
  • Equalize Column Heights: Yes
  • Width: 100%
  • Max Width: 100%

column container

Column 2 Top Padding

Open the column 2 settings next and add some top padding on desktop.

  • Top Padding: 20vw (Desktop), 0vw (Tablet & Phone)

column container

Column 3 Top Padding

Add a custom top padding value to the third column as well.

  • Top Padding: 40vw (Desktop), 0vw (Tablet & Phone)

column container

Column 4 Top Padding

And complete the row’s settings by adding a top padding value to column 4 too.

  • Top Padding: 60vw (Desktop), 0vw (Tablet & Phone)

column container

Add CTA to Column 1

Add Content

Time to start adding modules! The first module we need in column 1 is a CTA Module. Insert some content of your choice.

column container

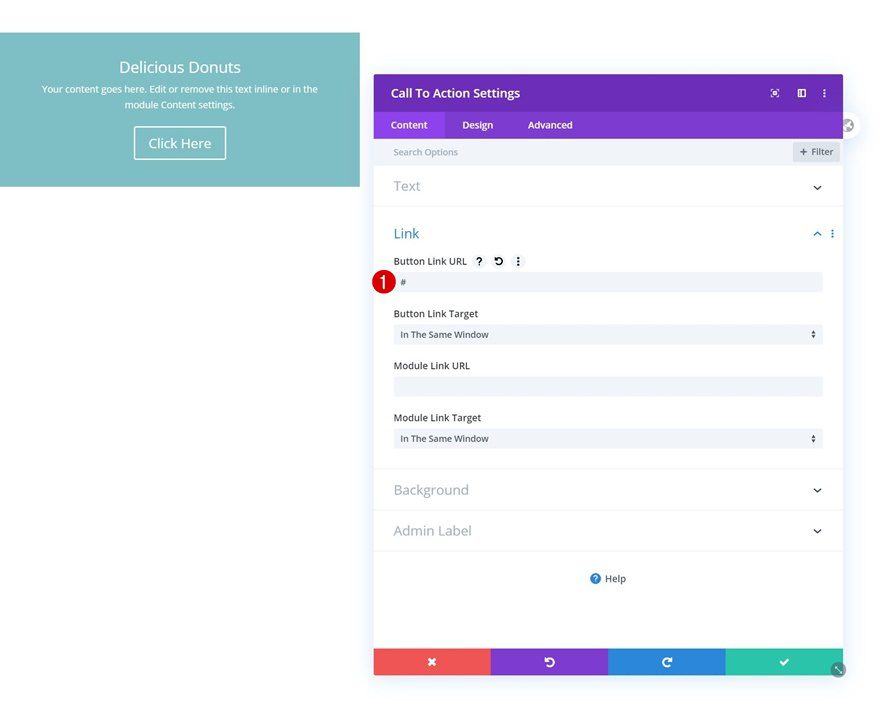

Link

Add a link to the button as well. Doing this will allow the button to show up in the design.

  • Button Link URL: #

column container

Background Color

Change the module’s background color next.

  • Background Color: #ffffff

column container

Text Settings

Move on to the design tab and change the general text settings.

  • Text Alignment: Center
  • Text Color: Dark

column container

Title Text Settings

Change the title text settings too.

  • Title Heading Level: H3
  • Title Font: Spectral
  • Title Text Color: #000000
  • Title Text Size: 2vw (Desktop), 4vw (Tablet), 6vw (Phone)

column container

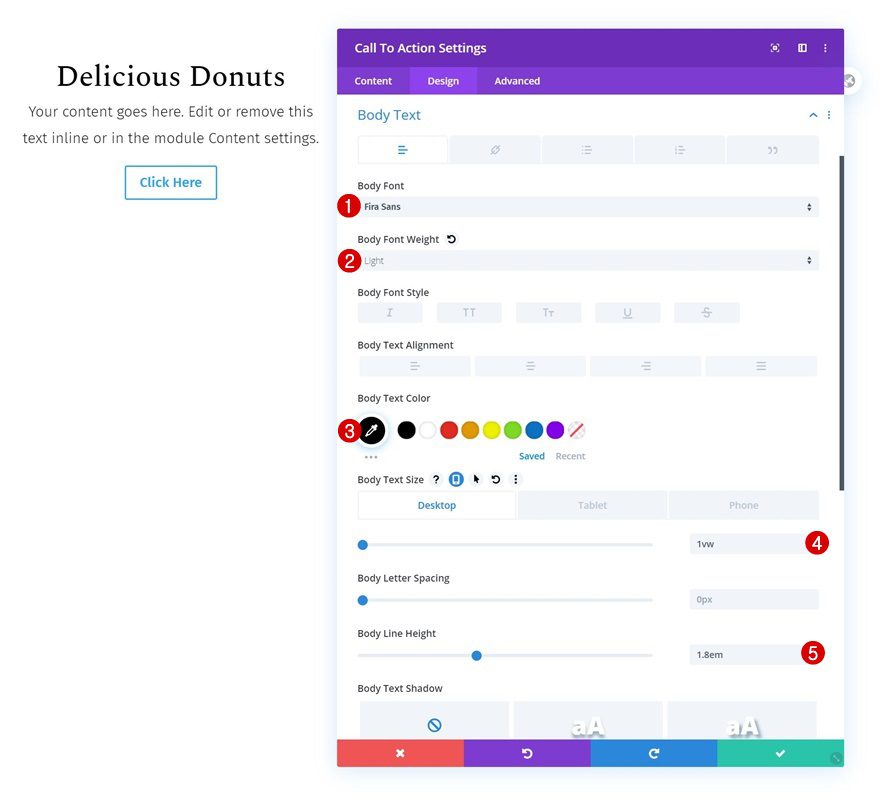

Body Text Settings

Along with the body text settings.

  • Body Font: Fira Sans
  • Body Font Weight: Light
  • Body Text Color: #000000
  • Body Text Size: 1vw (Desktop), 2vw (Tablet), 3vw (Phone)
  • Body Line Height: 1.8em

column container

Button Settings

Don’t forget to style the button of your CTA Module as well.

  • Use Custom Styles For Button: Yes
  • Button Text Size: 1vw (Desktop), 2vw (Tablet), 3vw (Phone)
  • Button Text Color: #ffffff
  • Button Background Color: #444eff
  • Button Border Width: 0px

column container

  • Button Border Radius: 50vw
  • Button Font: Fira Sans

column container

  • Top Padding: 1vw (Desktop), 2vw (Tablet), 3vw (Phone)
  • Bottom Padding: 1vw (Desktop), 2vw (Tablet), 3vw (Phone)
  • Left Padding: 3vw (Desktop), 7vw (Tablet), 13vw (Phone)
  • Right Padding: 3vw (Desktop), 7vw (Tablet), 13vw (Phone)

column container

Spacing

Then, go to the spacing settings and add some custom top and bottom padding.

  • Top Padding: 8vw
  • Bottom Padding: 8vw

column container

Border

Add some rounded corners to the module too.

  • Rounded Corners: 1vw (All Corners)

column container

Box Shadow

Complete the module’s design by adding a subtle box shadow.

  • Box Shadow Horizontal Position: 10px
  • Box Shadow Blur Strength: 50px
  • Shadow Color: rgba(0,0,0,0.08)

column container

CSS Class

Now, to make the scrolling sticky effect work, we’ll need to add a few lines of CSS code at the end of this tutorial. In preparation for that, we’ll add a CSS class to the CTA Module.

  • CSS Class: sticky-cta

column container

Add Image Module to Column 1

Upload Image

On to the next and last module we need in column 1, which is an Image Module. Upload a PNG image of your choice.

column container

Alignment

Change the image alignment next.

  • Image Alignment: Center

column container

Sizing

Make sure you force fullwidth on the module too.

  • Force Fullwidth: Yes

column container

Spacing

Complete the module’s settings by going to the spacing settings and adding some custom spacing values across different screen sizes.

  • Top Margin: -5vw (Tablet & Phone)
  • Bottom Margin: -12vw (Desktop), 5vw (Tablet & Phone)
  • Left Padding: 3vw (Desktop), 10vw (Tablet), 25vw (Phone)
  • Right Padding: 3vw (Desktop), 10vw (Tablet), 25vw (Phone)

column container

Clone Both Modules Three Times & Place In Remaining Columns

Once you’ve completed both modules in column 1, you can clone both of them three times and place the duplicates in the row’s remaining columns.

column container

Change Images

Make sure you change the image in each duplicate Image Module.

column container

Change CTA Content & Button Background Colors

Change the CTA content along with the button background colors too.

  • CTA Module #2: #89ffb4
  • CTA Module #3: #ff89f1
  • CTA Module #4: #ffd389

column container

Add CSS Class to Image Modules in Column 1, 2 & 3

Now, to make sure the sticky effect works on the images too, we’ll need to add a CSS class to the Image Modules in column 1, 2 and 3.

  • CSS Class: sticky-image

column container

Add Row #2

Column Structure

The only thing left to do is adding the CSS code. To do that, add a new row.

column container

Add Code Module with CSS Code

Add a Code Module to the row, insert the CSS code below and you’re done!

<style>
@media only screen and (min-width: 980px) {
.sticky-cta {
position: sticky;
position: -webkit-sticky;
top: 8vw !important;
}

.sticky-image {
position: sticky;
position: -webkit-sticky;
top: 28vw !important;
}
}</style>

column container

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes.

Desktop

column container

Tablet & Mobile

column container

Final Thoughts

In this post, we’ve shown you how to keep modules fixed in their column container. Using the technique can result in some stunning scroll effects that allow you to emphasize the various calls to action on your page. You were able to download the JSON file for free as well! If you have any questions or suggestions, feel free to leave a comment in the comment section below.

If you’re eager to learn more about Divi and get more Divi freebies, make sure you subscribe to our email newsletter and YouTube channel so you’ll always be one of the first people to know and get benefits from this free content.
