The new Divi transform options have opened a ton of new doors towards creating visually-appealing web design. It brings us one step closer to not needing any image editing software when designing a website from scratch. We can transform it to look exactly the way we want to while still having a 100% responsive design.
In this post, weโre going to use the new transform options to beautifully stack portfolio items. This is a great approach for showcasing previously made websites, for instance. Weโll also make sure the images stay right where they are, no matter what screen size visitors are using. We hope this tutorial inspires you to get creative with Diviโs new transform options when customizing a website to your needs.
Letโs get to it!
Preview
Before we dive into the tutorial, letโs take a quick look at the outcome on different screen sizes.
Letโs Start Recreating!
Add New Section
Gradient Background

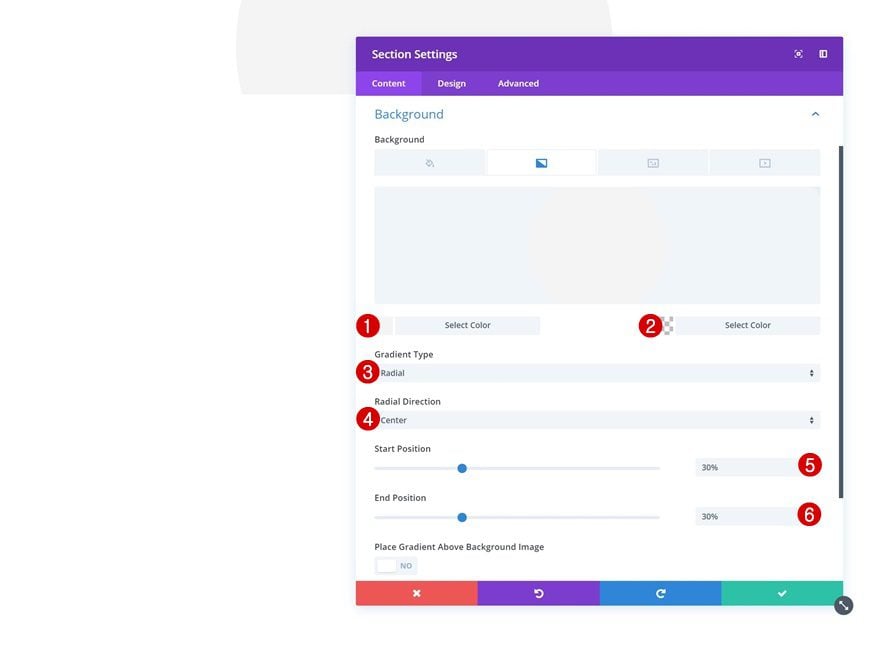

Start by adding a new section to your page. Open the section settings and add a gradient background to it.
- Color 1: #f4f4f4
- Color 2: rgba(255,255,255,0)
- Gradient Type: Radial
- Radial Direction: Center
- Start Position: 30%
- End Position: 30%
Spacing
Then, go to the design tab and modify the custom padding values in the spacing settings.
- Top Padding: 0px (Desktop), 18vw (Tablet), 40vw (Phone)
- Bottom Padding: 0px (Desktop), 18vw (Tablet), 40vw (Phone)
Add New Row

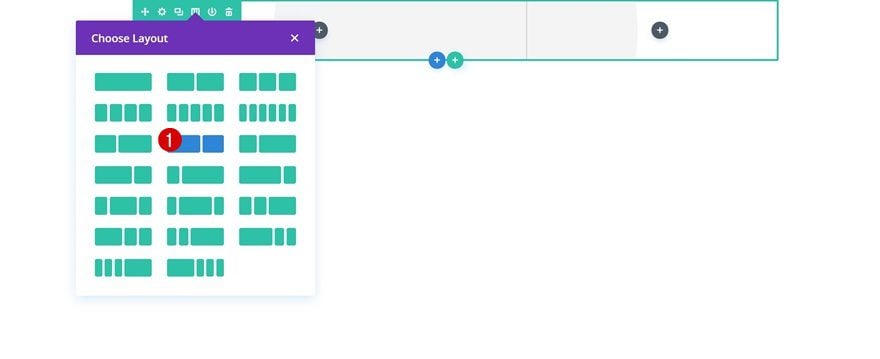

Column Structure
Continue by adding a new row to the section using the following column structure:

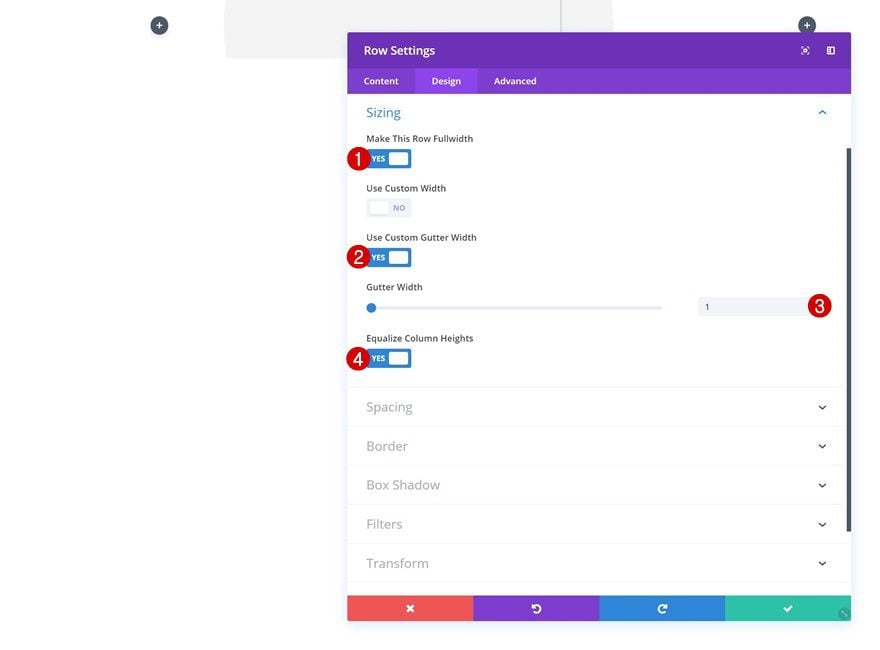

Sizing
Without adding any modules yet, open the row settings and change the sizing settings.
- Make This Row Fullwidth: Yes
- Use Custom Gutter Width: Yes
- Gutter Width: 1
- Equalize Column Heights: Yes

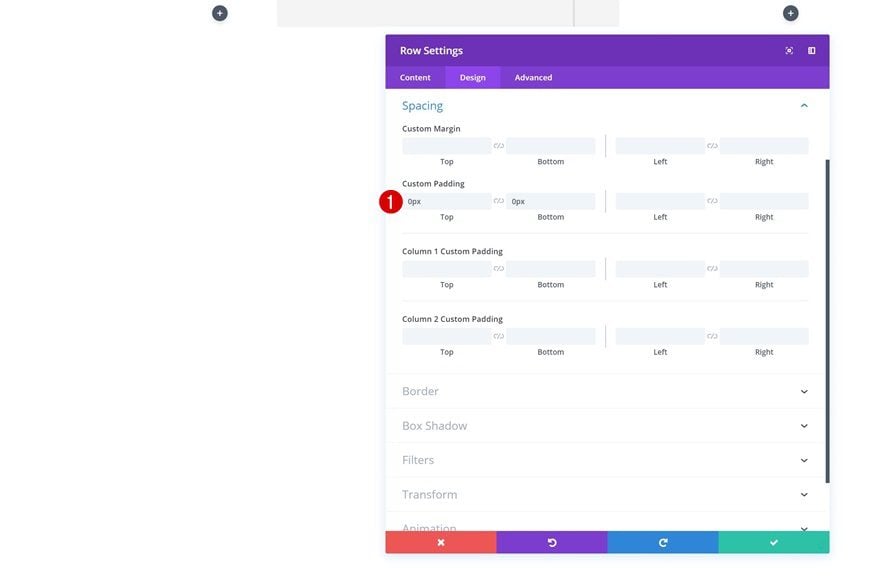

Spacing

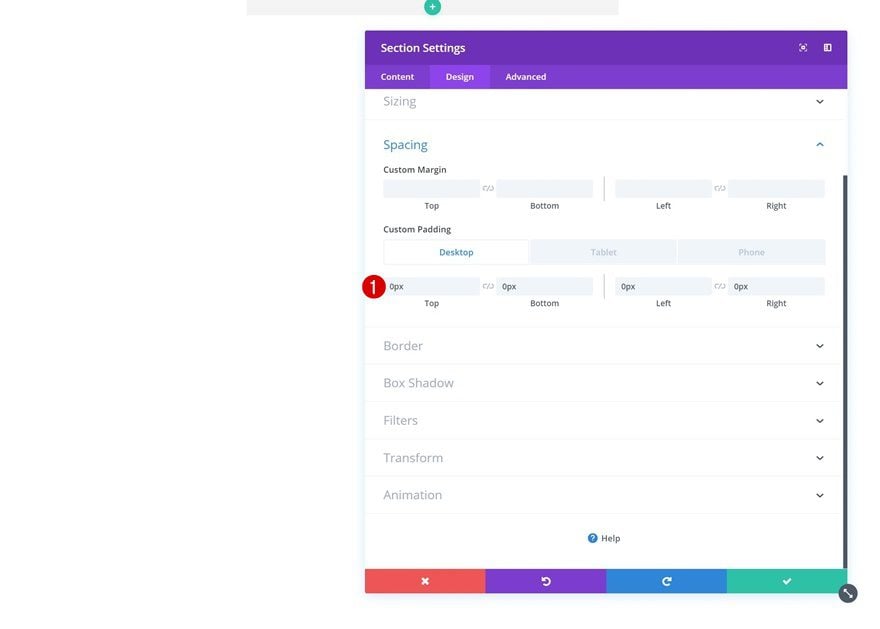

Then, go to the spacing settings and remove the top and bottom default padding.
- Top Padding: 0px
- Bottom Padding: 0px
Display

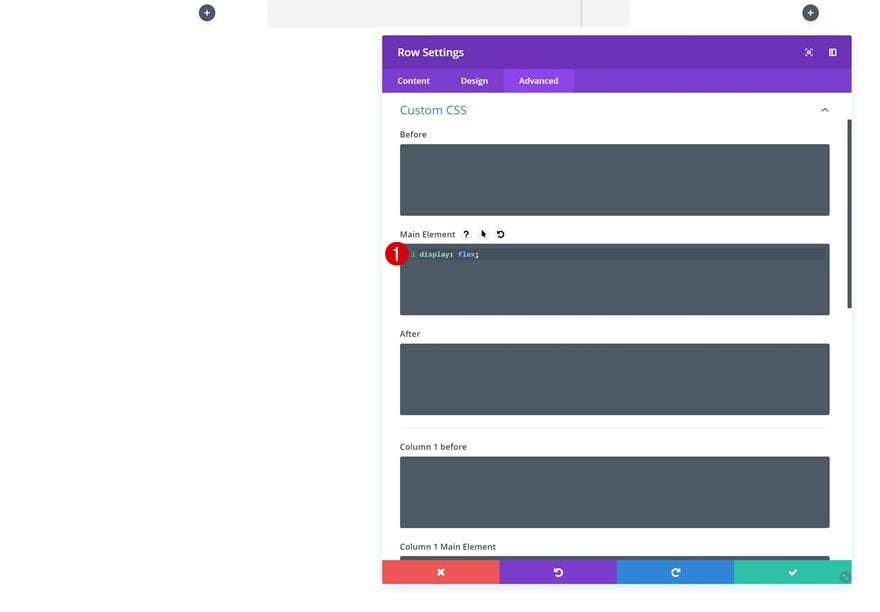

Weโre also making sure both columns appear next to each other on smaller screen sizes. To do that, weโll need to add one single line of CSS code to the main element of the row.
display: flex;
Add Image Module #1 to Column 1
Upload Image
We can now start adding the different modules! For the sake of being able to follow this tutorial, go ahead and save the following print screen to your computer:
Upload the print screen to an Image Module in the first column.
Sizing
Then, go to the design tab and enable the โForce Fullwidthโ option. Once you do, the image will take up the entire width of the column.
- Force Fullwidth: Yes
Spacing
To shrink the size of the image, weโre going to add some custom left and right margin. Youโll notice that weโre using a viewport unit to make sure the size of the image remains intact, no matter the screen size.
- Top Margin: -10vw
- Left Padding: 11vw
- Right Padding: 11vw

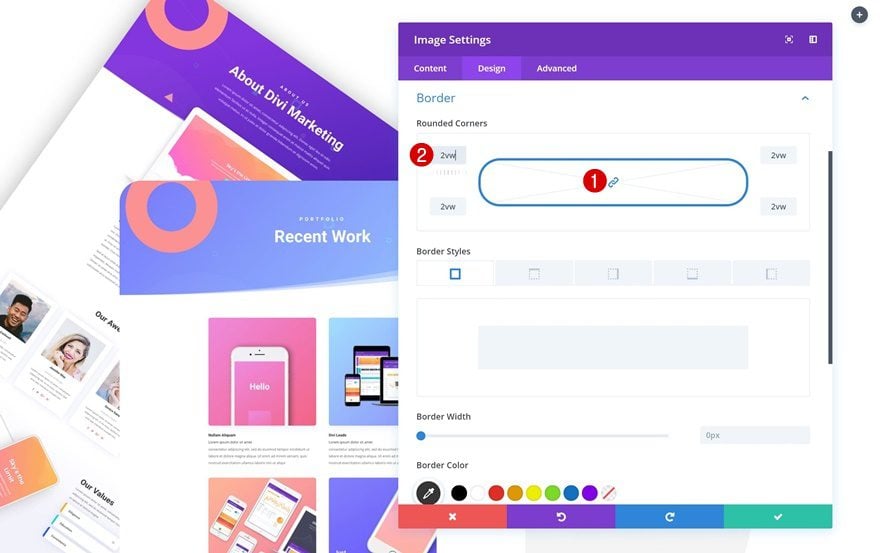

Border
Add โ2vwโ to each one of the corners in the border settings next.
Box Shadow
Along with a box shadow.
- Box Shadow Blur Strength: 80px
- Shadow Color: rgba(0,0,0,0.3)

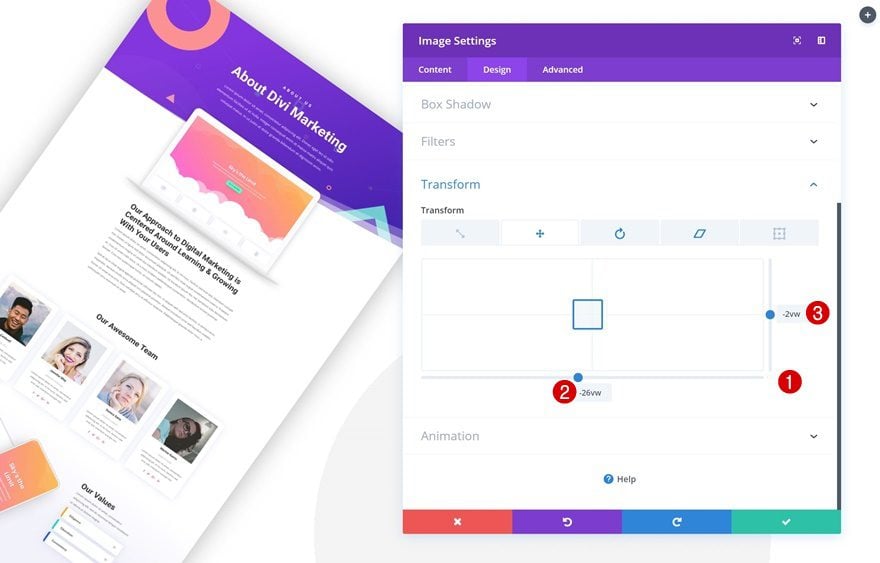

Transform Translate
Now we can start transforming the image! Add the following values to the transform translate tab of the transform options:
- Bottom: -26vw
- Right: -2vw
The values you add here depend on the width and height of your image so if youโre using a different image, youโll have to modify the values accordingly. Make sure youโre using viewport units to make sure the position of the image remains the same across all screen sizes.
Transform Rotate
Move on to the transform rotate tab and rotate the image accordingly:
- Left: 24deg
- Center: 46deg
- Right: -7deg
Translate Skew
Last but not least, enable translate skew with the following values:
- Bottom: -4deg
- Right: 24deg
Add Image Module #2 to Column 1

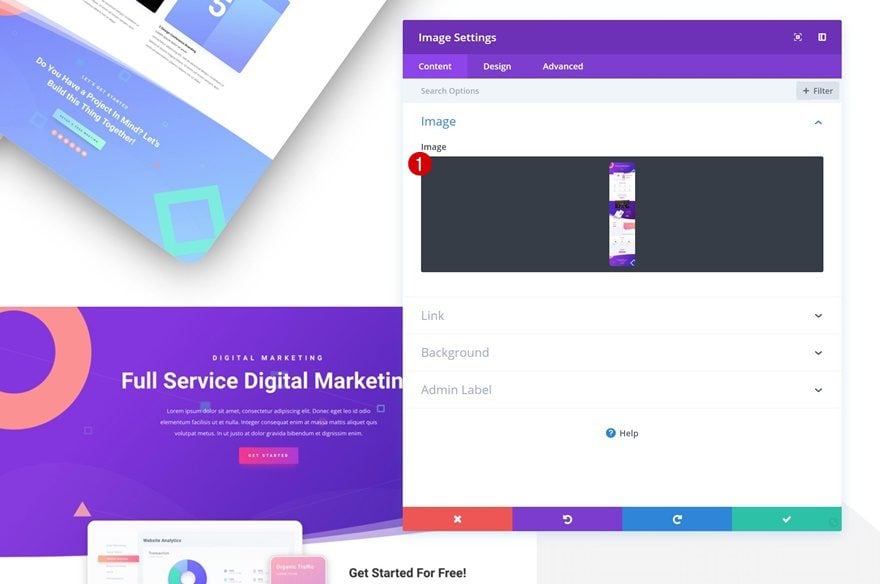

Upload Image
On to the next Image Module! Save the following print screen to your computer or use another print screen of your choice:
Continue by uploading the print screen to the second Image Module in column 1.

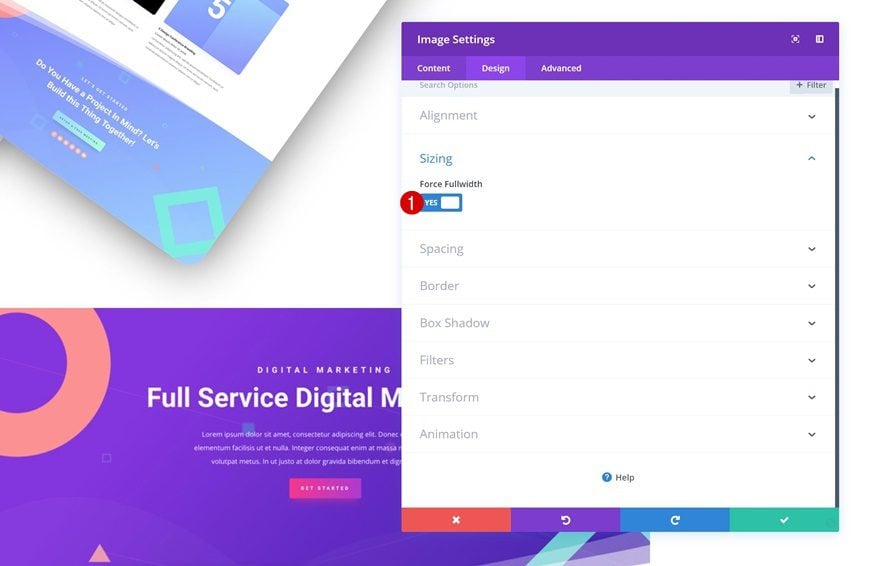

Sizing
Then, go to the sizing settings and enable the โForce Fullwidthโ option.
- Force Fullwidth: Yes
Spacing
Weโre shrinking the size of the image and making it overlap with the previous image by using some custom margin values in the spacing settings.
- Top Margin: -81vw (Desktop), -50vw (Tablet & Phone)
- Left Margin: 11vw
- Right Margin: 11vw

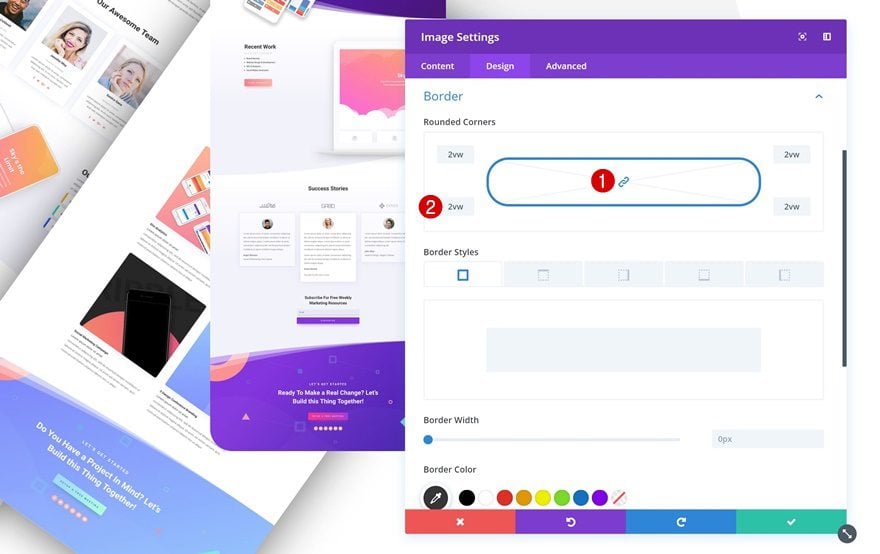

Border
Weโll add โ2vwโ to each one of the corners in the border settings next.

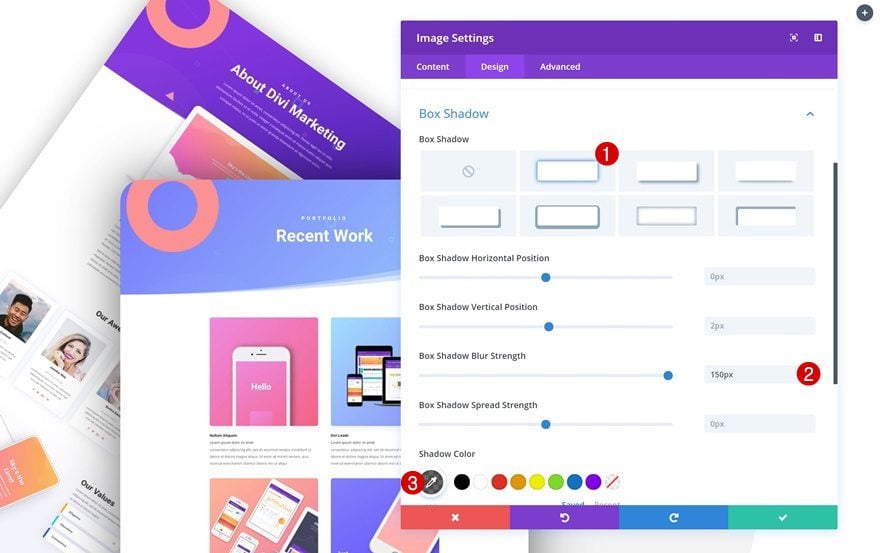

Box Shadow
And weโll add a box shadow too. Notice how weโre using a darker box shadow for the second portfolio item image. This will help you create more depth between the portfolio items.
- Box Shadow Blur Strength: 150px
- Shadow Color: rgba(0,0,0,0.6)
Transform Translate

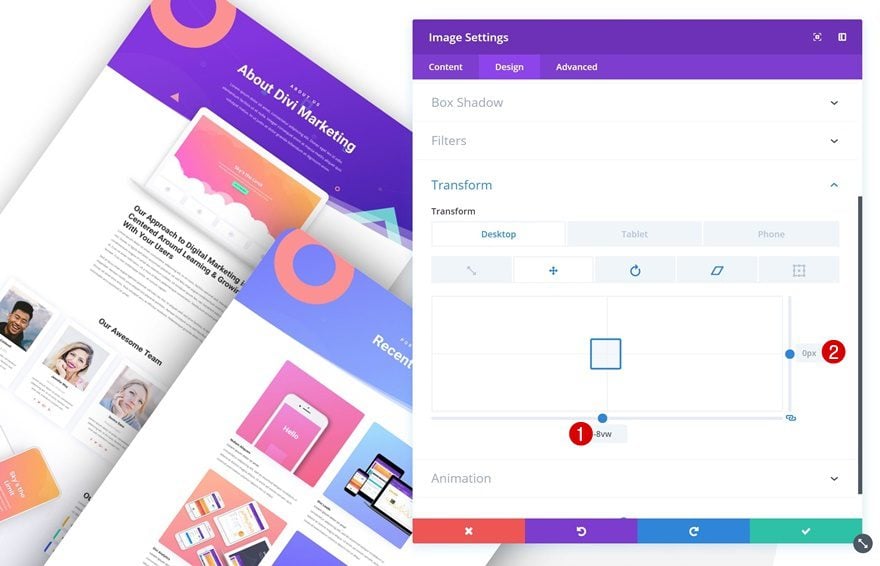

Then, go to the transform settings and modify the transform translate values:
- Bottom: -8vw
- Right: 0px
Again, these values really depend on how you want to position the print screen and what dimensions your print screen has. The smaller the image, the more youโll have to push it to the left by using a larger negative value.

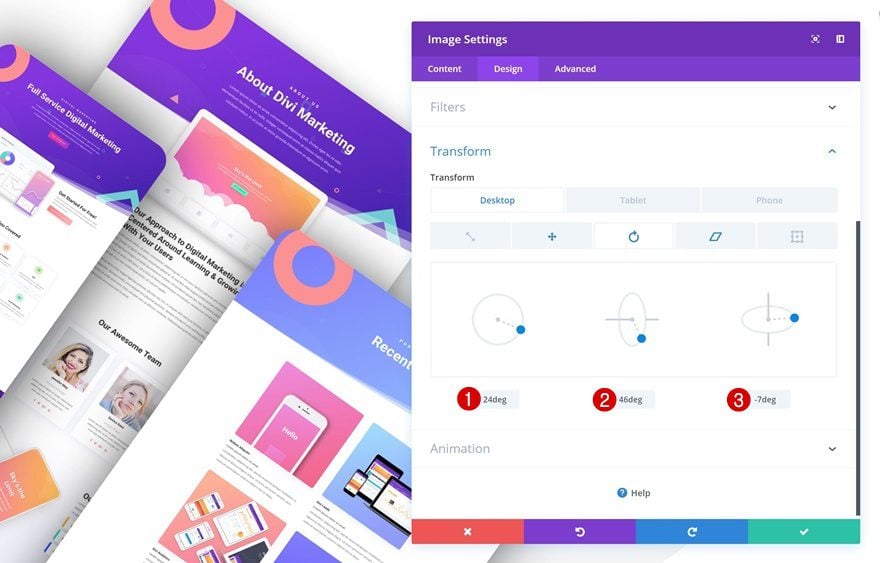

Transform Rotate
Move on to the transform rotate tab and play around with all three values.
- Left: 24deg
- Center: 46deg
- Right: -7deg

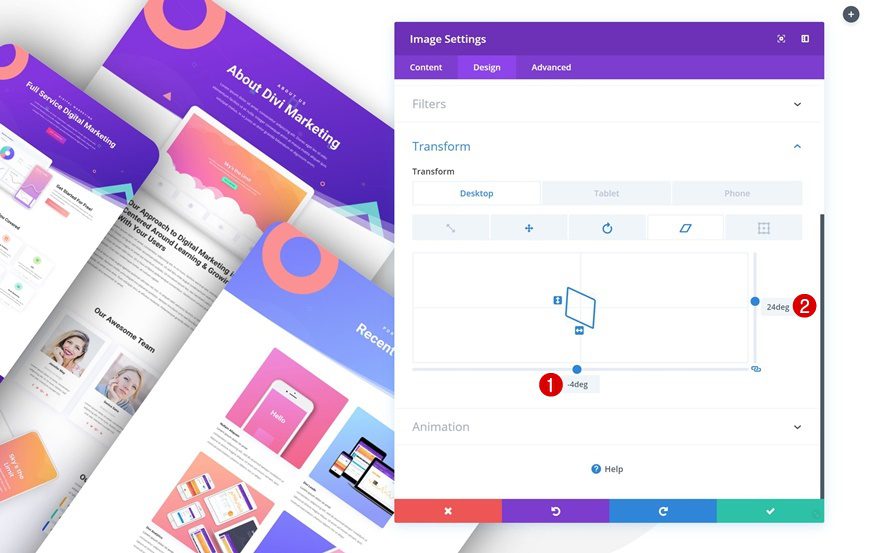

Translate Skew
Last but not least, modify the translate skew values:
- Bottom: -4deg
- Right: 24deg
Add Image Module #3 to Column 1

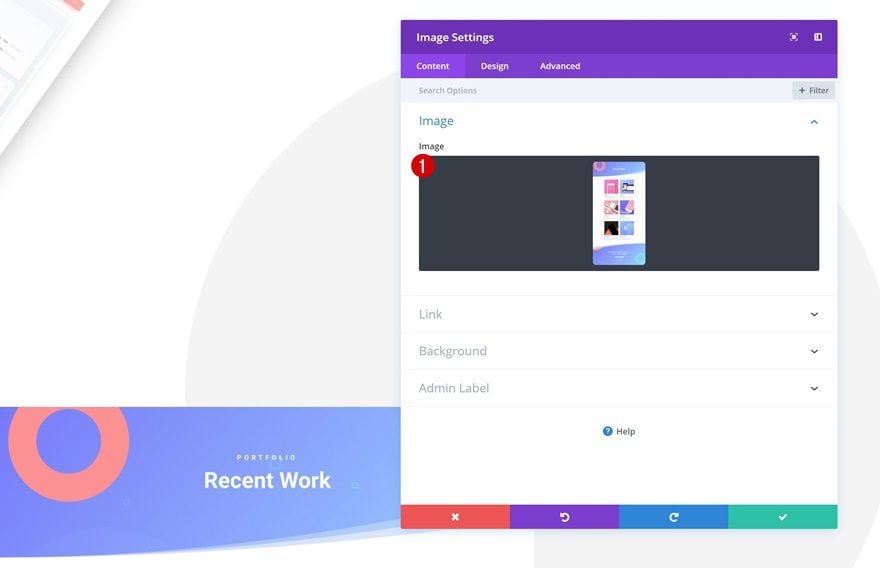

Upload Image

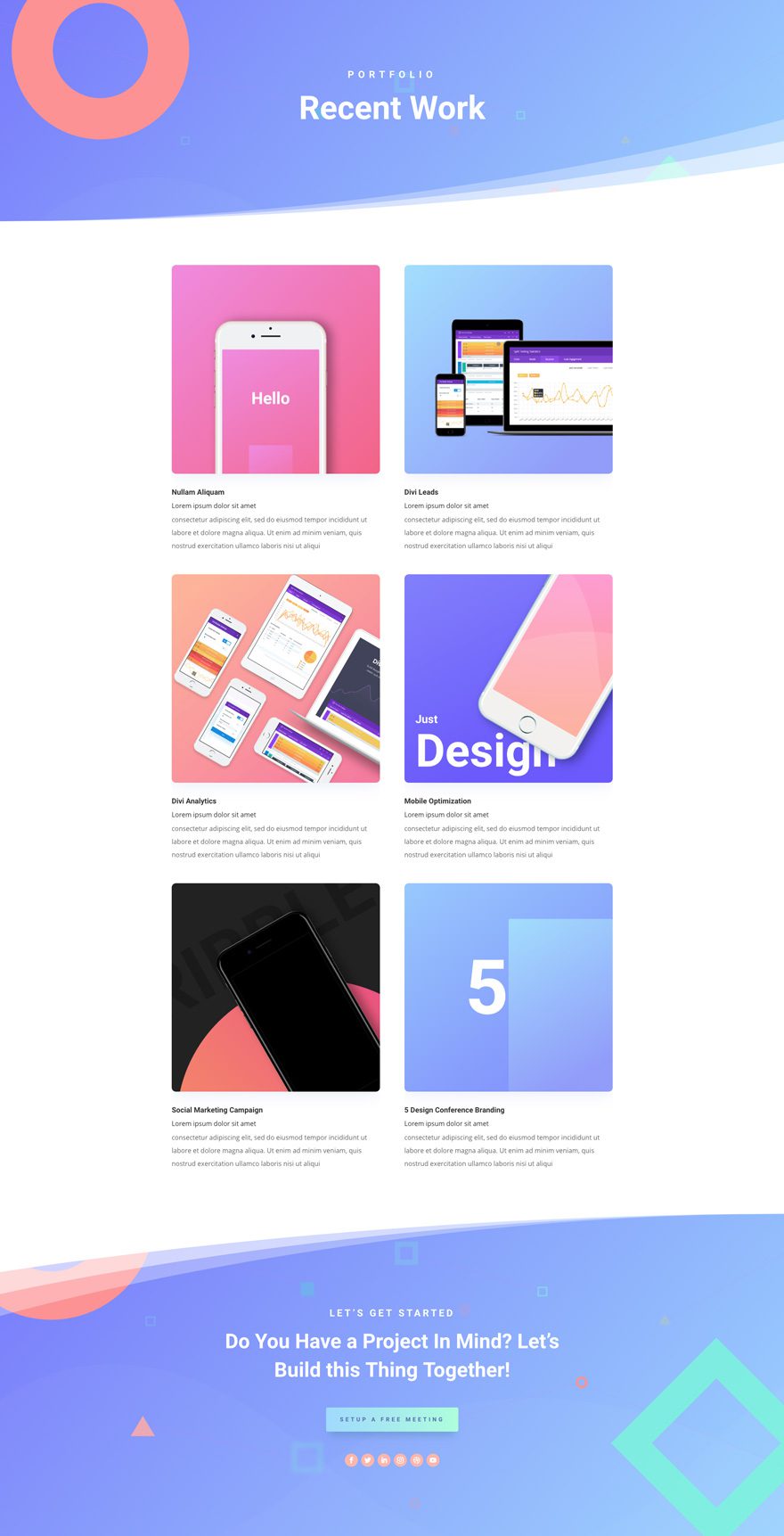

On to the next and last Image Module we need in column 1. Save the following print screen to your computer or use any other print screen of your choice:
Add the print screen youโve saved to a new Image Module.

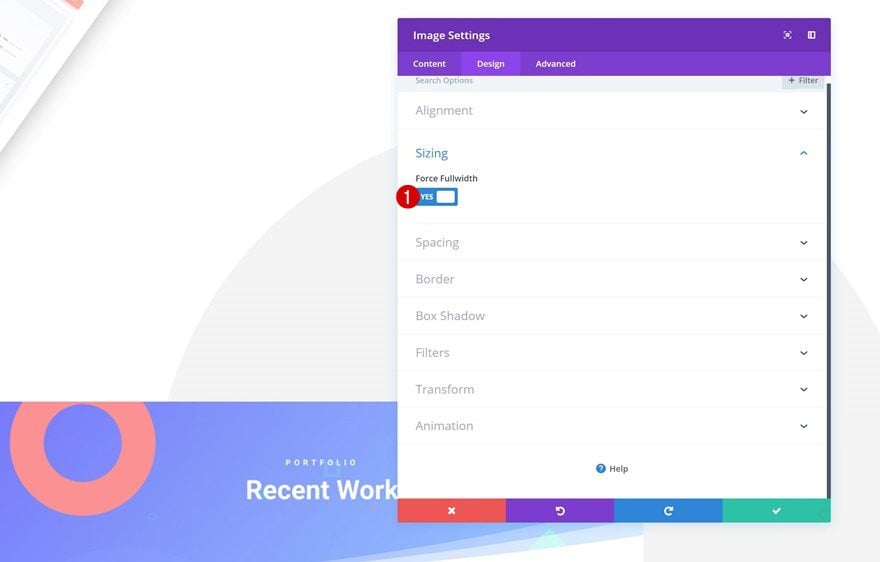

Sizing
Then, go to the sizing settings and enable the โForce Fullwidthโ option.
- Force Fullwidth: Yes

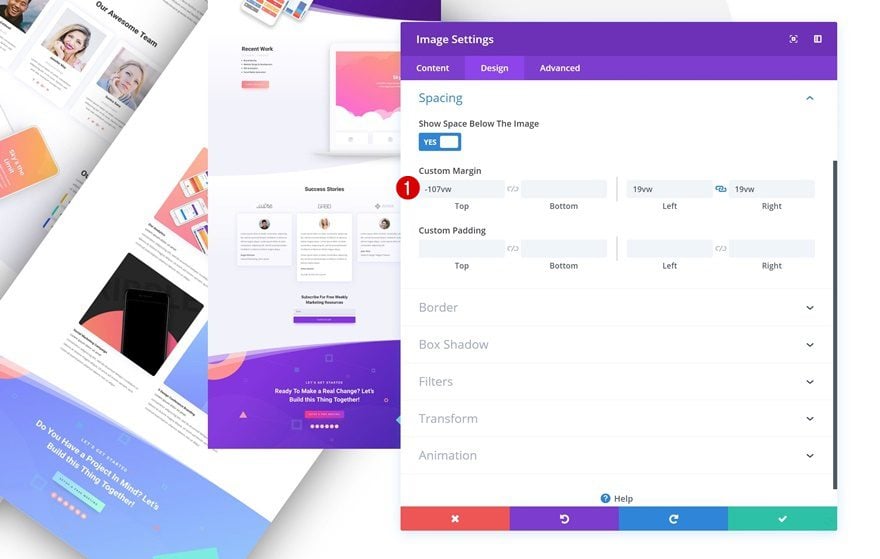

Spacing
Go to the spacing settings next and modify the margin values accordingly:
- Top Margin: -107vw
- Left Margin: 19vw
- Right Margin: 19vw
Border
Continue by adding โ2vwโ to each one of the corners of the Image Module.

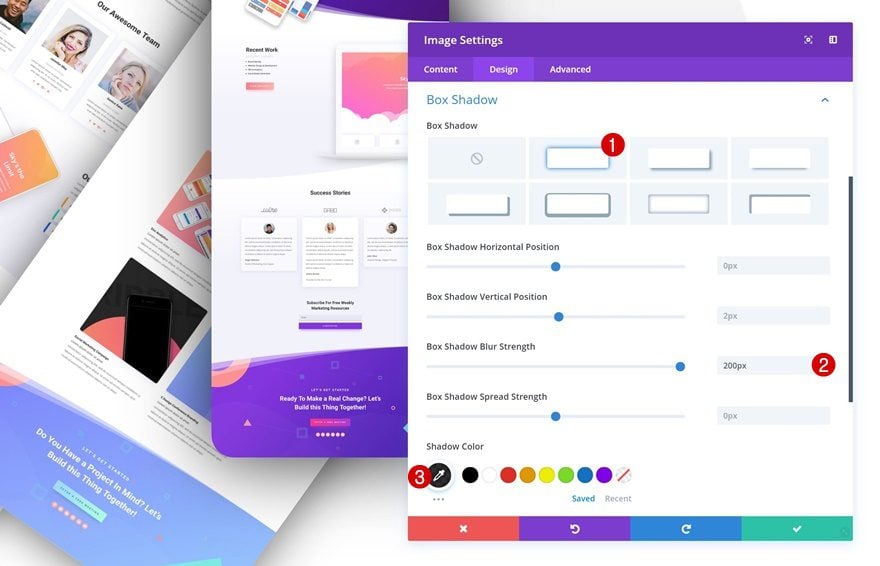

Box Shadow
Add a box shadow next. Again, weโre using a stronger shadow color than the ones weโve used for the two previous Image Modules.
- Box Shadow Blur Strength: 200px
- Shadow Color: rgba(0,0,0,0.82)
Transform Translate

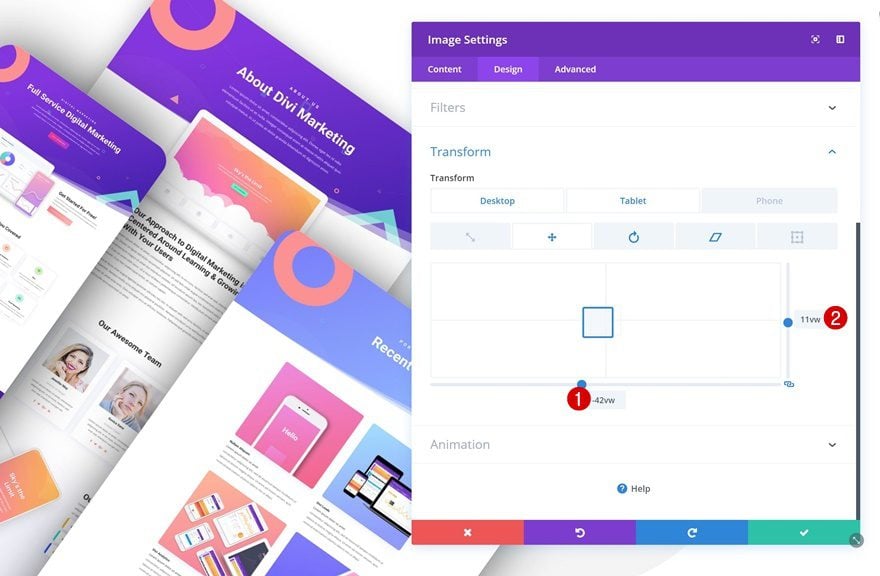

Then, go to the transform settings and modify the transform translate values:
- Bottom: -42vw
- Right: 11vw
Transform Rotate
Move on to the transform rotate tab and make some changes there too.
- Left: 24deg
- Center: 46deg
- Right: -7deg
Translate Skew
Last but not least, modify the translate skew values.
- Bottom: -4deg
- Right: 24deg
Add Title Text Module to Column 2
Add H2 Copy

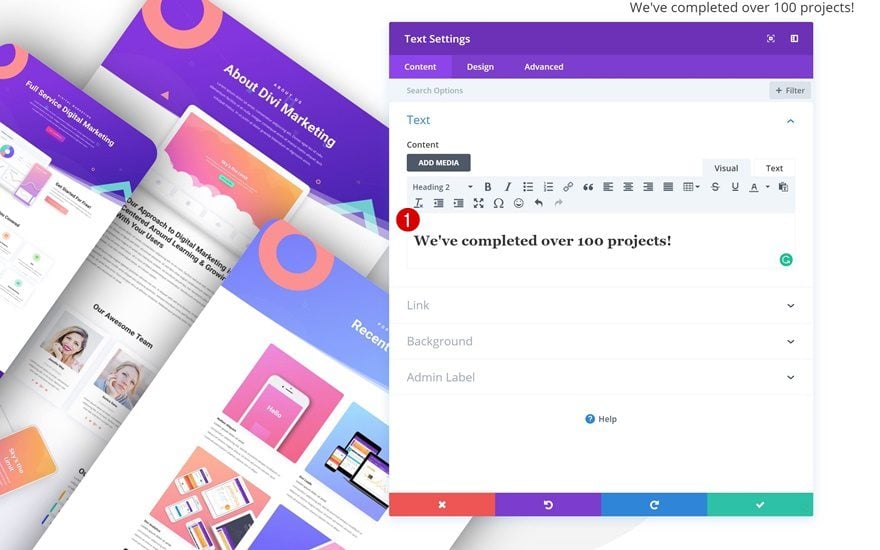

On to the second column! Add a Text Module with some H2 content of your choice.

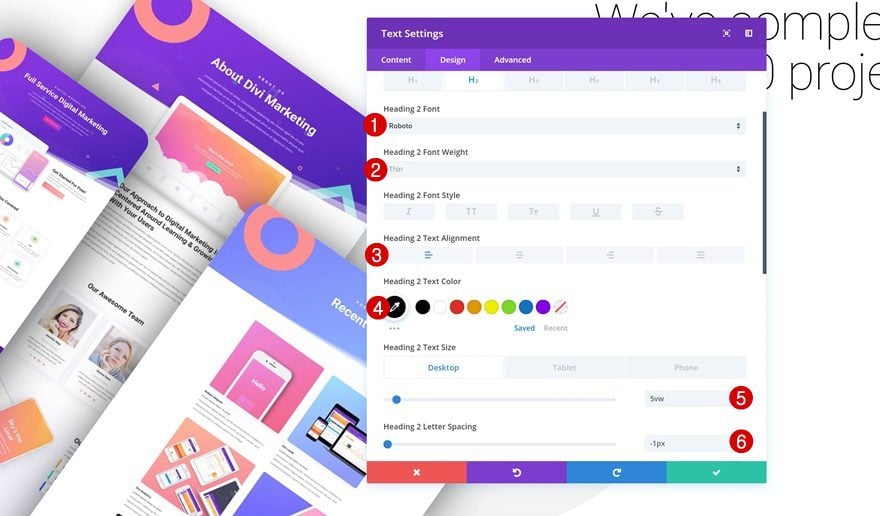

H2 Text Settings
Go to the H2 text settings next and make some changes.
- Heading 2 Font: Roboto
- Heading 2 Font Weight: Thin
- Heading 2 Text Alignment: Left
- Heading 2 Text Color: #000000
- Heading 2 Text Size: 5vw (Desktop), 6vw (Tablet), 7vw (Phone)
- Heading 2 Letter Spacing: -1px
Spacing

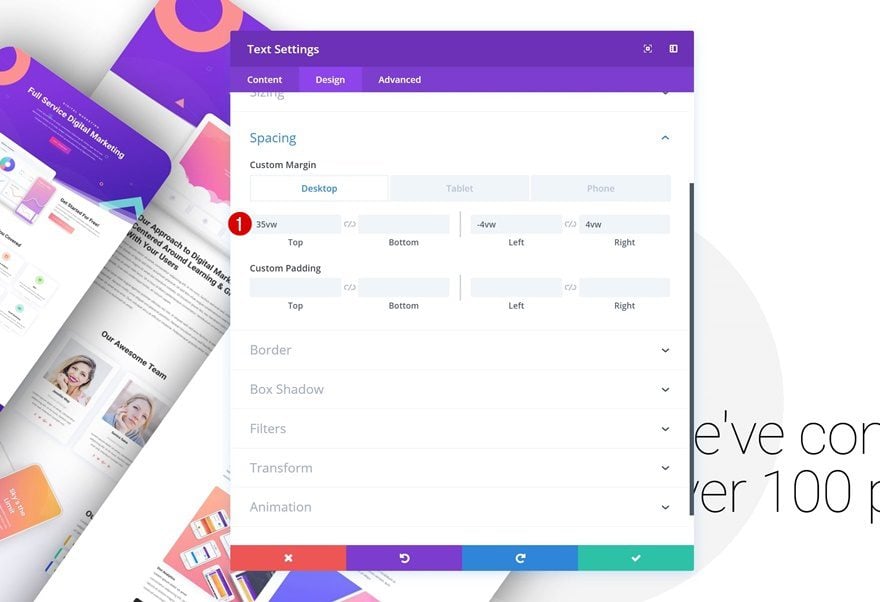

Continue by adding some custom margin values in the spacing settings.
- Top Margin: 35vw (Desktop), 10vw (Tablet), 0vw (Phone)
- Left Margin: -4vw
- Right Margin: 4vw
Add Divider Module to Column 2

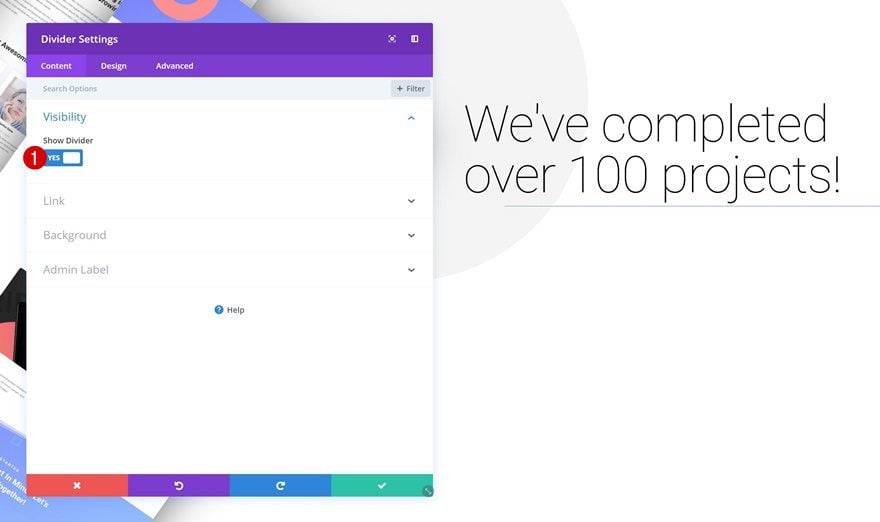

Visibility
The next module we need in column 2 is a Divider Module. Make sure the โShow Dividerโ option is enabled.
- Show Divider: Yes
Color

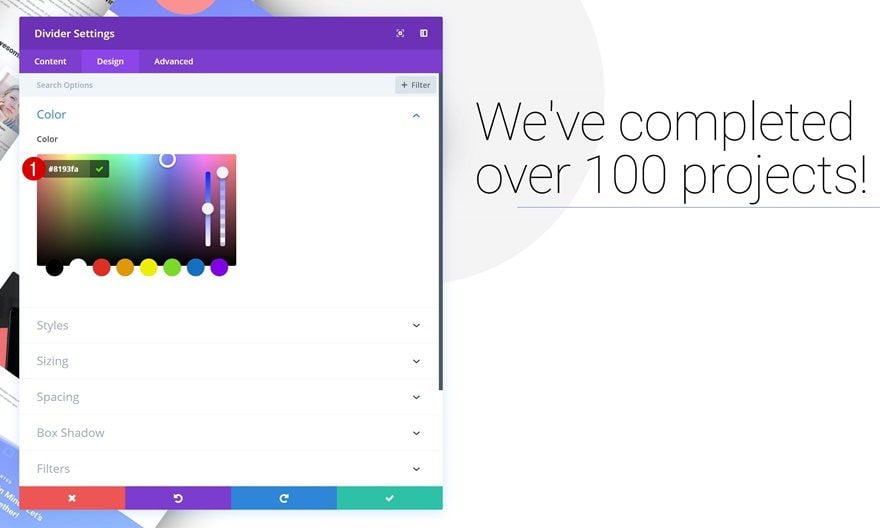

Then, go to the design tab and change the divider color.
- Color: #8193fa

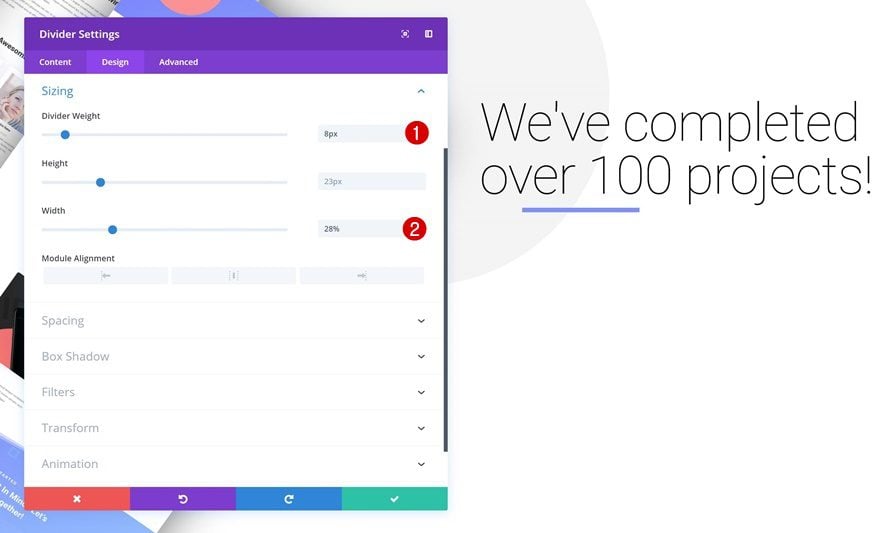

Sizing
Modify the sizing settings too.
- Divider Weight: 8px
- Width: 28%

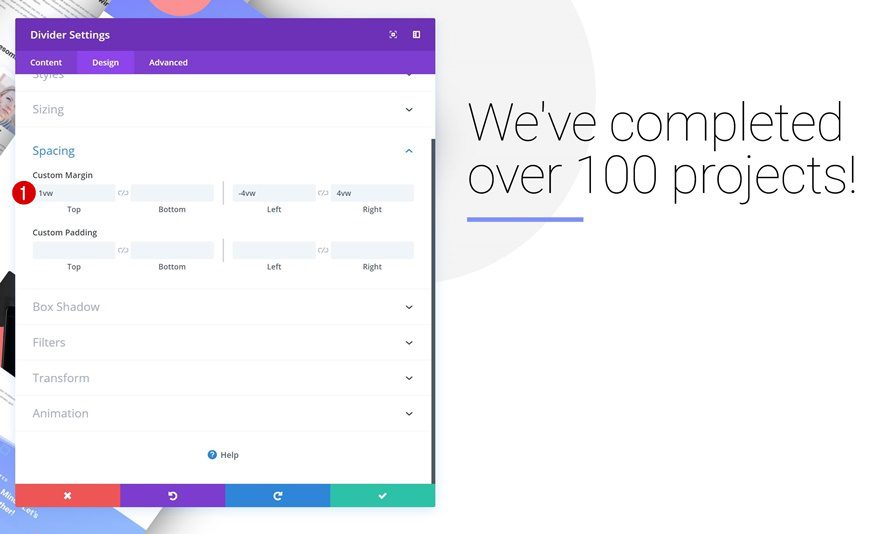

Spacing
And add some custom margin values.
- Top Margin: 1vw
- Left Margin: -4vw
- Right Margin: 4vw
Add Description Text Module to Column 2

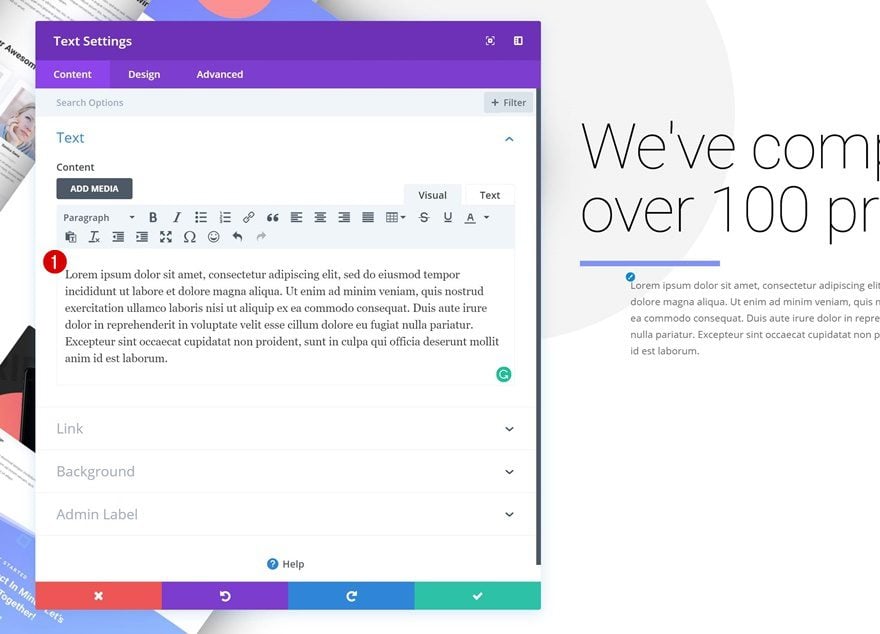

Add Content
The next module we need in column 2 is another Text Module. Add some paragraph content of your choice.

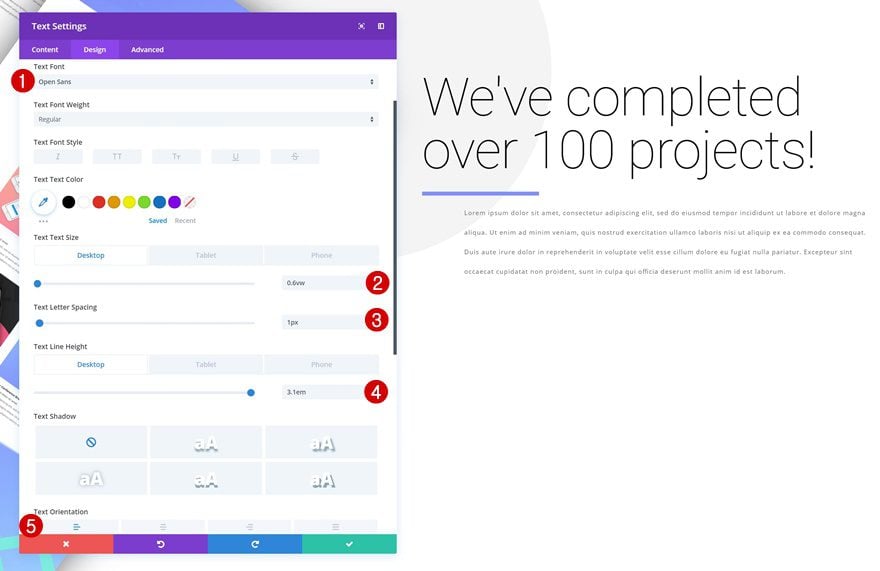

Text Settings
Then, go to the text settings and make some changes.
- Text Font: Open Sans
- Text Size: 0.6vw (Desktop), 1.2vw (Tablet), 1.8vw (Phone)
- Text Line Height: 3.1em (Desktop), 2.7em (Tablet), 2.6em (Phone)
- Text Orientation: Left

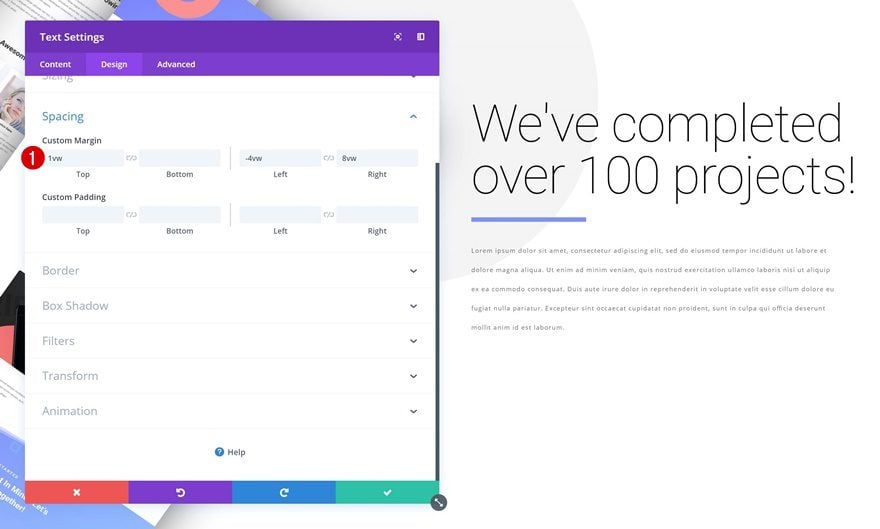

Spacing
Add some custom margin values next.
- Top Margin: 1vw
- Left Margin: -4vw
- Right Margin: 4vw

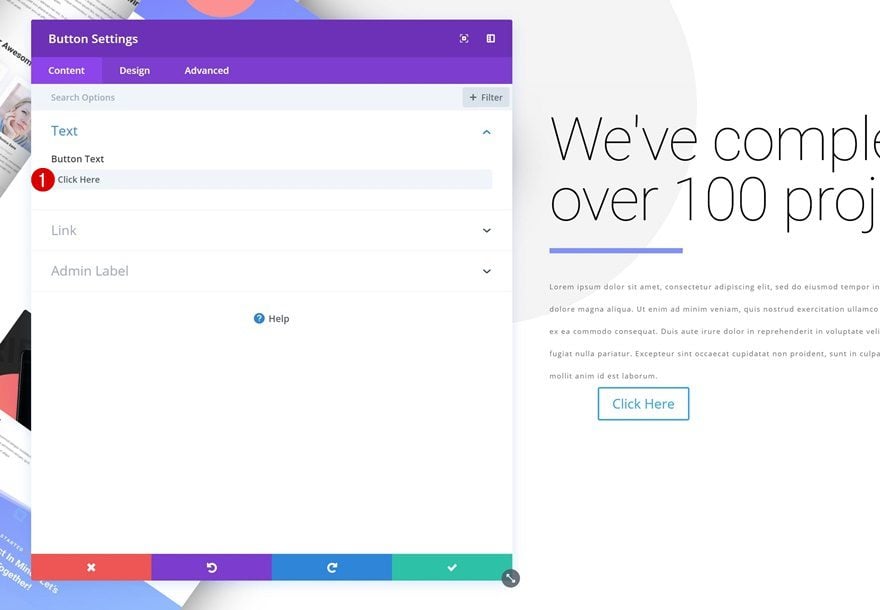

Add Copy
The next and last module we need to complete the design is a Button Module. Add some copy of choice.

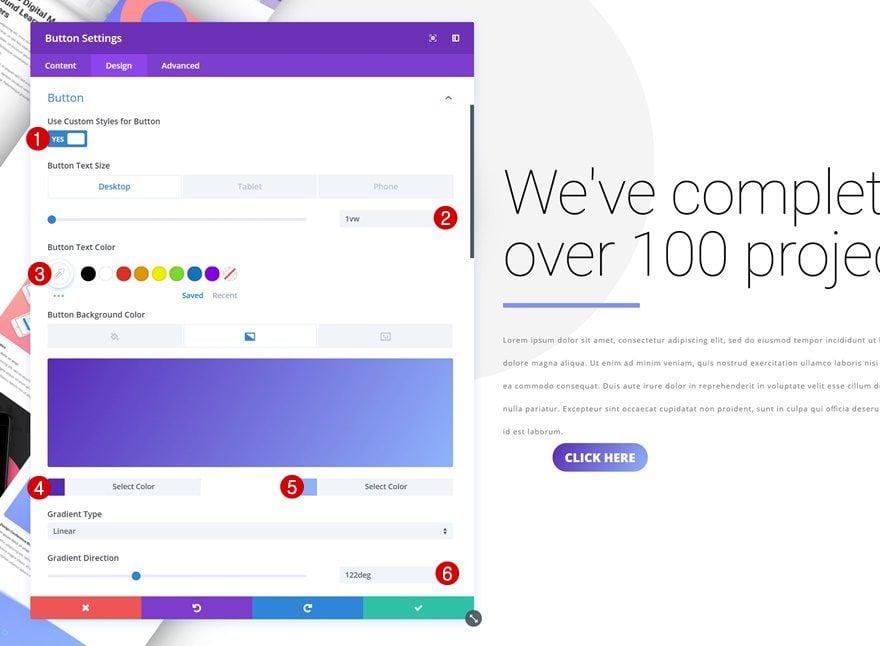

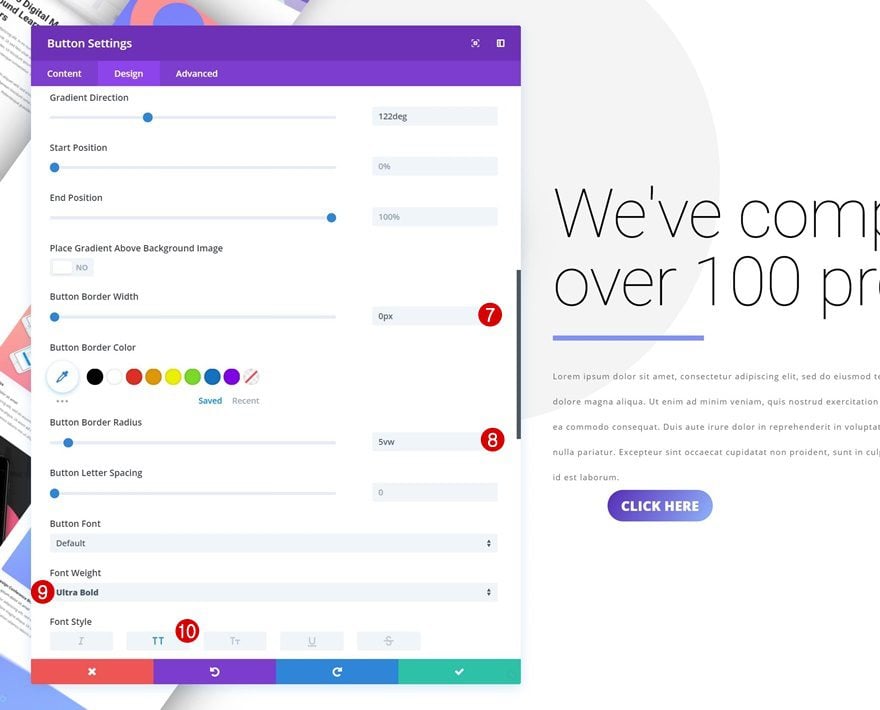

Button Settings
Then, go to the design tab and modify the button settings.
- Use Custom Styles for Button: Yes
- Button Text Size: 1vw (Desktop), 2vw (Tablet), 3vw (Phone)
- Color 1: #5627ba
- Color 2: #8fb5fc
- Gradient Direction: 122deg
- Button Border Width: 0px
- Font Weight: Ultra Bold
- Font Style: Uppercase

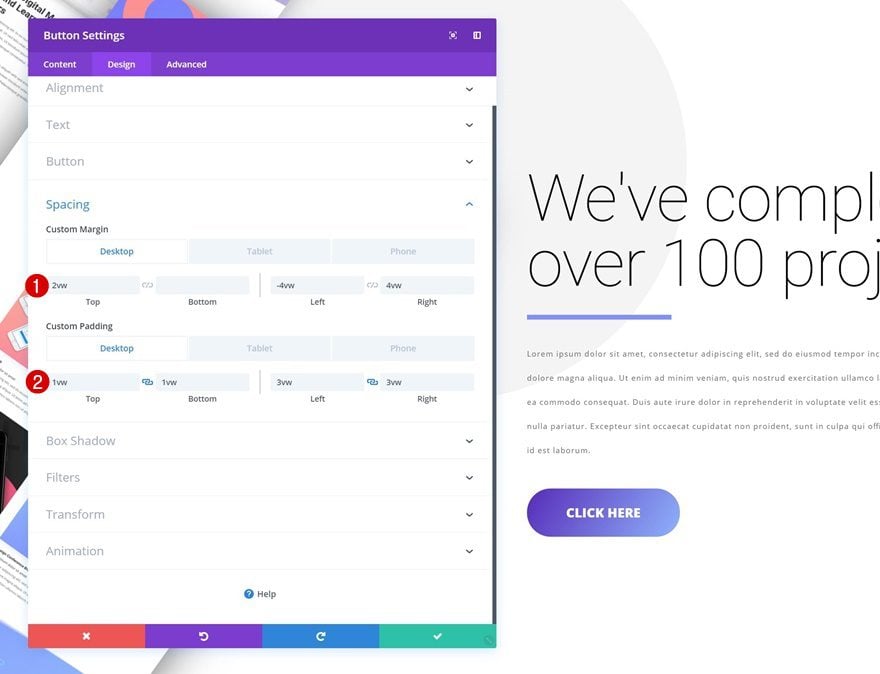

Spacing
Change the custom margin and padding values too.
- Top Margin: 2vw (Desktop), 3vw (Tablet), 5vw (Phone)
- Bottom Margin: 6vw (Tablet), 8vw (Phone)
- Left Margin: -4vw
- Right Margin: 4vw
- Top Padding: 1vw (Desktop), 2vw (Tablet), 3vw (Phone)
- Bottom Padding: 1vw (Desktop), 2vw (Tablet), 3vw (Phone)
- Left Padding: 3vw (Desktop), 5vw (Tablet), 7vw (Phone)
- Right Padding: 3vw (Desktop), 5vw (Tablet), 7vw (Phone)

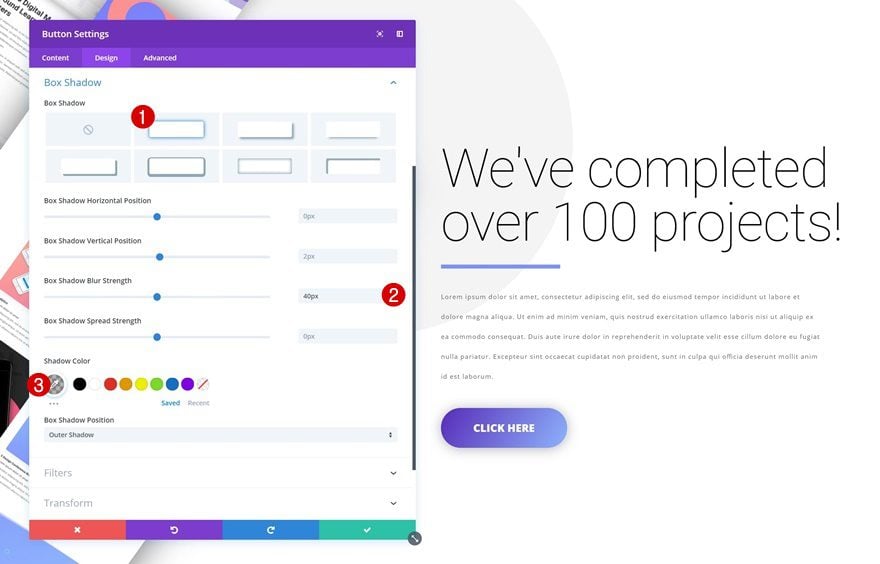

Box Shadow
Last but not least, add a subtle box shadow and youโre done!
- Box Shadow Blur Strength: 40px
- Shadow Color: rgba(0,0,0,0.3)
Preview
Now that weโve gone through all the steps, letโs take a final look at the outcome on different screen sizes.
Final Thoughts
In this post, weโve shown you how to get creative with Diviโs new transform options. More specifically, weโve stacked portfolio items to create a nice and visually-appealing design. Weโve also made sure that the images look great across all screen sizes. If you have any questions or suggestions, make sure you leave a comment in the comment section below!
