The Divi Fullwidth Slider Module

How to add, configure and customize the Divi fullwidth slider module.

The Divi Fullwidth Slider Module can be used to display eye-catching CTAs (call to actions), highlight important content on your website like a popular page or post, and break up text content for a visually appealing page design. Fullwidth sliders can be placed anywhere on your page and support parallax backgrounds, images, and videos, and have content fields for a title, body text, and a button.

View A Live Demo Of This Module

How To Add The Divi Fullwidth Slider Module To Your Page

Before you can add the Divi Fullwidth Slider module to your website, you’ll need to have the Divi theme installed on your WordPress website. Learn how to install the Divi theme on your WordPress website here. Once you have the Divi theme installed and activated, we can begin using the features and functionalities of Divi.

Add The Divi Fullwidth Slider Module

In order to add the Fullwidth Slider Module, you must first add a fullwidth section. Click the “+” icon to add a section and click the “Fullwidth” tab to add a fullwidth section.

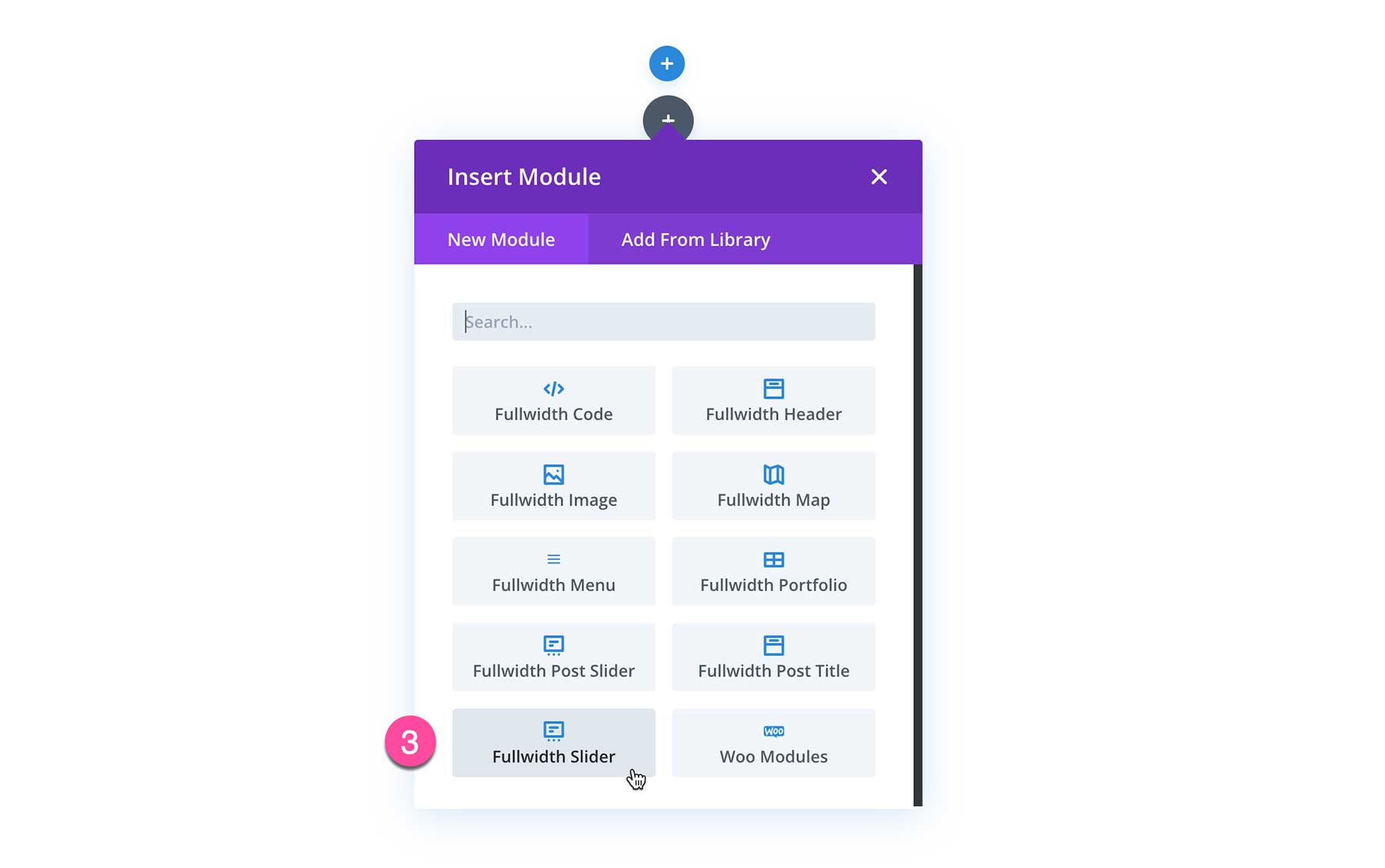

Once clicked, this fullwidth module library will pop up. Scroll to “Fullwidth Slider” and click to load the module.

All Divi Fullwidth Slider Module Options Explained

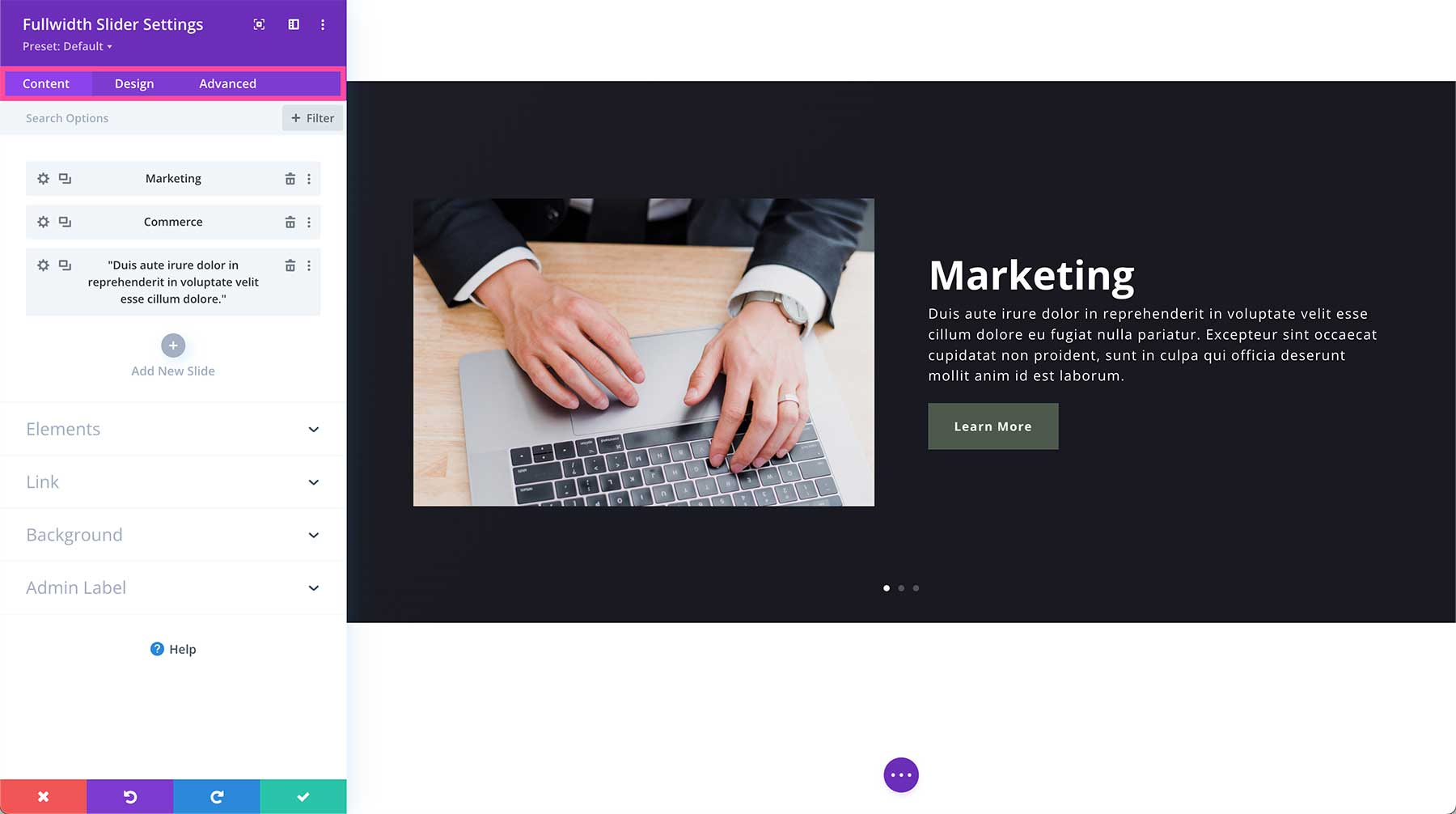

Once added, the module settings automatically pop up. This is where all of the content and design styles for this module are configured. These settings are organized into three groups via the tabs at the top of the module: Content, Design, and Advanced.

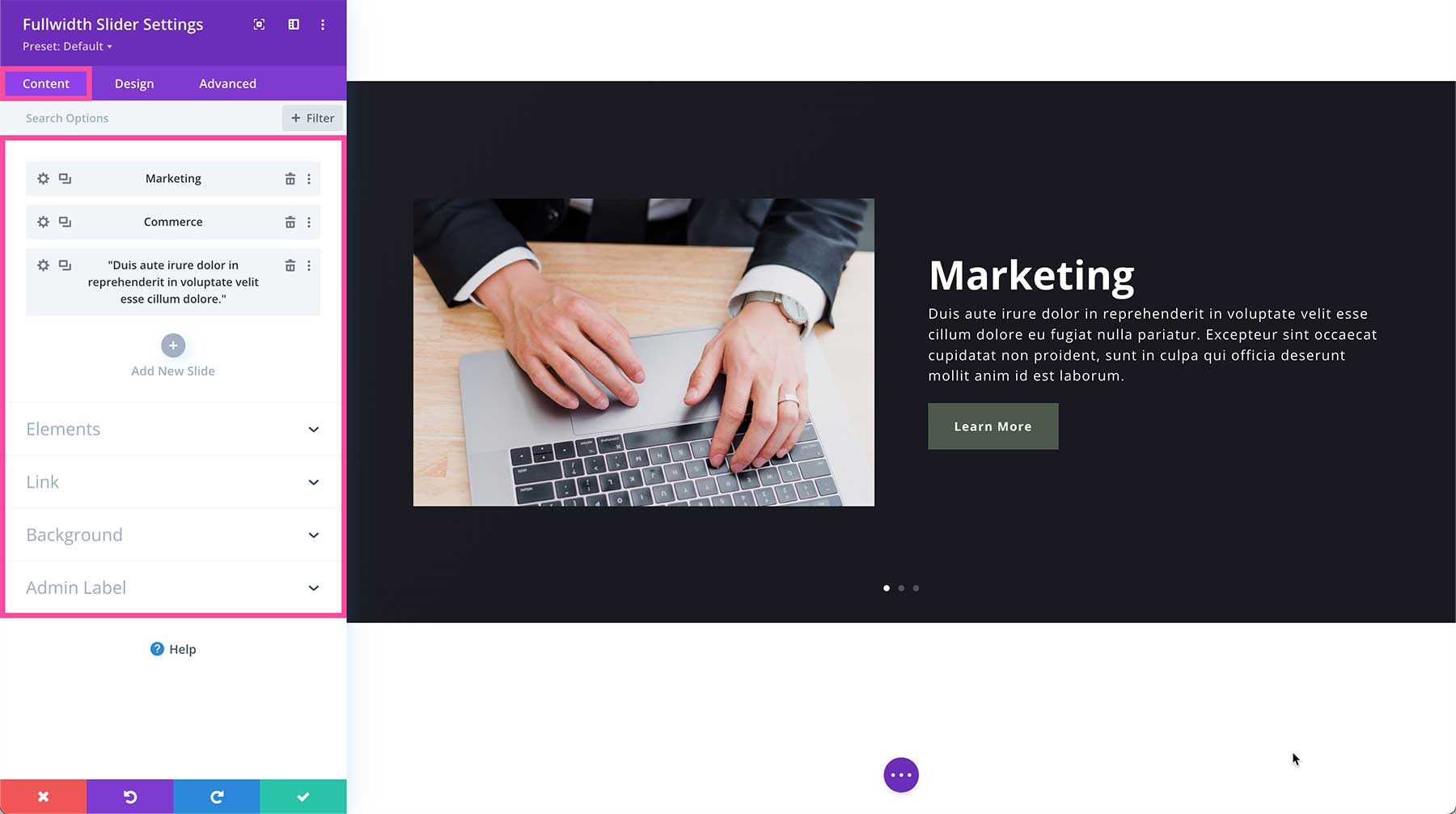

Content Settings

Inside this tab, you’ll find the content options available for this module. In this module, you can set global styles for the entire slier module and custom styles for each individual slide.

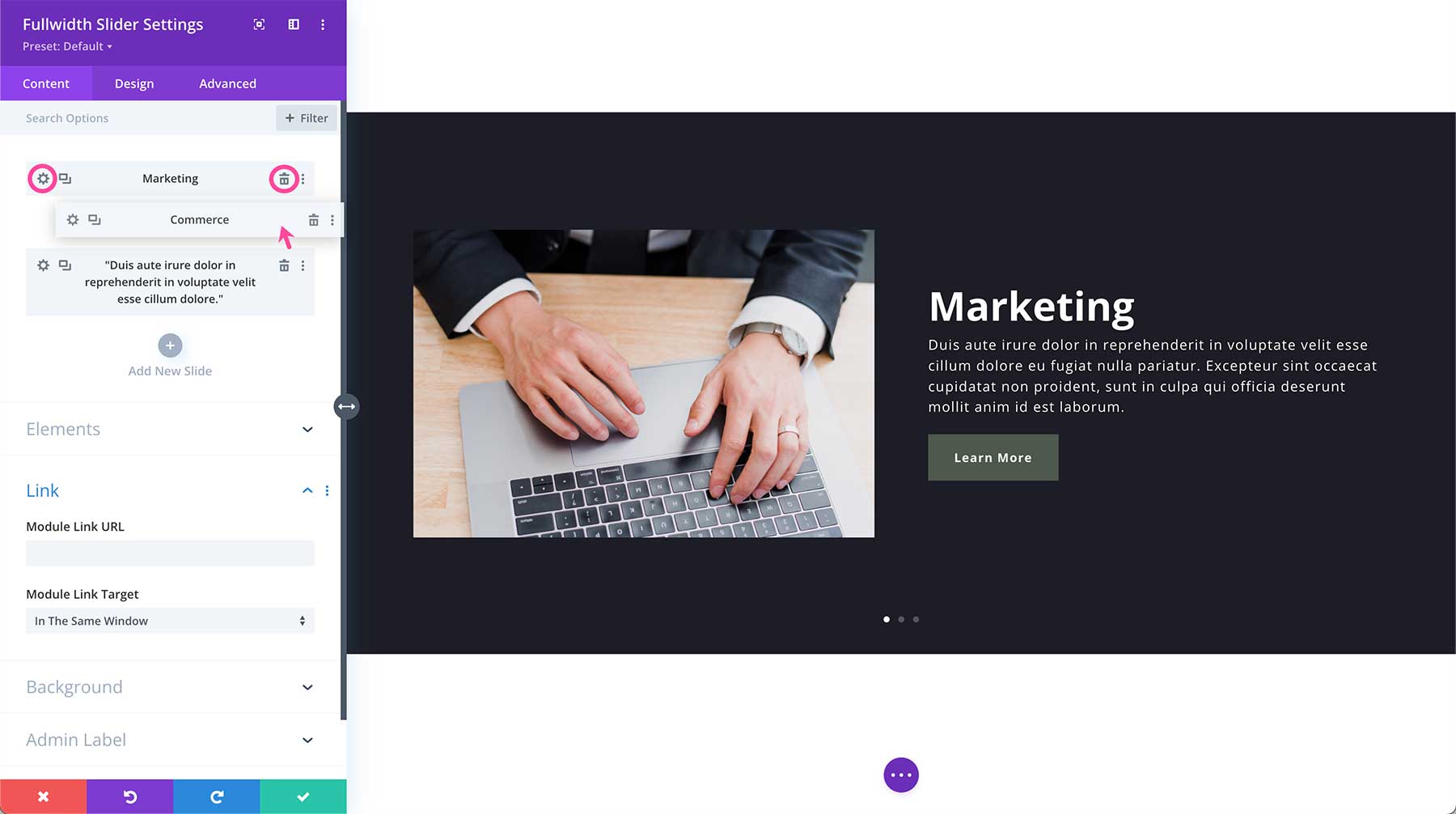

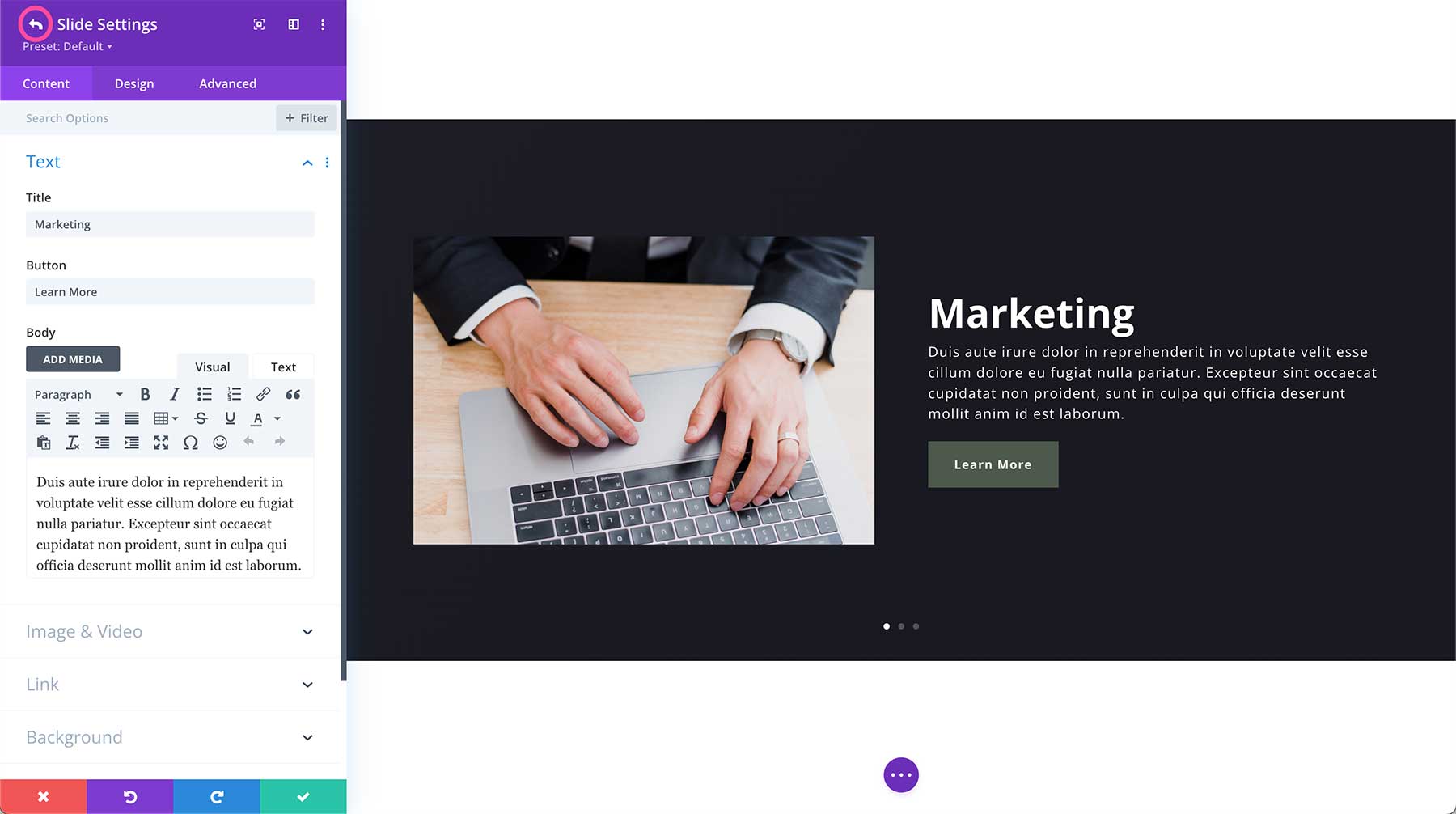

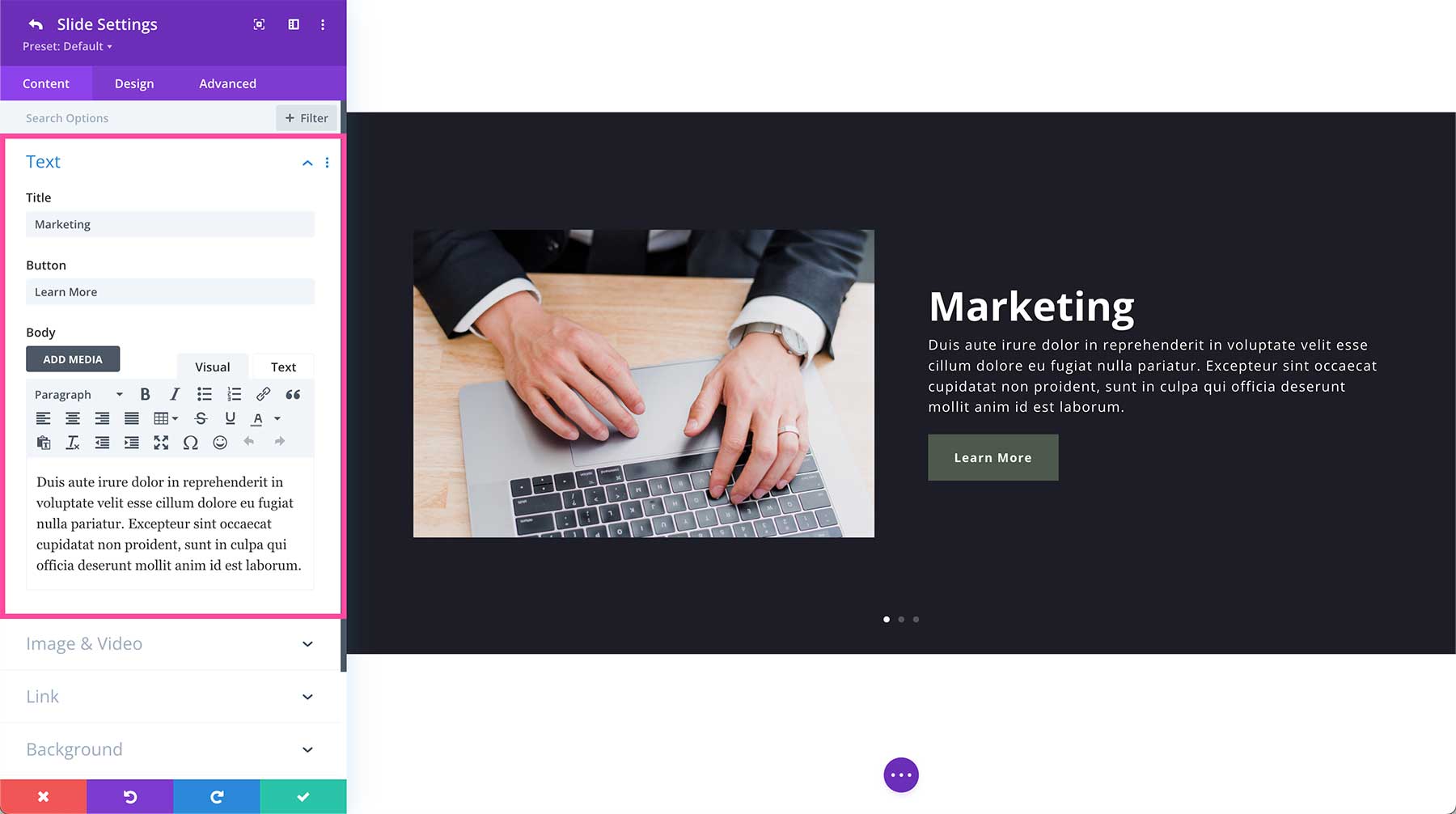

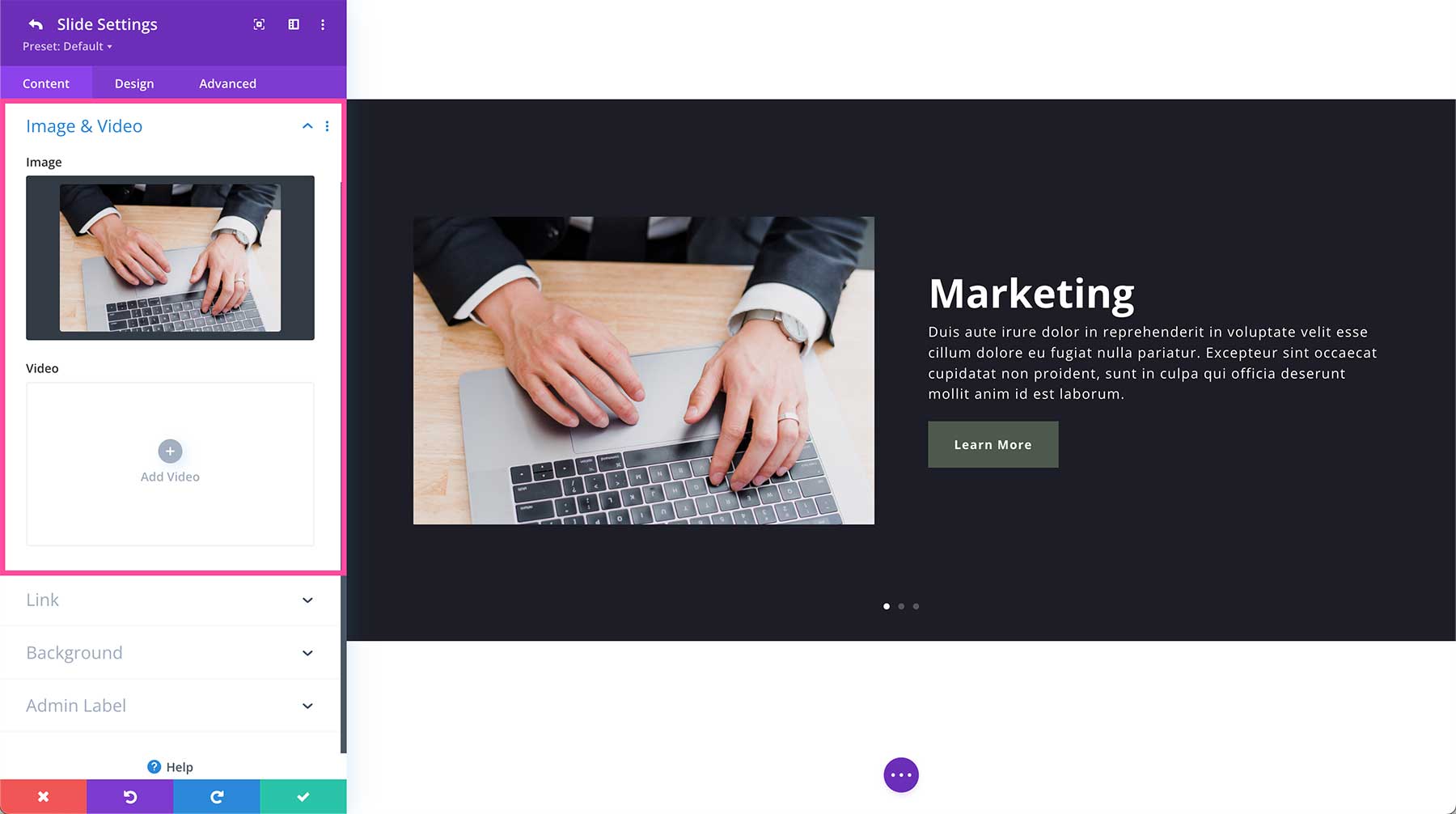

How To Add A Slide

By default, the fullwidth slider loads with two slides already added. To add a new slide click “+” icon above “Add New Slide”.

Once clicked, it will automatically add a new slide and bring up the content and designs settings for that individual slide. We’ll go over how to customize individual sides later on in this doc. Let’s return to the main module settings by clicking the white back arrow at the top left of the module window.

Elements

  • Show Arrows – Toggle this option to yes or no to show or hide the navigational arrows on the slider.
  • Show Controls – Toggle this option to yes or now to show or hide the controls at the bottom of the slider (the dot navigation).

Divi Fullwidth Slider Module Elements

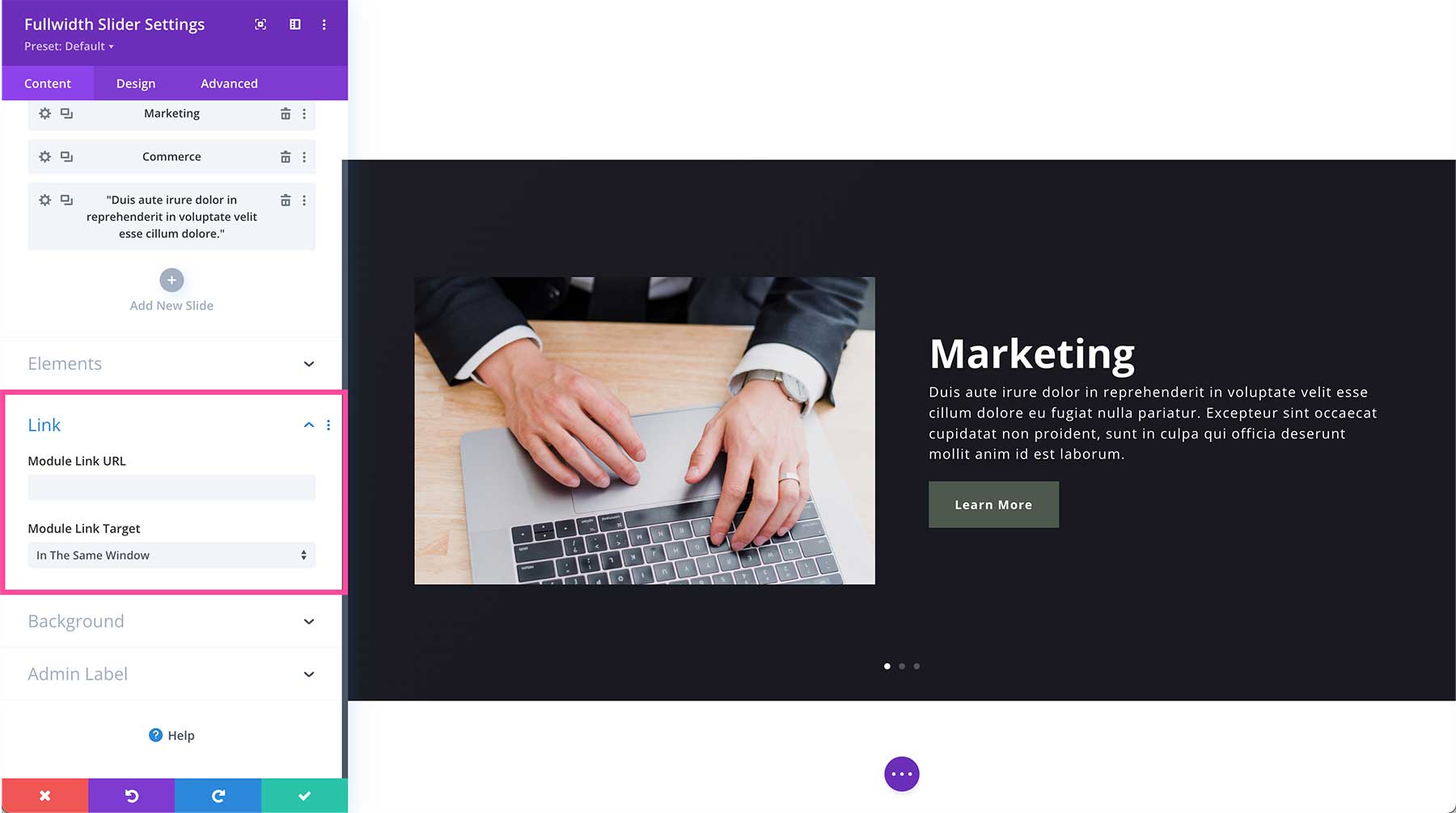

Link

If you would like to apply a clickable link to the entire module, you can do so here.

  • Module Link URL – Paste the URL of the link you would like to apply to this module here. This makes the entire module clickable and when clicked it will direct visitors to the URL pasted here.
  • Module Link Target – Defining a link target determines whether the link, when clicked, opens in a new tab or in the same window. Choose “In The Same Window” if you want the link to open in the same window and click “In The New Tab” if you would like that link to open in a new tab. By default, “In The Same Window” is selected.

Divi Fullwidth Slider Module link settings

Background

This is where you can add a background color, gradient, image, video, pattern, or mask to this module.

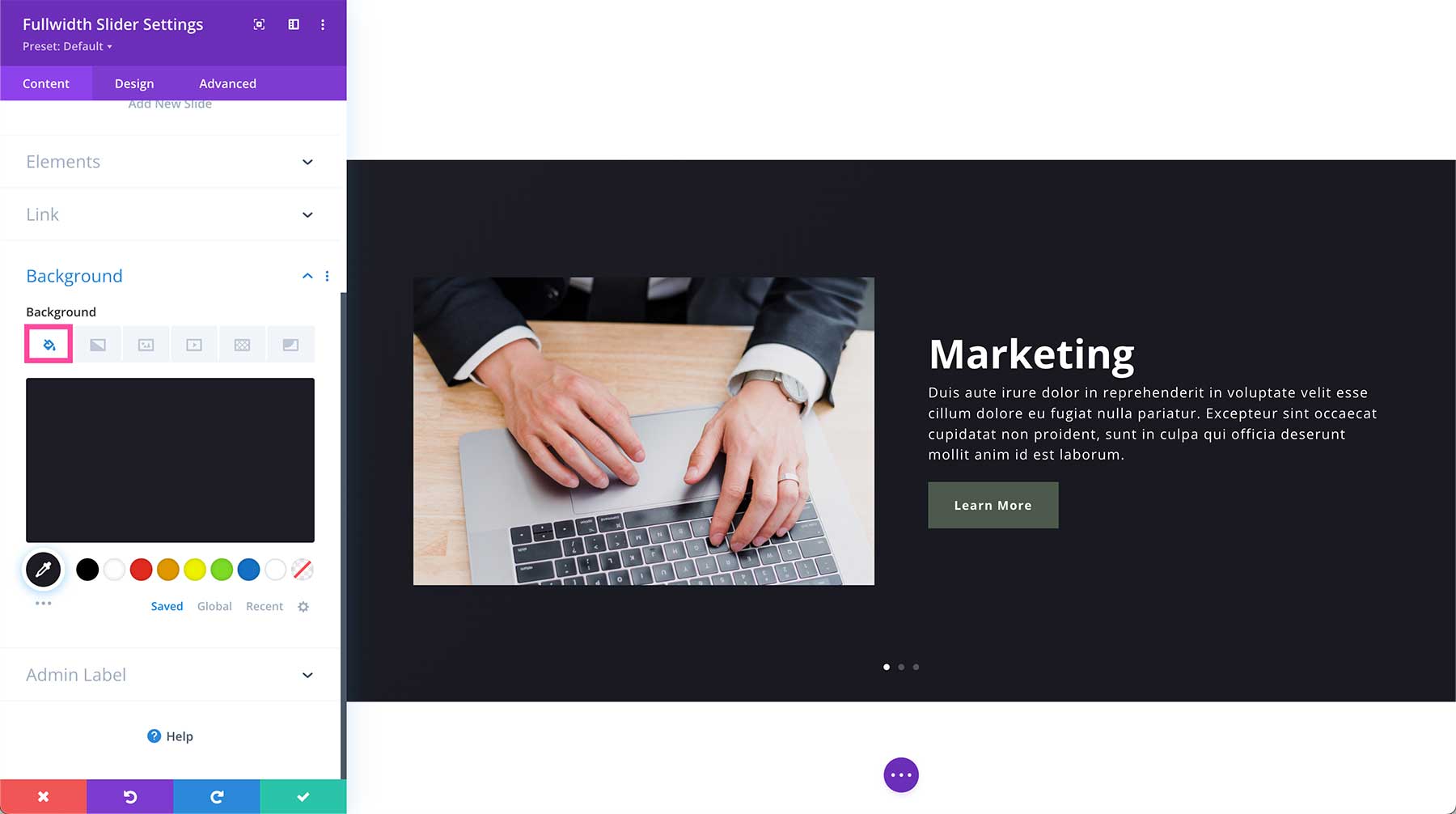

How to Add a Background Color

To add a background color to the entire module, click the first tab, the paint bucket. Click “Add Background Color” and choose from your site’s color palette or use the eyedropper icon to find a new color.

How to add a background color

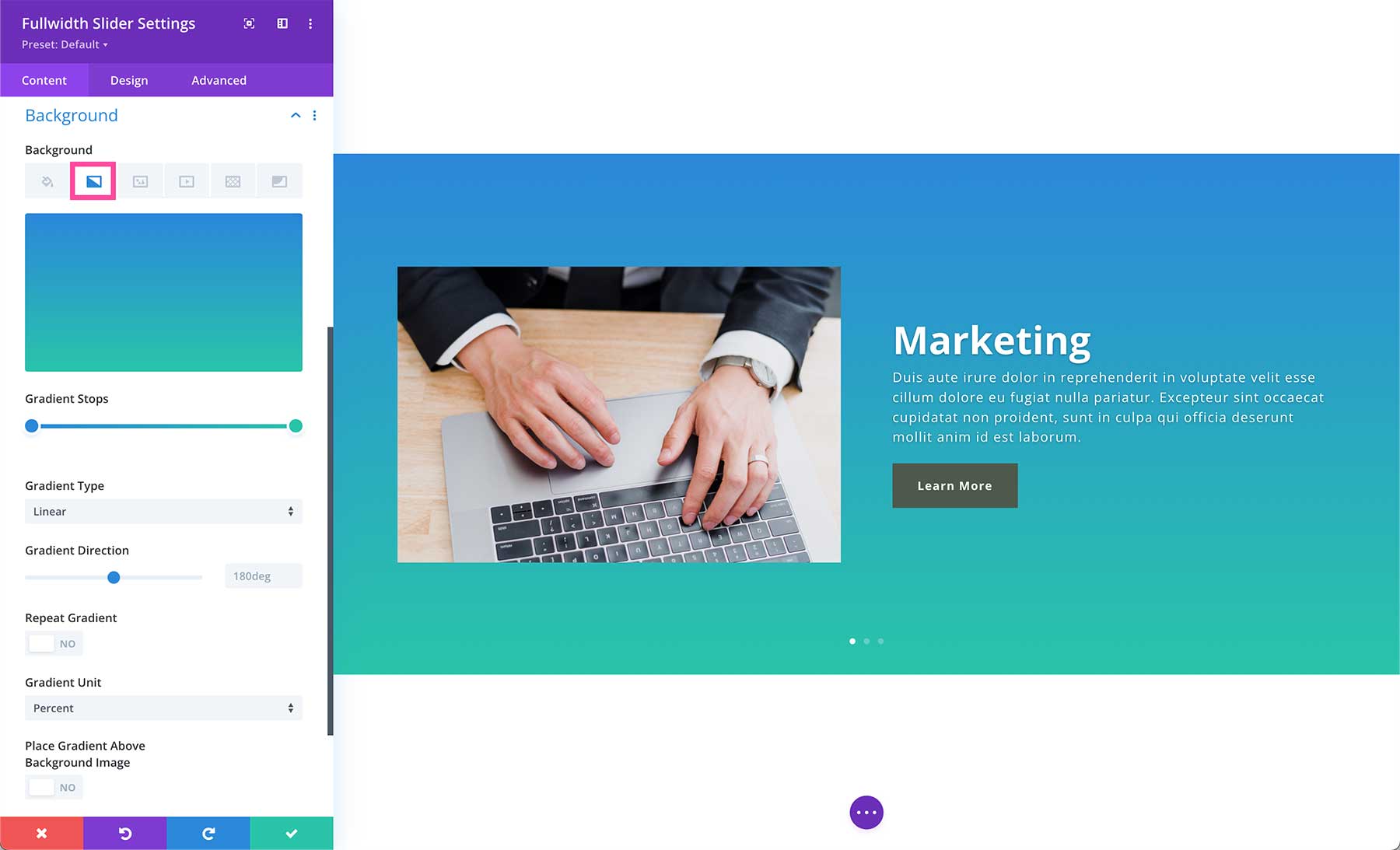

How to Add a Background Gradient

To add a background gradient, click the second tab, the gradient tab, then click “Add Background Gradient.”

To change the gradient colors, click on the gradient stops and select a color from your site’s color palette or use the eyedropper icon to choose a new color. Gradient stops allow you to add more colors to the gradient. Simply click anywhere on the range slider to add a new stop.

  • Gradient Type – You can change the gradient type by clicking the dropdown menu and selecting the gradient type you’d like.
  • Gradient Direction – You can change the direction of the gradient by dragging the range slider or typing in a numerical value.
  • Repeat Gradient – Toggle this option to “yes” if you’d like the gradient to repeat.
  • Gradient Unit – The gradient unit changes how the gradient stop points are calculated. Select the dropdown to change the unit.
  • Place Gradient Above Background Image – If you have a background image applied, then you can choose to place the gradient above the background image by toggling this option to “yes”.

How to add a background gradient

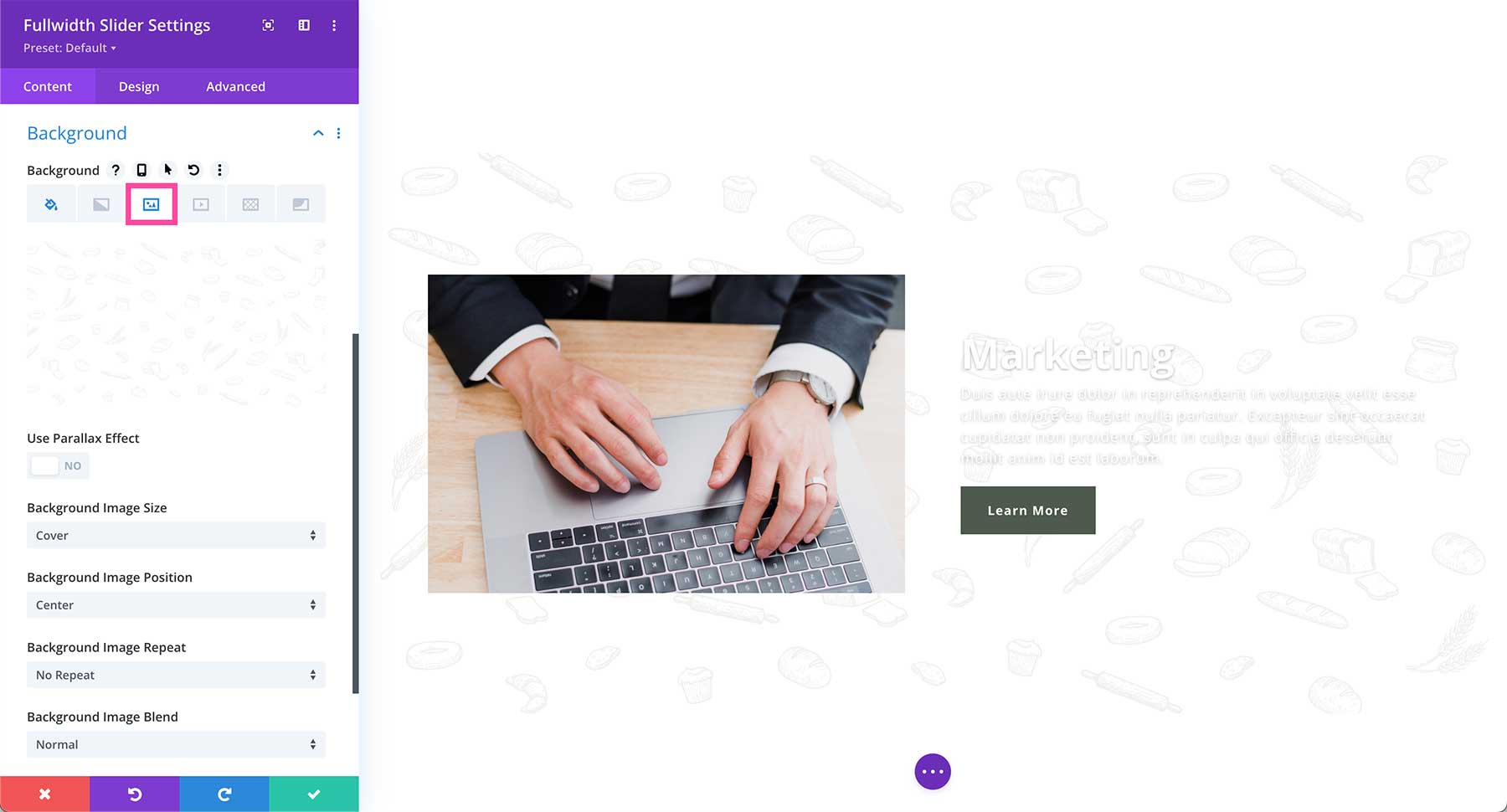

How to Add a Background Image

To add a background image, click the third tab, the image tab. Then, click the gray “+” sign to bring up the media library where you can select an already uploaded photo from your library or upload a new one.

  • Use Parallax Effect – To apply a parallax effect to the image (where the image scrolls faster than the foreground content, giving the illusion of a 3D effect) then toggle this option to “on.” By default, this setting is set to “off.”
  • Background Image Size – Choose the size of your background image by selecting a size from the dropdown menu.
  • Background Image Position – Choose the position of the background image by selecting a position from the dropdown menu.
  • Background Image Repeat – Choose if and how the background image repeats by selecting an option from the dropdown menu.
  • Background Image Blend – Choose how the background blends with other layers in the module by selecting an option from the dropdown menu.

How to add a background image

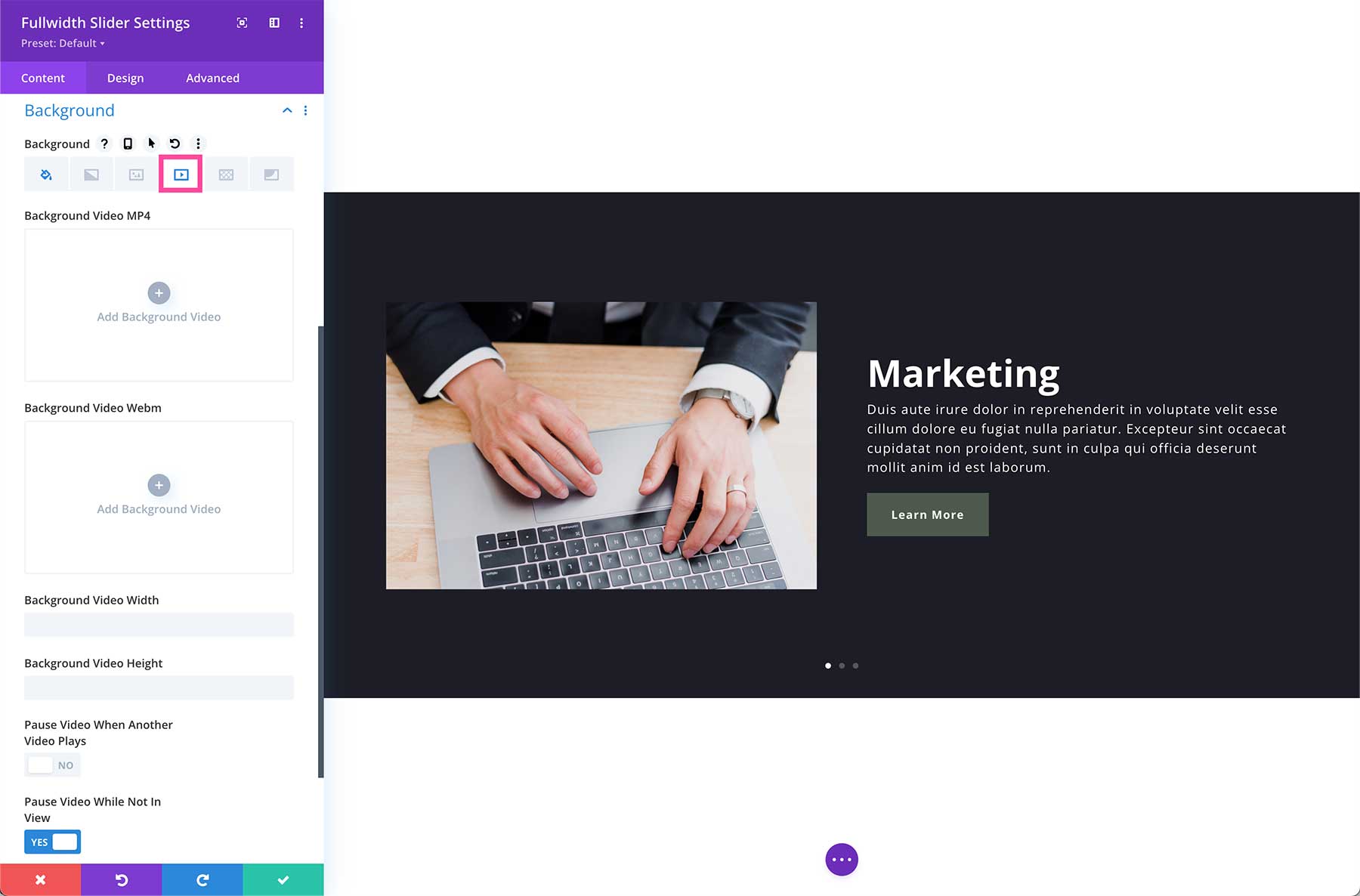

How To Add a Background Video

To add a background video, click the fourth tab, the video tab. Click the gray “+” sign to bring up the media library, where you can select an already uploaded photo from your library or upload a new one.

  • Mp4 vs Webm. – We recommend uploading both an mp4 version and webm version of the video because not all browsers support webm video formats. Uploading both file types ensure your video will play on all devices and browsers.
  • Background Video Width – Set the width of the video by typing in a numerical value.
  • Background Video Height – Se the height of the video by typing in a numerical value.
  • Pause Video When Another Video Plays – If you’d like the background video to pause when another video is playing, toggle that option to “yes.” By default, the video will pause when not in view. If you’d like the video to continue playing, toggle this option to “no.”

How to add a background video

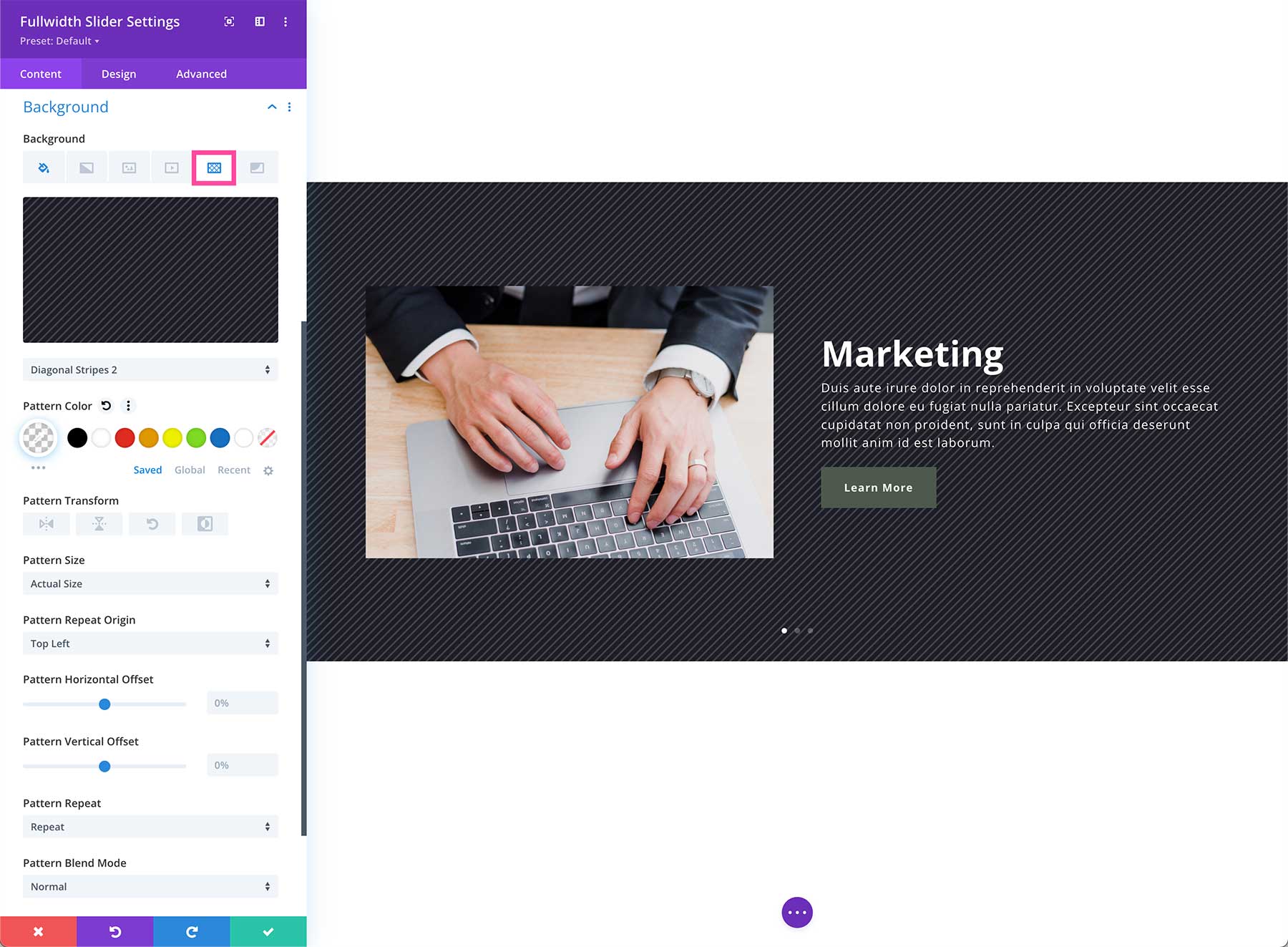

How to Add a Background Pattern

To add a background pattern, click the 5th tab, the pattern tab, then click “add background pattern.” Choose the pattern type you want from the dropdown.

  • Pattern Color – Select the pattern color from your site’s color palette or use the eyedropper icon to find a new color.
  • Pattern Transform – This is where you can transform the pattern horizontally, vertically, rotate it, or invert it.
  • Pattern Size – Pattern size is where you can select the pattern size: the actual size, cover, fit, stretch to fill or custom size. If you select custom size, the following options will appear: pattern width and pattern height. Drag the range slider or type in a numerical value to define those options.
  • Pattern Repeat Origin – Here you can select the origin from which the pattern repeats.
  • Pattern Horizontal and Vertical Offset – You can also adjust the horizontal and vertical offsets for the pattern.
  • Pattern Repeat – Here you can choose how the pattern repeats – horizontally, vertically, and more.
  • Pattern Blend Mode – This defines how the pattern layer interacts with the layers beneath it. Select from one of the 16 blend modes available from the dropdown.

How to add a background pattern

How to Add a Background Mask

To add a background mask, click the 6th tab, the mask tab and then click “add background mask”. Select the mask type you want via the dropdown menu.

  • Mask Color – Choose the mask color from your site’s color palette or use the eyedropper icon to find a new color.
  • Mask Transform – Here you can transform the mask horizontally, vertically, rotate it, or invert it.
  • Mask Aspect Ration – Here you can set the aspect ratio of the mask. The aspect ratio of an image is the ratio of its width to its height.
  • Mask Size – This is where you can select the mask size: the actual size, cover, fit, stretch to fill or custom size. If you select custom size, the following options will appear: mask width and mask height. Drag the range slider or type in a numerical value to define those options.
  • Mask Blend Mode – This defines how the mask layer interacts with the layers beneath it. Select from one of the 16 blend modes available from the dropdown.

How to add a background mask

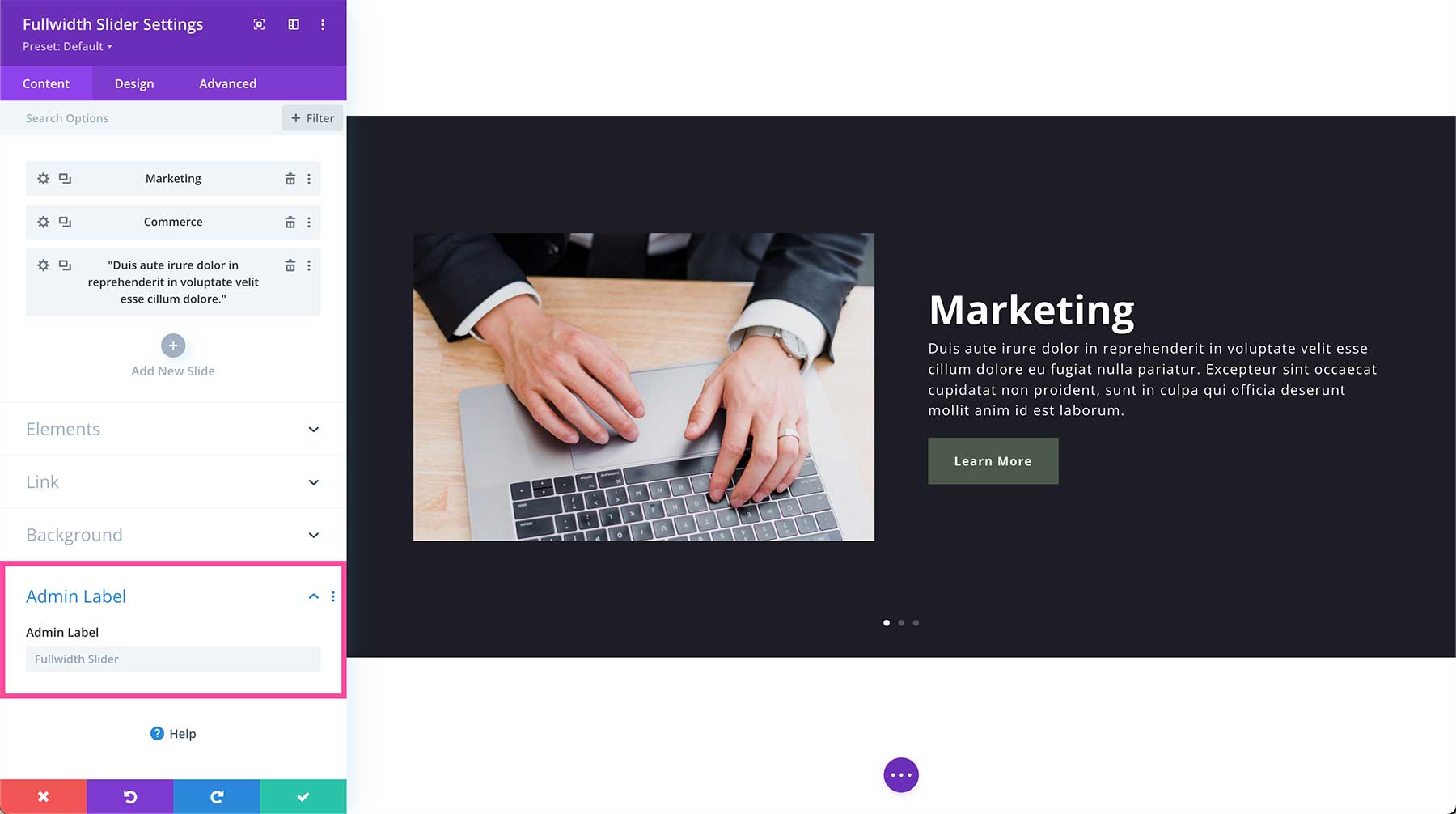

Admin Label

The Admin Label is where you can give the module a name only visible to you in order to assist in keeping things organized and easy to understand on the back end. By default, the admin label will be the name of the module. You can change the text of the admin label to reflect what you’d like.

admin label

Design

Inside this tab, you’ll find all the design styles and settings for the Divi Fullwidth Slider Module.

Divi Fullwidth Slider Module design settings

Overlay

  • Use Background Overlay – Toggle this yes or no to display an overlay over the background of this module.
  • Background Overlay Color – Choose a background color from your site’s color palette or search for a new color by clicking the dropper icon on the left. To make the background transparent, click the transparent circle with the red slash through it on the way to the right on the color palette line.
  • Use Text Overlay – Toggle this yes or no to display a background color underneath the text.
  • Text Overlay Border Radius – A border radius rounds corners. If you’d like to apply rounded corners, increase the border radius by typing in a numerical value or dragging the range slider.
  • Divi Fullwidth Slider Module overlay options

    Navigation

    • Arrow Color – Choose the color of the arrows here by selecting a color from your site’s color palette or by using the dropper icon to select a new color.
    • Dot Navigation Color – Choose the color of the dot navigation here by selecting a color from your site’s color palette or by using the dropper icon to select a new color.

    Divi Fullwidth Slider Module navigation

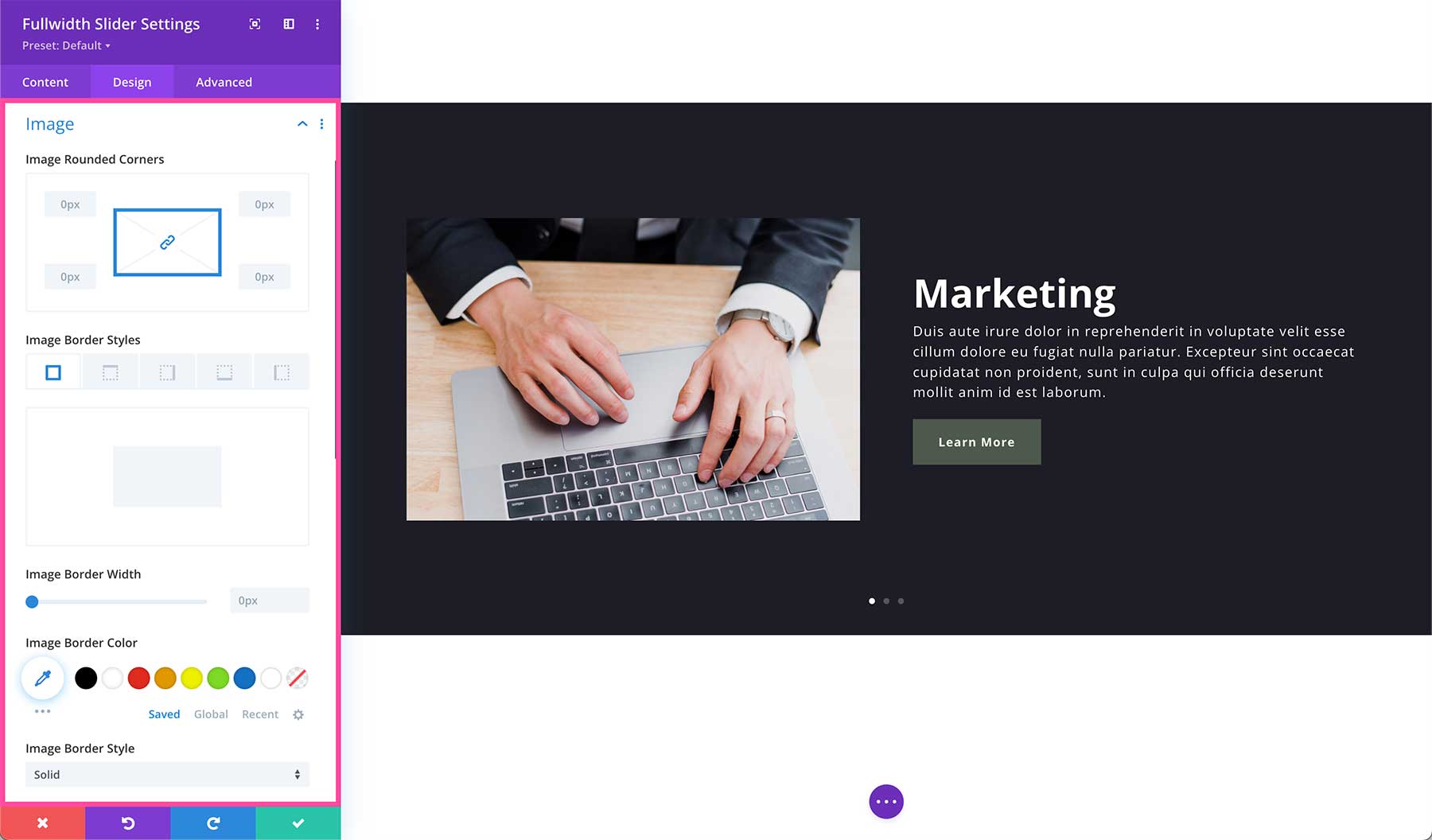

    This is where you can style images used in this module.

    • Image Rounded Corners – If you would like to round the corners of the image, type in a numerical value. The higher the number, the rounder the corners will be. The corner values are automatically linked (as seen by the highlighted blue chainlink in the middle) however if you’d like to have different values for each corner, simply click the blue chainlink to unlink the values. If the values are automatically linked that means they will always have the same value and update automatically if one value is changed.
    • Image Border Styles – This is where you can add a border to the image. You can add a border to all sides of the image, or to individual sides (top, right, bottom, and left).
    • Image Border Width – This is where you set the width of the border. For a thicker border, increase the number. The border width must be at least 1px in order to show.
    • Image Border Color – This is where you can pick the color of the border. You can select a color from your default site color palette already displayed, or click on the eyedropper icon to find a new color.
    • Image Border Style – Here you can select what style of border you’d like: solid, dashed, dotted, double, groove, ridge, inset, outset, or none.
    • Image Box Shadow – Choose the style of shadow you want applied to the image. By default, no shadow is applied.
    • Box Shadow Horizontal Position – Controls the horizontal positioning of the image box shadow.
    • Box Shadow Vertical Position – Controls the vertical positioning of the image box shadow.
    • Box Shadow Blur Strength – Controls shadow blur strength the image box shadow. The higher the number, the more blur.
    • Box Shadow Spread Strength – Controls the spread strength of the shadow on the image.
    • Shadow Color – Choose the color of the image shadow.
    • Box Shadow Position – Choose the position of the shadow applied to the image – an inner shadow or an outer shadow.
    • Image Hue – Adjusts the hue of the image.
    • Image Saturation – Adjusts the saturation of the image.
    • Image Brightness – Adjusts the brightness of the image.
    • Image Contrast – Adjusts the contrast of the image.
    • Image Invert – Inverts the color of the image
    • Image Sepia – Controls the level of sepia tone applied to the image.
    • Image Opacity – Controls the level of opacity (transparency) of the image.
    • Image Blur – Controls the blurriness of the image.
    • Image Blend Mode – The Blend Mode refers to how the module blends with the layers beneath it. By default, “normal” will be selected.

    Divi Fullwidth Slider Module image settings

    Text

    This sets the overall text styles for this module; however, you can set specific styles of specific text in other toggles like Title Text, and Body Text.

    • Text Alignment – This allows you to choose how the text aligns: left, center, right, or justify.
    • Text Color – Select the default text color palette for this module: light or dark. The default light color palette and dark color palettes can be configured in the Divi Theme Options.
    • Text Shadow – Here you can apply a drop shadow to all the text inside this module. When a shadow type is selected, it will apply to all of the content, both the number and the title text.

    Divi Fullwidth Slider Module text

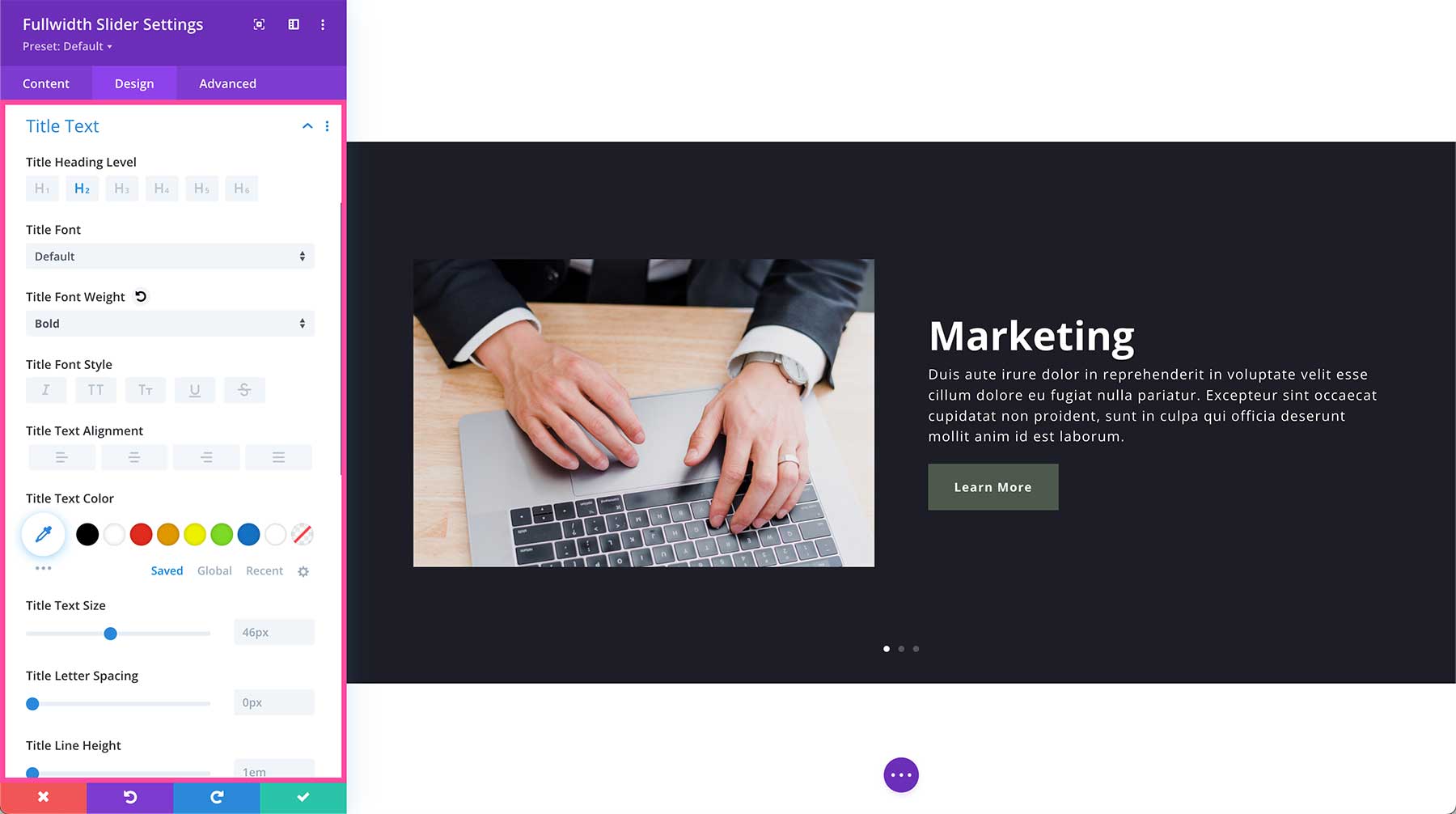

    Title Text

    These are the settings for specific styling and configuration for the Title Text only.

    • Text Heading Level – Choose the heading level you want assigned to the title text: h1, h2, h3, h4, h5, or h6.
    • Title Font – Choose the font you want to use for the title text. The default font is automatically selected; however, you can choose a different font or upload a custom font by clicking the dropdown box.
    • Title Font Weight – Click the dropdown to select the boldness of the title text font.
    • Title Font Style – Choose the style of the title text font: italicized, capitalized, small capitals, underlined, or strike-through.
    • Title Text Alignment – Choose the text alignment specifically to the title text only; left, center, right, or justify.
    • Title Text Color – Choose a specific color for the title text. Select from your site’s color palette or click the eyedropper icon to find a new color.
    • Title Text Size – Choose the font size of the title text by dragging the range slider or typing in a numerical value.
    • Title Letter Spacing – Choose the letter-spacing of the title text by dragging the range slider or by typing in a numerical value. Letter spacing is the space between each individual letter. The higher the number, the more space.
    • Title Line Height – Choose the line height of the title text by dragging the range slider or by typing in a numerical value. The line-height is the amount of space between each line of text. The higher the number, the more space.
    • Title Text Shadow – Here you can add a drop shadow to the title text. Once a style is selected, you’ll be able to configure the direction of the shadow (horizontal and vertical), the strength of the drop shadow blur, and the shadow color.

    Divi Fullwidth Slider Module title text

    Body Text

    These are the settings for specific styling and configuration for the Body Text.

    • Body Font – Choose the font you want to use for the body text. The default font is automatically selected; however, you can choose a different font or upload a custom font by clicking the dropdown box.
    • Body Font Weight – Click the dropdown to select the boldness of the body text font.
    • Body Font Style – Choose the style of the body text font: italicized, capitalized, small capitals, underlined, or strike-through.
    • Body Text Alignment – Choose the text alignment specifically to the body text only; left, center, right, or justify.
    • Body Text Color – Choose a specific color for the body text. Select from your site’s color palette or click the eyedropper icon to find a new color.
    • Body Text Size – Choose the font size of the body text by dragging the range slider or typing in a numerical value.
    • Body Letter Spacing – Choose the letter-spacing of the body text by dragging the range slider or by typing in a numerical value. Letter spacing is the space between each individual letter. The higher the number, the more space.
    • Body Line Height – Choose the line height of the body text by dragging the range slider or by typing in a numerical value. The line-height is the amount of space between each line of text. The higher the number, the more space.
    • Body Text Shadow – Here you can add a drop shadow to the body text. Once a style is selected, you’ll be able to configure the direction of the shadow (horizontal and vertical), the strength of the drop shadow blur, and the shadow color.

    Divi Fullwidth Slider Module body text

    Button

    Buttons inherit global styling, however if you’d like to apply custom styling to the buttons in this module, you can do so here.

    • Use Custom Styles For Button – By default, buttons are styled globally via the Theme Cuztomizer, however to apply unique styles to this button, toggle this option to “yes”.
    • Button Text Size – Choose the font size of the button text by dragging the range slider or typing in a numerical value.
    • Button Text Color – Choose a specific color for the button text. Select from your site’s color palette or click the eyedropper icon to find a new color.
    • Button Background – Style the background of the button here. You can add a solid color, gradient, or image. Choose a color by selecting from your site’s color palette or by clicking the dropper icon to choose a new color. To add a gradient background, select the second icon tab, the gradient icon, and then click “Add Background Gradient” which will bring up the styling options for a gradient background. To add an image background, select the second icon tab, the image icon, and then click “Add Background Image” which will bring up the styling options for an image background.
    • Button Border Width – Determine the width (thickness) of the button’s border by dragging the range slider or by typing a numerical value.
    • Button Border Color – This is where you can pick the color of the border. You can select a color from your default site color palette already displayed, or click on the eyedropper icon to find a new color.
    • Button Border Radius – The radius of the button border determines how round the corners of the button are – the higher the number, the more round the corners will be.
    • Button Letter Spacing – Choose the letter-spacing of the button text by dragging the range slider or by typing in a numerical value. Letter spacing is the space between each individual letter. The higher the number, the more space.
    • Button Font – Choose the font you want to use for the button text. The default font is automatically selected; however, you can choose a different font or upload a custom font by clicking the dropdown box.
    • Button Font Weight – Click the dropdown to select the boldness of the button text font.
    • Button Font Style – Choose the style of the button text font: italicized, capitalized, small capitals, underlined, or strike-through.
    • Show Button Icon – Toggle this option yes or no to show or hide the button icon.
    • Button Icon – The default icon is ” > ” however you can choose a unique button icon here.
    • Button Icon Color – Select the color of the button icon.
    • Button Icon Placement – Choose the placement of the icon – on the right side or left side of the button.
    • Only Show Icon On Hover For Button – Toggle this option to “no” if you would like the button icon to be visible at all times. By default, this option is set to “yes” which means the button icon will only display on hover.
    • Button Alignment – This allows you to choose how the button aligns: left, center, or right.
    • Button Text Shadow – Here you can add a drop shadow to the button text. Once a style is selected, you’ll be able to configure the direction of the shadow (horizontal and vertical), the strength of the drop shadow blur, and the shadow color.
    • Button Margin – Add margins to the button by typing in numerical values. Margins add space outside the button element. To lock in ratios and keep the values the same, you can click the chainlink icon between the values you want to always be identical (ex: top and bottom).
    • Button Padding – Add padding to the button by typing in numerical values. Padding adds space inside the button element. To lock in ratios and keep the values the same, you can click the chainlink icon between the values you want to always be identical (ex: top and bottom).
    • Button Box Shadow – Adds a drop shadow to the button. Once a shadow style is clicked, you can customize the position of the drop shadow (horizontal and vertical), the strength of the blur, and the spread strength by adjusting the range slider or inputting numerical values. Select the drop shadow’s color from your site’s color palette or click the eyedropper to find a new color. Choose the box-shadow position to be inside the container or outside the container via the dropdown.

    Divi Fullwidth Slider Module button styling

    Sizing

    Define the sizing (width and height) of the module. You can set a max-width and a max-height and a min-height. Choose the module alignment (left, center, or right) by clicking the arrows. By default, modules align center. With this module, you can control the overall width of the entire module, as well as the width of the module’s content.

    Divi Fullwidth Slider Module sizing

    Spacing

    Add margins or spacing to this module by typing in numerical values. Margins add space outside the module element, and padding adds space inside the module element. To lock in ratios and keep the values the same, you can click the chainlink icon between the values you want to always be identical (ex: top and bottom).

    Divi Fullwidth Slider Module spacing

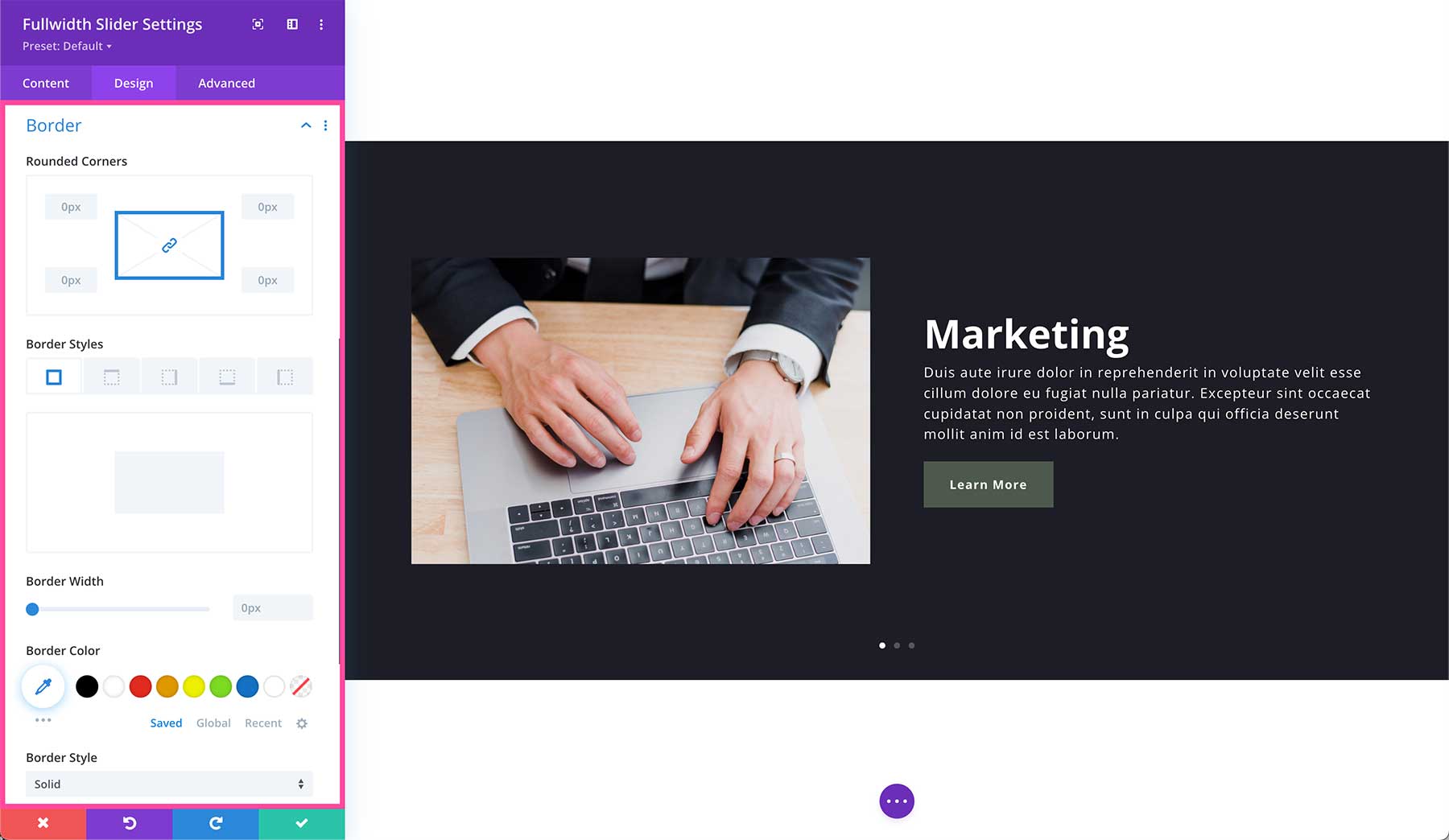

    Border

    Add a border to the module. You can add a complete border or add a border to only one side of the module. Adjust the width via the range slider and select a color. Choose a border style by clicking the dropdown.

    • Rounded Corners – If you would like to have round border corners, type in a numerical value. The higher the number, the rounder the corners will be. The corner values are automatically linked (as seen by the highlighted blue chainlink in the middle) however if you’d like to have different values for each corner, simply click the blue chainlink to unlink the values. If the values are automatically linked that means they will always have the same value and update automatically if one value is changed.
    • Border Styles – Here you can add a border to all sides of the module or to individual sides (top, right, bottom, and left).
    • Border Width – This is where you set the width of the border. For a thicker border, increase the number. The border width must be at least 1px in order to show.
    • Border Color – This is where you can pick the color of the border. You can select a color from your default site color palette already displayed, or click on the eyedropper icon to find a new color.
    • Border Style – Here you can select what style of border you’d like: solid, dashed, dotted, double, groove, ridge, inset, outset, or none.

    Divi Fullwidth Slider Module border options

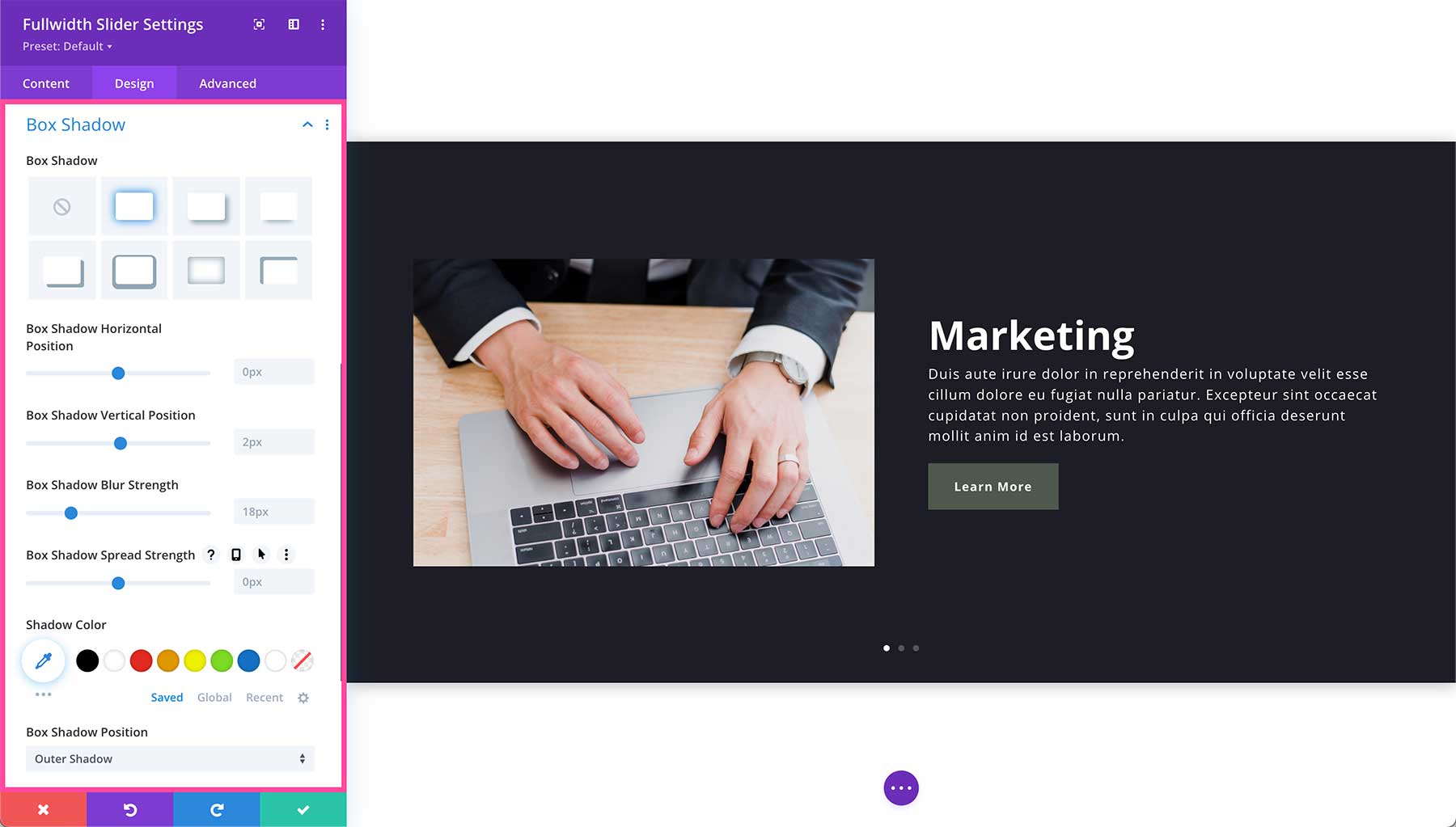

    Box Shadow

    Adds a drop shadow to the module. Once a shadow style is clicked, you can customize the position of the drop shadow (horizontal and vertical), the strength of the blur, and the spread strength by adjusting the range slider or inputting numerical values. Select the drop shadow’s color from your site’s color palette or click the eyedropper to find a new color. Choose the box-shadow position to be inside the container or outside the container via the dropdown.

    Divi Fullwidth Slider Module box shadow

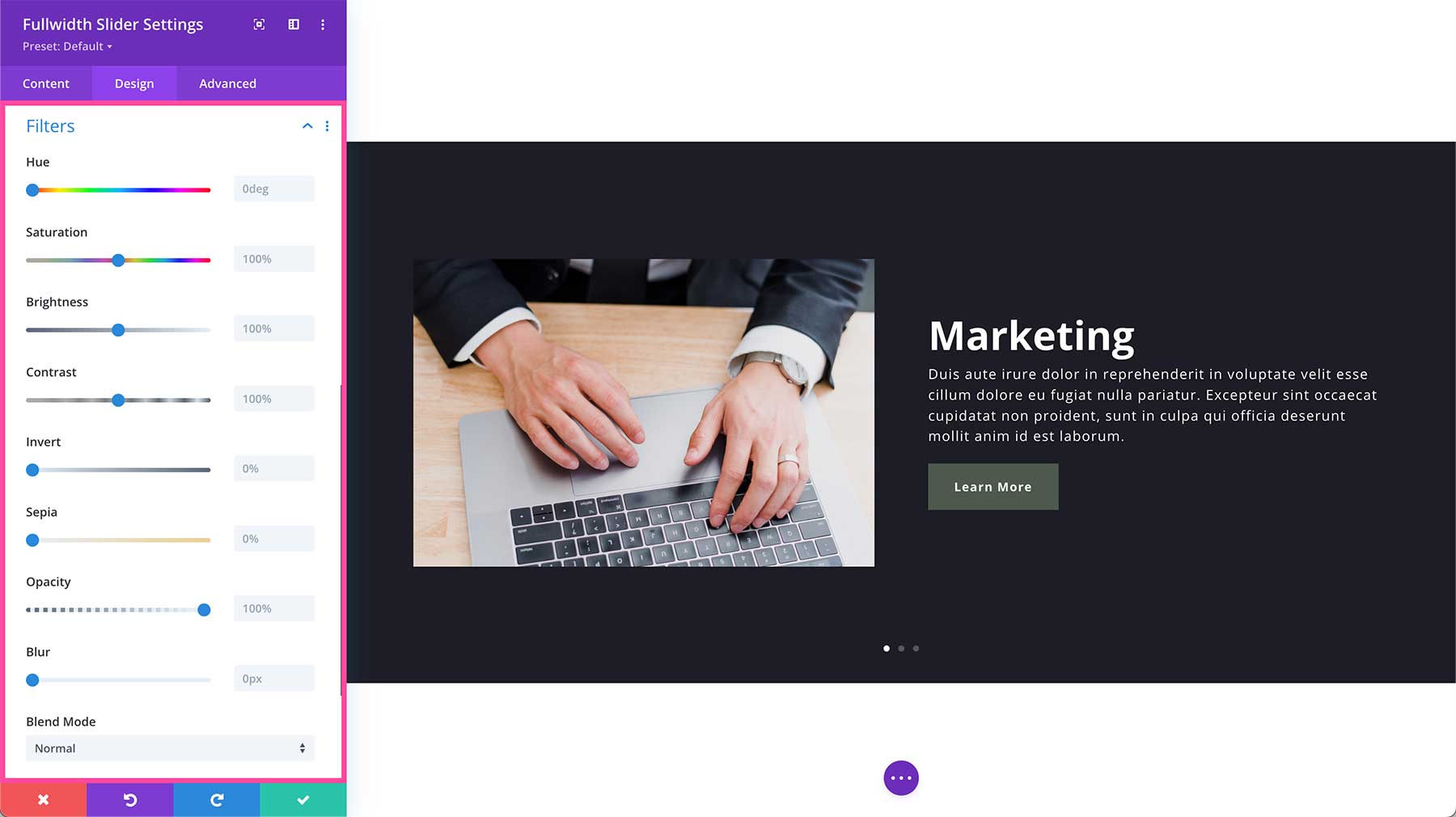

    Filters

    Adjust the hue, saturation, brightness, contrast, color tones (inverted colors or sepia), opacity, and blur of this module. The Blend Mode refers to how the module blends with the layers beneath it. By default, “normal” will be selected.

    Divi Fullwidth Slider Module filters

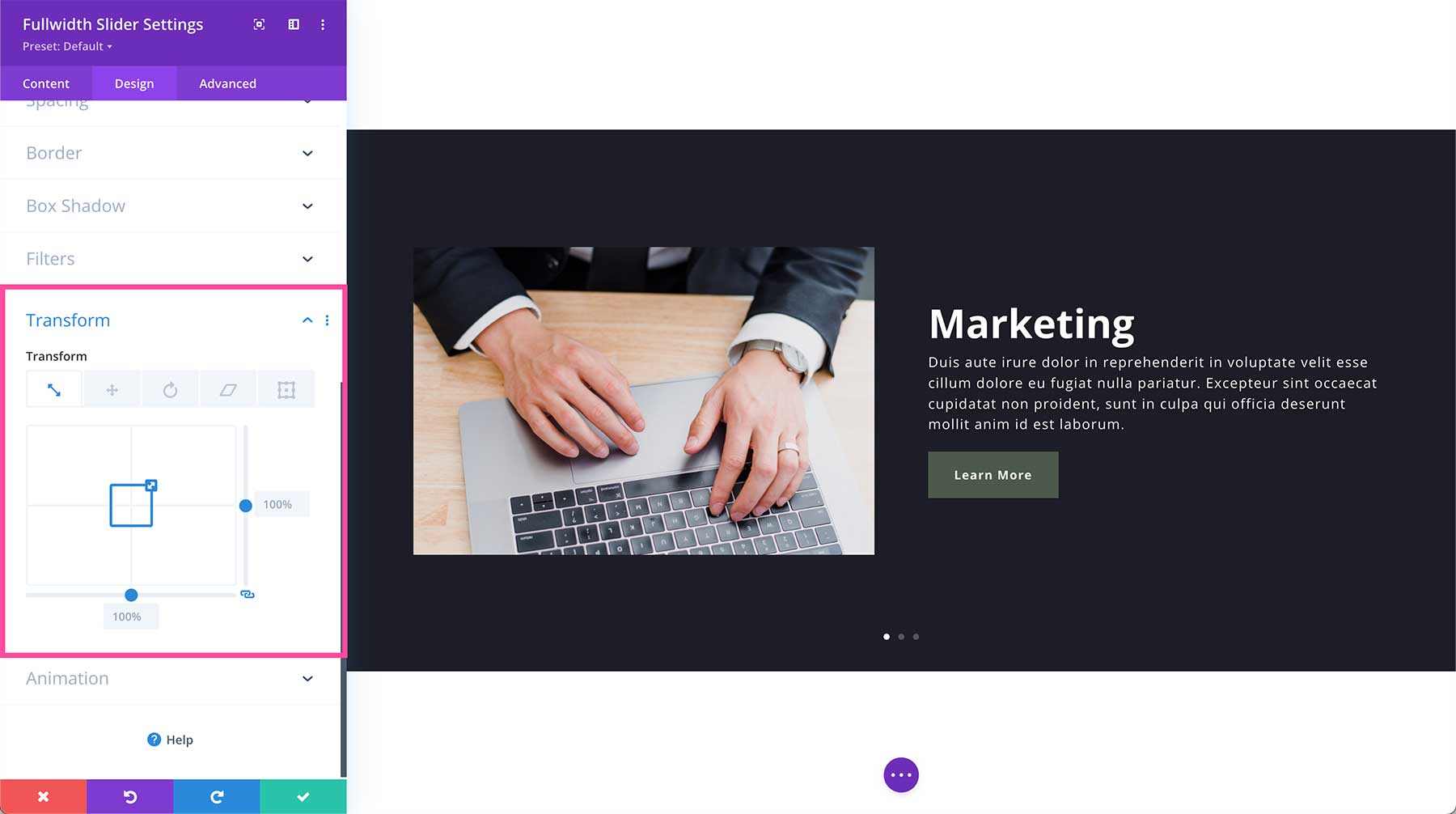

    Transform

    Scale, translate, rotate, skew, and set origin points for this module. Tab through to access each feature. Configure each feature by inputting numerical values or dragging and expanding the box or circle. You can lock in these values to always be identical by clicking the chain link icon at the bottom right.

    Divi Fullwidth Slider Module transform

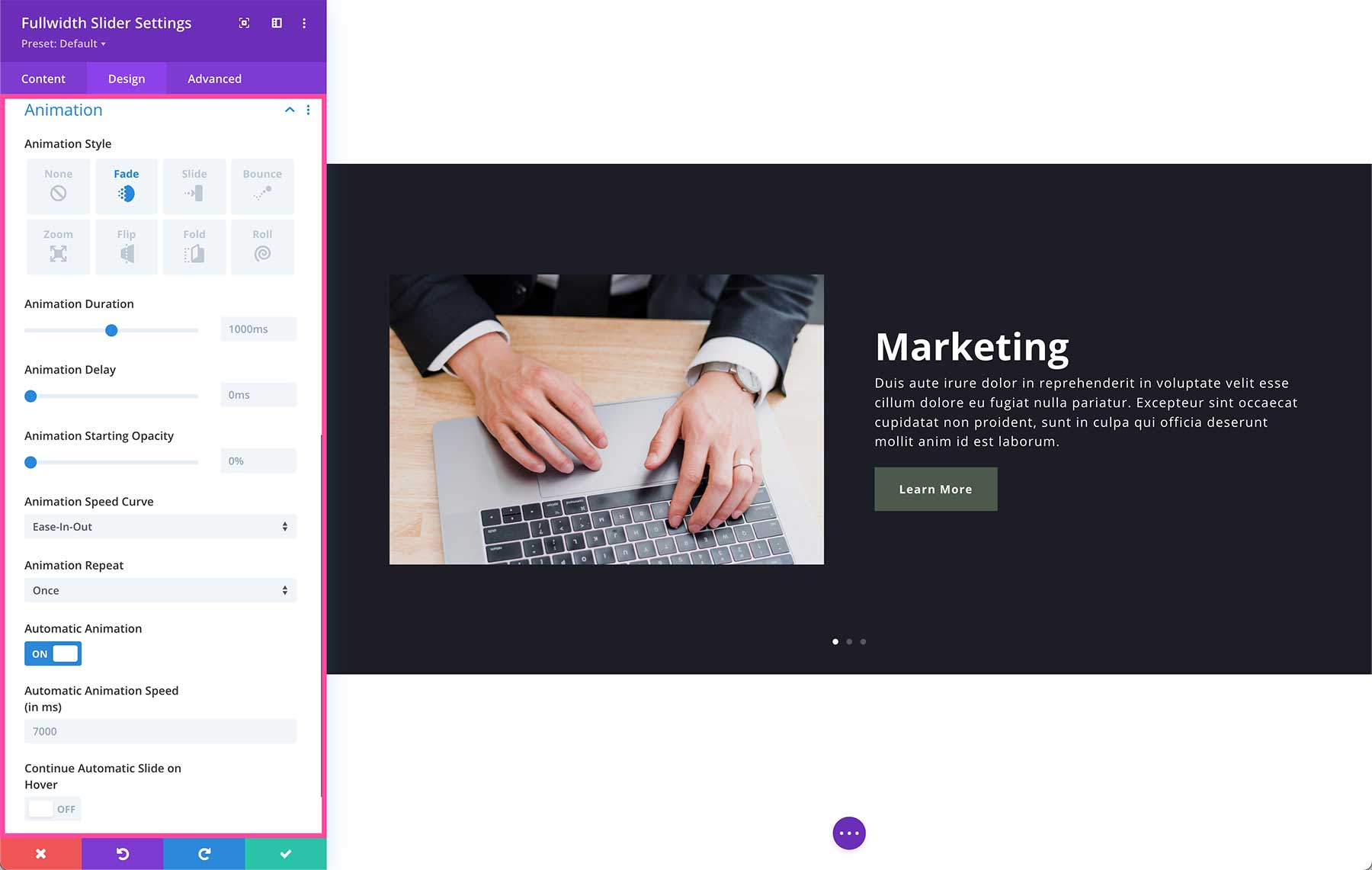

    Animation

    Here you can apply animation to the module. Once you choose an option you can also adjust the duration, delay, opacity, and speed of the animation and whether you want it to continually repeat or just happen once.

    Here you can also toggle on automatic animation for the slider. You can adjust the speed of the automatic animation and whether or not the animation pauses on hover or not.

    Divi Fullwidth Slider Module animation

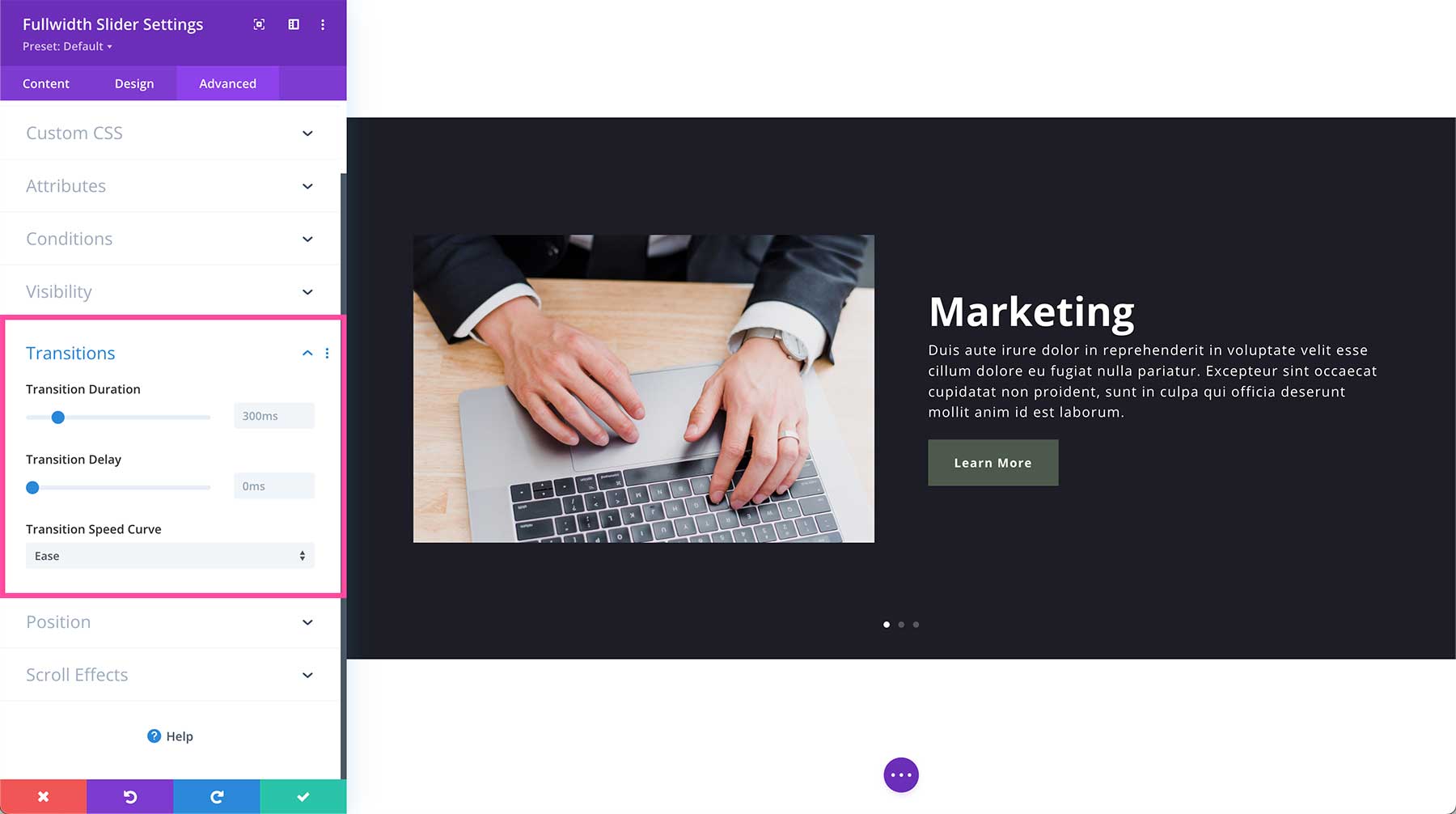

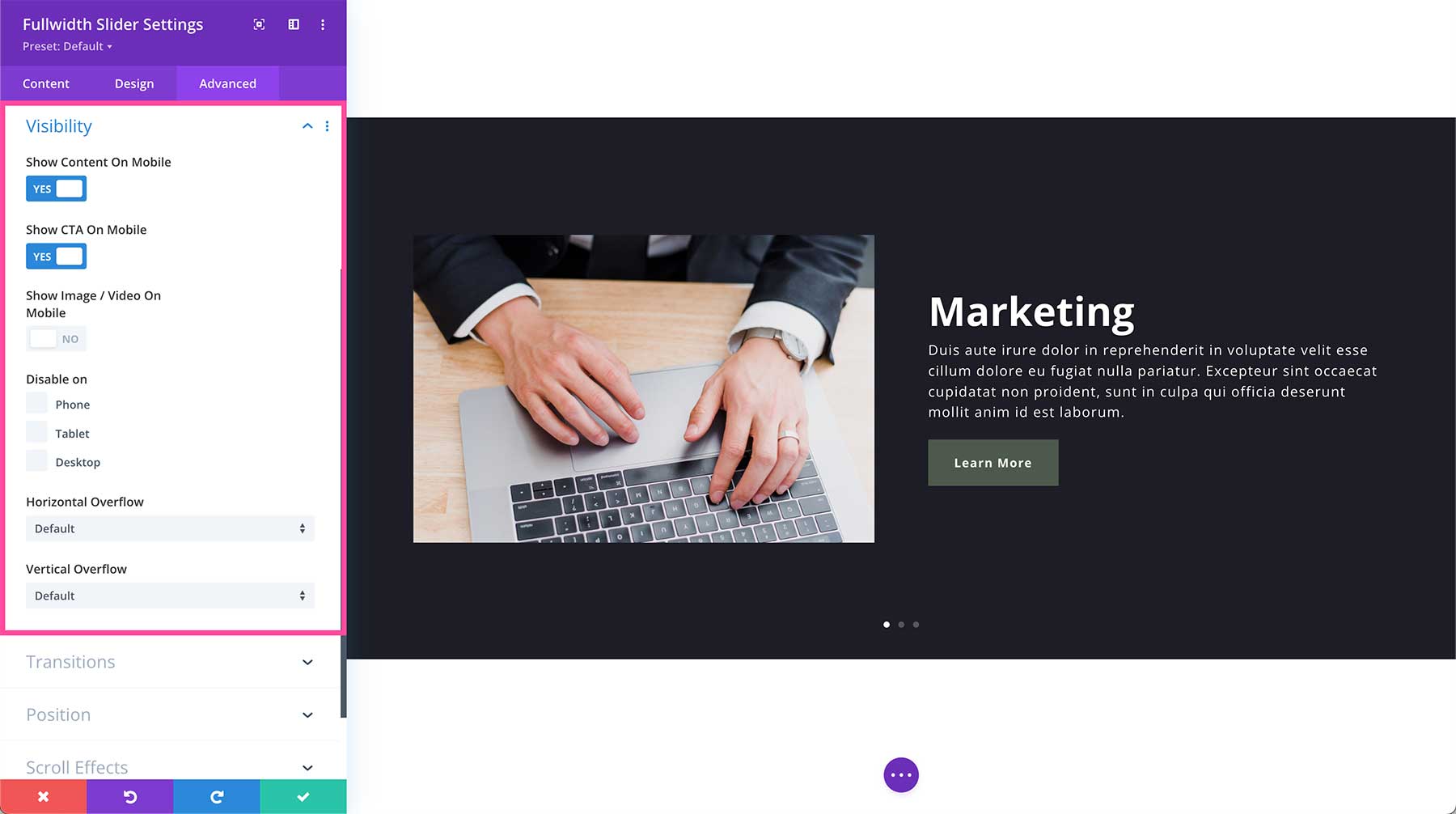

    Advanced

    This is where the advanced customization settings are for the Divi Fullwidth Slider Module.

    Divi Fullwidth Slider Module advanced settings

    CSS ID & Classes

    This is where you can assign a specific CSS ID or class to this module. This is helpful when you’d like to apply custom CSS to a module by using your child theme’s stylesheet.

    Divi Fullwidth Slider Module CSS ID and classes

    Custom CSS

    You can also apply custom CSS to this module by pasting it in this tab. When you click on the Custom CSS tab, you’ll see individual sections where you can add CSS to specific elements in the module.

    Divi Fullwidth Slider Module custom css

    Attributes

    This defines the button link’s relationship between the source you are linking to and the page you are linking from.

    Divi Fullwidth Slider Module attributes

    Conditions

    This tab allows you to choose when to display this module based on a set of conditions, like what time a user is visiting the page if they’ve already purchased from your company before, what browser they are using, what operating system they’re using, and more. You can add one condition or multiple conditions.

    Divi Fullwidth Slider Module conditions

    Visibility

    This defines the visibility of the module. You can choose to disable it (hide it from view) when the display window is a Phone, Tablet, or Desktop by clicking the corresponding checkbox. You can also determine how you want overflow content to be displayed if the content overflows the element that it is in. You can choose visible, scroll, hidden, or auto for both horizontal and vertical content. By default, “auto” is selected.

    • Show Content On Mobile – Toggle this option yes or no to show or hide the content on mobile phones.
    • Show CTA On Mobile – Toggle this option yes or no to show or hide the CTA button on mobile phones.
    • Show Image/Video On Mobile – Toggle this option yes or no to show or hide the image or video on mobile phones.
    • Divi Fullwidth Slider Module visibility

      Transitions

      This controls the transition duration of the hover animation as well as the delay, and speed curve.

      Divi Fullwidth Slider Module transitions

      Position

      This defines the position of the module as well as the offset origin, vertical and horizontal offsets, and the z-index of the module. The available positions are default (which is automatically selected), relative, absolute, and fixed. Defining the z-index allows you to specify the stack order of elements. Elements with a higher z-index number overlap elements with a lower z-index.

      Divi Fullwidth Slider Module position

      Scroll Effects

      This defines how the module behaves upon scroll. You can make the module sticky (to top, bottom, or top and bottom), and choose if the module transforms upon scroll. You can also enable vertical motion on this module which allows you to adjust the speed at which this element scrolls (making it faster or slower) without affecting the surrounding elements. The Motion Trigger Effect allows you to choose when the scroll effect you just applied is triggered: when the top of the element is in view, the middle, or the bottom.

      Divi Fullwidth Slider Module scroll effects

      How to Style Individual Fullwidth Slides

      In the Divi Fullwidth Slider Module you not only have the option to set design styles globally, but you can also style and design individual slides so that each one has their own unique style.

      The design settings and advanced settings are the same for individual slides as the module settings detailed above so below we’ll go over the unique content options availabile for individual slides.

      First, to access an indivdiual slide’s settings click the gear icon. To delete a slide, click the trash can icon. To rearrange a slide, drag and drop the slide.

      Text

      This is where you can add and edit text content for a slide.

      • Title – Type the title of the slide here. If you don’t want a title to appear, leave this field blank.
      • Button – Type the button text here. If you don’t want a button to appear, leave this field blank.
      • Body – Type the body text here. If you don’t want any body text to appear, leave this field blank.

      Image & Video

      Here you can add an image or video to the slide.

      • Image – To add an image click “Add Image” that will bring up your site’s media library where you can select a photo or upload a new one.
      • Video – To add a video click “Add Video” that will bring up your site’s media library where you can select a video or upload a new one.

      Link

      • Button Link URL – Paste the URL of the link you would like to apply to the button here. When clicked, visitors will be taken to that web link.
      • Button Link Target – Defining a link target determines whether the link, when clicked, opens in a new tab or in the same window. Choose “In The Same Window” if you want the link to open in the same window and click “In The New Tab” if you would like that link to open in a new tab. By default, “In The Same Window” is selected.
      • Module Link URL – Paste the URL of the link you would like to apply to this module here. This makes the entire module clickable and when clicked it will direct visitors to the URL pasted here.
      • Module Link Target – Defining a link target determines whether the link, when clicked, opens in a new tab or in the same window. Choose “In The Same Window” if you want the link to open in the same window and click “In The New Tab” if you would like that link to open in a new tab. By default, “In The Same Window” is selected.

      Continue Learning

    👋 It's The Divi
    Cyber Monday Sale!
    Get The Deal
    Before It's Gone!
    Join To Download Today
